SCHILD Johann AS-5203 User manual
INSTRUCTION
MANUAL
LIMITED EDITION
SWISS MOVEMENT
AUTOMATIC
This Limited Edition timepiece is
equipped with a Swiss Made
self-winding Mechanical
Automatic movement manufactured
by Adolph Schild.
AS-5203
It does not need a battery. It is
powered by the motions of the
user’s own wrist during the wear of
the watch.
You may also choose to wind the
watch manually.
3
4
A) DISPLAY
Minute Hand
Hour Hand
Second
Hand
Screw
Down
Crown
Date
Hour Hand
5
B) PLEASE READ THE
FOLLOWING BEFORE
UNSCREWING THE
CROWN
SCREW-DOWN CROWN
Screw-down crowns are used to ensure
water resistance. ALWAYS be certain
that your crown is securely screwed
down ( Position [0] is secured. Positions
[1], [2] and [3] are not secured for water
resistance ).
Do not unscrew your crown while
you are in any environment where
moisture is present.
CLOSED
Securely screwed
and Water Resistant
OPENED
Not secured
For Water Resistance
01
(1st click) (2nd click)
2 3
6

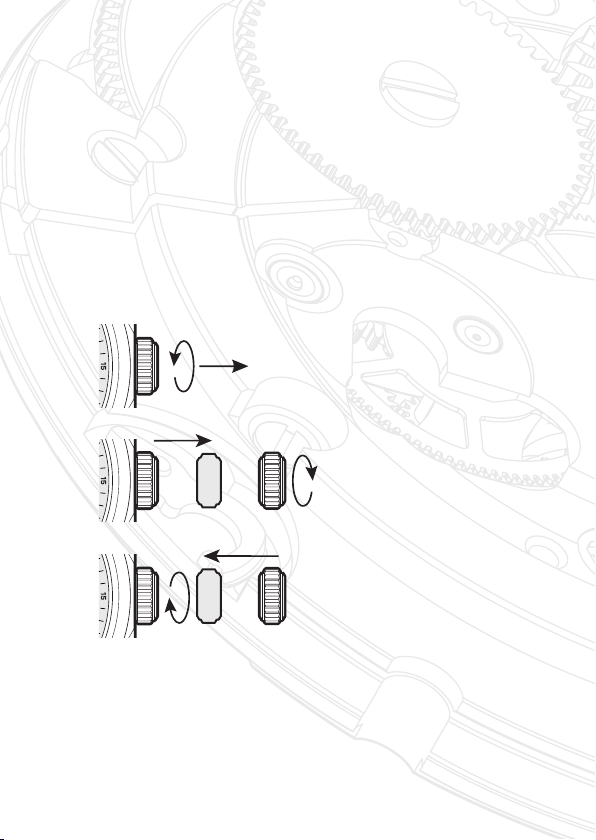

C) USING THE SCREW-
DOWN CROWN
Do not pull the crown unless it is
UNSCREWED first:
TO UNSCREW: Turn the
crown anti-clockwise until
it turns freely without
tension.
GENTLY pull the crown out
to the other desired
positions for watch setting.
TO SCREW: Push the
crown ALL THE WAY IN
(towards the watch) THEN
begin to turn clockwise
until it is securely screwed
down.
0
1
Failure to SECURELY screw down the
crown after setting the watch may
affect its water resistance.
NOTE:
1
1
0
7

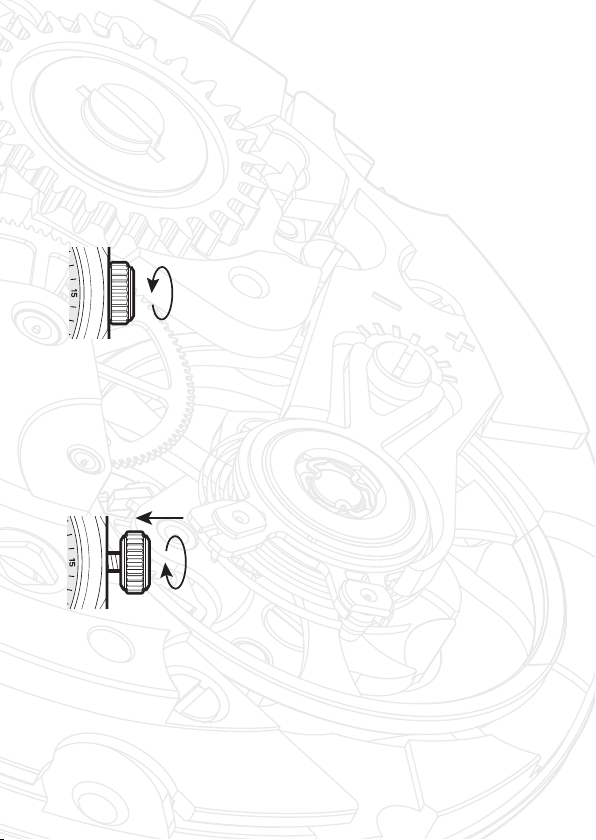

D) WINDING
THE MAINSPRING
THIS WATCH IS AN AUTOMATIC
WATCH EQUIPPED WITH A MANUAL
WINDING MECHANISM.
1. Unscrew the crown by
turning it anti-clockwise.
2. When it is in position [1],
turn the crown clockwise
to wind. Wind 5-10 times
and it will start to move
naturally after shaking
slightly.
3. Push the crown in then
screw it securely.
8
This watch MUST be worn for at
least 8 (Eight) hours each day to
ensure it is fully wound.
An automatic watch will only wind
when the watch is on your wrist and
your arm moves.
Winding the watch by the crown will
put power on the spring but not
enough to allow the watch to
function fully.
If your watch stops overnight or loses
time it means it is not being fully
wound.
NOTE:
1. If your watch is running smoothly, please
do not wind the crown to avoid
overwinding the movement. Provided you
are wearing the watch frequently, your
watch should have sufficient power to
operate without any fuss.
2. If your watch has stopped running after a
period of not wearing the watch, gently
move the watch side to side 20 to 30
times to move the rotor or gently turn the
crown 5 to 10 times to get the second
hand run at its normal speed.
IMPORTANT NOTE:
9
0
2 3
0 3
* Take a.m./p.m. into consideration when setting
the hour and minute hands to the desired time.
* Always be certain that your crown is
SECURELY SCREWED; this will prevent
moisture from entering in.
E) TIME SETTING
1. Unscrew the crown and pull it out to
position [3]-(2nd click).
2. Turn the crown clockwise to set the
correct time.
3. Push the crown in then screw it
securely.
