Schiit SCH-07 User manual

headphone

amps & dacs

ITEM

FOR

MODEL NO

OWNER’S MANUAL

SCH-07/8

discrete headphone amp and usb dacDESCRIPTION

NOTES

REV ARANDOM NUMBER 1001001111

magni and modi are thor’s sons.

at least in norse mythology. and comic books.

here, magni is a headphone amp, and modi is a usb dac.

you see how it is here on earth.

MAGNI and MODI

COMPLETE specifications AVAILABLE ON THE MAGNI AND MODI PAGES ON schiit.com

in the box

magni: (1) Magni

(1) wallwart

(4) stick-on feet

modi: (1) Modi

(4) stick-on feet

(0) anything else

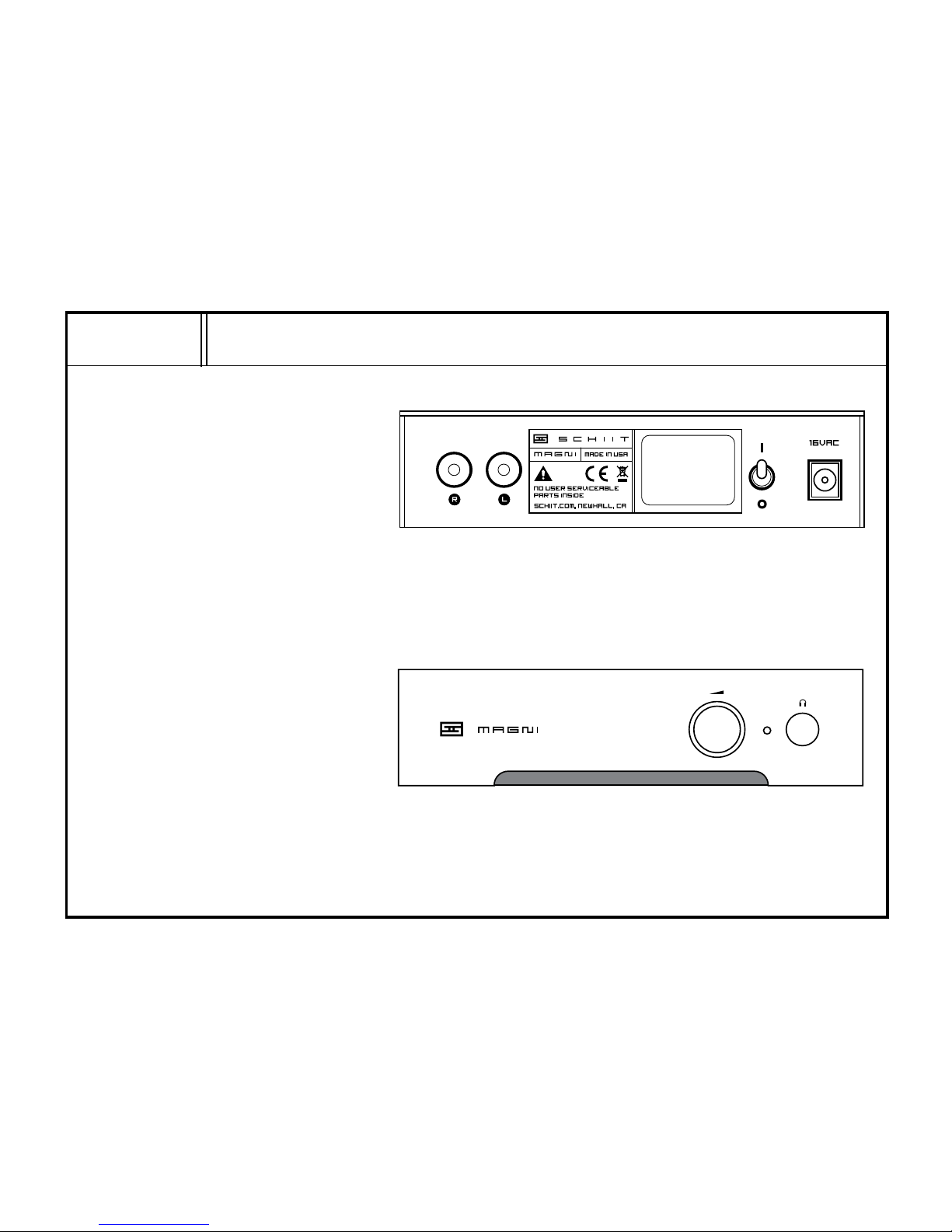

ON THE BACK

1 Connect your source to the Magni’s RCA

jacks, labeled “L” and “R” with high-quality

RCA cables. Alternately, you can use

crappy cables if you really want to.

2 Connect the supplied wall-wart cable

to the jack labeled “16VAC.” Do not use any other wall-wart, no matter how cryo-treated and molecularly

aligned it may be. Most wall-warts are DC, and will not work with Magni.

3 Turn on the switch. The relay will mute Magni’s output for 5-7 seconds, then it will engage with a click.

ON THE FRONT

1Connect your headphones to the

headphone jack, marked with a

headphone icon. For smaller headphones,

you may need a 1/8” to 1/4” adapter.

2 Control volume with the single knob

on the front. It should be obvious which

one it is. We recommend you stop increasing volume before your headphones explode. Remember. Magni

puts out 1.2W into 32 ohms—it’s pretty powerful for its size!

3 And that’s it! Enjoy your music!

ITEM using magni

000001

000001

ON THE BACK

1 Connect your computer to the Modi’s

USB input, helpfully labeled “USB.” Use a

short, USB 2.0-rated cable (3 meters or

less.) Audiophile USB cables may be stiff

and cause “component levitation” of the

lightweight Modi.

2 Connect the two RCA jacks, labeled “R” and “L”, to your amplifier, preamplifier, or receiver. You may use

long cables—Modi’s active output stage drives them with ease.

3 Go ahead and play some music. Modi requires no drivers for Windows, Mac, or Linux computers—as soon

as you plug in, it’s recognized and ready to play. You may have to select it as the preferred output device in

Windows, however.

ON THE FRONT

1When the light is on, that means Modi is

powered up. That’ll happen every time it’s

plugged into an active USB port. Leaving it

on all the time is fine.

2 There is no 2. This is a really simple

device. Why don’t you have a listen now?

000001

000001

ITEM using modi
