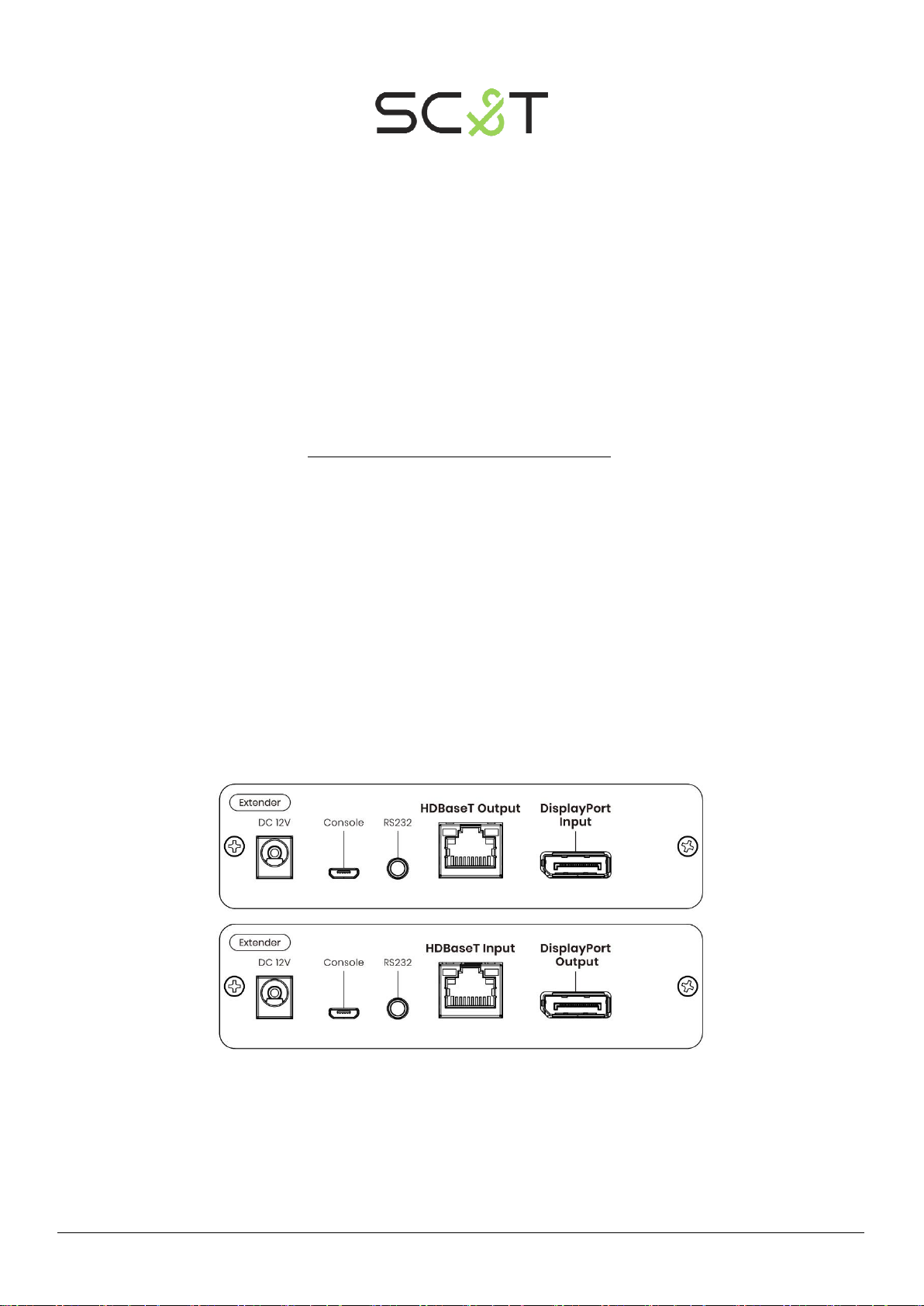

SC&T DP02U-4K6G User manual

Smart Cabling & Transmission Corp. V1.0

V1.0

DisplayPort Extender Series

User Manual

Model : DP02U-4K6G

4K 60Hz DisplayPort KVM Extender with USB 2.0

User Manual

DP02U-4K6G

Overview

DP02U-4K6G is a DisplayPort over HDBaseT KVM Extender which is able to send uncompressed video,

digital & analog audio, RS232, and USB signals, with resolution up to 4096/ 3840 x2160 @60Hz 4:4:4 and

transmission distance up to 100M. It uses the Valens Stello VS3000 chipset, which is the only solution for

long-range distribution of uncompressed video, with zero latency. The 4 built-in USB ports at the RX unit

can connect multiple USB 2.0 devices, such as keyboards, mouses, flash drives, USB cameras, and touch

panels.

Features

Resolution up to 4096/ 3840 x2160@60Hz 4:4:4.

HDBaseT for transmission of uncompressed UHD video at almost zero latency.

Signal extension up to 100m for 4096 x 2160@60Hz.

Built-in 4 ports USB2.0 at the RX unit for USB cameras, flash drives, keyboards/mouses, etc.

Supports bi-directional RS232 transmission.

Supports DisplayPort audio and 3.5mm input/output at Tx or Rx. (For more information, see the Audio

Transmission, P5.)

HDCP compliant.

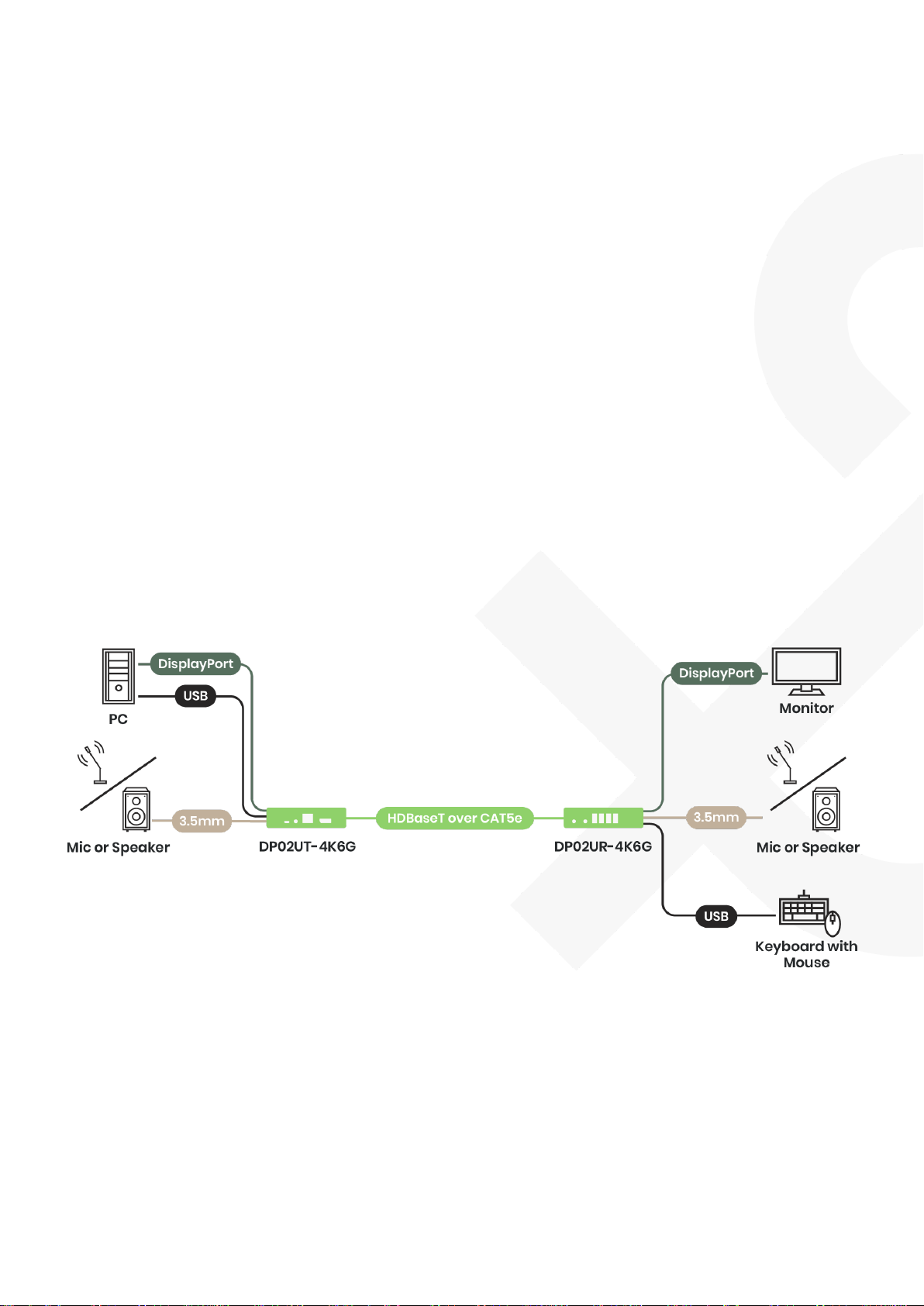

Installation View

User Manual

DP02U-4K6G

Panel View

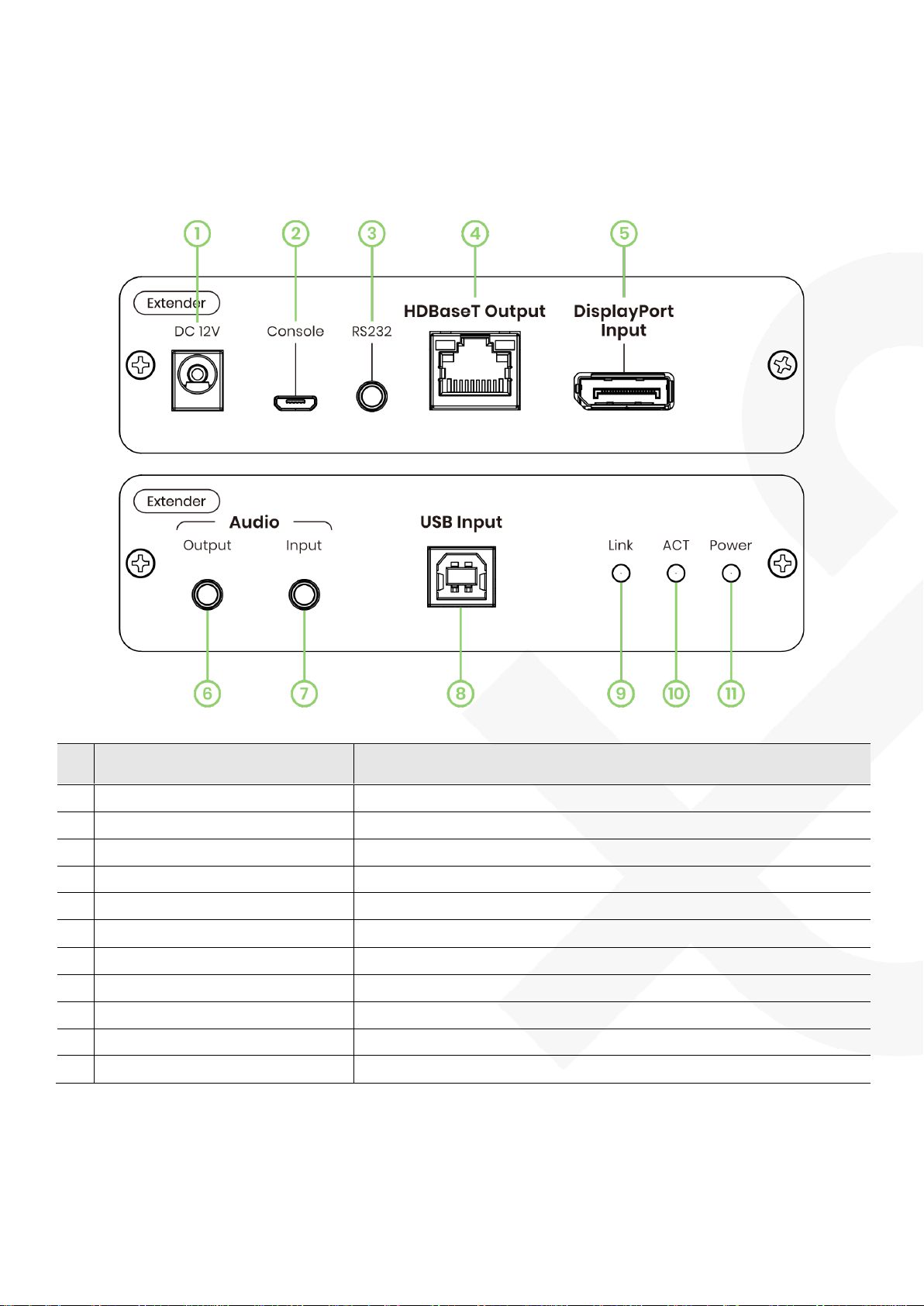

DP02UT-4K6G (Transmitter)

Interface

Description

Power Input

To input 12V 1.5A power

USB Micro-B

Firmware Upgrade

3.5mm Jack RS232

RS232 for control signals extension

HDBaseT Output

To connect a CAT6A for transmission up to 100M

DisplayPort Input

Video Input up to 4096*2160@60Hz

3.5mm Jack Audio Output

Analog audio line out

3.5mm Jack Audio Input

Analog audio line in

USB Type-B

USB2.0 for host connection

Link LED Indicator

LED for visual link indicator

Activity LED Indicator

LED for visual data transfer indicator

Power LED Indicator

LED for visual power indicator

User Manual

DP02U-4K6G

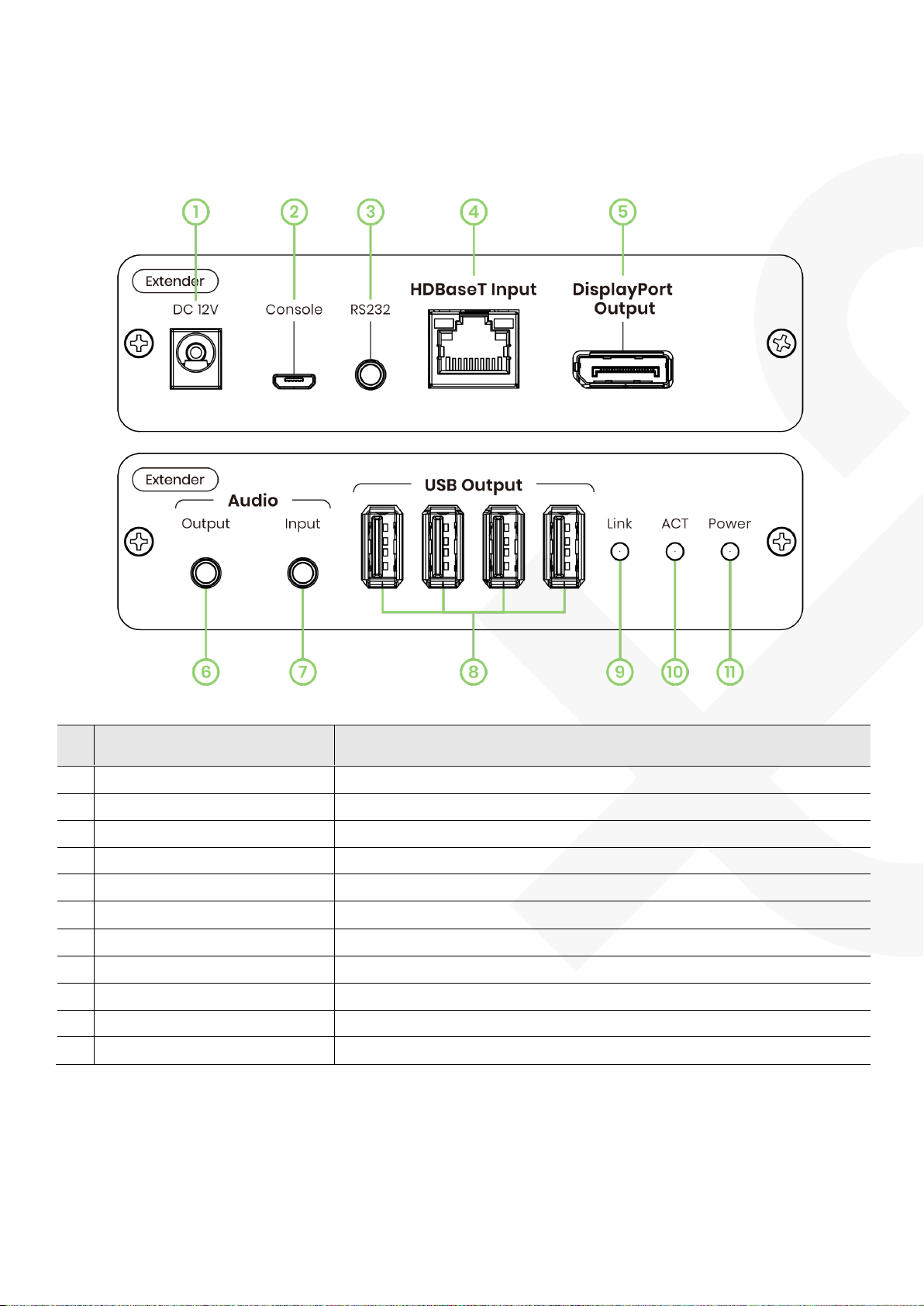

DP02UR-4K6G (Receiver)

Interface

Description

Power Input

To input 12V 1.5A power

USB Micro-B

Firmware Upgrade

3.5mm Jack RS232

RS232 for control signals extension

HDBaseT Input

To connect a CAT6A for transmission up to 100M

DisplayPort Output

Video Output up to 4096 x 2160@60Hz

3.5mm Jack Audio Output

Analog audio line out

3.5mm Jack Audio Input

Analog audio line in

USB Type-A

USB2.0 for device connection

Link LED Indicator

LED for visual link indicator

Activity LED Indicator

LED for visual data transfer indicator

Power LED Indicator

LED for visual power indicator

User Manual

DP02U-4K6G

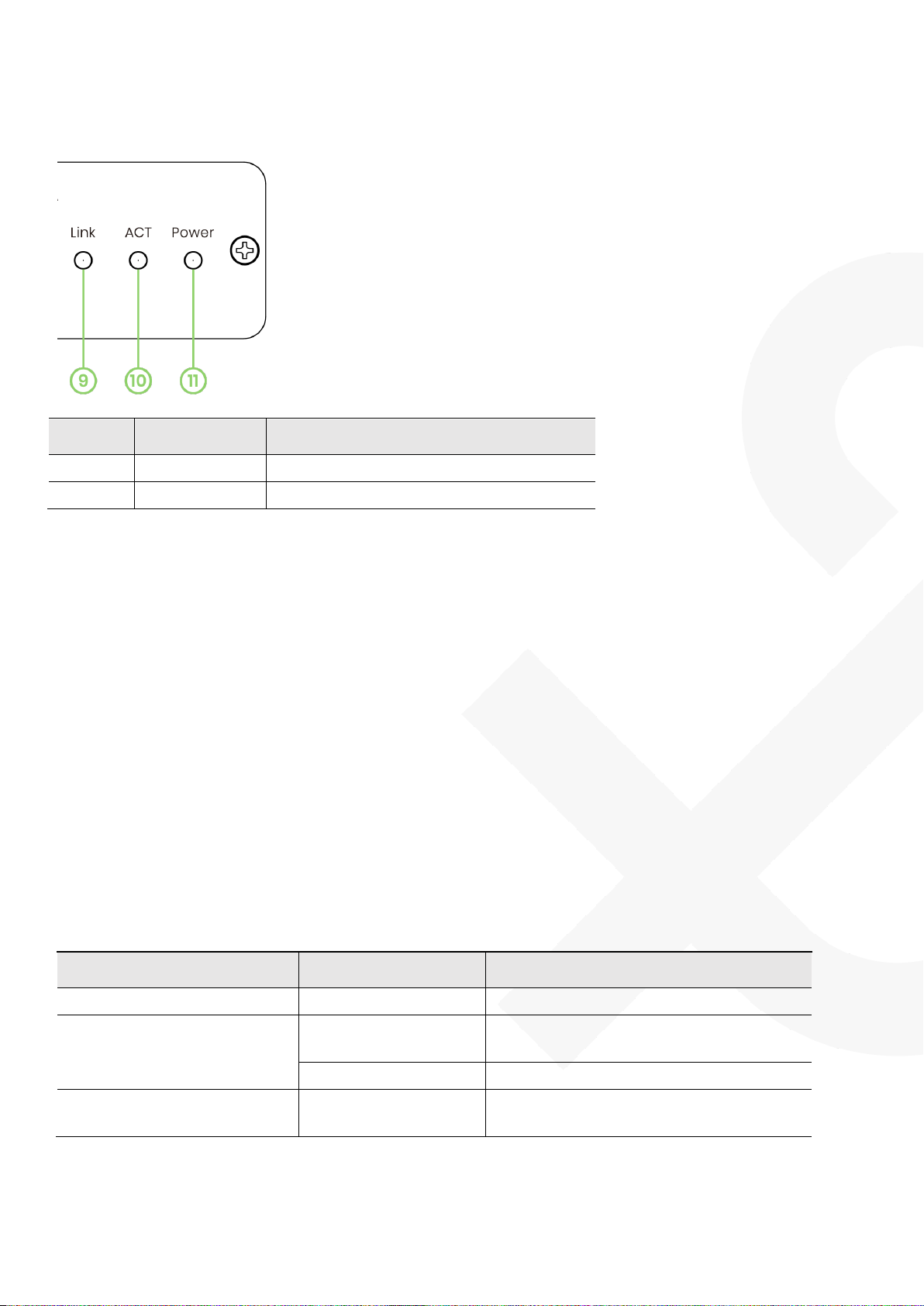

LED Indication

LED

LED Light

Status

Green/Off

Power on/off

LINK

Blue/Off

Connected/Disconnected

Resolution and Distance

Resolution

DP02U-4K6G transmits Displayport KVM and USB2.0 signals at up to 4096/ 3840 x2160@60Hz resolution and

can extend the distance for a maximum of 100m at a lower resolution. For the detailed transmission

distances, see the next chapter.

Transmission Distance

Table of Distance

At 4096x2160@60Hz 4:4:4, using an HDBaseT 3 certified CAT6A cable can extend the signal for 100m and a

COMMSCOPE CAT6A cable for 80m, after tests. See the table below for information about the transmission

distance.

Cable Type

Maximum Distance

Resolution

CAT6A (HDBaseT3 Certified)

100m

4096/ 3840 x2160 60Hz

CAT6A (COMMSCOPE)

100m

4096/ 3840 x2160 30Hz

1920x1080 60Hz

80m

4096/ 3840 x2160 60Hz

CAT5e

40m

4096/ 3840 x2160 30Hz

1920x1080 60Hz

User Manual

DP02U-4K6G

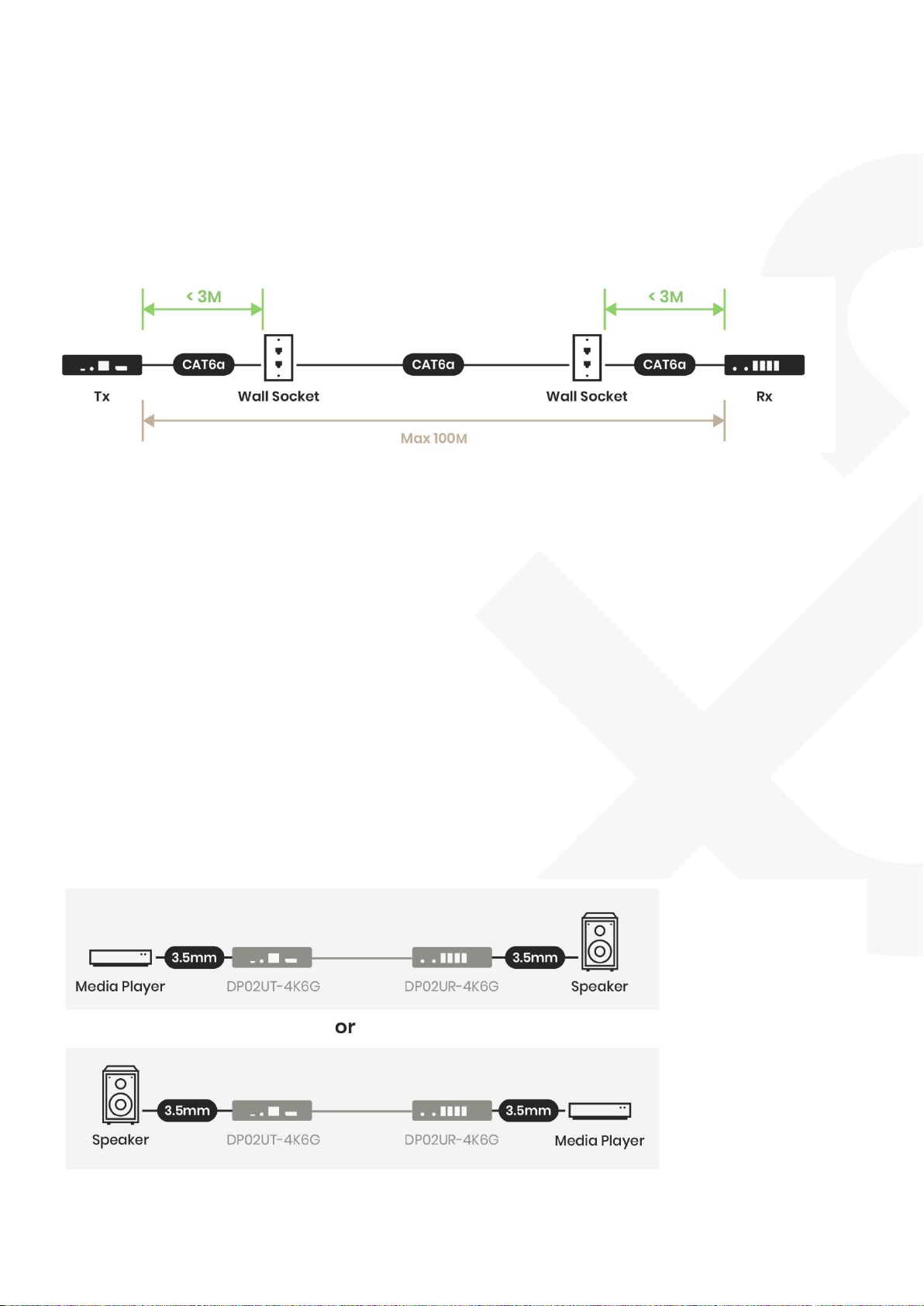

Setting up

Wall socket

If the Ethernet cable passes through the wall socket, the length of the cable between DP02U and Wall Jack

must be fewer than 3 meters as connection diagram shown below:

Cable used

We recommend using high-quality CAT6, CAT6a, CAT7 UTP/STP, or FTP cables to connect DP02UT-4K6G and

DP02UR-4K6G. Poor quality cables and any improper connection will cause video or audio disruptions and

picture noise.

Audio Transmission

DP Audio

DP02U-4K6G transmits DP audio. DP audio input can only be played from DP output.

Sound Channel

DP02U-4K6G has an independent 3.5mm sound channel at the transmitter and receiver, which can be

connected to a microphone or speaker. Tx 3.5mm audio input can only be played at Rx output. Rx 3.5mm

audio input can only be played at Tx output.

Independent 3.5mm sound channel which can be connected to a microphone or speaker at either Tx or

Rx.

User Manual

DP02U-4K6G

RS232 Transmission

DP02U-4K6G supports RS232 transmission via a 3.5mm connector. If your RS232 device uses a DB9

connector, you will need a DB9 to 3.5mm adapter cable to connect the device to Tx and Rx.

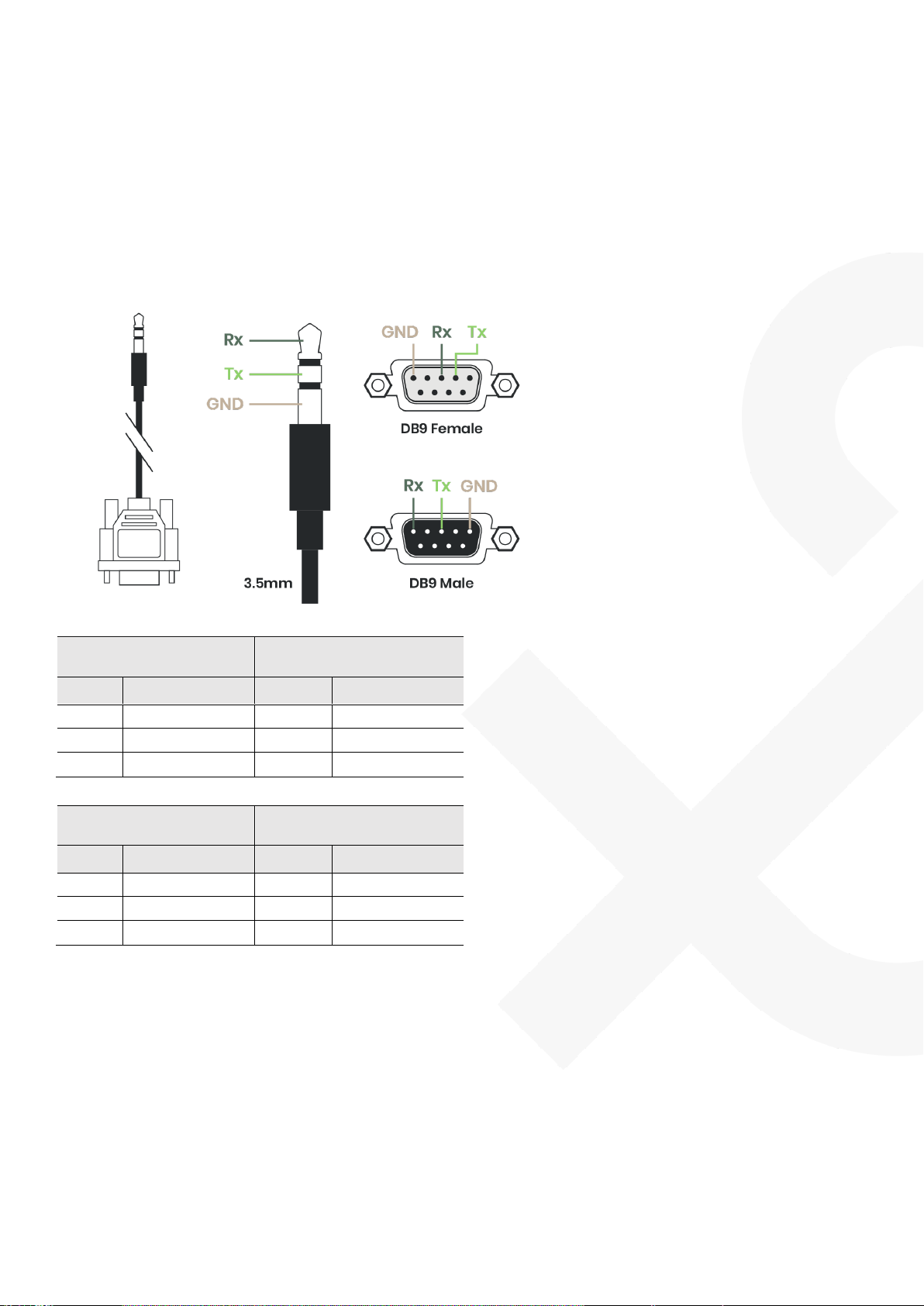

RS232 Definition

DP02U-4K6G has 3.5mm for RS232 transmission. See the pictures and tables below for detailed

connections.

RS232(DB9 Female)

3.5 mm Phone Jack

Definition

Pin 2

Pin 1

Pin 3

Pin 2

Pin 5

GND

Pin 3

GND

RS232(DB9 Male)

3.5 mm Phone Jack

Definition

Pin 2

Pin 1

Pin 3

Pin 2

Pin 5

GND

Pin 3

GND

User Manual

DP02U-4K6G

Caution

Using a certified Premium HDMI cable to transfer high-resolution video is recommended.

Using a certified HDBaseT3 CAT6A U/FTP cable to transmit up to 100m is needed.

The maximum power provided from each USB port is 500mA, and the total maximum power from

the 4 ports is approximately 1700mA. It can also work with a DC5V 3000mA adapter to increase the

total maximum power to 2000mA.

This product is designed for indoor applications. If it is desired for outdoor use, please install

additional equipment for waterproof protection and surge protectors to prevent damage caused

by lighting.

Do not put anything on the power and system cables. Place them where they cannot be stepped

on. Please be sure there is nothing resting on any cables.

Avoid using this product close to water places, or near high-temperature devices such as

radiators, stoves, etc.

Shut down the power supply and unplug all equipment immediately if:

oWater or any kind of liquid has been spilled into the product.

oThe temperature is too high.

oThe product has been damaged by an external force.

oThe product does not operate normally as this manual indicates.

Please contact us for further repair if the above conditions happen.

Package Includes

Item

Amount

DP02UT-4K6G (Transmitter Unit)

1 pc

DP02UR-4K6G (Receiver Unit)

1 pc

DC5V 1.5A Power Adapter

2 pcs

USB A/B Cable

1 pc

Mounting Screw pack

1 bag

User Manual

DP02U-4K6G

Specification

Model

DP02UT-4K6G

DP02UR-4K6G

Compliance

Standard

DP1.2

HDCP1.3

USB2.0

Video Resolution

4K@60Hz 4:4:4

Transmission Distance

100M (HDBaseT3 certified CAT6a U/FTP cable)

RS232 Baud Rate

115200 bps/Full Duplex

Ports & Interfaces

Video Input

1 x DisplayPort

1 x HDBaseT

Video Output

1 x HDBaseT

1 x DisplayPort

Audio Input

1 x (3.5mm) Phone Jack

Audio Output

1 x (3.5mm) Phone Jack

USB Connector

1 x USB Type-B

4 x USB Type-A

RS232

1 x (3.5mm) Phone Jack

Console (Firmware Upgrade)

1 x USB Micro-B

LED Indicators

3-LED Status:

PWR / HDBaseT Link / HDBaseT

Activity

3-LED Status:

PWR / HDBaseT Link / HDBaseT Activity

Power

Power Supply

12V 1.5A

Power Consumption

<10W

Ambient Temperature

Operation

-20 to 70°C

Storage

-40 to 85°C

Operating Altitude

2000m

Humidity

Up to 95%

Physical Characteristics

Dimension

122 x 124 x 32mm

Weight

340g

355g

User Manual

DP02U-4K6G

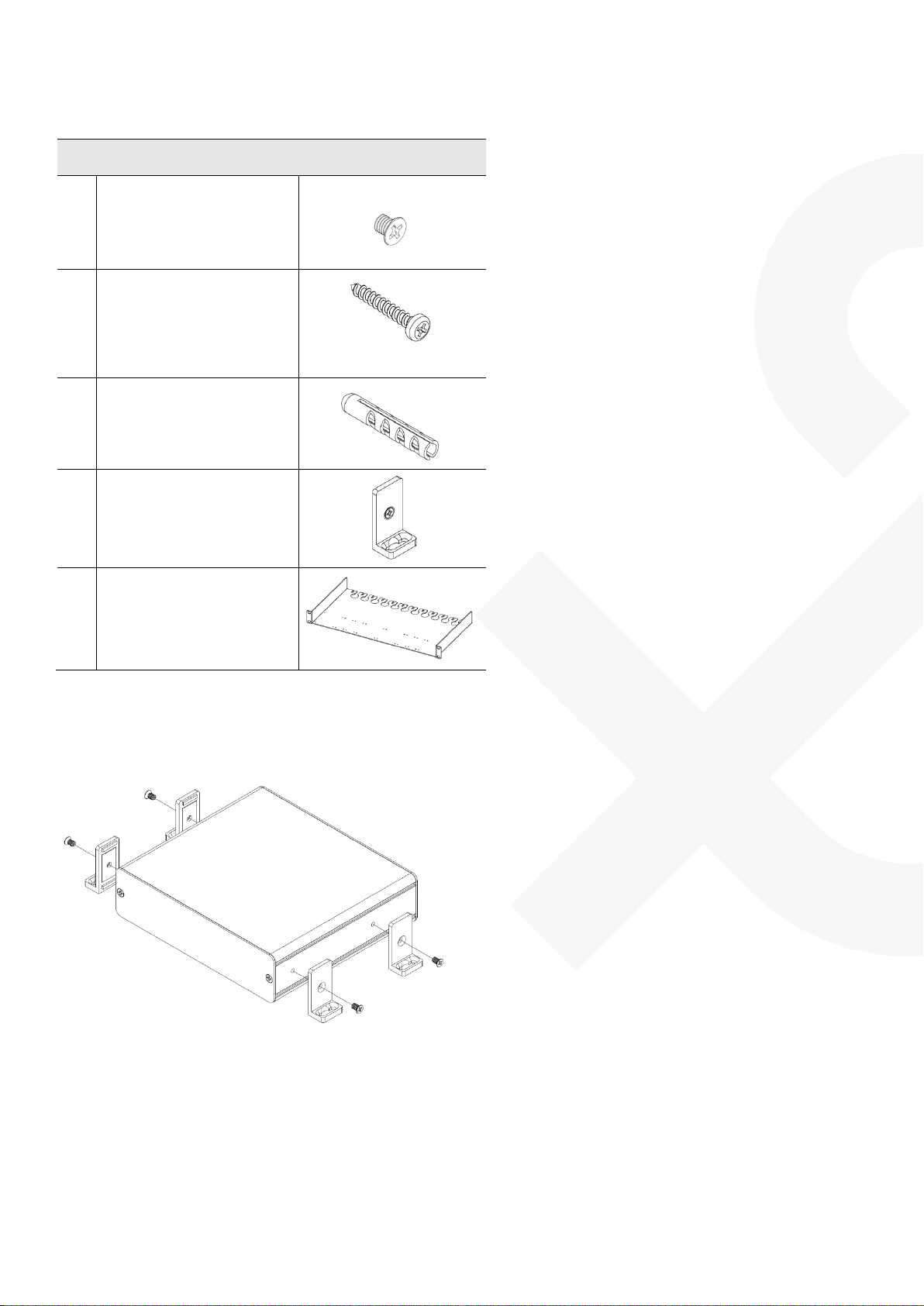

Installation Guide

Accessory

Machine Screw

Self-drilling Screw

Screw Plug

Angle Bracket

1U Rack

Installed on a Platform

Step 1 Use machine screws to fix angle brackets on both sides of your product
