1. Welcome

Welcome

Thank you for purchasing this Scandium appliance.

To achieve the optimal performance from your appliance, and to avoid the risk of accident or damage, it is

essential to read this manual before installation and rst time use.

This guide contains important information on the use and maintenance of the appliance, as well as important

safety notes.

Your appliance has been thoroughly checked for safety and functionality before being packaged and leaving

the manufacturer.

Please keep this instruction manual in a safe place so you can refer to it at any time.

ATTENTION

Installation, regulation or maintenance, of both gas and electric appliances, should

only be executed by qualied and authorised personnel who are aware of the

installation regulations in force.

Please make sure to read this booklet carefully, containing general instructions for the

Installation, Operation and Maintenance of your appliance, before installation and

operation.

It is extremely useful to know, in detail, the best way of operating and maintaining

this appliance so you can enjoy its benets and be assure of the best results.

Please keep this instruction booklet with the appliance in case you pass it on to

someone else.

IMPORTANT: Upon collection or delivery of the appliance, any damage or defects MUST be reported

within 48 hours to the retailer or the customer service centre, or no claim will be recognised.

Page 4

2. Your Safety — General Warnings

WARNING: It is important that this guide be retained with the appliance for future reference. Should the

appliance be sold or transferred, always ensure that the book is left with the appliance in order that the new

owner can get to know the functions of the appliance and the relevant warnings. These warnings are provided

in the interest of safety. You MUST read them carefully before installing or using the appliance.

• This appliance is designed for non-professional use by private individuals at home. It must be used by

adults.

• Do not allow children to play with the appliance

• The accessible parts of the cooktop could overheat during use.

• The appliance is not intended for use by persons (including children) with reduced physical, sensory or

mental capabilities, or lack of experience and knowledge, unless they have been given supervision or

instruction concerning the use of the appliance by a person responsible for their safety. Children should be

supervised to ensure they do not play with the appliance.

• Unattended cooking with fat or oil can be dangerous and may result in re.

• NEVER try to extinguish a re with water. Switch off the appliance and then cover ame e.g. with a lid or a

re blanket.

• Danger of re: Do not store items on the cooking surfaces.

• If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

• The appliance is not intended to be operated by means of an external timer or separate remote-control

system.

• Do not use steam cleaning devices to clean the appliance.

• Before using the ceramic plate for the rst time read the Operating Manual carefully to ensure safe

operation and avoid damage to the plate.

• If the ceramic cooktop is operated near a radio, TV set or other emitting device, please check whether the

touch panel works correctly.

• The ceramic plate must be installed by a qualied electrician.

• Do not install the ceramic plate near refrigerating devices.

• The benchtop surfaces should be resistant to temperatures up to 100ºC. This requirement applies to the

veneers, edges, plastic surfaces, glues and varnishes.

• The plate can only be used after it has been installed.

• Electric appliances can only be repaired only by qualied specialists. Unprofessional repairs may

compromise the safety of the appliance and void warranty.

• Never allow children to remain unattended near the cooktop or to play with the control panel.

• When switched on, the hotplates quickly become hot. To avoid unnecessary power consumption, switch

them on only after putting a cooking pot.

• A residual temperature indicator built-in into the electronic system tells you if the hotplate is still switched

on and whether it is still hot.

Page 5

2. Your Safety — General Warnings

• Should a power failure occur, all the settings and indicators will be cancelled. Please be careful when the

power supply is restored as hotplates which have been hot before the power failure will no longer be

indicated.

• If there is a mains socket located near the hotplate, make sure that the supply cord does not touch the hot

places.

• Do not leave the plate unattended when cooking with fats and oils as they can create re hazard.

• Do not use plastic pots or containers made from aluminium foil as they melt in high temperatures and may

damage the ceramic plate.

• Sugar, citric acid, salt etc., both in liquid and solid state, as well as plastic should not come into contact with

a hot hotplate.

• If sugar or plastic gets on spilt the hot hotplate, you may not switch off the plate but scrape away sugar or

plastic using a sharp scrap. Protect hands from burns.

• Use only at-bottom pots and saucepans on your ceramic plate, without sharp edges or burrs as the plate

may become permanently damaged.

• The heating surface of the ceramic plate is resistant to thermal shock. It is neither hot nor cold-sensitive.

• Avoid dropping objects on the plate as they could cause cracks and damage. A point hit, for example a

falling bottle with spices, may in unfavourable circumstances lead to cracks and splits appearing on your

ceramic plate.

• Boiled over residuals of food may penetrate damaged places and reach the live components of the ceramic

plate.

• Should cracks or splits appear on the surface of your ceramic plate immediately disconnect it from the mains

and call the customer service centre.

• Please observe the maintenance and cleaning guidelines. Failure to comply with the provided guidelines,

will void warranty.

CAUTION

The cooking process has to be supervised. A short term cooking

process has to be supervised continuously.

Page 6

2. Your Safety — General Warnings

Saving Energy

Saving energy not only saves you money, it also helps to keep the environment healthy. Below

are some useful tips.

• Use proper pans for cooking

Pans with thick, at bases can save up to 30 % on electric energy. Remember to use a lid to

cover pans if possible; otherwise you will use four times more energy.

• Match cookware to the size of the cooking zone

Cookware should be neither bigger nor smaller than the diameter of the hotplate.

• Keep the plate and cookware bases clean

Soils can prevent heat transfer and heavily burnt food residuals often require cleaning with chemicals that

can cause damage to the environment.

• Avoid unnecessary cookware lid removal (a watched pot never boils)

• Do not install the plate near refrigerators or freezers

Otherwise energy consumption increases unnecessary.

Unpacking

The appliance has been packed to protect it from damage during transport. After

unpacking, please dispose of the packing materials in a way that will not cause damage

to the environment.

All materials used for packaging of the appliance are environmentally friendly and 100%

recyclable and marked with the appropriate symbol.

IMPORTANT: During unpacking, keep the packaging material (polystyrene bags, polystyrene pieces, etc.) out

of reach of children.

Page 7

3. Appliance Description

Description of Ceramic Cooktop

Touch Control Sensor Panel

Back left cooking zone

Diameter 145mm

Back right cooking zone

Diameter 180mm

Front right cooking zone

Diameter 145mm

Front left cooking zone

Diameter 210mm

Cooking zone indicators

Cooking zone selector sensor

Lower heat setting selector

Higher heat setting selector

On/off sensor

Page 8

4. Installation

Making the Benchtop Recess

• Benchtop thickness should be 28 - 40 mm. The benchtop must be at and level. Edge of the benchtop near

the wall must be sealed to prevent ingress of water or other liquids.

• There should be sufcient spacing around the opening, in particular, at least 50 mm distance to the wall and

60 mm distance to the front edge of benchtop.

• The distance between the edge of the opening and the side wall of the benchtop should be at least 55 mm.

• Benchtop must be made of materials, including veneer and adhesives, resistant to a temperature of 100°C.

Otherwise, benchtop maybe deformed.

• Edge of the opening should be sealed with suitable sealer to prevent ingress of water.

• Benchtop opening must be cut to dimensions as shown on gure 1.

• Ensure a minimum clearance of 25 mm below the cooktop to allow proper air circulation and prevent

overheating.

560mm

490mm

min 55

min 60

min 50

Figure 1

Page 9

4. Installation

When installing the cooktop in the kitchen benchtop, install a partition panel, as shown on the picture. If the

cooktop is to be installed above a built-in oven, installation of the partition panel is not required.

If the cooktop was installed in the kitchen benchtop above the drawer, the bottom cover of the cooktop must

be covered with a wooden panel or protective board for ceramic cooktops.

min 25

Installing the cooktop in the kitchen

cabinet benchtop

25mm

Installing the cooktop in kitchen

cabinet benchtop above an oven

IMPORTANT

• Do not install the cooktop above the oven without ventilation, inadequate ventilation will

damage the cooktop and void warranty.

• Position electrical lead so that it does not touch the lower guard.

Oven

Cooktop

Page 10

4. Installation

Cooktop Installation

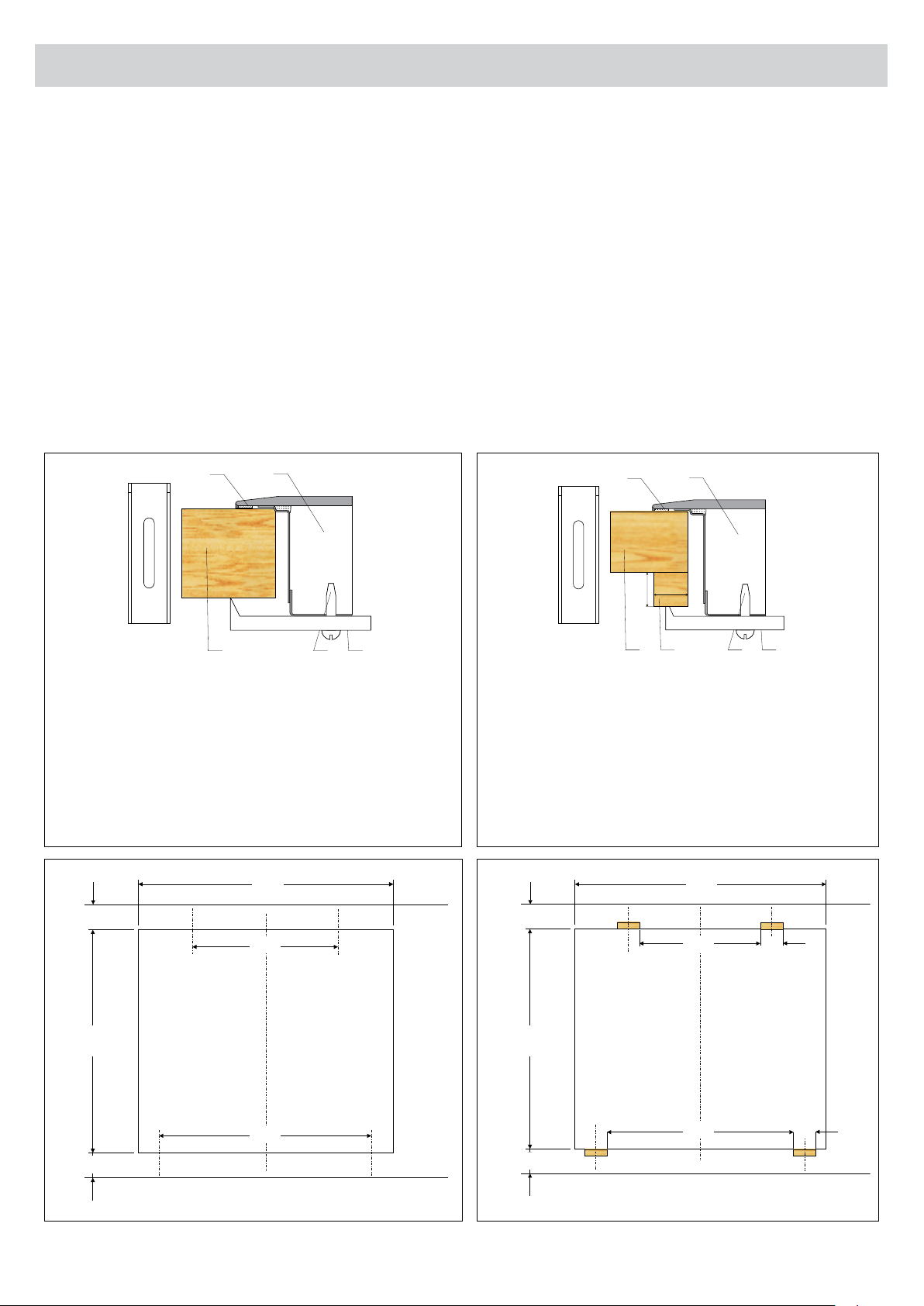

• Use the four xing brackets (3) for 38 mm thick benchtops. Fit the cooktop into the benchtop opening as

shown on gure 2 and 3. To properly secure the cooktop on a 28 mm thick benchtop, use four 15x15x50 mm

wooden blocks in addition to xing brackets (3). Fit the cooktop into the benchtop opening as shown on

gure 4 and 5.

• Check the adhesive seal is properly applied to the cooktop‘s ange.

• Loosely attach xing brackets to the bottom of the cooktop.

• Remove dust from the benchtop, insert cooktop into the opening and press in rmly.

• Position xing brackets perpendicularly to the cooktop‘s edge and tighten rmly.

1. worktop

2. screw

4. hob

5. seal

1. worktop

2. screw

4. hob

5. seal

6. wooden block

5 4

321

5 4

321

320

560

094

nim

466

560

416 50

094

nim

270 50

Figure 4

1. worktop

2. screw

4. hob

5. seal

1. worktop

2. screw

4. hob

5. seal

6. wooden block

5 4

321

5 4

321

320

560

094

nim

466

560

416 50

094

nim

270 50

Figure 3

560

320

466

490

min

60 min

1. worktop

2. screw

4. hob

5. seal

1. worktop

2. screw

4. hob

5. seal

6. wooden block

5 4

321

5 4

321

320

560

094

nim

466

560

416 50

094

nim

270 50

Figure 5

560

270

416

490

min

60 min

1. worktop

2. screw

4. hob

5. seal

1. worktop

2. screw

4. hob

5. seal

6. wooden block

5 4

321

5 4

321

320

560

094

nim

466

560

416 50

094

nim

270 50

Figure 2

1. Benchtop

2. Screw

3. Fixing bracket

4. Cooktop

5. Seal

1. Benchtop

2. Screw

3. Fixing bracket

4. Cooktop

5. Seal

6. Wooden block

Table of contents

Other Scandium Cooktop manuals

Scandium

Scandium SCGT60 Owner's manual

Popular Cooktop manuals by other brands

Bonnet

Bonnet OPTIMUM 700 Technical instructions

Jenn-Air

Jenn-Air JGCP430 installation instructions

Frigidaire

Frigidaire FES367FCC Wiring diagram

Ztove

Ztove EZ2 DUO instruction manual

Kleenmaid

Kleenmaid cooking GCTK9011 Instructions for use and warranty details

Casselin

Casselin CSASRE24 manual

Jenn-Air

Jenn-Air JGC2536EB00 Use & care guide

Waldorf

Waldorf RN8603E-B Technical data sheet

Whirlpool

Whirlpool SMP658CNEIXL quick guide

Wolf

Wolf CI243C/B Use and care guide

Fulgor Milano

Fulgor Milano F5PGK305S1 installation instructions

GE JP389 Specifications

Wells

Wells WV-2HFG owner's manual

IKEA

IKEA Lagan HGA4K user manual

Samsung

Samsung NA36N9755 installation manual

Miele

Miele KM 404 operating instructions

Lacor

Lacor 69562 Instructions for use and maintenance

Keating Of Chicago

Keating Of Chicago MG-2 manual
