Savoy House Circulaire User manual

OWNER’S MANUAL

READ AND SAVE THESE INSTRUCTIONS

Circulaire

CEILING FAN

1. TOOLS AND MATERIALS REQUIRED

● Philips screw driver

● Blade screw driver

● Step Ladder

● Wire Cutters

● Carpenter’s Level

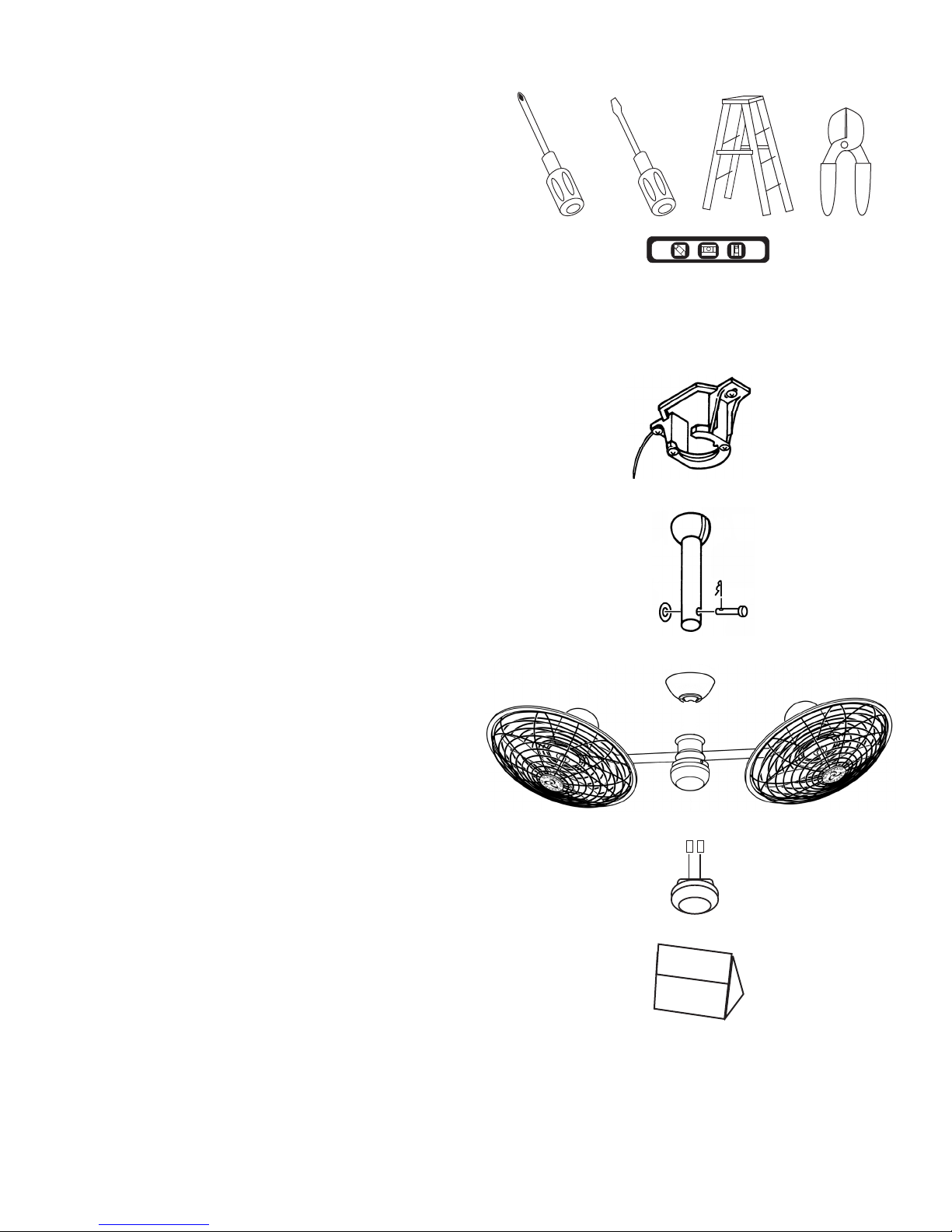

2. PACKAGE CONTENTS

The following items should be contain within the

package;

Hanger Bracket Assembly

Downrod

Fan Head Assembly

Light Kit

Package Hardware:

Screws

Washers

Spring Washers

Tooth Washers

Wire Nuts

3. SAFETY RULES

1. To reduce the risk of electrical shock, insure

electricity has been turned off at the circuit

breaker or fuse box before beginning.

2. All wiring must be in accordance with the

National Electrical Code and local electrical

codes. Electrical installation should be

performed by a qualied licensed electrician.

3. WARNING: To reduce the risk of electrical

shock and re, do not use this fan with any

solid-state fan speed control device.

4. WARNING: To reduce the risk of personal

injury, use only the two steel screws (and

lock washers) provided with the outlet box for

mounting to the outlet box. Most outlet boxes

commonly used for the support of lighting

xtures are not acceptable for fan support and

may need to be replaced, consult a qualied

electrician if in doubt.

_______________________________________

WARNING

TO REDUCE THE RISK OF FIRE,

ELECTRICAL SHOCK OR PERSONAL INJURY,

MOUNT FAN TO OUTLET BOX MARKET

“ACCEPTABLE FOR FAN SUPPORT”.

_______________________________________

5. The outlet box and support structure must

be securely mounted and capable of reliably

supporting a minimum of 50 pounds. Use only

CUL Listed outlet boxes marked “FOR FAN

SUPPORT”.

6. The fan must be mounted with a minimum of 6

feet clearance.

7. Do not adjust fan heads while fan blades are

in motion. Fan must be turned off and blades

stopped before adjusting fan heads or reversing

direction.

8. Avoid placing objects in the path of the fan

heads.

9. To avoid personal injury or damage to the fan

and other items, be cautious when working

around or cleaning the fan.

10. Do not use water or detergents when cleaning

the fan or fan blades. A dry dust cloth or

lightly dampened cloth will be suitable for most

cleaning.

11. After making electrical connections, spliced

conductors should be turned upward and

pushed carefully up into the outlet box. The

wires should be spread apart with the grounded

conductor and the equipment-grounding

conductor on one side of the outlet box.

12. Electrical diagrams are reference only. Light

kit that are not packed with the fan must be

CUL Listed and marked suitable for use with

the model fan being installed. Switches must

be CUL General Use Switches. Refer to the

Instructions packaged with the light kits and

switches for proper assembly.

_______________________________________

WARNING

TO REDUCE THE RISK OF PERSONAL

INJURY, DO NOT INSERT OBJECTS IN THE

PATH OF THE BLADES.

_______________________________________

NOTE: The important safety precautions and

instructions appearing in the manual are not meant to

cover all possible conditions and situations that may

occur. It must be understood that common sense and

caution are necessary factors in the installation and

operation of this fan.

4. MOUNTING OPTIONS

If there isn’t an existing CUL listed mounting box,

then read the following instructions. Disconnect

the power by removing fuses or turning off circuit

breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and building

materials. The outlet box and its support must be

able to fully support the moving weight of the fan

(at least 50 lbs.). Do not use plastic outlet boxes.

Figures 4.1, 4.2 and 4.3 are examples of different

ways to mount the outlet box.

NOTE: A longer downrod maybe need to maintain

proper clearance when installing on a steep,

sloped ceiling. (Fig. 4.3)

To hang a fan where there is an existing xture, but

no ceiling joist, an installation hanger bar should

be used as shown in Figure 4.4.

Figure 4.1

Figure 4.2

Figure 4.3

Figure 4.4

Outlet box

Provide strong

support

Ceiling

mounting

plate

Recessed

outlet box

Outlet box

5. HANGING THE FAN

Remember to turn off the power. Follow the steps

below to properly hang the fan.

Step 1. Pass the 120-volt supply wires through

the center hole in the Hanger Bracket and secure

the Hanger Bracket to the CUL Listed Electrical

Box with the screw and washers provided. Tighten

the mounting screws securely. (Fig. 5.1)

Step 2. Connect the Receiving Unit to the black

and white 120-volt supply wires. (Fig. 5.2)

Step 3. Prepare the fan to be hung. Locate the

Ball/Downrod. Remove the Lock pin (1) and

Washer, then slide the Hanger pin (2) out. (Fig. 5.3)

CUL Listed Electrical Box

Hanger Bracket

Washer

Tooth Washer

Spring Washer

Screw

Figure 5.1

White Wires

Black Wires

Receiving Unit

Figure 5.2

Ball/Downrod

Washer

Lock Pin

Hanger Pin

Figure 5.3

Step 4. Route wires exiting the top of the Collar

through the Decorative Housing, the Canopy and

the Ball/Downrod. Align the holes at the bottom of

the Downrod with the holes in the Collar. Carefully

insert the Hanger Pin through the holes in the

Collar and the Downrod. Be careful not to jam

the pin against the wiring inside the Downrod.

Slide the Washer over the end of the Hanger Pin.

Next, insert the Lock Pin through the hole near

the end of the Hanger Pin until it snaps into its

locked position. Tighten the set screw and slide

the Decorative Housing into place. (Fig. 5.4)

Step 5. Place the Downrod Ball into the

Hanger Bracket socket. Align the Downrod Ball

Registration Slot with the ridge inside the Bracket

socket to secure the ball. (Fig. 5.5)

Step 6. An additional safety support is provided

to prevent the fan from falling. Secure the Safety

Cable to the ceiling joist with screw and washers.

(Fig. 5.6)

Figure 5.5

Registration Slot

Figure 5.6

Safety Cable

Washer

Screw

Spring Washer

Figure 5.4

Canopy

Decorative

Housing

Lock Pin

Hanger Pin

Washer

Set Screw

Collar

Ball/Downrod

Horizontal

Support Bar

Step 7. Securely connect each of the Receiver Unit

wires to its corresponding color wire exposed from

the top of the Downrod Ball with a connecting wire

nut. Also, connect all Ground wires (green) with the

main Ground wire from the Electrical Box. (Fig. 5.7)

Step 8. Carefully turn the connecting nuts upward

and push the wiring into the electrical outlet box.

There should be space to allow the Receiver Unit to

slide in above the Downrod Ball. (Fig. 5.8)

Step 9. Loosen the left Canopy Screw and

remove the right Canopy Screw on the bottom of

the Hanger Bracket. (Fig. 5.9)

Step 10. Slide the Canopy over the Hanger

Bracket and align the larger screw hole over the

left Canopy Screw. Give the Canopy a slight twist

to the left, which should align the right Canopy

Screw hole. Insert and secure the right Canopy

Screw, then secure the left Canopy Screw. (Fig. 5.10)

Use a level to test that the Horizontal Support

Bar is hanging parallel to the oor. Rotate the

fan slowly one full revolution. If the fan is not

hanging parallel, the level will conrm it. Recheck

the Electrical Box, Hanger Bracket and/or Ball/

Downrod. Caution: Do not operate fan if the level

shows the Horizontal Support Bar is not hanging

parallel to the oor.

Figure 5.7

Ground Wires

Corresponding

Color Wires

from Receiver

Unit and

Downrod Ball

Receiver Unit

Figure 5.8

Canopy

Screw (left) Canopy

Screw (right)

Hanger

Bracket

Figure 5.9

Hanger

Bracket

Canopy

Screw (right)

Figure 5.10

6. INSTALLING THE LIGHT KIT

Remember to turn off the power. Follow the steps

below to properly install the light.

Step 1. Remove the three Screws that hold the

Decorative Center Hub in place.

Step 2. Plug the Upper Housing Electrical

Connectors into the Light Housing Electrical

Connectors.

Step 3. Slide the Light Housing into the Upper

Housing and align the screw holes. Reinstall the

three Screws in the Upper Housing to secure the

Light Housing. Next, Install the Bulb in the Socket,

using a clockwise rotation.

NOTE: DO NOT TOUCH the halogen bulb with

bare ngers!. Oils on your skin will shorten the life

of the bulb. Use a tissue to remove the bulb from

the packaging and when installing the bulb into the

light xture.

Screw

Decorative

Center Hub

Figure 6.1

Figure 6.2

Upper

Housing

Upper Housing

Electrical

Connectors

Light

Housing

Light Housing

Electrical

Connectors

Light

Housing

Upper

Housing

Bulb

Screws

Socket

Figure 6.3

Figure 6.4

Light

Cover

Light

Housing

Channel

Step 4. Align the channels on the Light Cover to

align with the Pins inside the Light Housing and

slide the cover in. Carefully twist the Light Cover

clockwise to secure it in place. The Light Cover

should t snug against the Light Housing. (Fig. 6.4)

7. ADJUSTING SPREAD AND ROTATION SPEED

Remember to turn off the power when adjusting

the Spread and Rotation Speed.

Fan Heads adjust individually.

SPREAD

Adjusting the Fan Head angle up expands

the spread of the air movement in the space.

Adjusting the Fan Head angle down contains the

air movement.

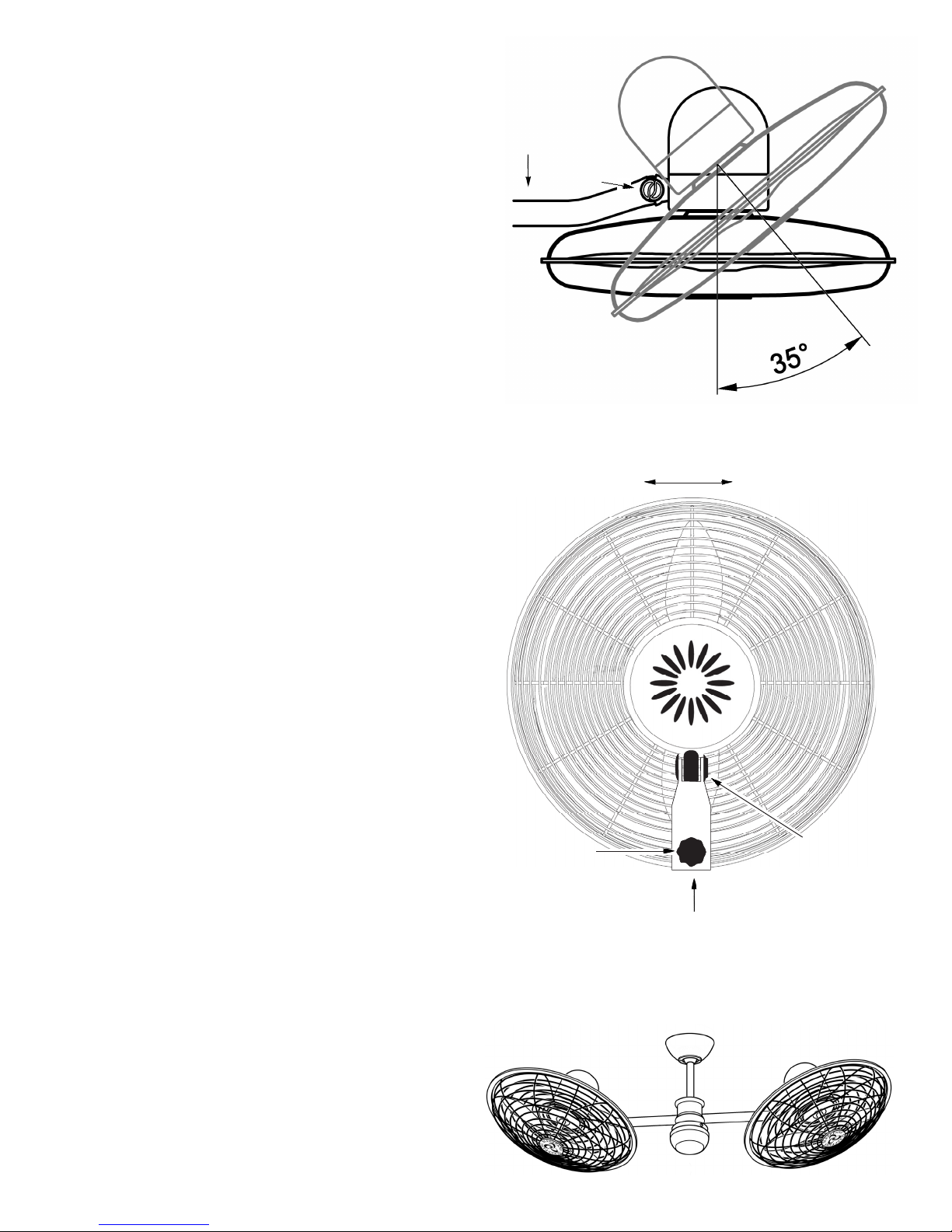

To adjust the angle, grasp the Fan Head and slightly

loosen the Tilt Adjustment Knob. Tilt the Fan Head

to the desired position. Hold the position while re-

tightening the Tilt Adjustment Knob. (Fig.7.1)

ROTATION SPEED

To reduce the risk of injury to persons or possible

damage to fan, DO NOT over adjust the fan to spin

at an unreasonable rate.

Only one Fan Head need be adjusted to create

rotation.

The greater the angle (left or right) of the Fan

Head to the horizontal support rod, the faster the

speed of rotation. The less the angle of the Fan

Head, the slower the speed of rotation.

To adjust the rotation speed, loosen the Friction

Knob and turn the Fan Head to the desired angle,

left or right. Re-tighten the Friction Knob. (Fig. 7.2)

In addition, the rotation of the fan can be sped up

or slowed down by increasing or decreasing the

motor speed of the fan.

Tilt Adjustment

Knob

Friction

Knob

Left / Right

Horizontal

Support Rod

Horizontal

Support Bar

Down

Tilt Adjustment

Knob

Figure 7.1

Figure 7.2

This manual suits for next models

Table of contents

Other Savoy House Fan manuals

Savoy House

Savoy House M2018 Series User manual

Savoy House

Savoy House 52-6110-4WA-13 User manual

Savoy House

Savoy House 52-830-5RV-187 User manual

Savoy House

Savoy House SleepFans SKYY User manual

Savoy House

Savoy House Pine Harbor User manual

Savoy House

Savoy House 60-5025-313-13 User manual

Savoy House

Savoy House M2023 Series User manual

Savoy House

Savoy House 44-770-6AO-89 User manual

Savoy House

Savoy House 52-FAN-5CN-SN User manual

Savoy House

Savoy House 72-5045-813-13 User manual

Savoy House

Savoy House 52-FAN-5WA-13 User manual

Savoy House

Savoy House M2010 Series User manual

Savoy House

Savoy House M2013 Series User manual

Savoy House

Savoy House 54-6000-5DW-109 User manual

Savoy House

Savoy House VILLAMOURNA User manual

Savoy House

Savoy House 62-5085-3CN-109 User manual

Savoy House

Savoy House M2009 Series User manual

Savoy House

Savoy House 56-5075-5CN-11 User manual

Savoy House

Savoy House M2012 Series User manual

Savoy House

Savoy House 52-135-5WA-13 User manual

Savoy House

Savoy House M2025 Series User manual

Savoy House

Savoy House 52P-620-5BC-13 User manual

Savoy House

Savoy House 52-CDC-5RV-13 User manual

Savoy House

Savoy House 52-ECM-5RV-13 User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
