SatcubeKuQuick StartGuide
DEPLOY
2. Unlatch and deploy antenna
•
Make sure locking mechanisms are released
•
Hold edge of antenna and lift up 30cms/1 foot
ALIGN/CONNECT
1. Select Satellite
•
Use arrow buttons to navigate terminal menu and select
satellite
•
Terminal calculates pointing values
3. Adjust Elevation
•
Left wheel locks/unlocks
•
Right wheel raises/lowers
•
Lever behind wheelsecures
2
1
4. Power supply
•
Insert battery or use adaptor to connect to mains power
•
With mains power, right-hand slot charges battery with
mains power
5. Connection ports
•
DC power socket is onright.
•
Ethernet and USB ports on left
3. Positioning
•
Azimuth: move side toside
•
Elevation:adjustmentwheels
•
Polarisation: rotateantenna
4. Optimising signal
•
i) Elevation/Polarization within 0.2°
•
ii) Azimuth around ± 3°.Note C/N
•
iii) Turn side to side, optimizing for C/N
5. Start Transmission
•
Ensure terminal area isclear
•
Tostart transmission; hold white gear button or use GUI.
Connect to terminal via cable or WIFI.
6. End Transmission
•
Press and hold white gear button or use GUI
•
Topower off; on battery, hold down red C button; on
mains, remove powerlead
6. Switch on
•
Press and hold the red C button until display comes on
2. Pointing values
•
Current position shown inwhite
•
Target values shown ingreen
•
Offset figures shown in green and red
1. Unfold front support
•
Hold thin metal bar and pull out from terminal
•
Support will stop when it reaches locked position
SatcubeKuQuick Start Guide
WEB INTERFACE
Connect via ethernet cable
Go to 192.168.222.219 in browser
TROUBLESHOOTING
No C/N
•
Check selected satellite and ensure correct frequencies and LOs set in terminal GUI and
in modem.
•
Check RF value, RQ value in newer software.
•
Check line of sight
•
Check Magnetic Fieldvalue in GUI under status. Typ: 50-80
µT if >100µT there is most
likely significant interference and changing terminal location is advised. That allows for
more accurate pointing values.
•
Check correct GPS position is entered or has been found.
•
Check SNMP IP-settings of modem (192.168.222.222). Should be set to Terminal IP:
192.168.222.219
Green pointing arrows (Azimuth, elevation, polarization) all point straight up.
With strange pointing values as a result.
•
Check correct GPS position has been acquired if position is set to automatic or is set
correctly if using manual position. Control location by pressing down arrow on terminal.
Automatic acquisition can take a while to succeed if the terminal is not in an open space
such as in between buildings.
Polarization value showing +45 degrees from “Zero position”
•
Is due to the antenna elements inside the antenna is shifted 45 degrees and is perfectly
normal.
Network icon and WIFI icon alternatively flash OR unable to find WIFI
•
The WIFI module has not yet started.
•
If it continues longer than 2 min after startup try restarting terminal.
•
Alternatively try changing the WIFI name (SSID) and saving int eh GUI by connecting with an
ethernet cable.
Unable to connect to WIFI
•
Connect with ethernet cable and change WIFI name (SSID) and password of WIFI network.

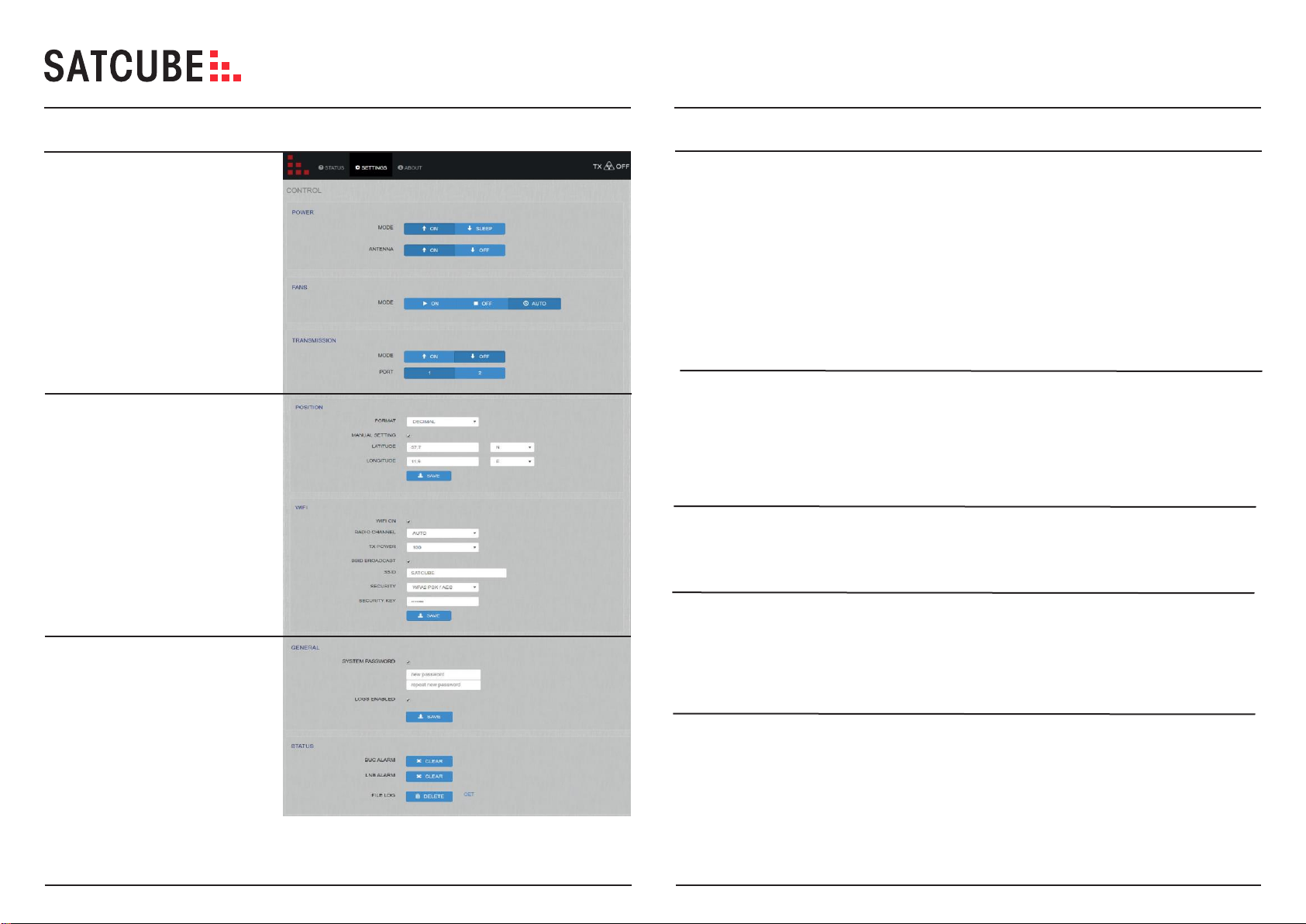

SETTINGS | CONTROL
POWER: Mode = on or sleep
Antenna = on or off
FANS: on/off/auto
TRANSMISSION:
Mode = Transmission on/off
Port: Internal modem or optional
external modem/device.
TX symbol: TX symbol in top
right-hand corner indicates when
transmission is on/off.
SETTINGS | POSITION/WIFI
POSITION | FORMAT
Select format for location (decimal
or deg/min/sec)
Manual setting: Defaults to gps.
check box if coordinates need to
be entered manually.
WIFI ON: Tick checkbox to turn on
Security key: Default wifi password
is satcube123.
SAVE:Storesanduploadssettings.
GENERAL
Systempassword:Tickcheckboxto
protect access to gui. Default is
admin.
STATUS
Buc alarm/lnb alarm: Alarms can
be cleared and/or deactivated.
