Installation Instructions

9900 & 12-9900

Mortise Lock Exit Device

See Figure 1 for identification of parts.

Review the dimensions on the template to obtain the correct

height from finished floor.

1. Locate and place template as follows:

a. Stick center case and lock front template on door as

illustrated in Figure 2.

b. Using the cross bar hole centers for measuring, locate

the vertical center line of bracket.

2. Drill holes and mortise for lock as directed by the templates. See Figure 3.

3. If screwless rose outside trim is used, see separate instruction sheet and install rose at this time.

See Figure 4.

Figure3

4. Fasten mortise lock in place. See Figure 5.

Figure4

Figure1

Figure5

Figure2

1-800-727-5477 • www.sargentlock.com

A5572F 4/21

Copyright © 2018, 2021 SARGENT Manufacturing Company. All rights reserved. Reproduction in

whole or in part without the express written permission ofSARGENT Manufacturing Company is

prohibited.

WARNING

This product can expose you to lead

which is known to the state of California

to cause cancer and birth defects or other

reproductive harm. For more information go

to www.P65warnings.ca.gov.

Figure7

6. Attach outside trim when used.

a. Install cylinder and tighten cylinder set screw in lock front.

b. Attach center case cover to chassis.

7. Mount bracket chassis on door and attach bracket cover to

chassis.

8. Assemble and secure cross bar to arms.

9. Mortise strike in position.

A5572F 4/21

NOTE: If thru bolted trim is used, drill four 7/32” diameter holes through the

door and counterbore outside of the door for lugs.

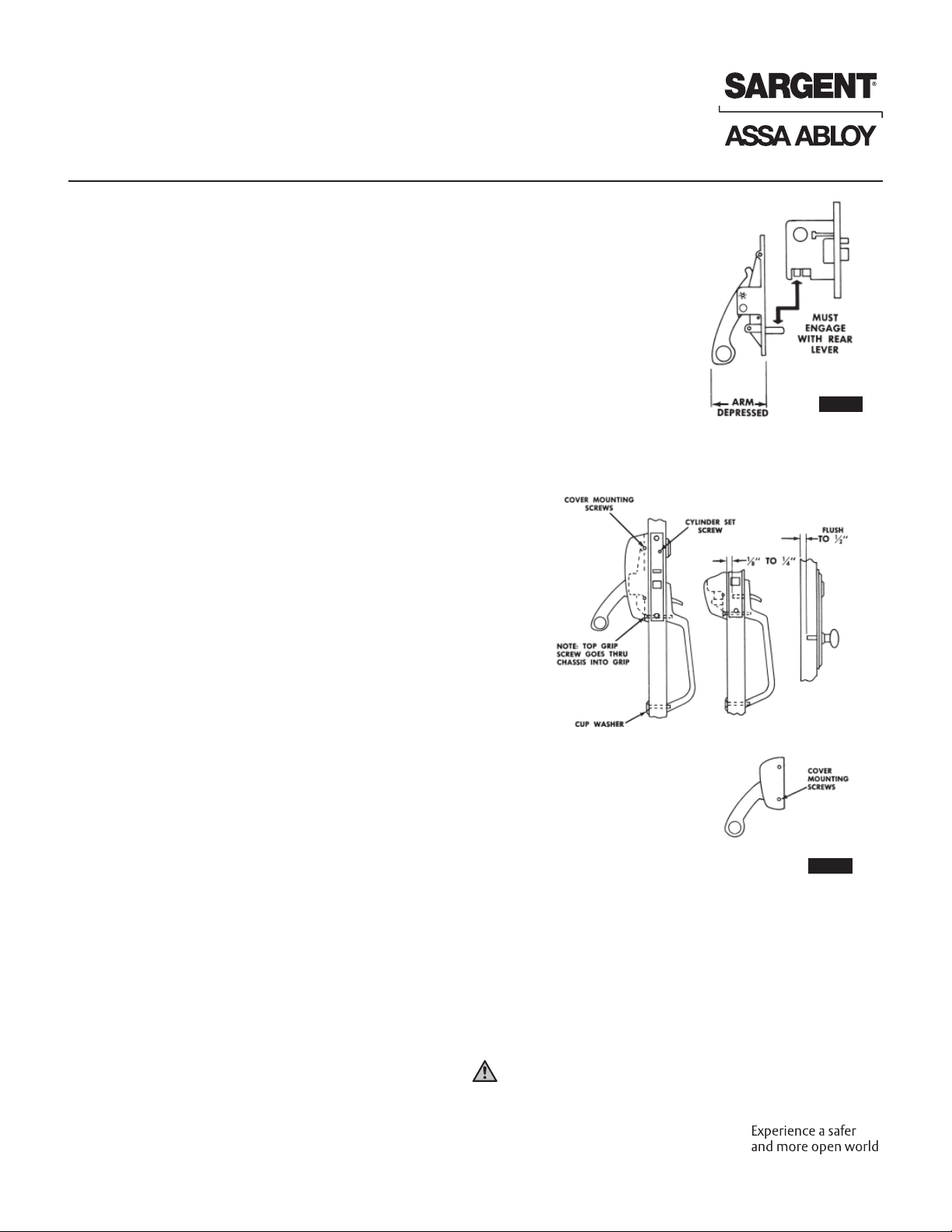

5. IMPORTANT: Mount the center case chassis as follows:

a. Remove cover from center case chassis. Lock down arm. (For exit devices

less the cross bar lock down feature, hold arm in depressed position.)

See Figure 6.

b. Position center case chassis against the door so that the center case lever

is under the rear lever of themortise lock.

c. Lift center case chassis upward until the latch bolt is completely retracted.

d. With chassis in this position, mark location of the screw holes.

e. Drill holes for screws and mount center case chassis to the door.

Figure6

Figure 7
