Sanyo DVD-DX500 User manual
FILE NO.
DVD-DX500
(Product Code: 1 682 340 51)
(Australia, New Zealand)
DVD-DX510
(Product Code: 1 682 340 52)
(Australia, New Zealand)
(Product Code: 1 682 342 82)
(India)
SERVICE MANUAL
SPECIFICATIONS
REFERENCE No. SM0905003
Power Source: 100-240V~, 50/60Hz
Power Consumption: 12W
Dimensions: 430(W) x 38(H) x 245(D)mm
Net Weight: Approx. 2.2kg
Specifications subject to change without notice.
DVD Player
DVR-DX500.indd01DVR-DX500.indd01 2006/10/309:54:292006/10/309:54:29
SPECIFICATIONS...............................................................................................................2
3
CIRCUIT DIAGRAM.........................................................................................................................
INSTRUMENT DISASSEMBL
PACKING VIEW
Y.....................................................................................................12
.............................................................................................................................13
1
CONTENTS
DVR-DX500.indd1DVR-DX500.indd1 2006/10/309:54:312006/10/309:54:31
AAA
2
S P E C IF IC AT IONS
Laser wave length 650nm
Video PAL/AUTO/NTSC
Frequency response 20Hz ~ 20KHz (±1dB)
Signal/noise ratio 90dB
Channel separation 85dB ( 1KHz)
Dynamic range 80dB ( 1KHz)
Output
Audio
Analog output level : 2.0 + 0/-0.2Vrms
(Load impedance : 1,0K )
Digital output level : 0.5 ±0.1Vp-p
(Load impedance : 75 )
Output
Video
Composite output level : 1.0 ±0.1Vp-p
(Load impedance : 75 , imbalance, negative polarity)
S-video
output level : brightness(Luma) 1.0 ±0.1Vp-p Chromaticity (Color)
0.286 ±20%
(Load impedance : 75 )
Component Y: 1Vp-p, Pb/Pr: 0.7Vp-p (Load impedance : 75 )
Power 100-240V~, 50Hz~60Hz 12W
Dimensiones Body (W x H x D) 430 x 38 x 245 mm
Packing 515 x 95 x 325 mm
Weight (Gross / Net) 2.9Kg / 2.2Kg
Notes : Design and speci“ cations in this instruction manual are subjected to change with-
out prior notice toimprove quality and function.
DVD Audio output standards
Output Disc type
DVD VIDEO-CD CD
AnalogueAudio output 48/96KHz sampling 44.1KHz sampling 44.1KHz sampling
Digital Audio output 48KHz sampling 44.1KHz sampling 44.1KHz sampling
3
1. POWER SUPPLY SCHEMATIC DIAGRAM
CIRCUIT DIAGRAM
DVR-DX500.indd3DVR-DX500.indd3 2006/10/309:54:322006/10/309:54:32
4
2. DECODE BOARD SCHEMATIC DIAGRAM
1) INDEX SCHEMATIC DIAGRAM
CIRCUIT DIAGRAM
DVR-DX500.indd4DVR-DX500.indd4 2006/10/309:54:332006/10/309:54:33
5

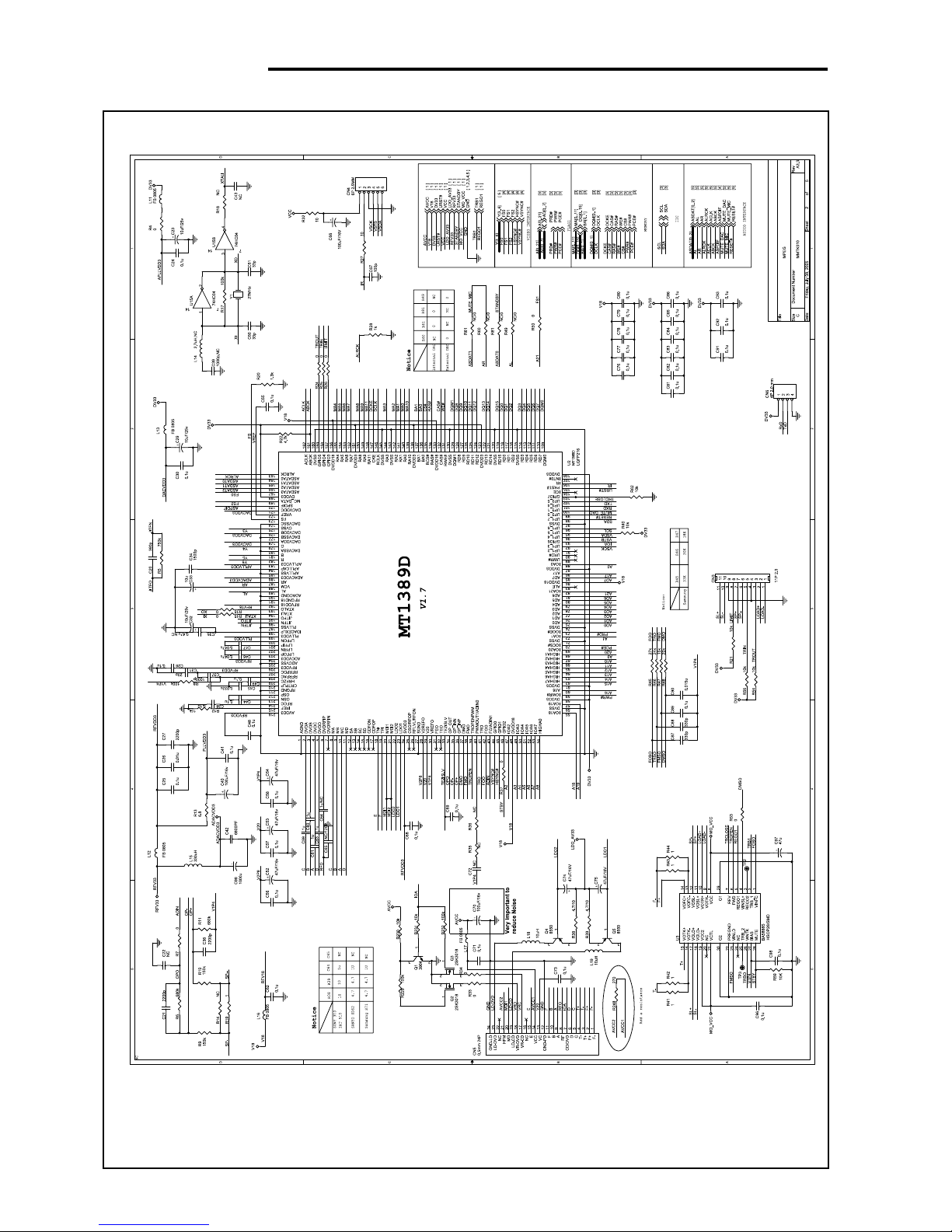

2) RF & MPEG SCHEMATIC DIAGRAM
CIRCUIT DIAGRAM
DVR-DX500.indd5DVR-DX500.indd5 2006/10/309:54:352006/10/309:54:35
6
3) SDRAM & FLASH SCHEMATIC DIAGRAM
CIRCUIT DIAGRAM
DVR-DX500.indd6DVR-DX500.indd6 2006/10/309:54:382006/10/309:54:38
7
4) VIDEO OUTPUT PORT SCHEMATIC DIAGRAM
CIRCUIT DIAGRAM
DVR-DX500.indd7DVR-DX500.indd7 2006/10/309:54:402006/10/309:54:40
8
5) AUDIO OUTPUT PORT SCHEMATIC DIAGRAM
CIRCUIT DIAGRAM
DVR-DX500.indd8DVR-DX500.indd8 2006/10/309:54:422006/10/309:54:42
9
3. CONTROL BOARD SCHEMATIC DIAGRAM
CIRCUIT DIAGRAM
DVR-DX500.indd9DVR-DX500.indd9 2006/10/309:54:452006/10/309:54:45
