INSTRUCTION MANUAL MCD”Z12F

CD Portable Stereo Radio

Cassette Recorder

/_-_—_—Q

—.

..,,

‘$:;

“0

CAUTION

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES

OTHER THAN THOSE SPECIFIED IN THE OPERATING INSTRUCTIONS MAY RESULT

IN HAZARDOUS RADIATION EXPOSURE.

THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY

ANYONE EXCEPT PROPERLY QUALIFIED PERSONNEL.

CAUT’ON-INIJISIBLE LASER RADIAT oh \,tfHENOPEVA\D INTER

LOCKSDEFEATED AvOIDEXPOSURE TO BEA!v1

ADVARSEL USYNLIG LASER STRALING L’ED ABNING, NAR

SIKKERHE DSAFBBYDERE ER U3E AF FUN KTION U\DGA

VARNIVG OSYNLIG LASER 5TRALWG \AR DEkhA DEL AR

OPPNADOCHSPARR AR URKOWLAD STRALEN AR FARLIG I

\’ORSICHT WSICHTBARE LASERSTRAHLUhG TRITT AUS

WENN DECKEL GEOFF\ET ,JVD iVEbk SCHERHEITS\’ER

RIEGELu NG uBERBRUCKT 1ST hlCPT DEk\ STRAHL AUS AIi

c:,Ass , , As,, PRODUCT

LLIOKAN ,LAS ERLAITE

KLASS ,LASERAPPARAT

—

FOR SAFE AND EFFICIENT OPERATION I

The apparatus shall not be exposed to drip- -

ping or splashing.

Do not damage the mains lead.

When not in use, disconnect the mains lead

from the outlet. Grasp the plug, not the lead,

when disconnecting the unit,

Ifwatershould enter theunit, electrical shock

or amalfunction may result. Use in an area -

where there is low humidity and little dust.

Do not disassemble or alter the unit in any

way.

Do not use the unit in areas where extremes

in temperature occur (below 5°C or exceed-

ing 35°C), or where it may be exposed to

direct sunlight.

Because of the CD player’s extremely low

noise and wide dynamic range, there is a

tendency toturnthe volume onthe amplifier

higher than necessary. Doing so may pro-

duce an excessively high output from the

amplifier which can cause damage to your

speakers, Please be careful in this regard.

Sudden changes in the surrounding tem-

perature can cause dew to form on the opti-

cal pickup lens inside the unit. Under this

condition the unit may be unable to operate

properly. If this should occur, remove the

disc and allow the player to adjust to the

surrounding temperature

Do not install this equipment in aconfined

space, such as abookcase or built in cabinet.

-1-

POWER SUPPLY 1

‘0”-

1—————

Battery power operation I

AC power operation

——— ——— — —— —— —

Install batteries. Take out the cord and

Observe +and –signs. connect it.

AC INPUT

8“D” size batteries

Replace lid.

CAUTION:

WHEN INSTALLING THE BATTERIES

To prevent Ieakagefrom the batteries, which is

corrosive and can cause personal injury and

damage to the unit, observe the following

precautions:

1. The batteries must be installed correctly.

Match thepolarities(+ and – signs) on the

batteries, to the polarities shown on the

back of the unit.

2. Do not mix new batteries with old or used

batteries.

3. Only use batteries of the same type and

brand.

NOTE:

When the mains lead is connected to the unit,

the installed batteries will be automatically

disconnected.

The FUNCTION switch is mounted on the sec-

ondary side. The unit is not disconnected from

mains. even switched off.

4. If the unit will not be used for an extended

period of time, remove the batteries and

store them in acool place.

5. Carefully follow the battety manufacturer’s

instructions for proper use and disposal,

6. DO NOT ALLOW YOUNG CHILDREN TO

HANDLE BATTERIES.

NOTE:

When the batteries have become

discharged, they must be disposed of in a

safe manner which complies with all

applicable laws.

-2-

REMOTE CONTROL

The CD functions can be performed using the remote control.

Battery Installation

2“AA”’ size batterias

‘f’

—.

bPLA” llPAUSE

3EPEAT ■STOP

:“s’’”:

MEMORY

-3-

COMPACT DISC OPERATION

@)To CD.

@Push button to open.

F==--.-l\

l-– .–-–=--– ,.1

@Insert CD,

@The TRACK NO. display will show the

total number of tracks on the disc as

shown below.

Ilg :

CD PLAY

/_/ ~

REPEAT

TRACK NO. ‘EMORy

More than 19 “O” Flashes

@Press PLAY/PAUSE. \

mm, .,.,,, r,,,WSEARCH TPLAYIPAUSE STOPICLEAR

00 >

w- ●M

II ///

The CD PLAY indicator will light.

n/:

CD PLAY

/0 REPEAT

TRACK NO. MEMORY

-4-

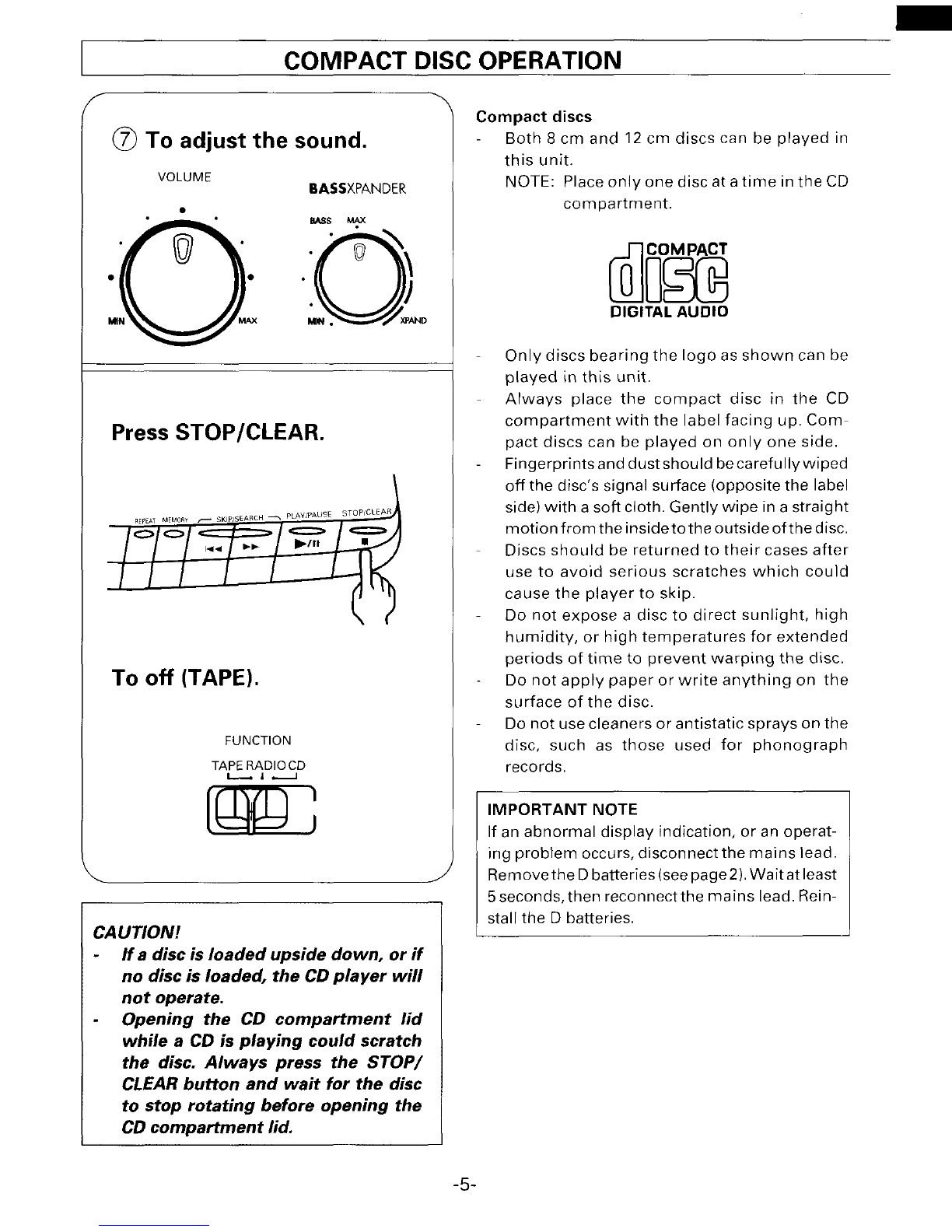

COMPACT DISC OPERATION

@To adjust the sound.

VOLUME BASSXPANDER

:!: 0!.

Press STOP/CLEAR.

To Off (TAPE).

FUNCTION

TAPE RADIOCD

GIJ

[w;

CAUTION!

-if adisc is loaded upside down, or if

no disc is loaded, the CD pla yer will

not operate.

-Opening the CD compartment lid

while aCD is playing could scratch

the disc. Always press the STOP/

CLEAR button and wait for the disc

to stop rotating before opening the

CD compatiment lid.

Compact discs

Both 8cm and 12 cm discs can be played in

this unit.

NOTE: Place only one disc at atime in the CD

com~artment.

COMPACT

DIGITAL AUDIO

Only discs bearing the logo as shown can be

played in this unit.

Always place the compact disc in the CD

compartment with the label facing up, Com-

pact discs can be played on only one side.

Fingerprints and dust should becarefullywiped

off the disc’s signal surface (opposite the label

side) with asoft cloth. Gently wipe in astraight

motion from theinsideto theoutside of the disc.

Discsshould be returned to their cases after

use to avoid serious scratches which could

cause the player to skip.

Do not expose adisc to direct sunlight, high

humidity, or high temperatures for extended

periods of time to prevent warping the disc.

Do notapply paper orwrite anything on the

surface of the disc.

Do not use cleaners orantistatic spray son the

disc, such as those used for phonograph

records.

IMPORTANT NOTE

If an abnormal display indication, or an operat-

ing problem occurs, disconnect the mains lead.

Remove the Dbatteries (see page 2). Wait at least

5seconds, then reconnect the mains lead. Rein-

stall the Dbatteries.

-5-

>AUSE MODE 1. Press the PLAY/PAUSE button to

,,,,,, WCua,,TSK,P$SEhRCH -PLAY’PAUSE STOP’CLEAR temporarily stop play. The CD PLAY

indicator will flash,

/// 2. Press it again to continue. The CD

PLAY indicator will stop flashing.

l_RACKSEARCH 1. In the play mode, press and hold the

l++ or ➤MSKIP/SEARCH button to

lower the volume level and advance or

return to any part of the disc. The CD

RFm,, MEMORY _sK,,’SE.4RCH _WAY PAUSE STOP CLEAR TRACK NO. display will flash.

00 <>2. Release the l++ or F-1 SKIP/

u- ●u

In/ /SEARCH button to return the volume

II /, :“’: level to normal and resume play.

~:,.

:>.

.: :!., NOTE:

:’.,,:

,,, .,’ If the l++ or ➤>1 SKIP/SEARCH but-

ton is pressed during the PA USE mode,

Press and hold down during playback no sound will be heard, and the PAUSE

mode will continue when the button is

released,

TRACK SKIP 1. Press and release the l++ or ➤-I

SKIP/SEARCH button during play to

advance or return to the beginning of

any track on the disc.

,,,,,, .CMU,,Ts.,,S,A,C,_PLAY PAUSE sTopjcLEAR 2. The CD TRACK NO. display will show

the number of the selected track. Play

will continue from the beginning of the

// new track,

: ;.,,,

,. : !.

..;

;.:; NOTE:

,., ..” If thel++ or>>l SKIP/SEARCH button is

., :pressed while the unit is in the PAUSE

Press and release repeatedly mode, the unit will remain in the PAUSE

mode when the button is released.

IUsing Headphones I

r - ‘––7

———————

,Yfr,

:‘%= /

IStereo headphones (not supplied) I

L—— —— —— —— —— J

-6-

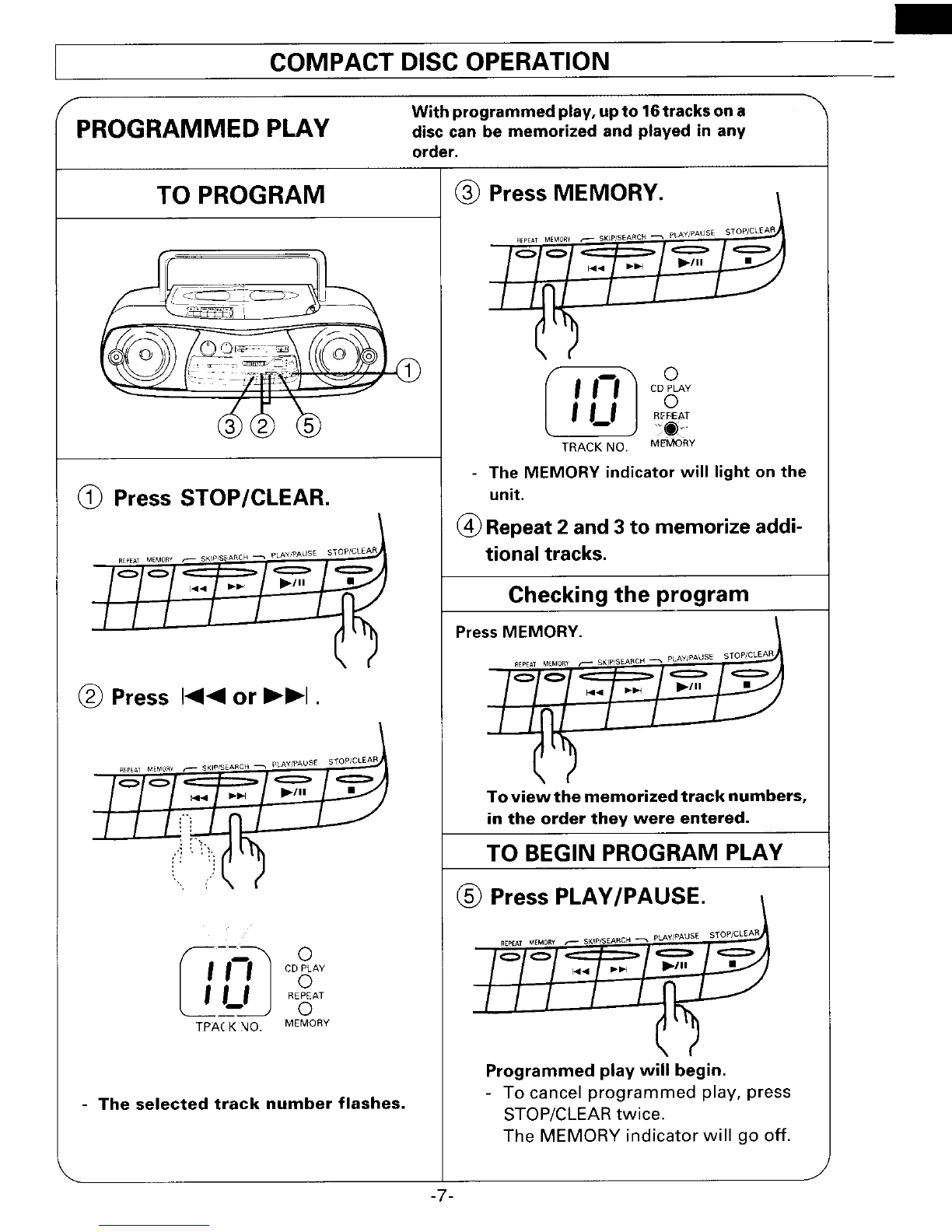

COMPACT DISC OPERATION —

PROGRAMMED PLAY With programmed play, up to 16tracks on a

disc can be memorized and played in any

order.

TO PROGRAM

&b b

@Press STOP/CLEAR.

,,,,.,.,.,,. rs.,, ,,ARCH -PLAY?,.S, STOP/CLEAR

00 <~~

In< •~ F/n ■

/1 ////

,,,,.,mom -sw.wc. -PLAY,FA.SESTOP’CLEAR

II /:..:

:.>.

,.:!,

,.:

:.:{

,., ..”

., :

CD PLAY

REPEAT

MEMORY

The selected track number flashes.

@Press MEMORY. \

,,,,,,m.,,, -s.,,.,.,,. -P!AY)PAU= STOPICLEAR

IIn/

1n:

CD PLAY

1lg ,0

REFE/lT

TRACK NO. MEMORY

The MEMORY indicator will light on the

unit.

@Repeat 2and 3to memorize addi-

tional tracks.

Checking the program

Press MEMORY. \

m,,,, .,.,,, rs,,,’S,.’?,” -PLAY!PAUSE STOPICLEAB

To view the memorized track numbers,

in the order they were entered.

TO BEGIN PROGRAM PLAY

@Press PLAY/PAUSE. \

,,,,,,MEMORY-SK,P,SEARCH- PLAYIPAUSESTOPICLEAR

II /

Programmed play will begin.

-To cancel programmed play, press

STOPICLEAR twice.

The MEMORY indicator will go off.

-f-

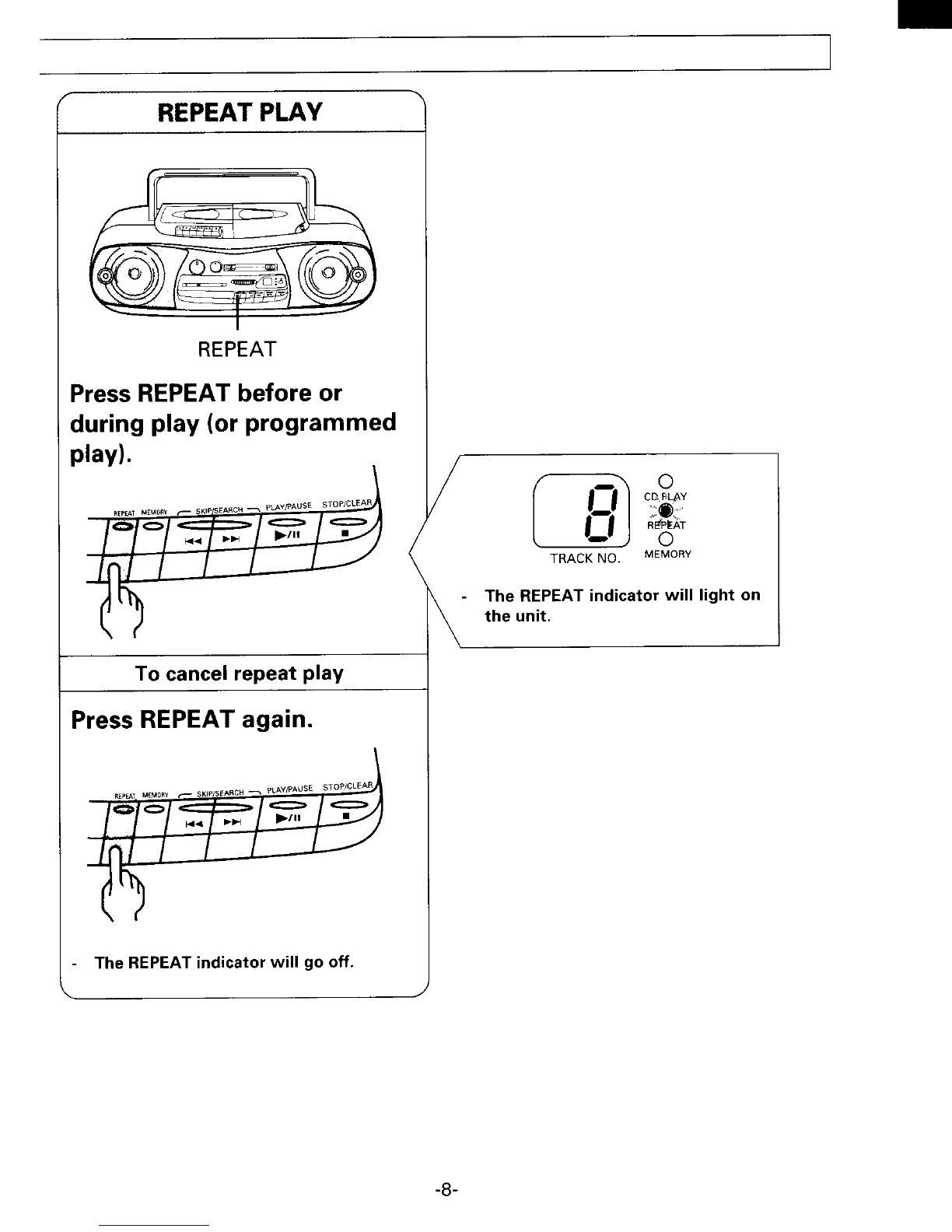

REPEAT PLAY

REPEAT

Press REPEAT before or

during play (or programmed

play).

,WW

ME.,,” rWP,SEARCH -PLAYPAusE STOPICLEAR

-O e.

W4 ●H

I///(

To cancel repeat play

Press REPEAT again.

,,m,.,.,,,-s,,,,,wm.-PLAYFAUsE STOp/cLEAR

The REPEAT indicator will go off.

/:/

/_/ ;&

TRACK NO. MEMORY

The REPEAT indicator will light on

the unit.

-8-

IRADIO OPERATION I

\? Dial pointer

FM MHz

(c [Ill ))

AM x,okHz

NOTE:

The unit willautomatically switch

to stereo when an FM stereo

broadcast is received.

@) To RADIO. 1.- J

FUNCTION

@Tune in astation.

TUNING ITo Off (TAPE).

IFUNCTION

TAPE RADIOCD

LJ4

[w:

ITo imt.xove rece~tion I

FM -Extend and change position. AM -Rotate unit.

{/\

\.-/

-9-
