SJ-LR09 Wireless Manual Call Point User’s Manual
Please read the User’s Manual carefully in order to proper installation!
I. Description
The wireless manual call point (hereinafter referred to as “the manual call point”) incorporates a
built-in wireless communication module. An alarm is reported by pressing the resettable button.
The manual call point alarm signals to host by wireless protocol. It is powered by 2×DC1.5V AA
lithium batteries and saves power. And it could report the batteries fault once battery-voltage is
low.
II. Technical parameters
1. Operating voltage: DC3V (2×DC1.5V AA in serial connection)
2. Quiescent current: ＜100μA
3. Alarm current: ＜2mA
4. Indicator: operating: indicator(green) flashes once per 60s; alarm: indicator(red) remains on
5. Dimensions: 90mm×90mm×43mm
6. Housing material: ABS
7. Weight: approximately 138g
8. Temperature range: -10℃~50℃
9. Humidity: 0% to 95% RH (40℃±2℃, no condensation)
10. Resettable element: it can be easily reset with a supplied special key
III.Application
1. Applicable places:
Houses, lounges, coffee houses, clubs, hotels, restaurants, apartments, inns, etc.
2. Inapplicable places:
A. Places temperature over 40℃.
B. Extreme humidity places.
IV. Structural features

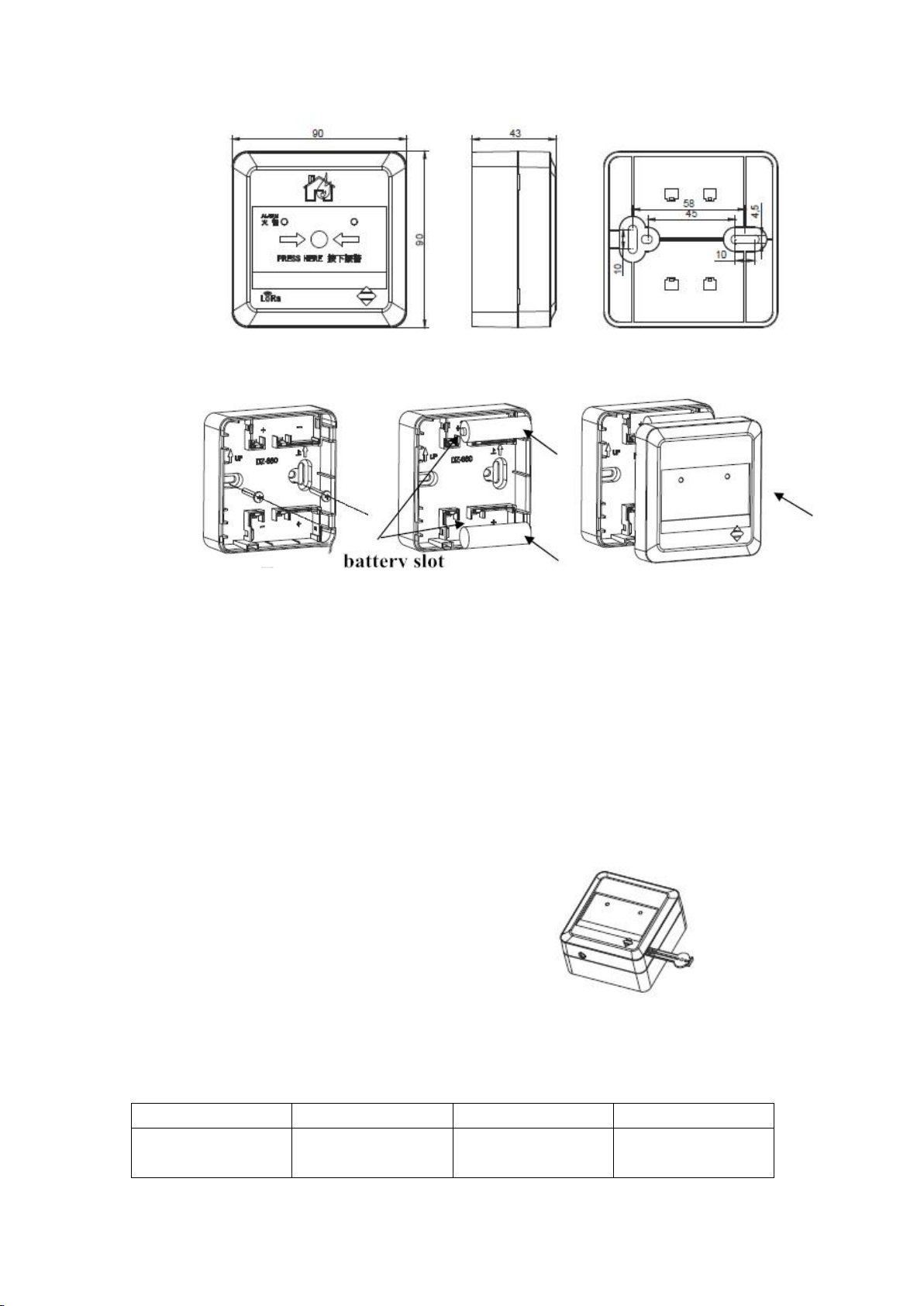

1. Dimensions
2. Installation diagrams
1st: screw the base 2nd: insert batteries 3rd: install front cover
V. Instruction for use
1. Indicator: operating: indicator (green) flashes once per 60s; alarm: indicator (red) remains on
2. Low-voltage warning: the manual call point will report low-voltage fault once batteries
voltage lower than 2.8V.
3. Commissioning:
Alarm: pressing resettable element, the manual call point send alarm signal and indicator (red)
remains on. At the same time, host alarm.
Reset: inserting reset key into the keyhole, resettable element will reset and the manual call
point restore to normal. (Fig.1) Fig.1
VI. Troubleshooting
Problem
Cause
Solution
Remark
alarm
The manual call point
has been activated
Reset
Initial circuit fault
Send back to
manufacturer and
repair
The indicator (red)
doesn’t flash
Low-voltage
Replace the same
type of battery
Initial circuit fault
Send back to
manufacturer and
repair
VII. Maintenance
1. Please debug the manual call point at least once a year, and maintenance it every two years.
2. Normally, battery’s lifespan up to three years. However, poor conditions such as high
temperature and/or humidity will short it lifespan.
3. If the manual call point warns low battery voltage, please replace the same battery.
4. After installation, the manual call point should be tested immediately. Before that, it should
be preserved properly and be kept away from dusty, humidity or corrosive circumstances.
5. If the manual call point fault, please don’t repair by yourself. Contact our service center, and
we will help as soon as possible.
6. If fire or alarm happened, please replace battery.
VIII. Warning
1. Please don’t install the manual call point in high temperature or high humidity circumstance.
2. The manual call point can send alarm signals to host, but not distinguish fire.
3. If the manual call point has been activated, it needs a special reset key to reset. Please keep
the reset key carefully after commission.
4. Installation should follow GB50116-98 and GB50166-2007 standards.
Address: 3F, Guangcai New World
Building, Nanshan Avenue, Nanshan
District, Shenzhen City, China
Postcode: 518054Tel: +86 (755) 2690 9106
Fax: +86 (755) 86223939
Service hotline: 400-7700-119
Website: www.sanjiang-security.com
