Sanitaire SC6010A Manual
REPAIR PARTS LIST
SC6010A
FLOOR MACHINE - 17” 1 HP
Date: August 5, 2003
2
SC6010A
1. H0002 SCREW 10-24 X 1
2. S0001CP DRIP COVER
3. G0001P GEAR UNIT
4. E0001P MOTOR
5. H0005 LOCK WASHER
6. W0001P-1 FRAME
7. M0006P SHAFT
8. H0008 WASHER 33/64” X 7/8”
9. H0009 PUSH NUT .5”
10. M0005P AXLE
11. H0007 SPRING WASHER
12. H0008 WASHER 33/64” X 7/8”
13. C0004 WHEEL
14. H0008 WASHER 33/64” X 7/8”
15. H0009 PUSH NUT .5”
16. H0003-1 SPACER
17. H0006 COTTER PIN
18. S0005P-1 CONNECTING LEG
19. H00031 COTTER PIN
20. M0004 SPACER
21. S0003CP BRUSH COVER
22. H0011 SCREW 5/16” X 2 SOC. HD.
23. C0001-1 BUMPER
3
4
SC6010A

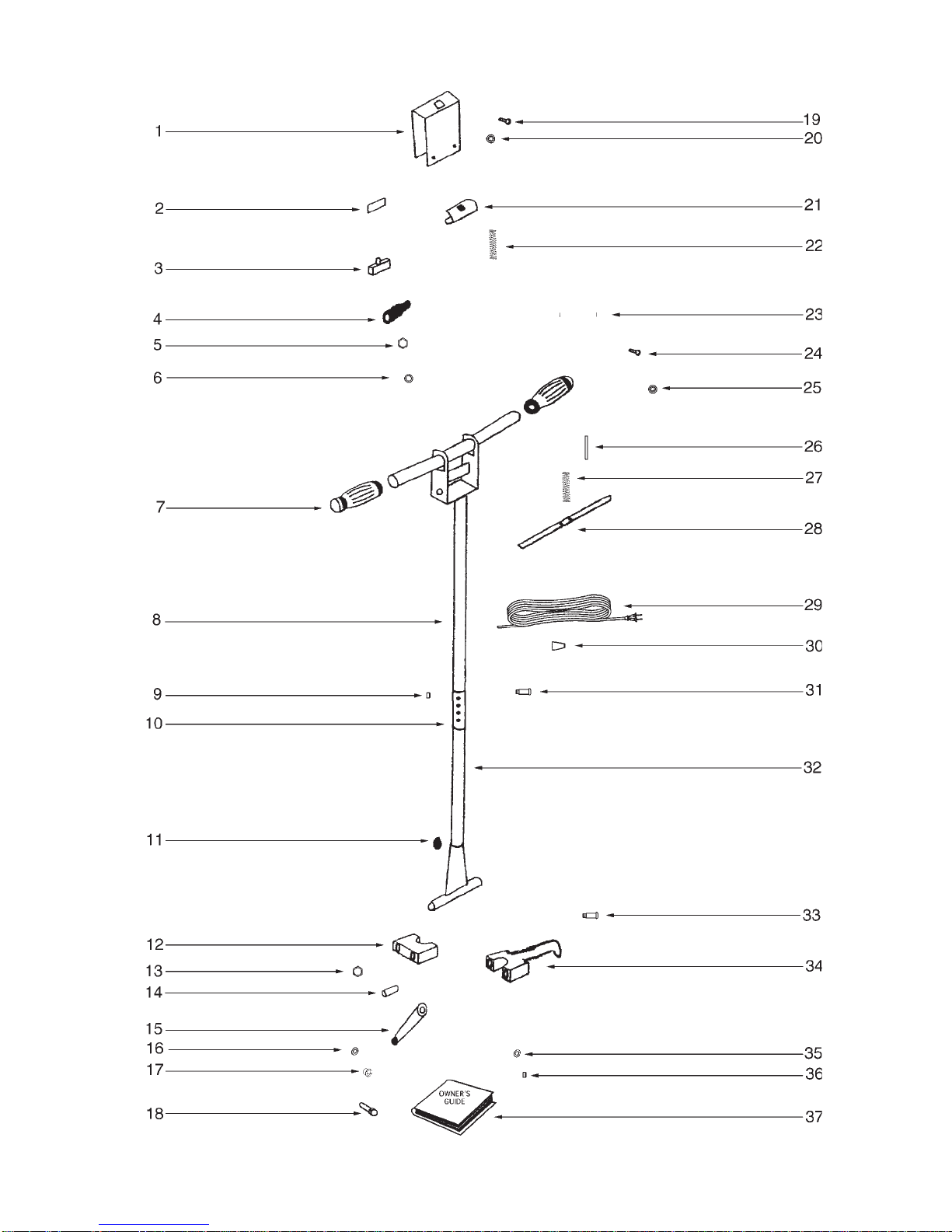

1. W0003-2P SWITCHBOX COVER
2. H0013 SWITCH INSULATION
3. E0007 SWITCH - ON/OFF
4. H0021 STRAIN RELIEF
5. H0022 STRAIN RELIEF NUT
6. H0022-1 STRAIN RELIEF WASHER
7. C0007-2 HANDLE GRIP
8. W0002UP UPPER HANDLE
9. H0099 NUT 5/16” - 18
10. M0027P HANDLE COUPLING
11. H0028 GROMMET
12. C0006P-1 HANDLE LOCK CLAMP
13. H0015 NUT 3/8” - 16
14. H0017 SPADE BOLT
15. M0001P2 HANDLE LOCK CAM
16. H0001P WASHER
17. H0019 PUSH NUT 5/16”
18. H0018 RIVET 5/16” X 1.25”
19. H0040 SCREW 10-24 X .5 PAN HD.
20. H0020 LOCK WASHER
21. C0003 SAFETY SWITCH
22. H0014 SPRING
23. H0062 POWER CORD CLAMP
24. H0040 SCREW 10-24 X .5 PAN HD.
25. H0020 LOCK WASHER
26. H0012 ROLL PIN
27. H0023 TRIGGER SPRING
28. S0008P-1 TRIGGER
29. E0003G POWER CORD
30. H0027 WIRE NUT
31. H0098 BOLT 5/16” - 18 X 2
32. W0002LP LOWER HANDLE
33. H0044 BOLT 3/8” - 16 X 2.5
34. C0008P-1 CORD HOOK
35. H0016 WASHER 3/8”
36. H0057 NUT 3/8” - 16
37. 73416 OWNER’S GUIDE
