S&P Elektra comfort User manual

Read these instructions before use and keep them safe. If you

pass the appliance on, pass on the instructions too. Remove

all packaging, but keep it until you are satisfied.

Important Safeguards

Before connecting the appliance check that the voltage

indicated on the rating plate corresponds to the mains voltage

in your country.

When using electrical appliances basic safety precautions

should always be followed. Please read the following carefully

before use:

1. After unpacking, make sure that there are no visible signs

of damage.

2. This appliance must only be used as a fan as indicated in

the instructions. Any other use is to be considered

hazardous. Selian Agencies C.C. and any of its associate

companies cannot be held responsible for any damage or

injury that may occur due to improper and incorrect use.

3. Please follow assembly instructions carefully.

4. Only turn on the appliance once you are completely certain

that it has been assembled correctly, so as to avoid injury.

5. Do not use with wet hands or feet, or while your body is

wet.

6. Do not use the Fan if it is wet.

7. Keep the Fan away from water. Do not use the Fan near

water.

8. Should the Fan fall into water, first turn the power supply off

and then remove the plug from the wall socket. Remove the

Fan from the water, and contact the Consumer Service

Centre to inspect your Fan before you use it again.

9. Do not pull the appliance or the power cord to remove the

plug from the socket.

10.Before cleaning the appliance, disconnect it from the mains

by removing the plug. Follow the cleaning instructions

carefully.

11.Please follow cleaning instructions carefully so as to avoid

injury or damage.

12.Should the Fan or protection fuse fail to work properly, turn

off the appliance and unplug it from the power outlet.

Contact the Consumer Service Centre for examination and

repair.

13.Always unplug the appliance immediately after use.

14.Check the cord regularly for wear or damage, particularly

where the cord enters the appliance and the plug.

15.During use, ensure that the power cord is completely

unwound.

16.Close supervision is necessary when this appliance is used

by or near children and invalids.

17.Keep the air intake cover free of dust or fluff.

18.Do not allow the air inlet to become blocked or even

partially blocked. This may cause the Fan to overheat. If it

does overheat, the safety cut-out will cause the Fan to

switch off and remain inoperable until the unit has

sufficiently cooled down. In this event, switch off the

appliance, unplug it and let it cool down. Remove any

blockage to the air inlet or outlet before resuming use. If the

Fan should cut out again, even when there is no blockage,

contact the approved Service Centre for examination and

repair.

19.Do not cover the Fan or place anything over it.

20.Do not place anything through the grills or into the Fan.

21.Do not use the Fan if it is not properly and completely

assembled.

22.Do not use the Fan without the mesh guards, as this could

lead to injury.

23.Do not use the Fan within 1 meter of any other electrical or

electronic appliance (e.g. TV, computer,..) as it may cause

interference.

24.The installation of a residual current operated protective

device with a nominal trip current of 30mA offers additional

protection. Contact your electrician.

Household use only

Additional Safeguards

1. Do not try to repair the appliance yourself. Contact the

approved Service Centre for examination and repair.

2. This product has been designed to operate safely when

used according to the instruction guide.

3. If the electrical circuit is overloaded with other electrical

appliances, your Fan may not operate properly. It should

then be operated on a separate circuit from other

appliances.

Know your Elektra Cool Mist Fan

Assembly and Installation

1. Open the packaging and ensure all the parts are correct.

2. Assemble the Chassis components.

3. Place the Main Body onto the assembled Chassis.

4. Insert the Stanchion into the opening of the top of the Main Body

and secure using the Stanchion Screw

5. Affix the Motor to the Support Pole and connect to the top of the

Stanchion.

6. Place Back Guard onto Motor and secure with the Rear Guard

Screw.

7. Place the Fan Blade and secure with the Fan Blade Screw, by

turning in an anti-clockwise direction.

8. Place the Hoop Net over the Front Guard, and connect to the

Back Guard.

9. Tighten the Hoop Net.

1. Misting dish

2. Front guard

3. Fan blade nut

4. Fan blade

5. Rear guard nut

6. Rear guard

7. Motor

8. Adjusting knob

9. Base

10. Base nut

11. Misting outlet

12. Mist tube

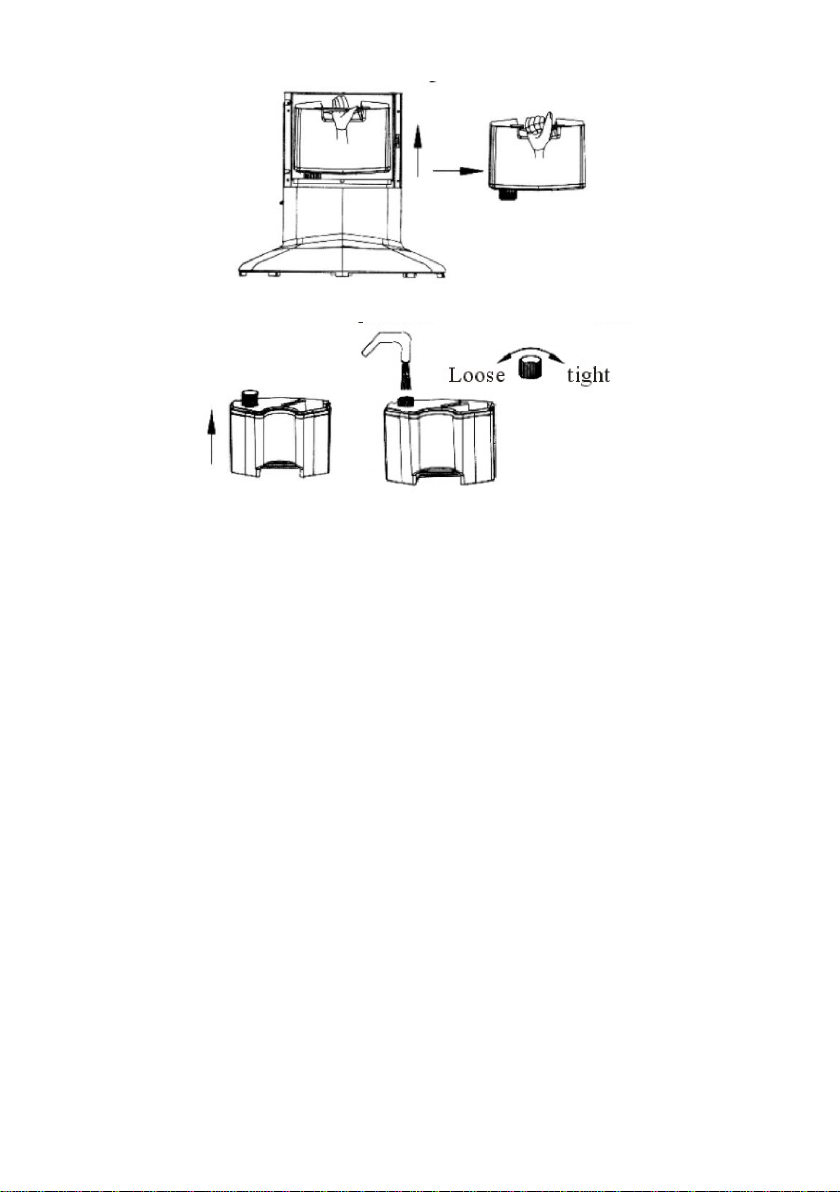

Water Tank

Take water tank out horizontally

Humidifier

Assemble and use the humidifier as follows:

1. Open the Water Tank compartment and remove the tank.

2. Unscrew the Water Tank Cap and fill it with cold fresh tap water.

3. Screw the Water Tank Cap back on and place the tank into the

Water Tank compartment.

4. Connect the Mist Tube. Connect the power supply and press

“Mist Button”. The mist will appear in 2-5 seconds.

5. The light on the Function Display will be blue when working. The

light will turn red when the water tank is empty.

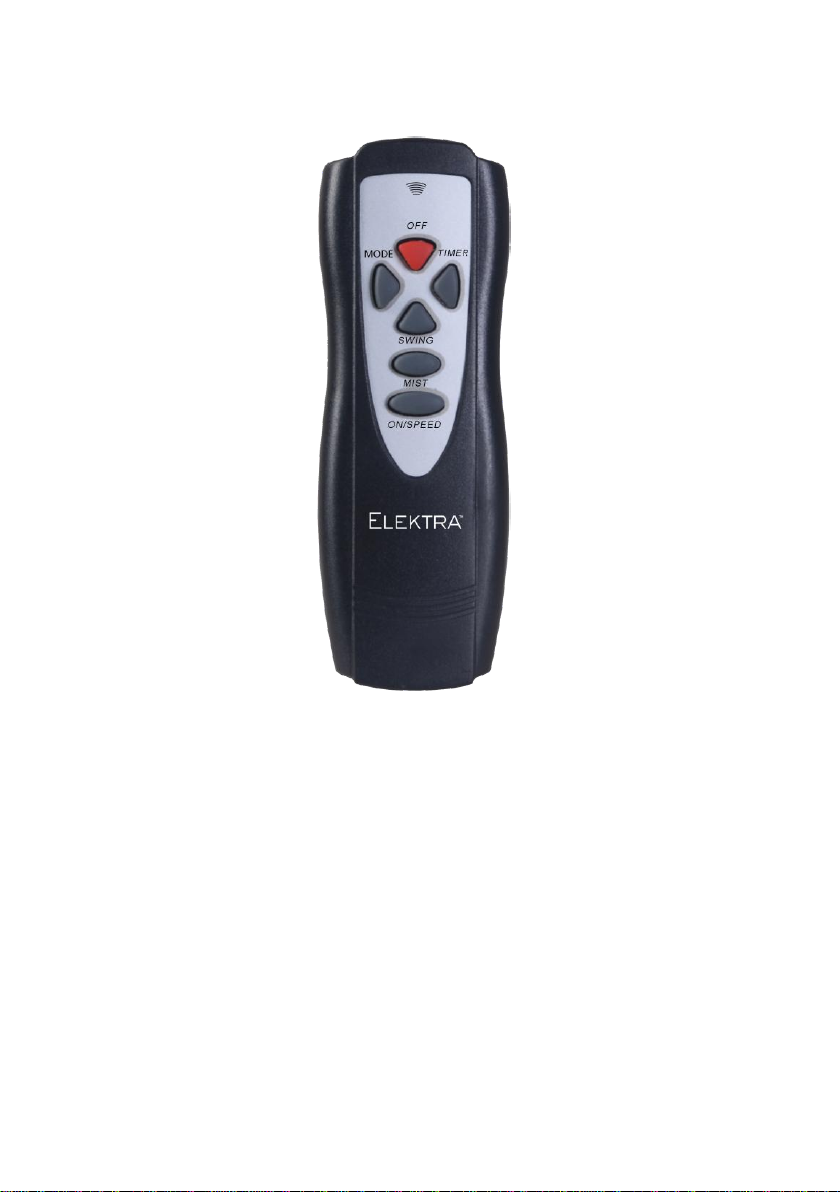

Remote Control

OFF –The OFF button turns the fan unit off.

ON/SPEED - Turns the fan on, and allows you to increase/decrease

the fan speed.

SWING - Turns on or off the oscillating function.

TIMER - Operation time can be set as follows: 0.5/1/2/4 hours. The

remaining time will appear on the LED panel.

MODE - Allows you to set the type of airflow.

Normal/Nature/Sleep.

MIST - Activates the humidifier, and produces mist.

Instructions for Cleaning

Should you need to clean the Fan :

- Unplug the Fan from the power outlet.

- Wipe it down with a damp cloth and a small amount of

non-abrasive cleaning agent.

- Never get the Fan wet.

- Do not use it if it is wet.

- Clean the air inlet and outlet regularly. You may use a

vacuum cleaner.

Storage Instructions

Your Fan should be stored in a cool, dry place.

After Sales Service

Your Elektra Comfort Fan is not user-serviceable.

If the Fan does not turn on, check to see that:

1. You have followed the instructions properly.

2. The outlet supply is switched on.

3. The main supply fuse/circuit breaker has not blown/tripped.

If the appliance still does not work, contact the Service Centre.

If the power supply cord or any wiring is damaged, or the Fan has been

misused or damaged, stop use immediately and contact the Service

Centre.

TEL: 011 393 1328

FAX: 011 393 1501

EMAIL: technical@sp-africa.com

Guarantee

Any defect affecting the functionality of the appliance which becomes

apparent within one (1) year of its purchase, will be corrected by free

repair or replacement, provided that the appliance has been used and

maintained in accordance with the instructions, and has not been

altered, abused or misused in anyway, and is accompanied with a Proof

of Purchase to validate the age of the appliance.

Specifications

220-240V 50Hz 100W

The Environment

This appliance is rated at an operating input of 100 watts.

Please consider the environment when disposing of packaging.

Recycle wherever possible.

When you want to dispose of this appliance please do so responsibly, or

SELIAN AGENCIES C.C.

8 Palala Street, Protec Park, Terenure Ext. 42,

Kempton Park, South Africa, 1610

Tel: 011 393 –1328

Fax: 011 393 –1501

www.sp-africa.com
