Samsung VCDC08 series User manual
Vacuum Cleaner
user manual
imagine the possibilities
Thank you for purchasing a Samsung product.
✻Before operating this unit, please read the instructions carefully.
✻For indoor use only. English
VCDC08**
VCDC12**
VCDC15**
VCDC20**
DJ68-00665E-04.indb 01DJ68-00665E-04.indb 01 2014. 9. 1. 9:382014. 9. 1. 9:38
02_ safety information
safety information
SAFETY INFORMATION
• Before operating the appliance, please read this manual thoroughly and
retain it for your reference.
• Because these following operating instructions cover various models,
the characteristics of your vacuum cleaner may differ slightly from those
described in this manual.
CAUTION/WARNING SYMBOLS USED
WARNING
Indicates that a danger of death or serious injury exists.
CAUTION
Indicates that a risk of personal injury or material damage exists.
OTHER SYMBOLS USED
Represents something you must NOT do.
Represents something you must follow.
Indicates that you must disconnect the power plug from the socket.
Notes on the energy label
• Declared energy efficiency and cleaning performance class on
carpet can be met with the enclosed 2-Step Brush.
• When the hard floor has joints and gaps, please use the
enclosed "Eco Hard Floor" brush which is designed to meet
the energy efficiency and cleaning performance class on hard
floor with joints and gaps.
• The values provided on the energy label have been
determinded according to the prescribed measuring process
(in accordance with EN60312 - 1).
Eco Hard Floor
Eco Hard Floor
WARNING
WARNING
DJ68-00665E-04.indb 02DJ68-00665E-04.indb 02 2014. 9. 1. 9:382014. 9. 1. 9:38
safety information _03
safety information
IMPORTANT SAFEGUARDS
1. Read all instructions carefully. Before switching on, make
sure that the voltage of your electricity supply is the same
as that indicated on the rating plate on the bottom of the
cleaner.
2. WARNING : Do not use the vacuum cleaner when rug or
floor is wet.
Do not use to suck up water.
3. Do not use the vacuum cleaner without a dust bin.
Empty the dust bin before it is full in order to maintain the
best efficiency.
4. Slide to the Stop(or Min)position before inserting a plug
into the electrical outlet.
5. Do not use the vacuum cleaner to pick up matches, live
ashes or cigarette butts.
Keep the vacuum cleaner away from stoves and other
heat sources. Heat can deform and discolour the plastic
parts of the unit.
6. Avoid picking up hard, sharp objects with the vacuum
cleaner as they may damage the cleaner parts. Do not
stand on the hose assembly. Do not put weight on the
hose.
Do not block the suction or the exhaust port.
7. Switch the vacuum cleaner off on the body of the
DJ68-00665E-04.indb 03DJ68-00665E-04.indb 03 2014. 9. 1. 9:382014. 9. 1. 9:38
04_ safety information
machine before unplugging from the electrical outlet.
Disconnect the plug from the electrical outlet before
changing the dust bag or dust container. To avoid
damage, please remove the plug by grasping the plug
itself, not by pulling on the cord.
8. This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved.
9. Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children without
supervision.
10.The plug must be removed from the socket outlet before
cleaning or maintaining the appliance.
11.The use of an extension cord is not recommended.
12.If your vacuum cleaner is not operating correctly, switch
off the power supply and consult an authorized service
agent.
13.If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard.
14.Don’t carry the vacuum cleaner by holding the hose.
Use the handle on the vacuum cleaner set.
15.Unplug the cleaner when not in use. Turn off the power
switch before unplugging.
DJ68-00665E-04.indb 04DJ68-00665E-04.indb 04 2014. 9. 1. 9:382014. 9. 1. 9:38
contents _05
contents
ASSEMBLING THE CLEANER
06
OPERATING THE CLEANER
07
07 ON/OFF Switch
07 Power Cord
08 Power-Control
MAINTAIN TOOLS AND FILTER
09
09 Using accessory
10 Maintain floor tools
11 Emptying the dust bin
12 When to clean the dust pack
13 Cleaning the dust pack
14 Cleaning the outlet filter
14 Change the battery (option)
TROUBLESHOOTING
15
DJ68-00665E-04.indb 05DJ68-00665E-04.indb 05 2014. 9. 1. 9:382014. 9. 1. 9:38
06_ assembling
assembling the cleaner
• Please do not press the button
of dust bin handle when carrying
machine.
• For storage, park the floor nozzle.
OPTION
• Features may vary according to model.
OPTION
DJ68-00665E-04.indb 06DJ68-00665E-04.indb 06 2014. 9. 1. 9:382014. 9. 1. 9:38
operating _07
02 OPERATING
operating the cleaner

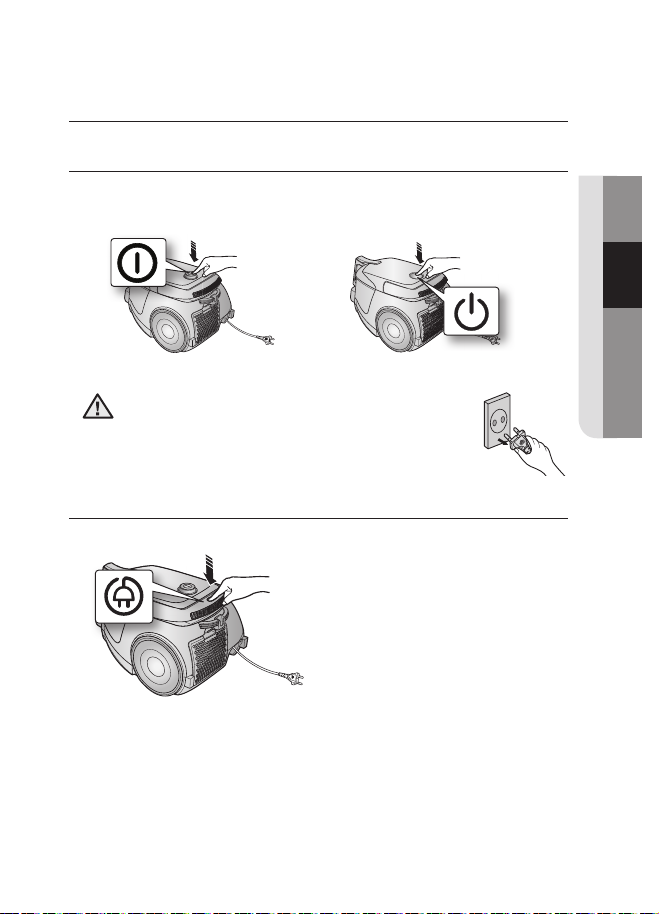

ON/OFF SWITCH
1) BODY CONTROL TYPE 2) HANDLE CONTROL TYPE
• When removing the plug from the electrical outlet, grasp
the plug, not the cord.
POWER CORD
CAUTION
DJ68-00665E-04.indb 07DJ68-00665E-04.indb 07 2014. 9. 1. 9:382014. 9. 1. 9:38
08_ operating

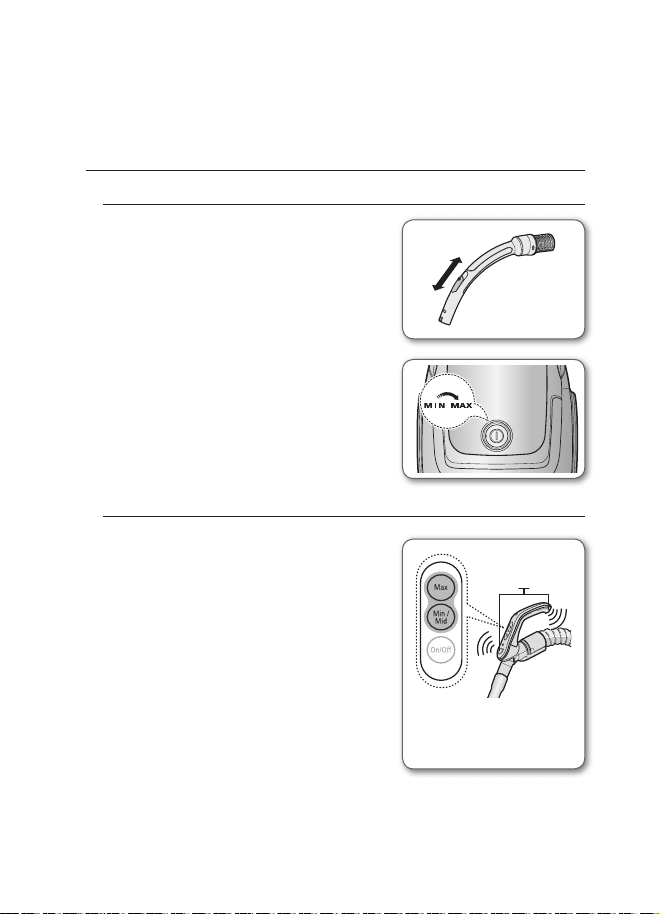

POWER-CONTROL
BODY-CONTROL TYPE / ON/OFF TYPE
• HOSE
To reduce suction for cleaning draperies,
small rugs, and other light fabrics, pull
the tap air until the hole is open.
• BODY (BODY-CONTROL TYPE ONLY)
MIN = For delicate surface e.g. net
curtains.
MAX = For hard floors and heavily soiled
carpets.
HANDLE CONTROL TYPE
• HOSE
Vacuum cleaner MODE (MIN/MID,MAX)
Press the MODE button repeatedly
to select the correct mode.
(ON) MIN
→
MID
→
MAX
sender
sender
Handle Control
The cleaner is controlled by
using infrared signals.
DJ68-00665E-04.indb 08DJ68-00665E-04.indb 08 2014. 9. 1. 9:382014. 9. 1. 9:38
maintain _09
03 MAINTAIN
maintain tools and filter
USING ACCESSORY
Pipe (Option)
• Adjust the length of the telescopic pipe by
sliding the length control button located in the
center of the telescopic pipe back and forth.
• To check for blockages, separate the
telescopic pipe and adjust to shorten. This
allows for easier removal of waste clogging the
tube.
Accessory
• Dusting brush for furniture. shelves, books,
etc.
• Crevice tool for radiators, crevices, corners,
between cushions.
DJ68-00665E-04.indb 09DJ68-00665E-04.indb 09 2014. 9. 1. 9:382014. 9. 1. 9:38
10_ maintain
MAINTAIN FLOOR TOOLS
2-Step Brush (Option)
• Adjust the inlet lever according to the floor
surface.
• Remove waste matter
completely if the inlet is
blocked.
Carpet Cleaning
Carpet Cleaning
Floor Cleaning
Floor Cleaning
Pet Brush (Option)
For improved pick-up of pet hair and fibre on carpets.
Frequent vacuuming of hair or pet fur may cause a falling-off of the rotation due to
matters tangled around the drum. In this case, clean the drum with care.
Blanket brush (Option)
Clogs on turbine keep brush from turning, thus need to be unclogged
as follows. For picking up pet hair and fibre on upholstery and bed
linen.
Remove waste matter completely when inlet is blocked.
Turn the lock button to ‘UNLOCK’, and remove waste
matter.
To reassemble, align the cover to the front of the main
body and close. After closing the cover, ensure that the
lock button is turned to the ‘LOCK’ position.
Use for bedclothes only. Be cautious not to damage brush during
unclogging.
Turbine
Turbine
Brush
Brush
WARNING
DJ68-00665E-04.indb 10DJ68-00665E-04.indb 10 2014. 9. 1. 9:382014. 9. 1. 9:38
