Samsung VC-7615 User manual

Operating Instructions

VACUUM CLEANER

❈Before operating this unit, please read the instructions carefully.

DJ68-00085F 3/5/041:50 PM Page 1

This appliance must be connected to the same mains voltage as shown on

the rating plate.

This vacuum cleaner is not suitable for removing any kind of liquid.

Carpets treated with a liquid cleaner must be allowed to dry before being

cleaned with the unit.

Never operate the vacuum cleaner without a dust bag.

The cover cannot be closed if a dust bag is not inserted. Please do not close

forcibly.

Keep children away from this vacuum cleaner. It must not be used on people

or animals.

Never use your appliance to vacuum matches, glowing embers, or

cigarette-ends. Avoid vacuuming hard, pointed objects, since they may

damage the appliance or dust bag.

If your vacuum cleaner has a fault, please contact your electrical retailer or an

authorized service agent.

If the mains cable is defective, the complete cable winder must be replaced

by a service agent.

Once you have unpacked the unit, do not simply throw the packing into the

household waste.

Take them to the appropriate collecting points for recycling.

IMPORTANT SAFEGUARDS

PROTECTING THE ENVIRONMENT

▲▲▲▲▲▲▲▲▲▲▲

DJ68-00085F 3/5/04 1:50 PM Page 2

IDENTIFICATIONS OF PARTS

ASSEMBLING THE VACUUM - CLEANER READY FOR USE

1) Connect the suction hose to the

suction tube. 2) Connect the suction tubes together

(depending on model).

3) Connect the nozzle to the suction

tube.

4) Connect the body connector to the

body of the cleaner. OPTION: Adjusting the telescopic

tube (depending on

model).

▲

Features marked with

* may vary according to model.

DJ68-00085F 3/5/04 1:50 PM Page 3

POWER CORD

ON / OFF SWITCH

POWER CONTROL (VARIABLE CONTROL TYPE ONLY)

1) PULLING OUT

The power cord is long enough to be

drawn out for convenience.

2) REWINDING

When you have finished cleaning,

disconnect the plug from the electri-

cal outlet and simply press the cord

rewind button lightly with your toe.

With the cord plugged into an electrical

outlet, start or stop the vacuum cleaner

by pushing lightly downward on the

switch with your toe.

The vacuuming power can be adjusted

to suit any situation with the electrical

power control.

MIN = For delicate fabrics, e.g.net

curtains.

MAX = For hard floors and heavily

soiled carpets.

NOTE: When removing the power cord from the electrical outlet, grasp the

plug, not the cord.

DJ68-00085F 3/5/04 1:50 PM Page 4

NOTE: If the “Dust-Full” indicator continues to display “RED” even after

changing the dust bag, turn the cleaner off and check whether the

hose, tube or nozzle is clogged.

DUST-FULL INDICATOR

USING THE ACCESSORIES

USING THE BLOWER

If the “Dust-Full” indicator changes to “RED” while you are cleaning, the dust

bag requires replacement.

Pull the tool storage cover upward.

• Crevice tool for radiators, crevice,

corners, between cushions.

• Upholstery brush for cushions and

drapery.

• Dusting brush for furniture, shelves,

books, etc.

Located on the left rear side of the

cleaner.

1) Disconnect the hose from the body

of the cleaner.

2) Connect the hose clamper to the

blow hole.

DUSTING BRUSH

CREVICE TOOL

UPHOLSTERY

BRUSH

CREVICE DUSTING

UPHOLSTERY

DJ68-00085F 3/5/04 1:50 PM Page 5

PARK POSITION

Located in the top rear side of the

vacuum-cleaner, there is a nozzle

support that can be used to park the

nozzle during pauses in cleaning.

TRANSPORTING AND STORING THE VACUUM CLEANER

For easy storage and transportation,

this vacuum cleaner has a clip system

built onto the body, which will keep the

tube, hose and nozzle in a vertical

position.

REPLACING THE DUST BAG

1) To open the dust cover of the dust

bag compartment, press the

clamper upward.

(The clamper is located at the front

of the dust cover)

2) Remove the carrying bag from the

cleaner.

DJ68-00085F 3/5/04 1:50 PM Page 6

FOR CLOTH FILTER BAG

MAINTENANCE OR REPLACEMENT OF THE FILTERS

NOTE: Used dust bag can be sealed

by removing the film from the

paper and sticking the latter

over the suction opening.

(ONLY PAPER BAG)

After using, if the cloth filter bag is full of dust, clean the cloth filter bag and use

it again.

1) INLET-FILTER.

• Open the dust cover.

• After detaching the filter, shake off the dust, and

then insert it in its original position.

• Close the dust cover.

2) OUTLET-FILTER.

• Open the dust cover, and then pull grille-filter

forward.

• Remove and replace the exhausted outlet-filter.

• Push the grille filter, and then close the dust

cover.

After removing the used dust bag,

insert the cardboard bag collar of the

new dust bag into the carrying bag,

and then insert it in its original position

4) Press the dust cover down gently

until the clamper relocks.

DJ68-00085F 3/5/04 1:50 PM Page 7

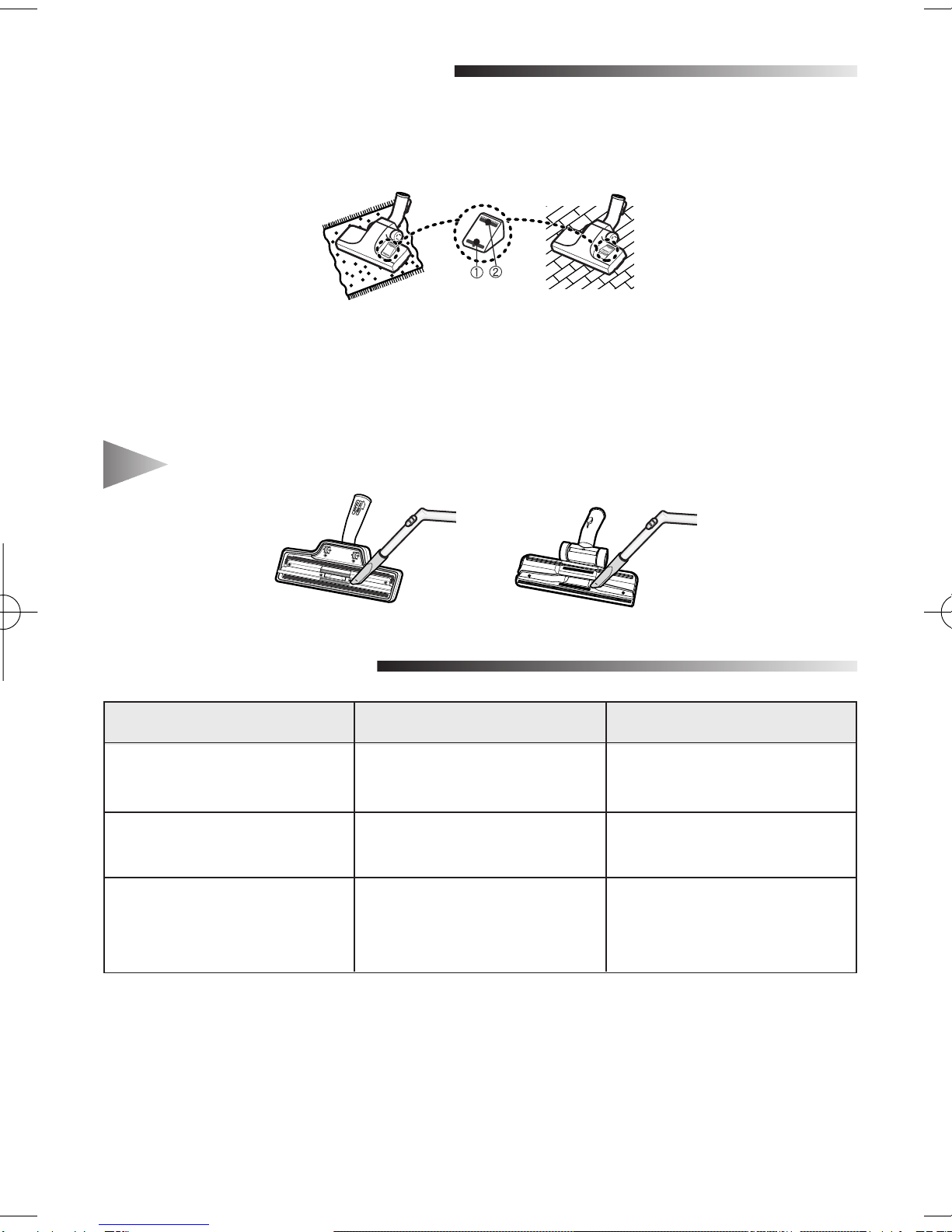

USAGE OF FLOOR NOZZLE

FOR RUG / FLOOR SELECTOR

Before use make sure that the position of the selector is in the right position for

the type of surface to be cleaned.

Select the carpet indicator ➀when cleaning carpets.

Select flat surface indicator ➁when cleaning the floors, tiles, etc.

NOTE: For optimum efficiency, clean floor brush with crevice tool.

TROUBLE SHOOTING

PROBLEM CAUSE REMEDY

Motor does not start. No power supply. Check cable, plug and

socket.

Suction force is gradually Filter, nozzle, suction hose Remove the object.

decreasing. or tube is blocked.

Cord does not rewind fully. Check that the cord is not Pull the cord out 2~3m &

twisted or wound unevenly. push down the cord rewind

button.

DJ68-00085F REV

(0.2)

This Vacuum cleaner is approved the following.

EMC Directive : 89/336/EEC , 92/31/EEC and 93/68/EEC

Low Voltage Safety Directive : 73/23/EEC and 93/68/EEC

DJ68-00085F 3/5/04 1:50 PM Page 8
