Samsung UE55HU7200 Installation guide

Table of Contents

1. Product Introduction (Overview, TV Line Up, Specifications)

2. Key Features & Operation

3. Front/Rear View (Component locations & Connections)

4. Repair Preparations

5. Layout

6. Wiring Diagram

7. Circuit Description (& testing)

8. Factory Mode

9. Troubleshooting (additional)

10. Parts & Disassembly (& Reassembly)

HU6900 Overview

-2160p Ultra HD

-4 HDMI, MHL support

-60Hz UHD Micro Dimming

-Smart HUB, SI2.0 (Full browser, Media play)

-Built-in WiFi/ BT

-Voice Recognition

-Smart Touch Control

-Front Color : Black

-Design : Timeless (Stand : Timeless)

-Panel : 55”/65” 60Hz

-Memory : Flash 4G, DDR 2G

TV Line Up

UN**HU7200

Front Color Black

Dimensions

W x D x H

(mm)

55” 65”

Without

Stand 1233.0*714.6*111.4 1451.2*839.9*134.6

With

Stand 1233.0*760.4*294.9 1451.2*881.0*298.5

Weight

(kg)

55” 65”

Without

Stand 18.9 28

With

Stand 21.8 31.7

Panel Type 3840*2160,HU7200 SDC 3840*2160,HU7200 SDC

RGB Vertical Stripe

Internal Memory Flash 4G

DDR 2048Mbyte

Feature Media Play(USB/DLNA)

TV Line Up

UN**HU7100

Front Color Black

Dimensions

W x D x H

(mm)

55” 65”

Without

Stand 1233.0*714.6*111.4 1451.2*839.9*134.6

With

Stand 1233.0*755.5*261.7 1451.2*878.3*333.9

Weight

(kg)

55” 65”

Without

Stand 19.0 28.1

With

Stand 19.9 29.2

Panel Type 3840*2160,HU7200 SDC 3840*2160,HU7200 SDC

RGB Vertical Stripe

Internal Memory Flash 4G

DDR 2048Mbyte

Feature Media Play(USB/DLNA)

Specifications

UN55/65HU7200

CPU ARM Cortex A9 Qual(1.2GHz, Quad Core)

DDR 2GB(4 X 512MB DDP), 800MHz

Flash 4GB (eMMC 4.41)

HDMI 4 Port, 1.4 ver, MHL 1.2

SIL9679 (Loopback circuit)

Voice & Hand Gesture Recognition O(Voice Recognition (Server))

Camera Ready

Eco Sensor/IR/LED Built-in bottom Frame

Sound output 10W (Left), 10W (Right)

Screen Mirroring O(All Share Cast, WiDi)

FRC Chip Set NT72323BG

TCON IC IN8202A(INX)

Dimension

•HU7200 55” Front View Dimension

•HU7200 55” Rear View Dimension

Dimension

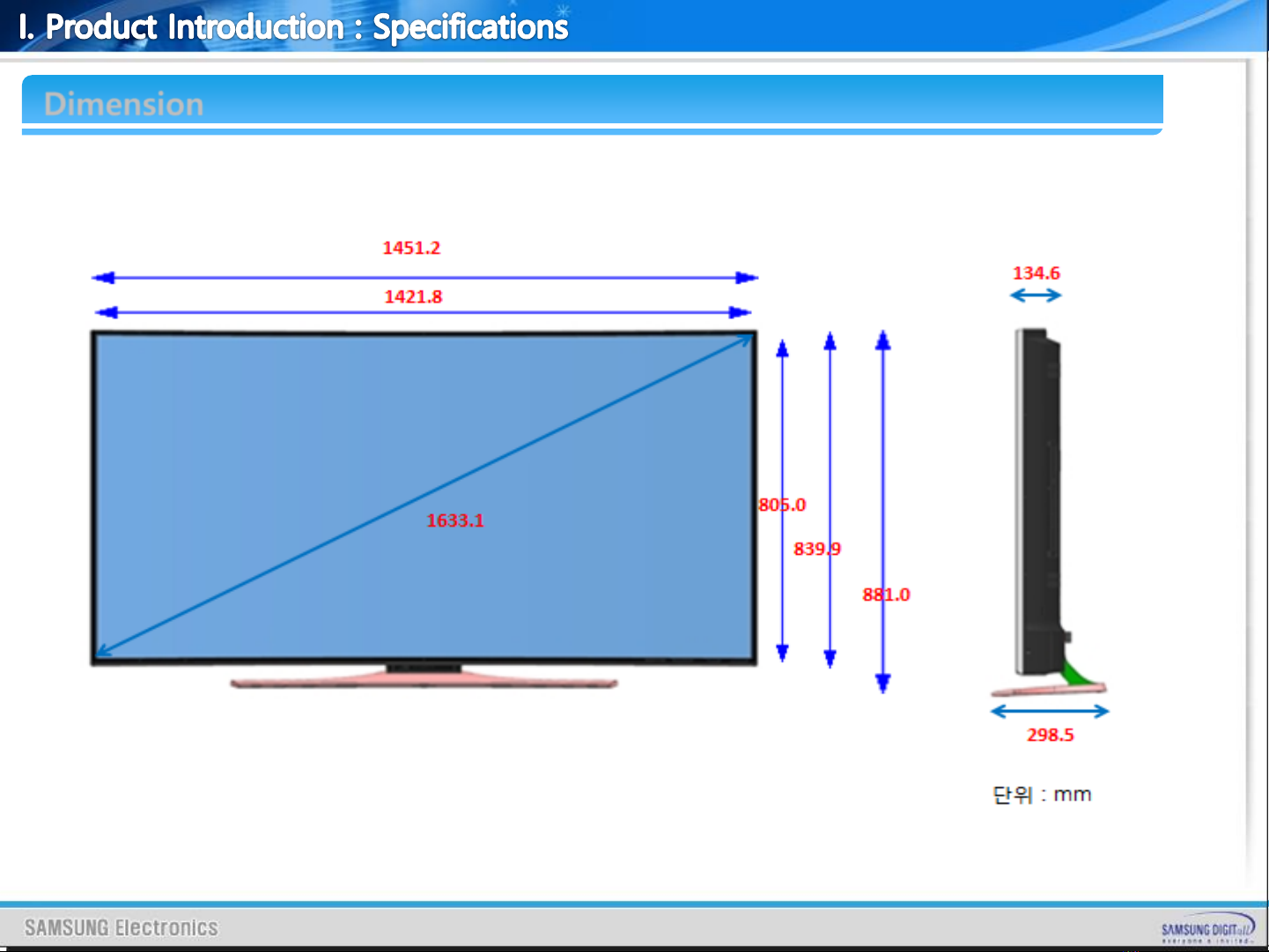

•HU7200 65” Front View Dimension
