Samsung SP-42Q2 Use and maintenance manual

ENG

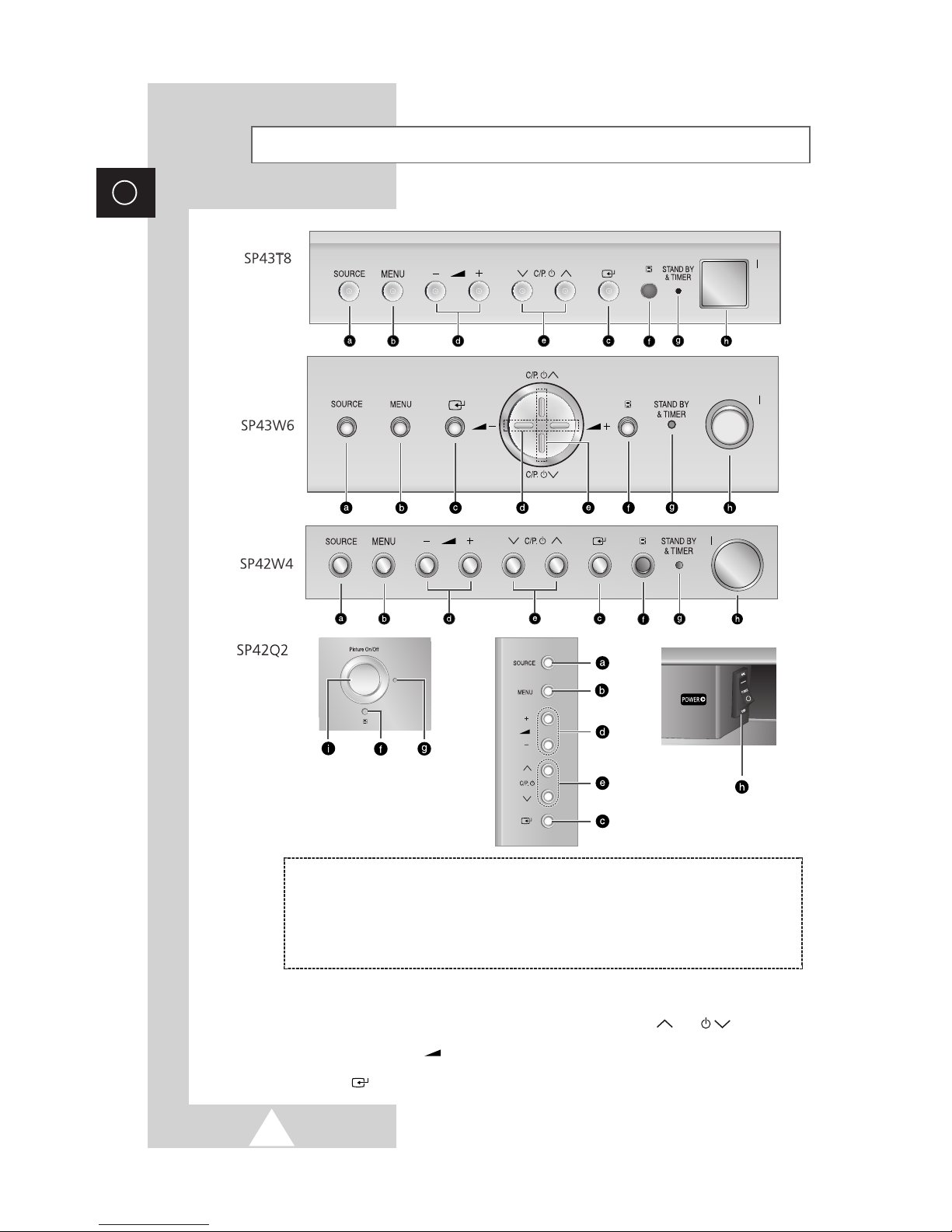

Control Panels (depending on the model)

➢The actual configuration on your TV may be different, depending on

your model.

➢

Using the Buttons on the Panel

If the remote control no longer works or you have lost it, you can use controls on the panel of the TV to:

◆Switch on the TV when it is in Standby mode and select channels ( C/P. )

◆Access the menu ( MENU )

◆Adjust the volume (

◆Switch among Video input modes (SOURCE ) and access to the selected option on the menu

system ( )

( a ) Input Source Selection

( b ) Menu Display

( c ) Accessing to the Selected Option

on the Menu System

( d ) Volume Adjustment

( e ) Channel Selection

( f ) Remote Control Sensor

( g ) Standby & Timer Indicator

( h ) Power On/Off

( i ) Picture On/Off

ENG

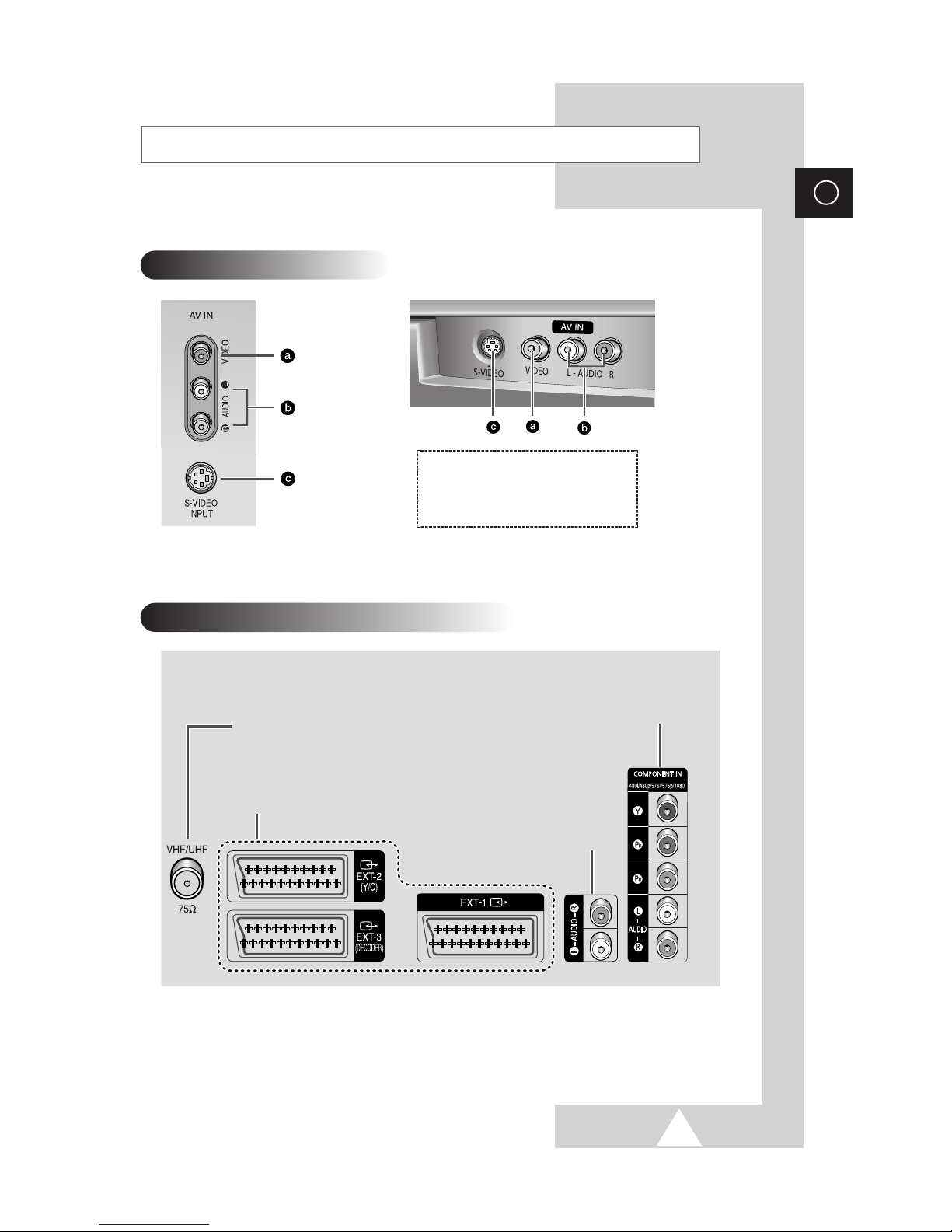

Connection Panels (depending on the model)

➢The actual configuration on your TV may be different, depending on

your model.

Side of the TV

Rear of the TV

( a )

Video Input

( b )

Audio Input

( c )

S-Video Input

➢For further details about connection, refer to pages 51~55.

☛Whenever you connect an audio or video system to your television, ensure that all elements are switched

off. Refer to the documentation supplied with your equipment for detailed connection instructions and

associated safety precautions.

Audio Output

75ΩCoaxial Connector for Aerial or Cable Network

SCART Audio/Video Input/Output

Component Input

ENG

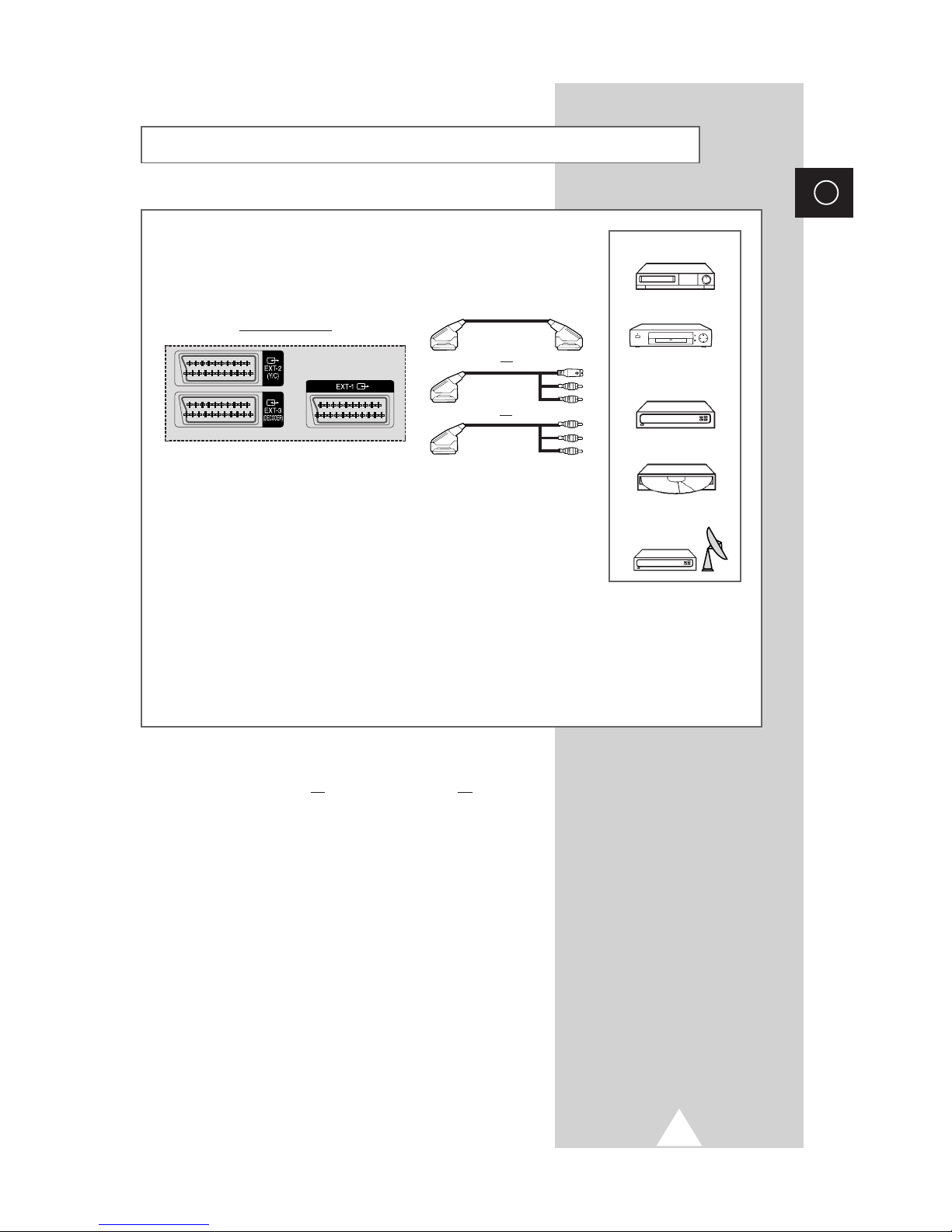

Connecting to the External Input/Outputs

➢

EXT-1 is used for the equipment with an RGB output, such as video game

devices or video disc players.

Rear of the TV

VCR

Decoder /

Video game device

Video disc player

Satellite receiver

①

This end can be fitted with:

◆A SCART connector

◆An S-Video connector and two audio RCA connectors (L+R); EXT- 2

◆Three RCA connectors (VIDEO + AUDIO-L and R)

②

If you have a second VCR and wish to copy cassette tape, connect the

source VCR to EXT-1 and the target VCR to EXT-2 so that you can redirect

the signal from EXT-1 to EXT-2.

③

If you have a decoder, connect the decoder to the VCR and the VCR to the

television.

➃

When you wish to record a programme, connect the receiver to EXT-1 and

the VCR to EXT-2 so that you can redirect the signal from EXT-1 to EXT-2.

①

DVD

②

➃

③

☛Whenever you connect an audio or video system to your

television, ensure that all elements are switched off.

Refer to the documentation supplied with your equipment

for detailed connection instructions and associated safety

precautions.

ENG

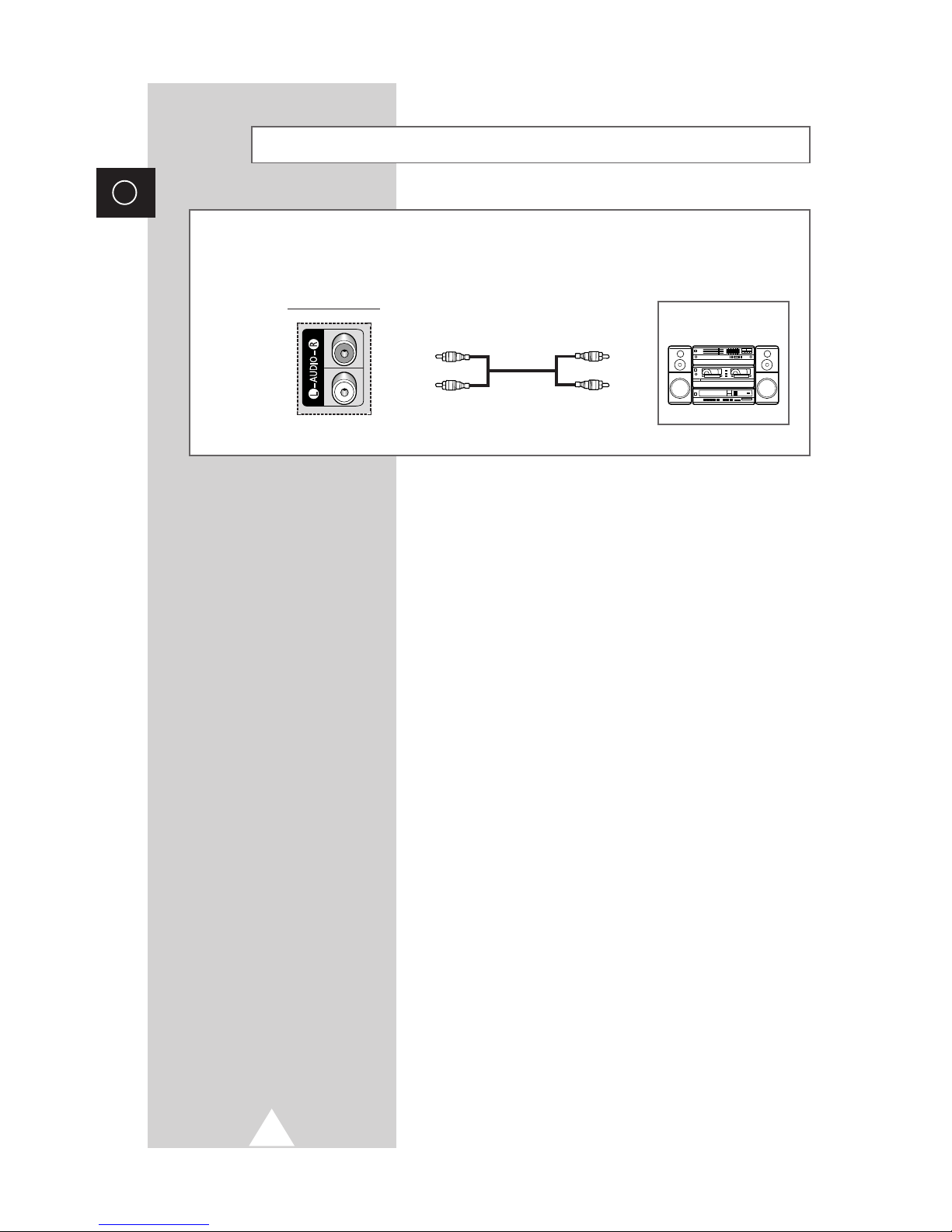

Connecting to the Audio Output

➢The RCA (AUDIO-L and R) connectors are used for equipment, such as an audio

system (to take full advantage of the Surround sound effect).

Rear of the TV

Audio system

ENG

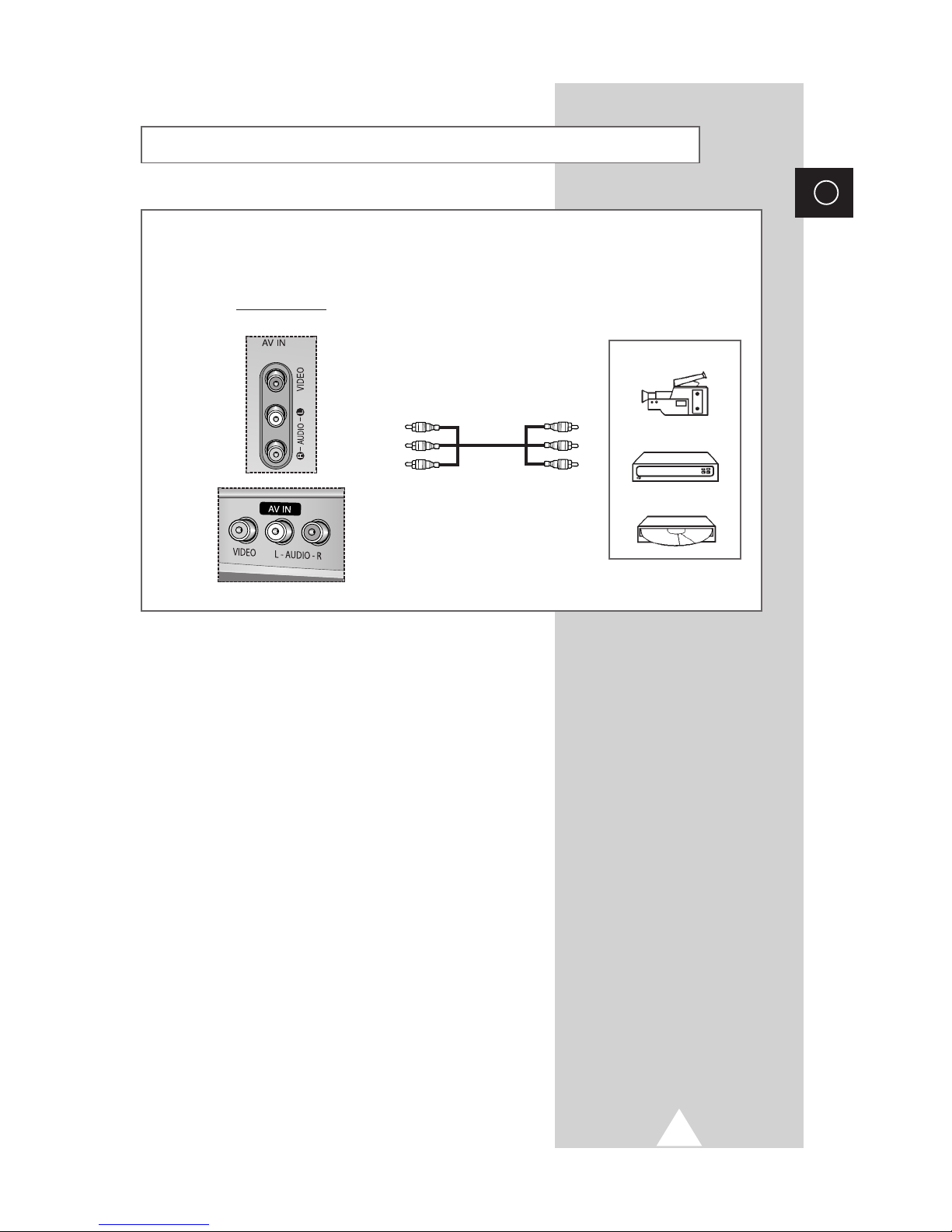

Connecting to the RCA Input

➢The RCA (VIDEO + AUDIO-L and R) connectors are used for the equipment, such as camcorders,

video disc players, and some video game devices.

Side of the TV

(depending on the model)

Camcorder

Video game device

Video disc player

ENG

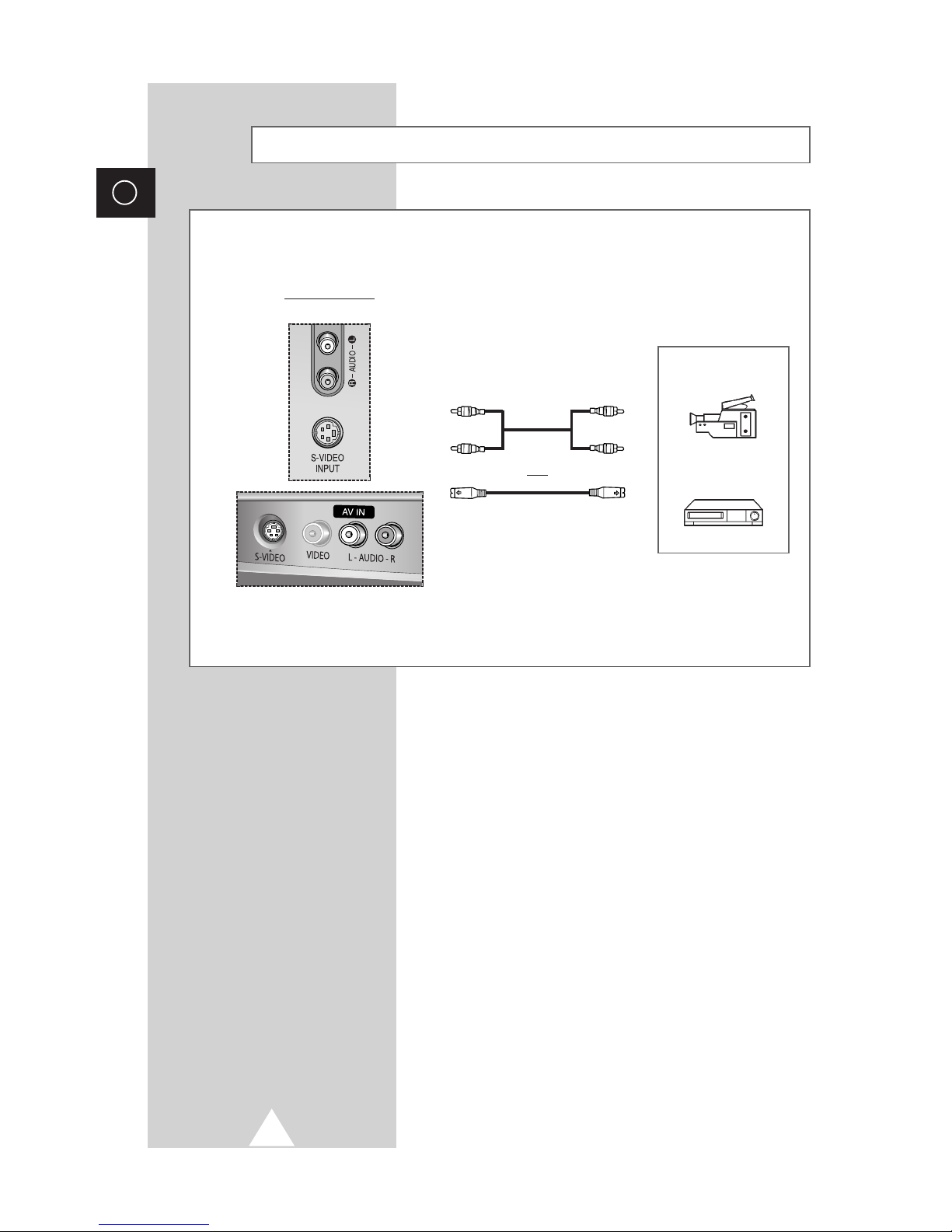

Connecting to the S-Video Input

➢The S-VIDEO (or S-VIDEO INPUT) and RCA (AUDIO-L and R) connectors are used for equipment

with an S-Video output, such as a camcorder or VCR.

Camcorder

VCR

①

To play pictures and sound, both the S-VIDEO (or S-VIDEO INPUT) and RCA connectors must be used.

and

①

Side of the TV

(depending on the model)

ENG

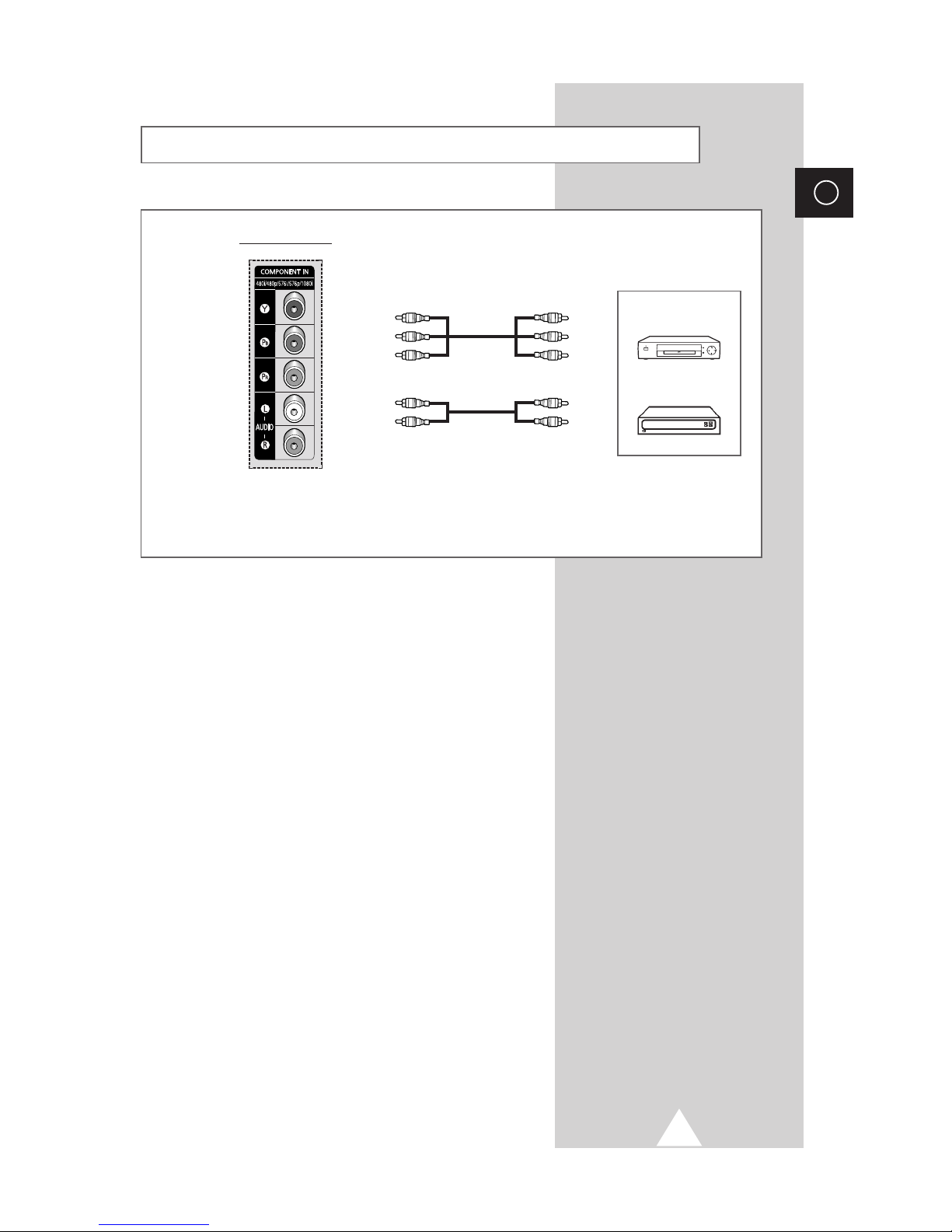

Connecting to the Component Input

➢The COMPONENT IN connectors are used for equipment with a DVD or DTV receiver output.

(480i, 480p, 576i,576p, 1080i)

DVD

Rear of the TV

DTV receiver
