Samsung SMART TV User manual

1Unpack

Taking the TV Out of the Box

•Warning:

Do not touch the TV’s

screen when you take

it out of the box. Hold it

by its edges only. If you

touch the screen, you

can cause the TV panel

to crack.

•Recommendation 1:

Two people should

remove the TV from the

box as shown above.

When removing the

TV, hold it by its edges

only. Do not touch the

screen.

•Recommendation 2:

If only one person is

available to remove

the TV from the box,

remove it as shown in

the illustration above.

Hold the TV by its

edges. Do not touch

the screen.

Included in this Box

Remote Control

RETURN

EXIT

GUIDE

CH.LIST

SMARTHUB

KEYPAD SOURCE

VOL CH

VOICE

3D CC P.SIZEMTS

MENU INFO

MIC

Samsung

Smart Control

Remote

Control

Batteries

(2 AA, 2 AAA)

Stand Parts and Cables

Base Stand Mount

Screws (x8) Power Cord

IR Extender Cable Wall Mount Adapter (x4)

Also included

•User manual

•Regulatory guide

•3D Active Glasses

[HU8700F-QSG]BN68-06339A-03ENG.indb 1 2014-09-30  2:33:57

Warnning

Do not remove the Styrofoam on the front

of TV screen.

(M4 X L12)

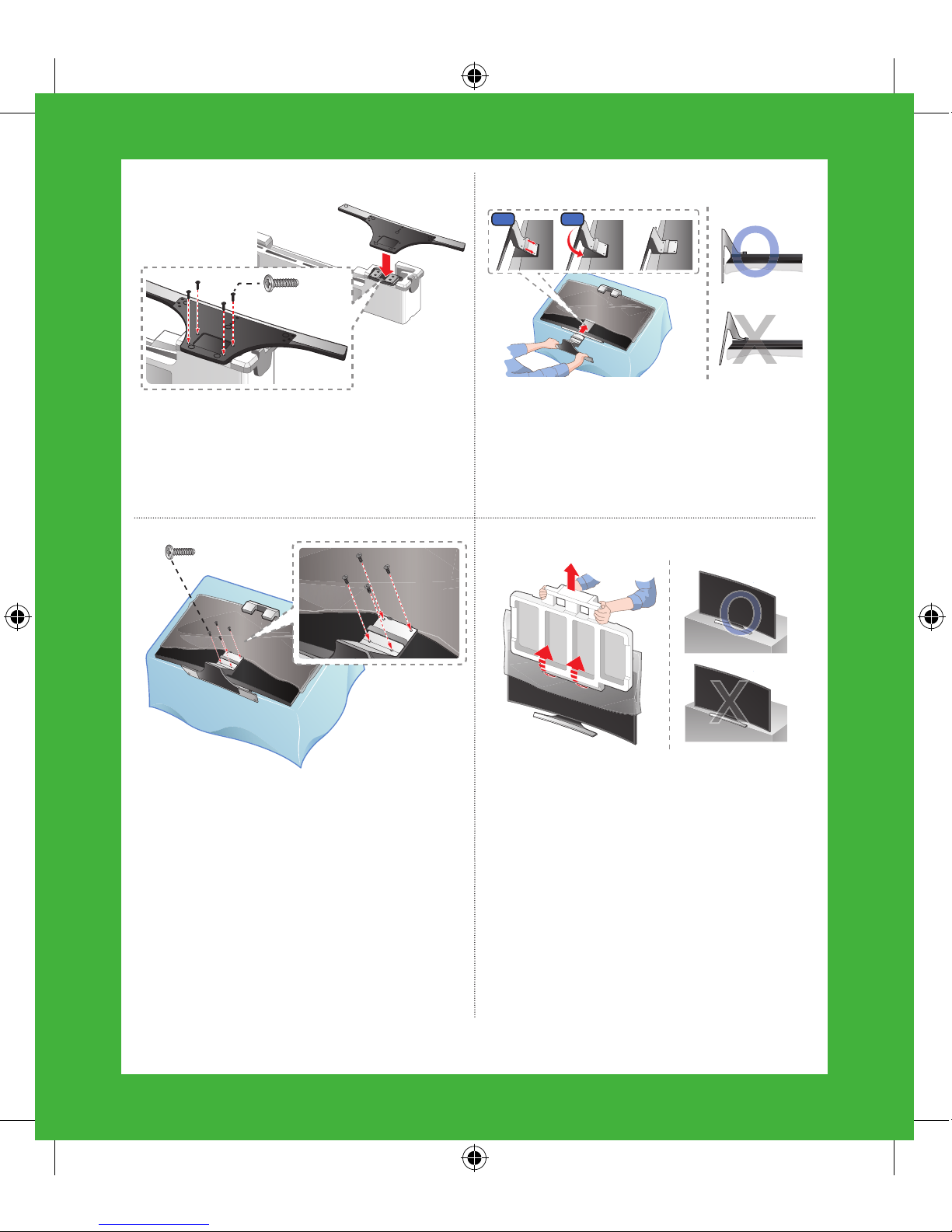

1 Locate the Base, Stand Mount, and

Screws in the box and set them aside.

✎Remove the top portion of the

box to locate the stand parts.

2 With another person, hold the TV by its

edges, and then remove it completely

from the box.

3 Place the TV on a soft surface, screen

side down. Use the Styrofoam to

protect the screen.

4 As shown in the diagram, attach the

Stand Mount to the Styrofoam holder

at the bottom of the TV.

2Assemble

[HU8700F-QSG]BN68-06339A-03ENG.indb 2 2014-09-30  2:33:59

x4 (M4 X L12)

6-26-1

5 Insert 4 screws, and then use a

screwdriver to secure the Base to the

Stand Mount.

6 Holding the stand parallel to the

screen, slide the Mount into the

notches on the back of the TV.

x4 (M4 X L12)

7 Insert 4 screws, and then use a

screwdriver to secure the stand to the

T V.

✎To assemble the wall mount, use

the styrofoam that came with

the TV’s packaging to protect it.

Lay the TV down and attach the

screws.

8 After attaching the stand, set the

TV upright, and then remove the

Styrofoam from the front of the TV. Do

not place the TV at the edge of any

piece of furniture (table, entertainment

center, etc.). It could fall and break or

cause personal injury.

[HU8700F-QSG]BN68-06339A-03ENG.indb 3 2014-09-30  2:34:02

3Connect

After you have connected all

your external devices, plug the

TV’s power cord into the back

of the TV. DO NOT plug it into

a wall outlet until you have

reached Section 7, Initial Setup.

Connection panel on

the back of the TV

Internet

Connect here with an Ethernet

cable or wirelessly later during

the Initial Setup.

TV signal

Connect your

coaxial cable to the

Antenna In port.

Cable/Satellite/DVR

Connect your Cable box or digital

video recorder with an HDMI cable.

* Recommended Connections

[HU8700F-QSG]BN68-06339A-03ENG.indb 4 2014-09-30  2:34:03

4Gear

Audio

Connect a receiver/home theater

using an optical audio cable.

Blu-ray/DVD/Home Theater

Connect your video player using an

HDMI cable.

Game console

Connect your game console

or DVR using an HDMI cable.

* Recommended Connections

[HU8700F-QSG]BN68-06339A-03ENG.indb 5 2014-09-30  2:34:03

You can control your cable or satellite box with the Samsung Smart Control. To

establish control, you must ﬁrst set up the IR extender cable. If you don’t have an cable

or satellite box, skip this section.

1 Connect the IR extender cable to the TV’s IR output connector.

✎To help hold the IR extender in place, set the

extender cable under your satellite or cable box.

Position the transmitter in front of the box.

TV’s IR Out

Connect the IR extender cable to the back of the TV.

Position the transmitter end 4

inches in front of the cable or

satellite box.

4 inches

IR extender

Cable or satellite box

2 Position the transmitter end within 4 inches (10 cm) of the cable or satellite box’s

remote control sensor, pointing in the direction of the sensor.

✎Make sure there are no obstacles between the transmitter end of the IR

extender cable and the cable or satellite box. Any obstacles will interfere

with the transmission of the remote control signals.

3 Finalize control of your cable or satellite box when you run Initial Setup.

Cable/SAT box

(Cable or Satellite box)

[HU8700F-QSG]BN68-06339A-03ENG.indb 6 2014-09-30  2:34:04

6Smart Control

Introducing the Samsung Smart Control

Your TV comes with a Samsung Smart Control. Unlike conventional remote controls

that have only buttons, the Samsung Smart Control has:

•Buttons for quick access to frequently used functions.

•A motion sensor that lets you move the pointer or focus on the screen by simply

moving the Samsung Smart Control.

Inserting the Batteries

1 Gently pull on the notch in the battery cover. When the cover comes loose, remove

the cover completely.

2 Insert 2 AA alkaline batteries, making sure to align the positive and negative polarities

correctly.

3 Place the battery cover on the remote control, and then press the top part of the

cover into the control.

4 Press the catches on both sides of the battery cover in the order shown in the ﬁgure

above until the cover is completely attached to the remote control.

Using the Samsung Smart Control

When you start the TV for the ﬁrst time by pressing the TV button on the Samsung

Smart Control, the TV and the Samsung Smart Control pair, using the TV’s Bluetooth

function. Once the TV and Samsung Smart Control have paired, you can use the

Samsung Smart Control to operate the TV.

[HU8700F-QSG]BN68-06339A-03ENG.indb 7 2014-09-30  2:34:06

Using Motion Sensor Control

Place a ﬁnger on the touch pad, and then move

the Samsung Smart Control. A pointer appears

on the screen. Move the Samsung Smart Control.

The pointer moves in the direction you moved

the Samsung Smart Control. If you stop using the

Motion Function, even momentarily, put your ﬁnger

on the touch pad, and then move the Samsung

Smart Control again to re-start the function.

Moving the Focus, Pointer,

or Cursor Using the

Directional Buttons

Selecting an Item/Entering a

Menu by Pressing the Touch

Pad

Press the directional buttons (up, down,

left, and right) to move the focus,

pointer, or cursor in the direction you

want.

To enter a menu or select an item,

highlight the item or the menu title, or

move the pointer over it, and then press

the touch pad.

Pairing the Samsung Smart Control Again

If you need to re-establish the connection between the TV and the Samsung Smart

Control, point the Samsung Smart Control at the remote control sensor of the TV, and

then press the RETURN button and GUIDE button simultaneously for 3 seconds or

more.

[HU8700F-QSG]BN68-06339A-03ENG.indb 8 2014-09-30  2:34:06

When you turn on your TV for the ﬁrst time, it immediately starts the Initial Setup.

During Initial Setup, your TV pairs with the Samsung Smart Control, connects to your

home network, implements Smart Hub agreements, links to the source of your live TV

signal, and sets up control of your Cable or Satellite box.

Information You Need

Have the following information on hand

before you turn on your TV for the ﬁrst

time:

•Your wireless network’s password.

(Make sure your network is on.)

•Your Postal or Zip code.

•The name and location of your cable

or satellite provider (if you use one).

Internet Access

The TV must be connected to the Internet

to use the Smart Features. If you have

a wireless network, conﬁrm that your

network router is working before you

start the initial setup. If you have a wired

network, connect the TV to the network

with an Ethernet cable before you begin

(CAT 7 cable preferred).

Running Initial Setup

1 Plug your TV into a wall outlet.

2 Aim the Samsung Smart Control at

the TV.

3 Press the TV button on the Samsung

Smart Control to turn on the TV, and

then follow the directions on the

screen.

Once your Samsung Smart Control pairs, you can use the Samsung Smart Control’s

motion sensor function to move the pointer on the screen. To use the motion sensor

function, rest a ﬁnger on the touch pad, and then move the Samsung Smart Control.

To select items, press the touch pad.

To learn more about operating your TV and its Smart Features, see your TV’s user‘s

manual or launch the TV’s built in e-Manual. Congratulations on the purchase of your

new Smart TV!

7Initial Setup

[HU8700F-QSG]BN68-06339A-03ENG.indb 9 2014-09-30  2:34:07

Common issues

Can’t Connect to Network or

Apps (For Internet supported

models only)

•Make sure the TV has a network

connection (MENU > Network >

Network Status).

•Contact your Internet service provider.

No Picture/Sound or Distorted

Picture/Sound from an External

Device

•Make sure your connection to the

device is correct.

•Perform a TV Self Diagnosis to identify

the problem (MENU > Support > Self

Diagnosis > Sound or Picture Test).

•Change the picture size (MENU >

Picture > Picture Size > Picture

Size).

Poor Picture Quality

•Select High Deﬁnition (HD) channels

or programs.

Your Settings are Lost after 5

Minutes

•Change to Home Mode (MENU >

Support > Use Mode > Home Use).

“Weak or No Signal” Displayed in

TV Mode/Cannot Find Channel

•Press the SOURCE button on your

remote.

•If the TV is not connected to a cable

or satellite box, run Auto Program

to search for channels (MENU >

Broadcasting > Auto Program).

Can’t See All Apps or Apps Not

Working

•Reset Smart Hub (MENU > Smart

Hub > Smart Hub Reset).

The stand is wobbly or crooked

•Make sure the indicator arrows on the

stand and stand holder are properly

aligned.

The TV won’t turn on

•Make sure all cables are fully inserted

and that the remote has batteries

installed.

My remote, gestures, and/or

voice does not work

•The TV ships with protective stickers

covering some of the sensors. Make

sure all of the stickrs have been

removed.

[HU8700F-QSG]BN68-06339A-03ENG.indb 10 2014-09-30  2:34:07

Other manuals for SMART TV

This manual suits for next models

Table of contents

Other Samsung TV manuals

Samsung

Samsung CS21A11 User manual

Samsung

Samsung Plasma TV User manual

Samsung

Samsung TX-T2781, TX-T2782, TX-T2082 User manual

Samsung

Samsung ua43j5100 User manual

Samsung

Samsung CS29B850F18XSV User manual

Samsung

Samsung CS21A530FLKXSV User manual

Samsung

Samsung CZ21A113N5 User manual

Samsung

Samsung LN40D560F9H Quick start guide

Samsung

Samsung 85Q80B User manual

Samsung

Samsung UA65RU7100W Guide

Samsung

Samsung LN40D567F9H Quick start guide

Samsung

Samsung Q70R Series User manual

Samsung

Samsung CS30A7HPTX/BWT User manual

Samsung

Samsung LN-S2641D User manual

Samsung

Samsung UE49KS8000 User manual

Samsung

Samsung CS29Z4HF9X/BWT User manual

Samsung

Samsung CZ-29A6VD Service manual

Samsung

Samsung CS29K30ML User manual

Samsung

Samsung S95C Series User manual

Samsung

Samsung QN85QN9 A Series User manual

Samsung

Samsung UN58MU6120 User manual

Samsung

Samsung QE65Q75TAL N Series User manual

Samsung

Samsung LN26C350D1D User manual

Samsung

Samsung HL-T5075S - 50" Rear Projection TV User manual

Popular TV manuals by other brands

Philips

Philips Colour Television Service manual

Toshiba

Toshiba 27A10 owner's manual

Philips

Philips 42PF9630A/37 user manual

Hitachi

Hitachi 32FX48B operating guide

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Service manual

Changhong Electric

Changhong Electric uhd55b6000is Operation manual

Philips

Philips Matchline 21CE7551 operating instructions

Panasonic

Panasonic Genus TX-G10 operating instructions

Toshiba

Toshiba 19A20 Service manual

Philips

Philips 25PT4523-16 manual

Sony

Sony XBR-100Z9D reference guide

Philips

Philips PR0930X3 owner's manual

Philips

Philips Brilliance 231P4QPY user manual

Philips

Philips 32HF9385D Käyttöopas

Sharp

Sharp LC-40FI5012E user manual

Loewe

Loewe Table Stand Reference 55 user guide

Philips

Philips 32PFH5300 Service manual

Sylvania

Sylvania 6427FB owner's manual
