Samsung HC-P4363W User manual

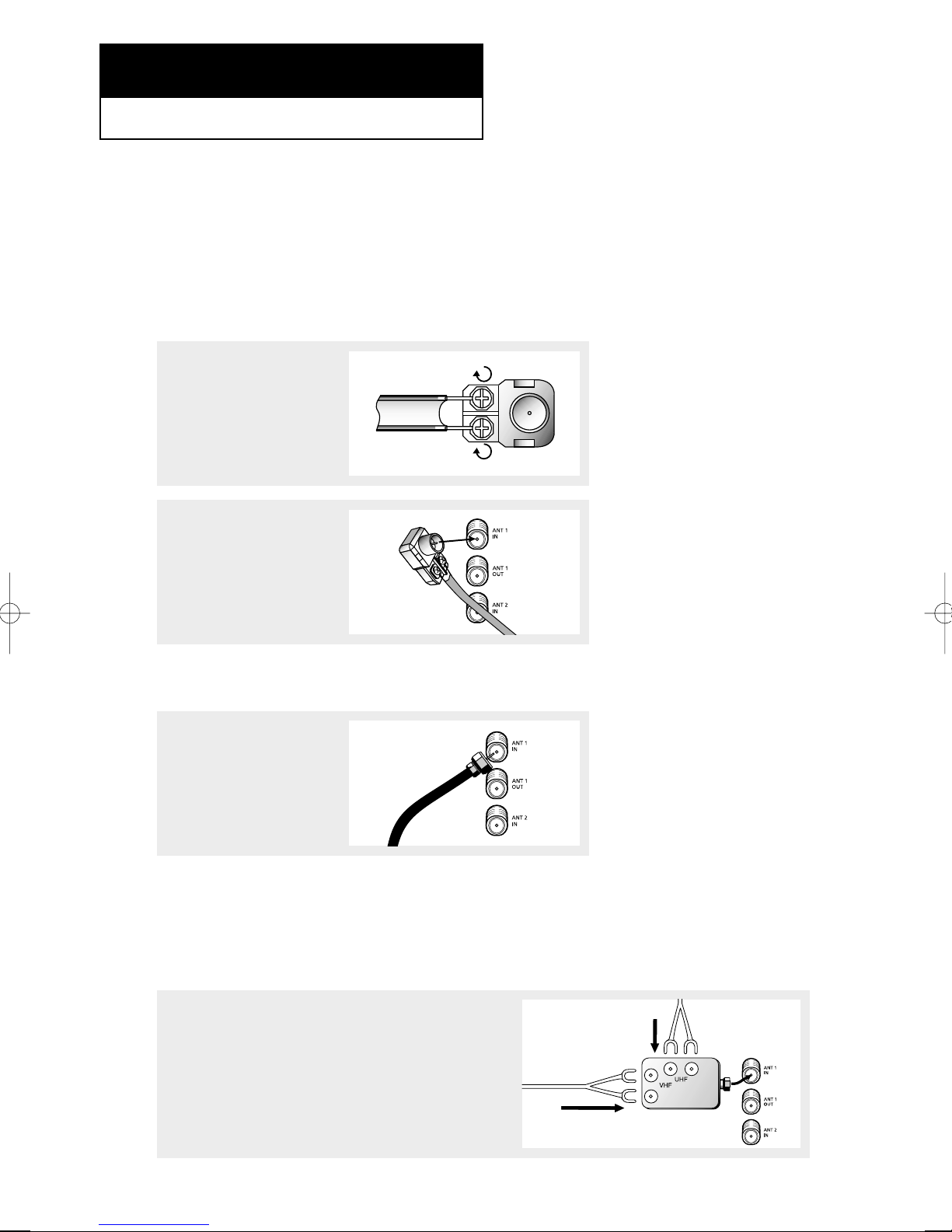

Connecting VHF and UHF Antennas

INSTALLATION

Chapter Two

Place the wires from the twin

leads under the screws on the

300-75 ohm adaptor (not

supplied). Use a screwdriver

to tighten the screws.

Plug the adaptor into the “ANT

1 IN”terminal on the rear

panel.

Antennas with 300-ohm Flat Twin Leads

If you are using an off-air antenna (such as a roof antenna or “rabbit ears”) that has 300-ohm

twin flat leads, follow the directions below.

Plug the antenna lead into the

“ANT 1 IN”terminal on the

rear panel.

Antennas with 75-ohm Round Leads

Connect both antenna leads to the combiner.

Plug the combiner into the “ANT 1 IN”terminal on the rear

panel.

Separate VHF and UHF Antennas

If you have two separate antennas for your TV (one VHF and one UHF), you must combine

the two antenna signals before connecting the antennas to the TV. This procedure requires an

optional combiner-adaptor (available at most electronics shops).

BP68-00342A-00Eng_TV 4/6/04 3:02 PM Page 11

INSTALLATION

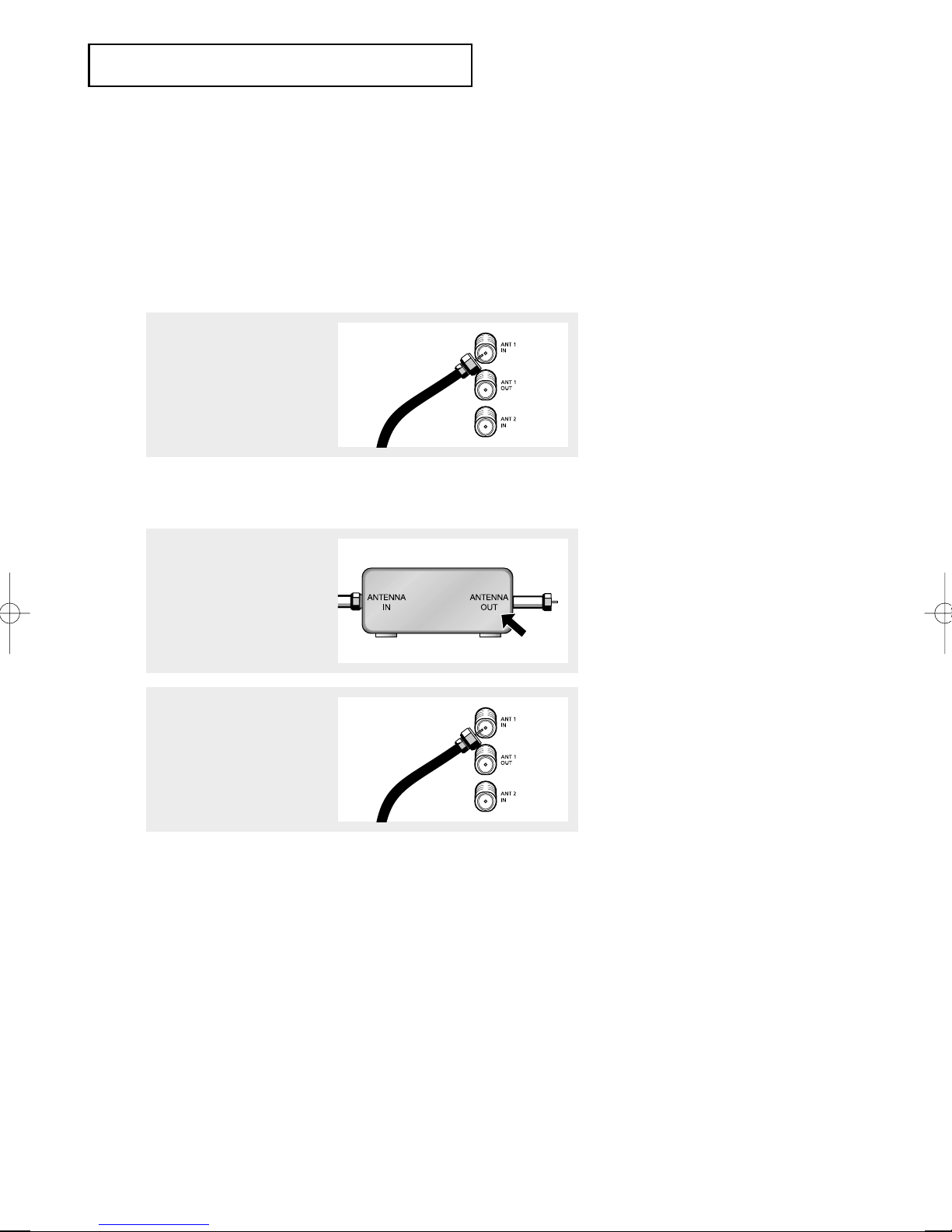

Find the cable that is

connected to the ANTENNA

OUT terminal on your cable

box.

Connect the other end of this

cable to the “ANT 1 IN”

terminal on the rear panel.

Cable with a Cable box that Descrambles All Channels

œThis terminal might be labeled

“ANT OUT”, “VHF OUT”,or

simply “OUT”.

Plug the incoming cable into

the “ANT 1 IN”terminal on the

rear panel.

Connecting Cable TV

You can connect different cable systems to your TV, including cable without a cable box, and

cable with a cable box that descrambles some or all channels.

Cable without a Cable Box

If you want to connect cable, and you do not need to use a cable box:

BP68-00342A-00Eng_TV 4/6/04 3:02 PM Page 12

INSTALLATION

Find and disconnect the cable

that is connected to the

ANTENNA IN terminal on your

cable box.

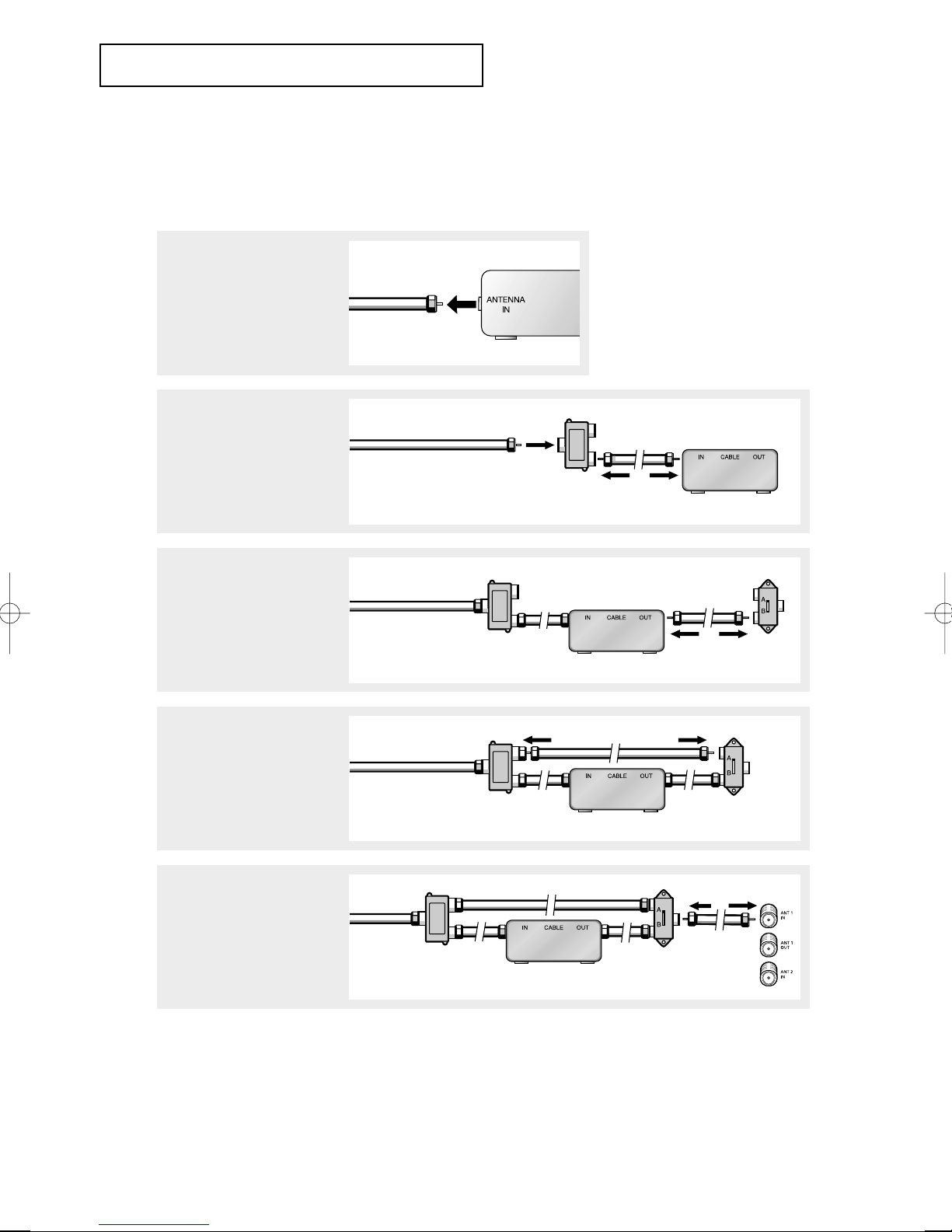

Connecting to a Cable Box that Descrambles Some Channels

If your cable box descrambles only some channels (such as premium channels), follow the

instructions below. You will need a two-way splitter, an RF (A/B) switch, and four lengths of

coaxial cable. (These items are available at most electronics stores.)

Connect this cable to a two-

way splitter. Connect a coaxial

cable between an OUTPUT

terminal on the splitter and the

IN terminal on the cable box.

œThis terminal might be labeled

“ANT IN”, “VHF IN”,or

simply “IN”.

Connect a coaxial cable

between the ANTENNA OUT

terminal on the cable box and

the B-IN terminal on the A/B

switch.

Connect another cable

between the other OUT

terminal on the splitter and the

A-IN terminal on the RF (A/B)

switch.

Connect the last coaxial cable

between the OUT terminal on

the RF (A/B) switch and the

“ANT 1 IN”terminal on the

rear panel.

After you’ve made this connection, set the A/B switch to the “A”position for normal viewing. Set the A/B

switch to the “B”position to view scrambled channels. (When you set the A/B switch to “B,”you will

need to tune your TV to the cable box’s output channel, which is usually channel 3 or 4.)

Incoming Cable Splitter

Cable Box

RF (A/B)

Switch

BP68-00342A-00Eng_TV 4/6/04 3:02 PM Page 13

INSTALLATION

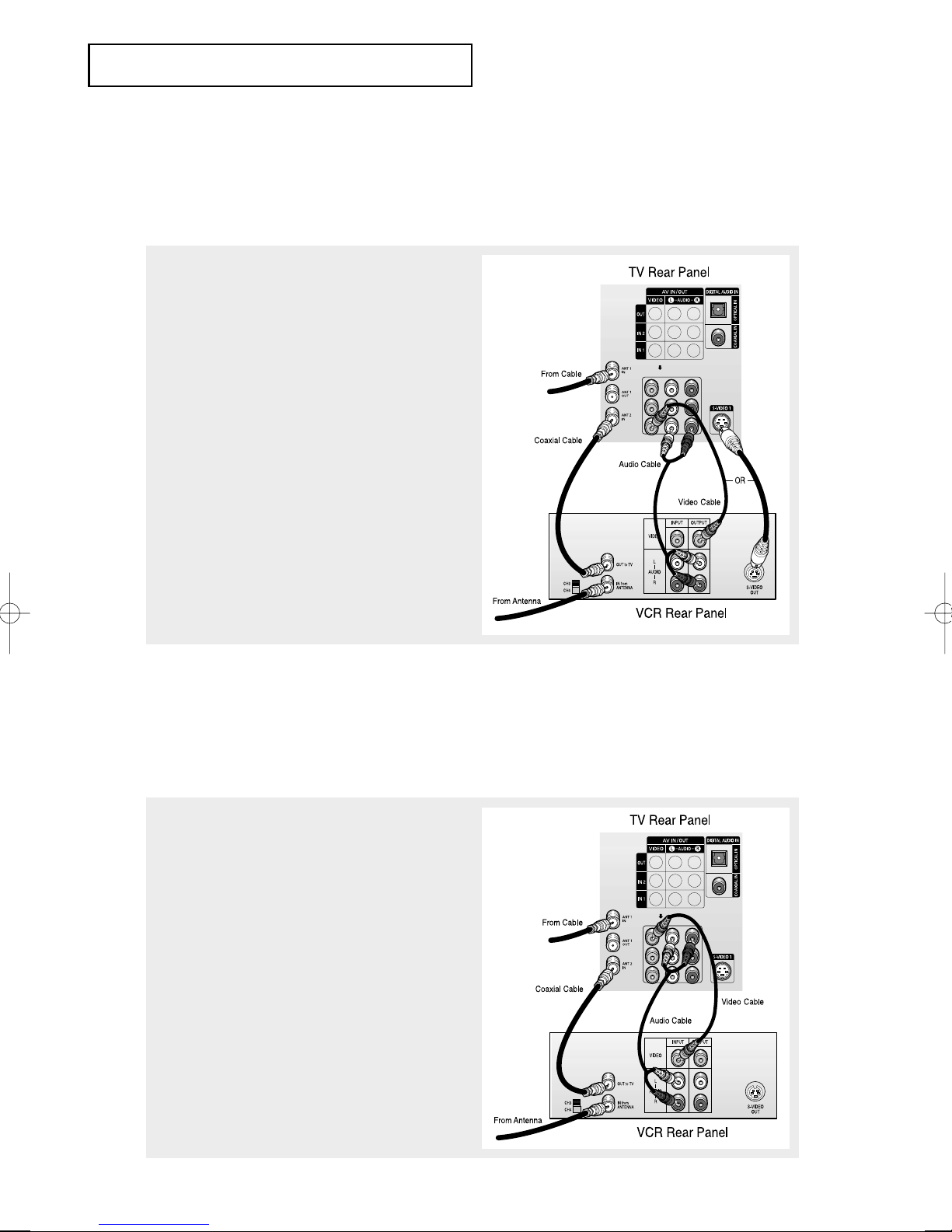

Connecting a VCR

These instructions assume that you have already connected your TV to an antenna or a cable

TV system (according to the instructions on pages 11~13). Skip step 1if you have not yet

connected to an antenna or a cable system.

Connect a coaxial cable between the “ANT IN”(1 or

2) terminal on the TV and the ANTENNA OUT terminal

on the VCR.

A coaxial cable is usually included with a VCR. (If

not, check your local electronics store).

Connect a set of audio cables between the “AV IN 1

(L, R)”(or “AV IN 2 (L, R)”) jacks on the TV and AUDIO

OUT jacks on the VCR.

If you have a mono VCR, connect L(mono) to VCR

audio out using only one audio cable.

Connect a video cable between the “AV IN 1 (VIDEO)”

(or “AV IN 2 (VIDEO)”) jack on the TV and the VIDEO

OUT jack on the VCR.

Follow the instructions in “Viewing a VCR or

Camcorder Tape”to view your VCR tape.

Connecting a Second VCR to Record from the TV

Your TV can send out signals of its picture and sound to be recorded by a second VCR. To do

this, connect your second VCR as follows:

Connect a set of audio cables between the “AV OUT

(L, R)”jacks on the TV and the AUDIO IN jacks on the

VCR.

(The VCR input jacks might be either on the front or

rear of the VCR.)

Connect a video cable between the “AV OUT (VIDEO)”

jack on the TV and the VIDEOIN jack on the VCR.

Refer to your VCR’s instructions for more information

about how to record using this kind of connection.

•Also, you can connect to “AV 3”on the side panel of TV.

BP68-00342A-00Eng_TV 4/6/04 3:02 PM Page 14

INSTALLATION

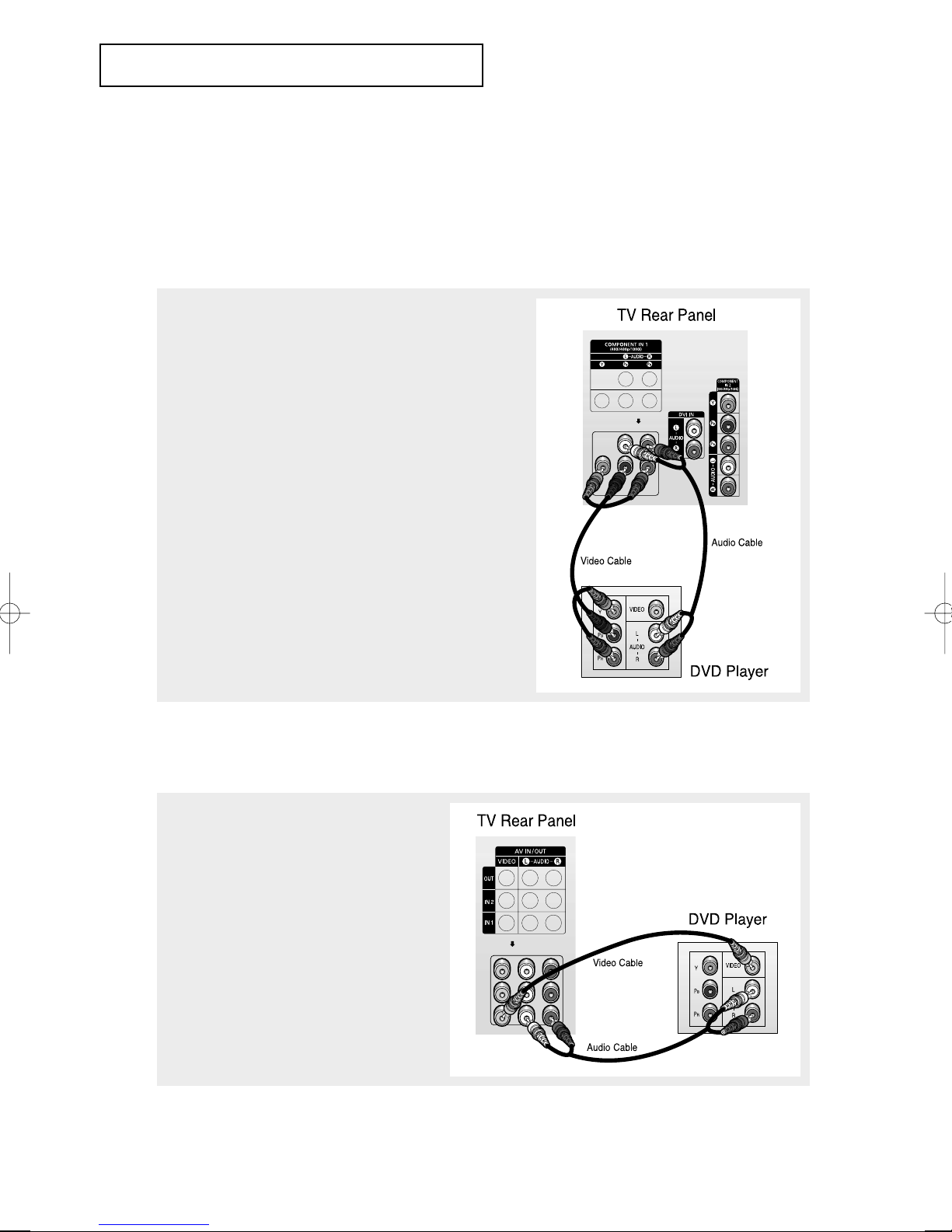

Connecting a DVD Player

The rear panel jacks on your TV make it easy to connect a DVD player to your TV.

Connecting to Y, PB, PR

Connect a set of audio cables between the “COMPONENT IN

1 (L, R)”(or “COMPONENT IN 2 (L, R)”) jacks on the TV and

the AUDIO OUT jacks on the DVD player.

Connect a set of video cables between the “COMPONENT IN

1 (Y, PB, PR)”(or “COMPONENT IN 2 (Y, PB, PR)”) jacks on the

TV and the VIDEO OUT (Y, PB, PR) jacks on the DVD player.

For an explanation of Component video, see your DVD

player’s owner’s instruction.

Connecting to Regular Audio and Video Jacks

Connect a set of audio cables between the “AV

IN 1 (L, R)”(or “AV IN 2 (L, R)”) jacks on the TV

and the AUDIO OUT jacks on the DVD player.

Connect a video cable between the “AV IN 1

(VIDEO)”(or “AV IN 2 (VIDEO)”) jack on the TV

and the VIDEO OUT jack on the DVD player.

•Also, you can connect to “AV 3”on the side panel of TV.

BP68-00342A-00Eng_TV 4/6/04 3:02 PM Page 15

INSTALLATION

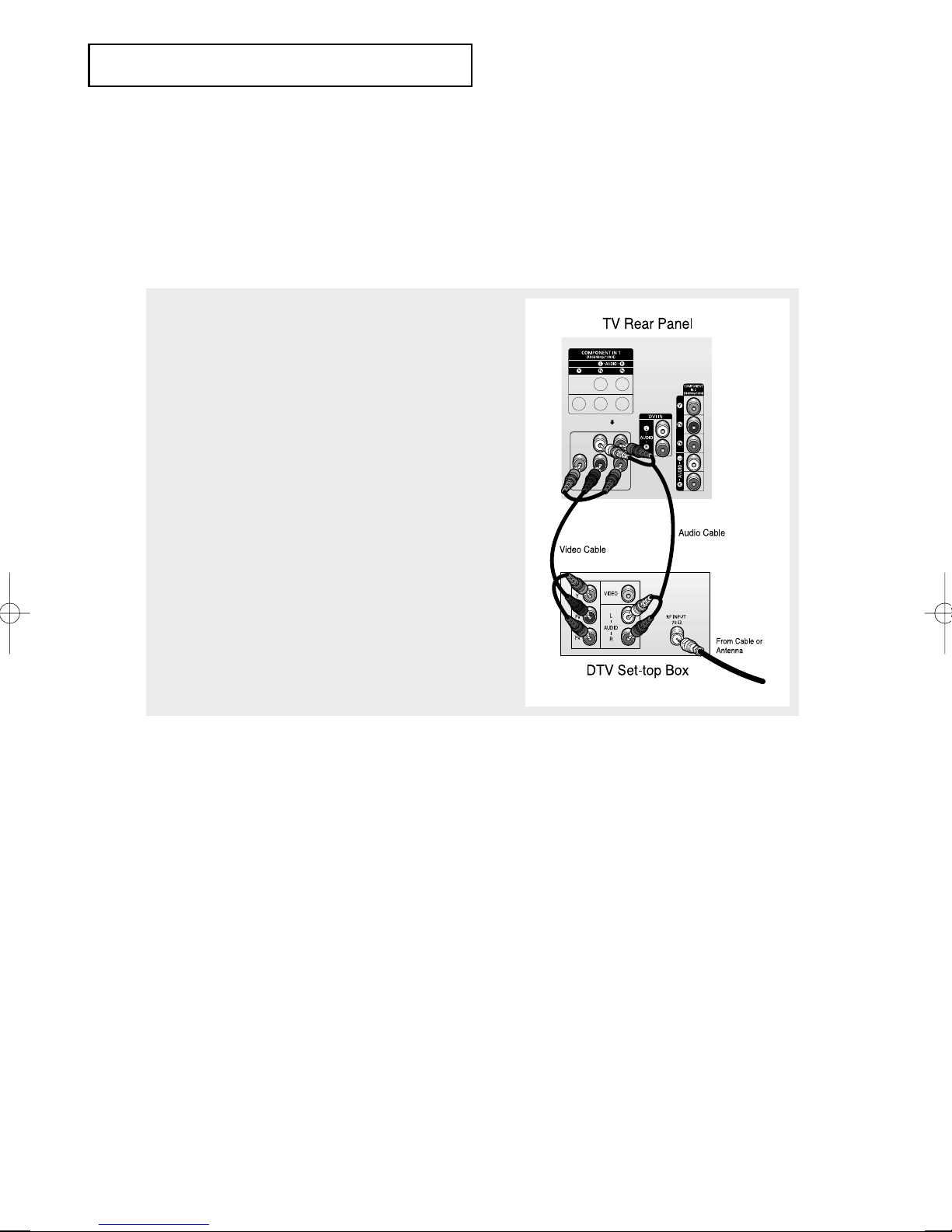

Connecting a Digital TV Set-Top Box

The rear panel jacks on your TV make it easy to connect a Set-Top Box to your TV.

Connecting to Y, PB, PR

Connect a coaxial cable to the ANTENNA IN terminal on the

Set-Top Box.

Connect a set of audio cables between the “COMPONENT IN

1 (L, R)”(or “COMPONENT IN 2 (L, R)”) jacks on the TV and

the AUDIO OUT jacks on the Set-Top Box.

Connect a set of video cables between the “COMPONENT IN

1 (Y, PB, PR)”(or “COMPONENT IN 2 (Y, PB, PR)”) jacks on the

TV and the VIDEO OUT (Y, PB, PR) jacks on the Set-Top Box.

The connections for a typical Set-Top Box are shown. For

detailed information, refer to the Set-Top Box instruction

manual.

BP68-00342A-00Eng_TV 4/6/04 3:02 PM Page 16

INSTALLATION

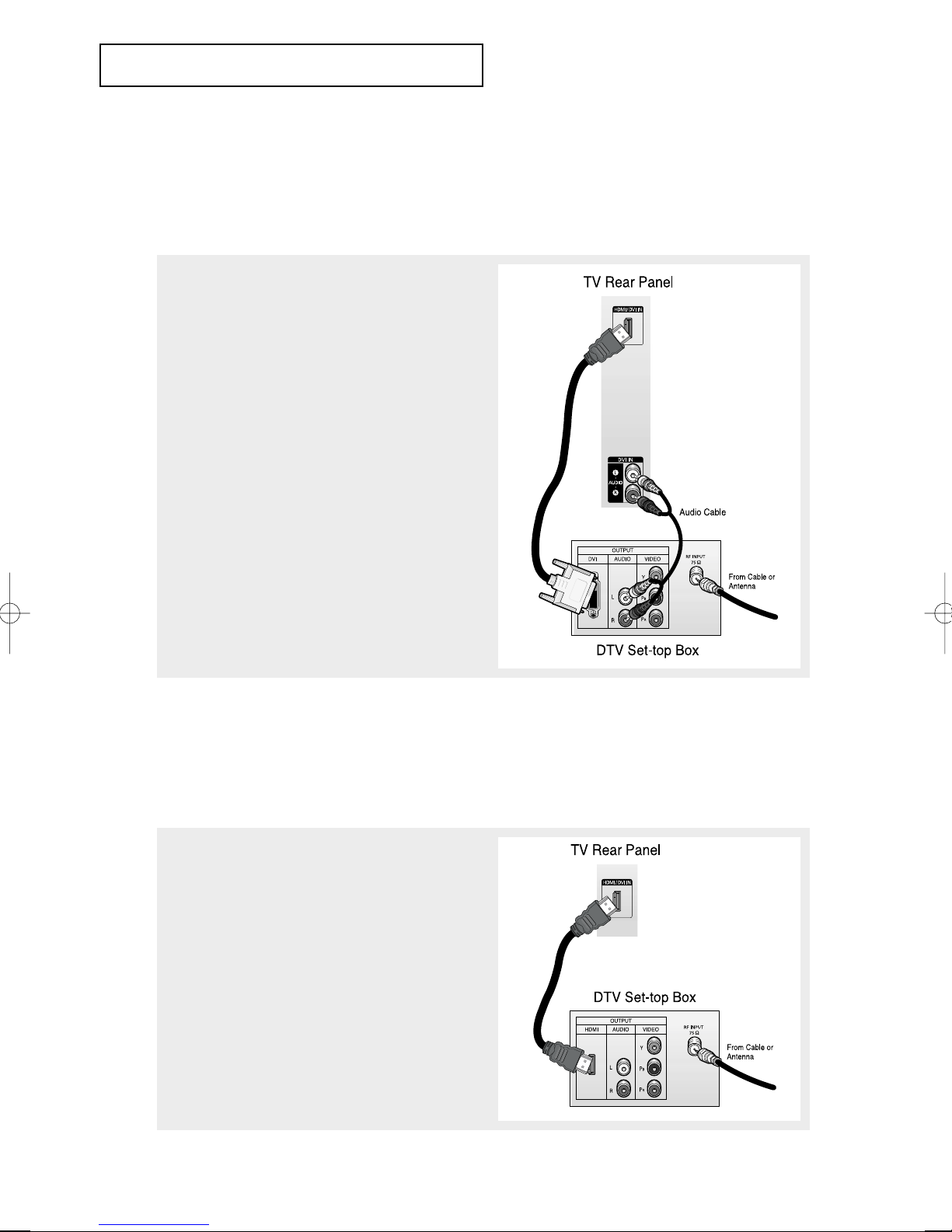

Connecting to DVI (Digital Visual Interface)

By inputting a high-bandwidth digital content protection high-definition picture source to the

DIGITAL INPUT jack on the TV, high-definition pictures can be displayed on the screen in

their digital forms. (This DIGITAL INPUT jack is for use in the future when high-bandwidth

digital content protection DTV decoders, DVD players and D-VHS are put on the market.)

Connect a set of audio cables between the “DVI IN

(AUDIO-L, R)”jacks on the TV and the AUDIO OUT

jacks on the Set-Top Box.

Connect a video cable between the “HDMI/DVI IN”

jack on the TV and the VIDEO OUT jack on the Set-Top

Box.

•The DIGITAL INPUT jack can only be used with 1080i and 480p picture signals. Set the DTV decoder

DIGITAL OUTPUT jack output setting to 1080i or 480p. The DIGITAL INPUT jack is not compatible

with the picture signal of a PC.

Connecting to HDMI (High Definition Multimedia Interface)

Connect a HDMI cable between the “HDMI/DVI IN”

jacks on the TV and the HDMI OUT jacks on the Set-

Top Box.

Please check that the HDMI source is powered on.

If not, you can not select “HDMI”in the “Source List”

on-screen menu.

BP68-00342A-00Eng_TV 4/6/04 3:02 PM Page 17

INSTALLATION

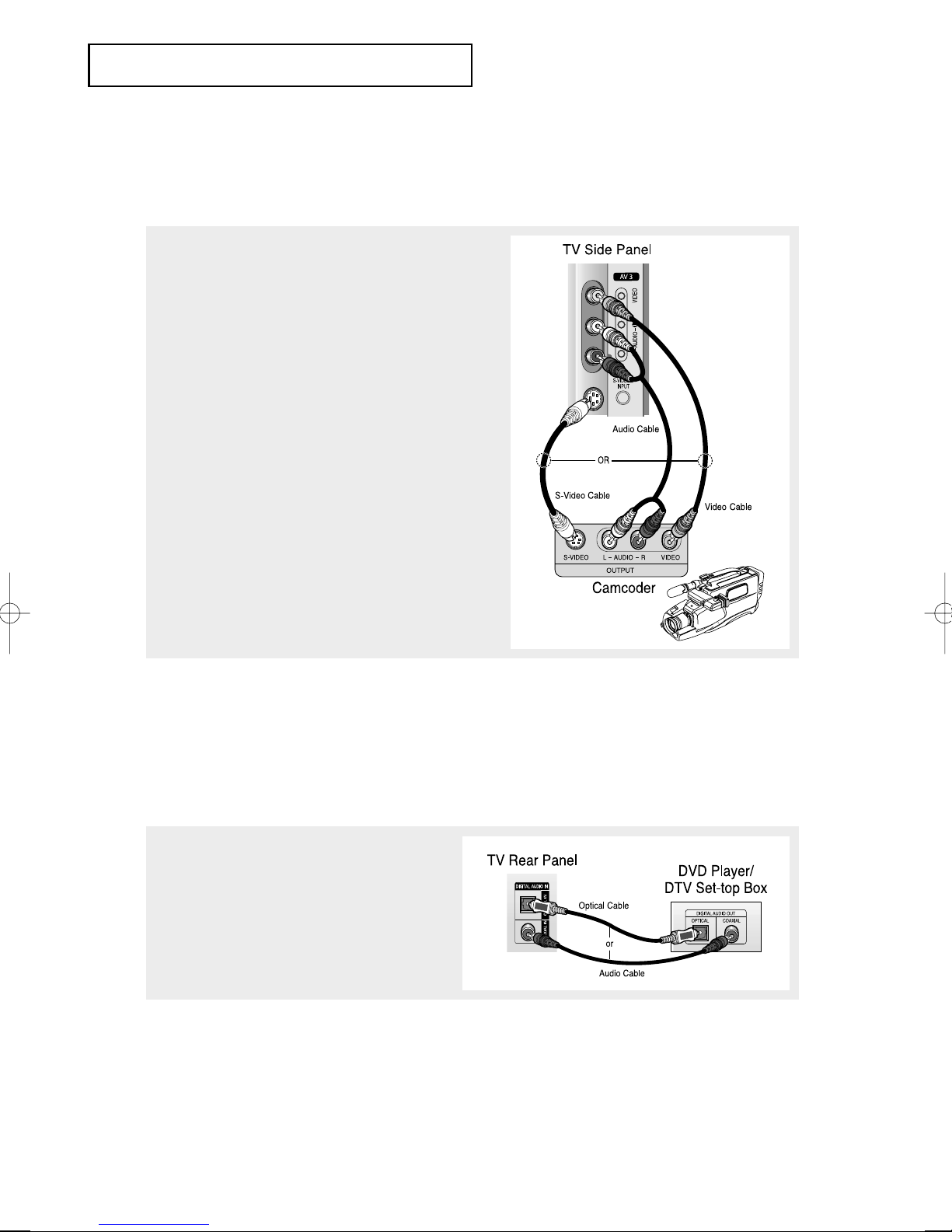

Connecting a Camcorder

The side panel jacks on your TV make it easy to connect a camcorder to your TV. They allow

you to view the camcorder tapes without using a VCR.

Locate the A/V output jacks on the camcorder. They are

usually found on the side or rear of the camcorder.

Connect a set of audio cables between the “AV 3 (L, R)”

jacks on the TV and the AUDIO OUT jacks on the camcorder.

If you have mono camcorder, connect L(mono) to

camcorder audio out using only one audio cable.

Connect a video cable between the “AV 3 (VIDEO)”

(or “S-VIDEO2 INPUT”) jack on the TV and the VIDEOOUT

jacks on the camcorder.

The audio-video cables shown here are usually included

with a Camcorder. (If not, check your local electronics

store.) If your camcorder is stereo, you need to connect a

set of two cables.

Connecting to the Digital Audio Input

The rear panel jacks on your TV make it easy to connect a device with digital audio output.

After making a connection, set the audio input by reference to page 51.

Connect a audio (or optical) cable between the

“COAXIAL IN”(or “OPTICAL IN”) jack on the TV

and the AUDIO OUT jack on a device with digital

audio output.

BP68-00342A-00Eng_TV 4/6/04 3:02 PM Page 18
