Alignment and Adjustments

Samsung Electronics 4-1

4. Alignment and Adjustments

4-1 Preadjustment

1. Alignment should be done only when

absolutely necessary.

2. Use only the specified test equipment

3. Correct impedance matching is essential.

4. Insertion markers from the marker generator

must not be allowed to distort the response.

Excessive signal from a sweep generator can

cause overload.

5. Connect the receiver only to an AC source

with voltage and frequency only as specified

on the back-cover nameplate.

6. Do not attempt to connect or disconnect any

wires while the receiver is ON. Make sure the

power cord is disconnected before replacing

any parts.

7. An isolation transformer must be used to help

protect against shock hazard.

4-2 Dynamic Focus Adjustment

1. A dynamic focus adjustment should be done

after replacing the CRT PCB, FBT or CRT.

2. Input a crosshatch pattern.

3. Enter Ò STANDARD Ò in video mode.

4. Turn the static focus VR fully clockwise

(maximum).

5. Turn the dynamic focus VR fully

counterclockwise (maximum).

6. Slowly turn the static focus VR

counterclockwise. Adjust until the

vertical line in the middle of the screen

has maximum clarity.

7. Slowly turn the dynamic focus VR (clockwise)

and adjust the 3rd horizontal line for

maximum clarity.

8. Repeat 4-7, if necessary.

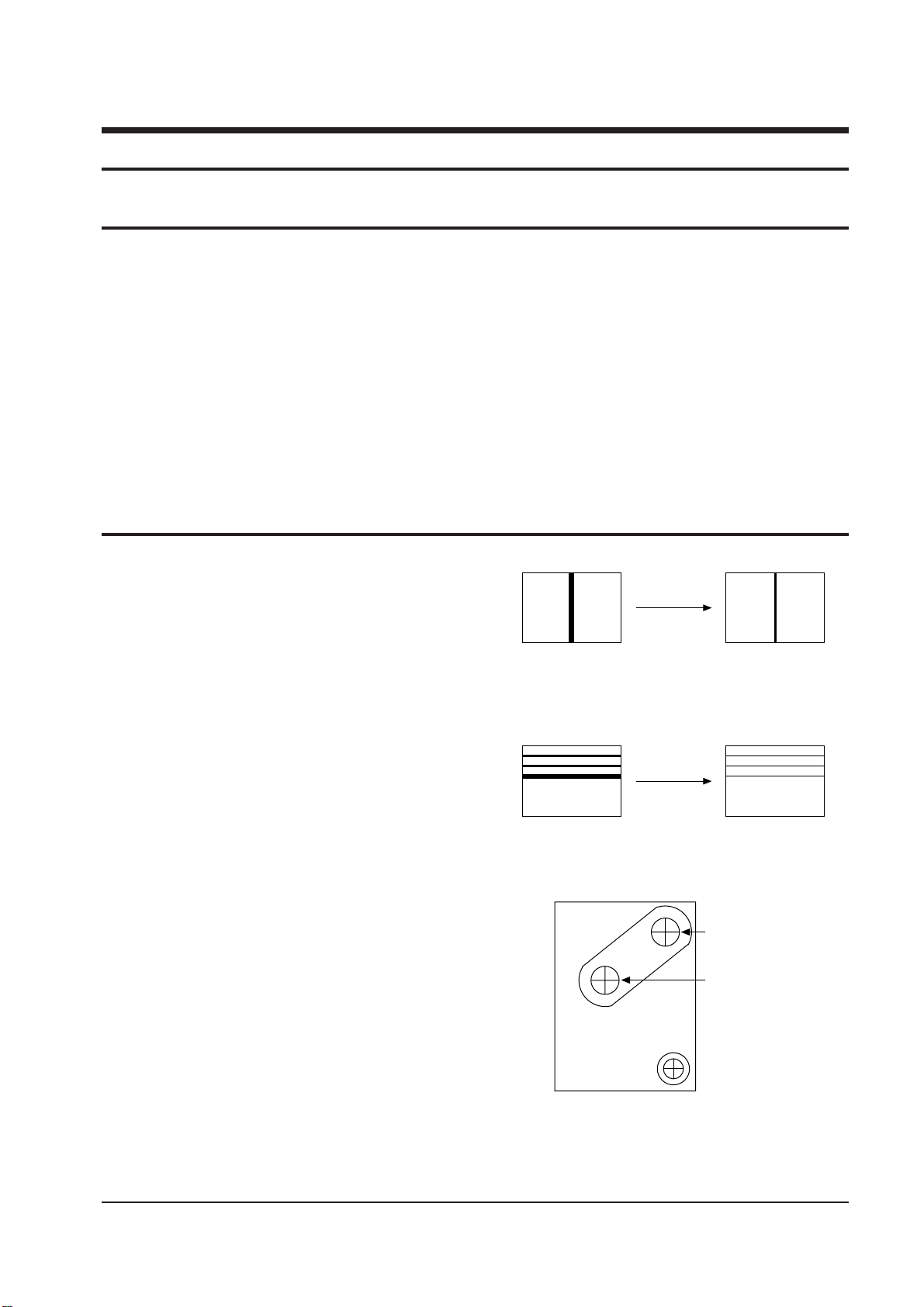

STATIC FOCUS VR

DYNAMIC FOCUS VR

SCREEN

Alignment and Adjustments

4-2 Samsung Electronics

4-3 Sub-Contrast Adjustment

1. In power stand-by, set up the receiver by pressing the

MUTE ® 1 ® 8 ® 2 ® POWER ON buttons.

2. Input a crosshatch pattern using

Channel UP/DOWN.

3. Select ÒSCT Ò using the volume UP/DOWN buttons.

4. Adjust white horizontal line (1H) for using MENU or MUTE.

5. Press the ADD button.

4-4 Screen Adjustment

1. Input a Òlion-headÓ pattern.

2. Select ÒStandardÓ from the menu.

3. Check the Screen voltage at the CRT Drive PCB. Use a multimeter (1000:1 probe).

4. Set the Screen Voltage (on FBT) to 780 volts.

4-5 Sub-Brightness Adjustment

1. In power stand-by, set up the receiver by pressing

MUTE ® 1 ® 8 ® 2 ® POWER ON buttons.

2. Select ÒSBT Ò using Channel UP /DOWN.

3. Choose ÒSBT Ò with volume UP/DOWN.

4. Adjust MENU or MUTE until the 6th step on the right side of the screen disappears.

5. Press the ADD button.

4-6 I2C Adjustment

1. After replacing IC902 EEPROM, power ON the receiver

for 4 to 5 minutes after plugging in the EEPROM.

2. Set DATA LEVEL to 32. Note: M30 TOT adjustment is not done on this chassis.

3. After replacing IC902 EEPROM, input standard data for all items before adjusting GEOMETRIC,

WHITE BALANCE, B-CONTRAST, PIP CONTRAST, and SUB-BRIGHTNESS.

Alignment and Adjustments

Samsung Electronics 4-3

4-7 CUT-OFF Adjustment

■ Equipment: Multimeter and Scope

■ Input Signal: No Video Signal

1. Power on the TV set.

2. Enter the Video Mode by pressing the TV/VIDEO button on the remote control.(No Video Signal)

3. Adjust the FBT Screen VR (T444 : FTZ-29A012) using a multimeter or scope so that the DC voltage

of RK,GK, BK (CRT PCB) becomes 180V.

Note : If any variance is caused by the value of DCR (using a multimeter), recheck with the

adjusted screen.

4-8 White Balance Adjustment

■ Equipment : Color-Analyzer (CA-100)

■ Input Signal : Pattern signal (Toshiba pattern)

1. Select STANDARD from the menu.

2. Input an 100% White pattern.

3. In power stand-by, turn on the TV set by pressing the remote control buttons in the

following sequence: Mute ® 1 ® 8 ® 2 ® Power

4. Warm up the TV set at least for 30 minutes.

5. Input a Toshiba pattern signal.

6. Enter the picture mode in the Factory Mode.

-Adjust SCT so that Y (luminance) becomes 50 ft ±3.

-Use GA,BA to adjust High-Light (X : 262, Y : 264).

-Adjust SBT so that Y (luminance) becomes 1.6 ft ±5.

-Use GC,BC to adjust Low-Light (X : 250, Y : 250).

7. Adjust CA-100 so that the final adjustment value can be fixed.

8. Use the Channel Up/Down (▲/▼) buttons to move the cursor on the adjustment modes.

9. Use the Volume +/- buttons to change the adjustment value.

4-8-1 White Balance Coordinate

x y

H/L 262 264 ±3 50FL - CT-29A5PX

- CT-29A6PX

ALL model

L/L 250 250 ±5 1.45FL

luminanceerror model option

BYTE 1 : 60

BYTE 2 : 02

Alignment and Adjustments

4-4 Samsung Electronics

4-9 F.S. (Fail Safe) Circuit Check

1. Turn on the TV.

2. Select the ÒSTANDARDÓ video mode.

3. Short R and X terminals of R257,R255. Then, check both picture and sound disappear.

Note : Even if the shorted terminals are removed, both picture and sound do not appear

This proves the F.S. circuit is working normally.

4. Turn off the TV and reset it after about 30 seconds. (At this time, check that both picture and

sound are normal.)

4-10 Focus Adjustment

■ Adjustment Signal : lion head pattern or crosshatch pattern

1. Select the ÓSTANDARDÓ video mode.

2. Turn the static focus VR fully clockwise (maximum).

3. Slowly turn the static focus VR counterclockwise.

Adjust until the vertical line in the middle of the screen has maximum clarity.

4. After all adjustments are completed, check ÓOSGÓ.

Repeat adjustments 1~3, if necessary.

Note : If the single focus adjustment is done on center basis, that is out of specification.

4-11 E2PROM (IC902) Replacement

1. When IC902 is replaced, all adjustment data revert to the initial values.

So, all adjustment values when servicing should be readjusted.

2. After IC902 is replaced, connect the AC power supply cord.

3. Turn the power switch ON.

4. In stand-by, warm up the TV for at least 10 seconds.

5. Power on the TV.

Alignment and Adjustments

Samsung Electronics 4-5

4-12 MICOM

4-12-1 Description

The MICOM used for this K56B Chassis is made by ZILOG (USA).

But Samsung have ordered and installed appropriate soft programs in it.

4-12-2 Precaution

1. In power stand-by, apply power supply to only MICOM and E2PROM.

Apply power supply to the TV set

Turn ON/OFF the

TIMER LED

Picture Switch On or

Remocon Power Switch ON

TV Power On?

Micom OK Check Q904 and CNM01

(Power Board)

Check the circumference of the MICOM

1. Check the micom applies power supply to

IC901 pins 22,39.

2. Check the MICOM applies power supply to

IC902 pin 8.

3. Check the MICOM keeps IC901 pins 17, 19,

30, 31, 35, 47 ,48, 49,50 HIGH.

4. Check the MICOM oscillates to IC901 Pins

36,37.

5. Check IC901 pin 28 has the HSYNC PULSE.

6. Check IC901 pin 29 has the VSYNC PULSE.

Alignment and Adjustments

4-6 Samsung Electronics

4-13 Factory Adjustment

4-13-1 Factory/Service Mode

1. To enter the Service Mode, press the remote control buttons in the

following sequence :

■ Power OFF (about 10 seconds later) ® MUTE ® 1 ® 8 ® 2

■ Power ON ®Display ® Factory

2. After the Factory Adjustment Mode is entered, the initial screen

is as shown in the figure below.

3. Use the Channel Up/Down (▲/▼) buttons to move the cursor

on the adjustment parameters.

Note :

1. When CRT, EEPROM, FBT, or MICOM is replaced, the adjustment

values should be controlled.

2. After the Factory Adjustment is completed, be sure to reset the

TV set.

11 CH NO.

SERVICE MODE

GEOMETRIC


SOUND (FIXED)

PIP (FIXED)

OPTION (BYTE 1 : 60, BYTE 2 : 02)

READ Not Used

RESET

Alignment and Adjustments

Samsung Electronics 4-7

4-13-2(A) GEOMETRIC ADJUSTMENT VALUE

4-13-2 Geometric Adjustment Mode

GEOMETRIC

VS 63.

VA 63.

VCP 3.

VLN 15.

VSC 15.

HS 15.

HPC 15.

HA 63.

HPP 15.

HAA 15.

HAB 15.

HUC 15.

HLC 15.

VAS 40.

VSR 33.

VUV 15.

VLV 15.

VJS 0.

VZS 0.

VRP 3.

VBS 3.

HBS 1.

HLB 15.

HRB 15. 16 : 9 mode

FIXED mode

NO OSD RANGE CT-29A6PX CT-29A5PX FUNCTION IC

1 VS 0~6 17 17 ADJUSTS VERTICAL PICTURE POSITION

2 VA 0 ~ 1 26 26 ADJUSTS VERTICAL PICTURE SIZE

3 VCP 0 ~ 1 1 SETS VERTICAL HIGH VOLTAGE VARIANCE CORRECTION

4 VLN 0 ~ 1 10 10 ADJUSTS VERTICAL LINEARITY

5 VSC 0 ~ 1 10 10 ADJUSTS VERTICAL S-CORRECTION

6 HS 0 ~ 1 6 6 ADJUSTS HORIZONTAL PICTURE POSITION

7 HPC 0 ~ 6 32 32 ADJUSTS THE GAIN OF HORIZONTAL PARABOLA WAVE

8 HA 0 ~ 6 33 33 ADJUSTS HORIZONTAL PICTURE SIZE

9 HPP 0 ~ 1 8 8 ADJUSTS HORIZONTAL TILT

10 HAA 0 ~ 1 8 8 ADJUSTS THE SLOPE CORRECTION OF VERTICAL LINE

11 HAB 0 ~ 1 7 7 ADJUSTS THE BOW CORRECTION OF VERTICAL LINE

12 HUC 0 ~ 1 7 7 HORIZONTAL DISTORTION CORRECTION OF TOP

13 HLC 0 ~ 1 6 6 HORIZONTAL DISTORTION CORRECTION OF BOTTOM

14 VAS 0 ~ 6 40 40 ADJUSTS THE VERTICAL PICTURE SIZE OF 16:9 SCREEN

15 VSR 0 ~ 6 33 33 ADJUSTS THE SCROLL OF 16:9 SCREEN

16 VUV 0 ~ 1 0 0 ADJUSTS THE LINEARITY OF THE TOP 16:9 SCREEN

17 VLV 0 ~ 1 0 0 ADJUSTS THE LINEARITY OF THE BOTTOM 16:9 SCREEN

18 VJS 0 ~ 1 0 0 ADJUSTS THE JUMP OF 16:9 SCREEN

19 VZS 0 ~ 1 0 0 ADJUSTS THE ZOOM OF 16:9 SCREEN

20 VRP 0 ~ 1 3 3 ADJUSTS THE REFERENCE PULSE TIME OF 16:9 SCREEN

21 VBS 0 ~ 1 3 3 ADJUSTS THE VERTICAL BLANK WIDTH OF 16:9 SCREEN

22 HBS 0 ~ 1 1 1 H BLK WIDTH ADJUSTMENT ON/OFF 16:9 SCREEN

23 HLB 0 ~ 1 15 15 ADJUSTS THE LEFT BLANK WIDTH OF 16:9 SCREEN

24 HRB 0 ~ 1 15 15 ADJUSTS THE RIGHT BLANK WIDTH OF 16:9 SCREEN

(FIXED)

(ADJUSTMENT

MODE)

(ADJUSTMENT

MODE)

Alignment and Adjustments

4-8 Samsung Electronics


DCT 1.

DPI 1.

AS 1.

DCL 1.

ABL 1.

POV 3.

SFO 3.

TA 15.

SCT 15.

SBT 15.

SCR 15.

STT 15.

GA 63.

BA 63.

GC 15.

BC 15.

GAM 3.

AGC 1.

TOT 1.

SSP 63.

AM 1.

FH 0.

CF 0.

SC 32.

LWC 63.

COR 63. SINEMAX mode

(No Function)

4-13-3 Picture Adjustment Mode

4-13-3 (A) PICTURE ADJUSTMENT VALUE

NO OSD RANGE CT-29A6PX CT-29A5PX FUNCTION IC

1 DCT 0~1 1 1 Y DC TRANSMISSION RATE SWITCHING SWITCH

2 DPI 0~1 1 1 Y BLACK EXPANSION ON/OFF SWITCH

3 LMT 0~1 1 1 Y DC TRANSMISSION RATE LIMET

4 DCL 0~1 1 1 DYNAMIC COLOR ON/OFF SWITCH

5 ABL 0~1 1 1 ABL MODE SWITCHING SWITCH

6 POV 0~3 1 1 PRE/OVER RATE SWITCHING SWITCH

7 YDL 0~15 3 3 Y TIMEING DELAY CONTROL

8 SFO 0~3 1 1 SHARP FO SWITCHING SWITCH

9 TA 0~15 11 11 CHROMA TRAP FO ADJUST

10 SCT 0~15 10 10 CONTRAST GAIN CONTROL

11 SBT 0~63 25 25 BRIGHTNESS CONTROL

12 SCR 0~15 10 10 COLOR GAIN CONTROL

13 STT 0~15 4 4 TINT GAIN CONTROL

14 GA 0~63 35 35 G OUTPUT GAIN ADJUST

15 BA 0~63 30 30 B OUTPUT GAIN ADJUST

16 GC 0~15 7 7 G OUTPUT CUTOFF ADJUST

17 BC 0~15 6 6 B OUTPUT CUTOFF ADJUST

18 GAM 0~3 2 2 GAMMA CONTROL

19 AFC 0~3 1 1 AFC LOOP GAIN CONTROL

20 TOT 0~1 0 0 CHROMA TOT BAND SWITCHING SWITCH

21 SSP 0~63 60 60 SHARPNESS ADJUST

22 SF0 0~1 1 1 INPUT LEVEL SWITCHING SWITCH

23 COR 0~63 25 25 HORIZONTAL FREQUENCY INPUT SELECT SWITCH

24 VM2 0~1 0 0 CONTINUOUS TOOTH PATH FILTER SELECT SWITCH

25 STC 0~63 45 45 STEPNESS ADJUST

26 LWC 0~63 50 50 LINE WIDTH ADJUST SWITCH

(FIXED)

CXA2095S

(ADJUSTMENT

MODE)

(FIXED)

(ADJUSTMENT

MODE)

(FIXED)

TDA9177

NO FUNCTION

(FIXED)

Other Samsung TV manuals

Samsung

Samsung AU8000 Guide

Samsung

Samsung CL-21Z43MQ Setup guide

Samsung

Samsung QE43Q67AAUXXN User manual

Samsung

Samsung CT-25K10MQ User manual

Samsung

Samsung CS29K30ML User manual

Samsung

Samsung 85QN900C User manual

Samsung

Samsung UE46D6100 User manual

Samsung

Samsung QN800A User manual

Samsung

Samsung CT-21T20MQ User manual

Samsung

Samsung CL-21M40MQ User manual

Samsung

Samsung UN55KS9000 User manual

Samsung

Samsung BT-316NR User manual

Samsung

Samsung Q8FNA Guide

Samsung

Samsung UN40C6500VFXZA Programming manual

Samsung

Samsung CL-17M2MQ User manual

Samsung

Samsung Q50R Series User manual

Samsung

Samsung CB21K5ML User manual

Samsung

Samsung AG20400SC/TCE User manual

Samsung

Samsung UE55KS7580UXZG User manual

Samsung

Samsung UN KS8500F Series User manual

Samsung

Samsung AU8 Series User manual

Samsung

Samsung UE55LS003A User manual

Samsung

Samsung 7 Series User manual

Samsung

Samsung CX6840W3X User manual

Popular TV manuals by other brands

Philips

Philips Colour Television Service manual

Toshiba

Toshiba 27A10 owner's manual

Philips

Philips 42PF9630A/37 user manual

Hitachi

Hitachi 32FX48B operating guide

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Service manual

Changhong Electric

Changhong Electric uhd55b6000is Operation manual

Philips

Philips Matchline 21CE7551 operating instructions

Panasonic

Panasonic Genus TX-G10 operating instructions

Toshiba

Toshiba 19A20 Service manual

Philips

Philips 25PT4523-16 manual

Sony

Sony XBR-100Z9D reference guide

Philips

Philips PR0930X3 owner's manual

Philips

Philips Brilliance 231P4QPY user manual

Philips

Philips 32HF9385D Käyttöopas

Sharp

Sharp LC-40FI5012E user manual

Loewe

Loewe Table Stand Reference 55 user guide

Philips

Philips 32PFH5300 Service manual

Sylvania

Sylvania 6427FB owner's manual
