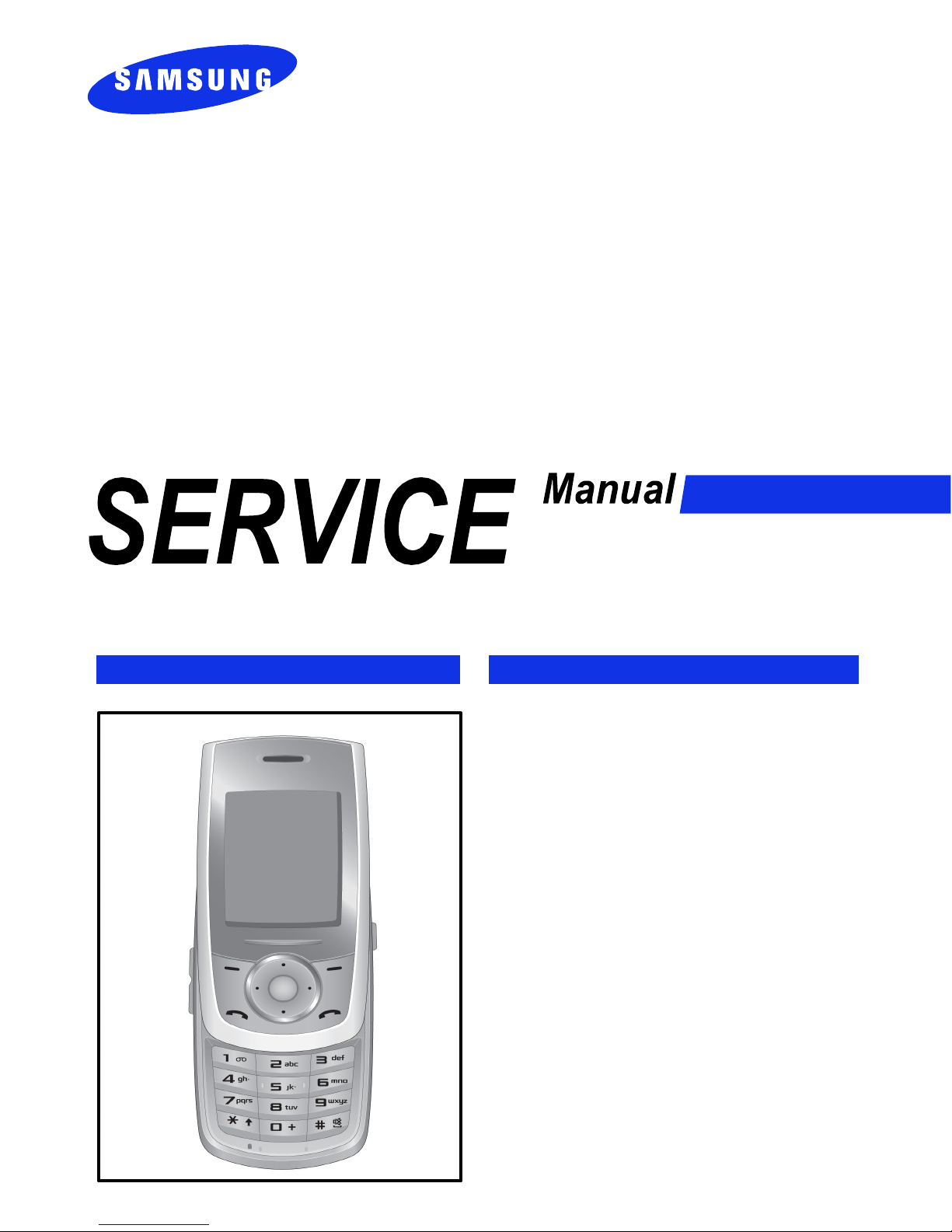

Samsung SGH-M600 User manual

GSM TELEPHONE

SGH-M600

GSM TELEPHONE CONTENTS

1. Specification

2. Exploded View and Parts List

3. Flow Chart of Troubleshooting

4. Array course control

5. Block Diagrams

6. PCB Diagrams

7. MAIN Electrical Parts List

8. Reference data

9. Safety Precautions

10. Product Function

Contents

1. Specification

1-1. GSM General Specification .......................................................................................1-1

1-2. GSM Tx Power Class ...............................................................................................1-2

2. Exploded View and Parts List

2-1. Cellular phone Exploded View ..................................................................................2-1

2-2. Cellular phone Part list .............................................................................................2-2

2-3. Disassembly ...............................................................................................................2-4

2-4. Assembly ....................................................................................................................2-6

2-5. LCD KIT .....................................................................................................................2-8

3. Flow Chart of Troubleshooting

3-1. Baseband

3-1-1. Power ON .............................................................................................................9-1

3-1-2. Initial ......................................................................................................................9-4

3-1-3. Sim Part ................................................................................................................9-6

3-1-4. Charging Part ........................................................................................................9-8

3-1-5. Microphone Part ....................................................................................................9-9

3-1-6. Speaker Part .......................................................................................................9-11

3-1-7. LCD ......................................................................................................................9-13

3-1-8. Camera ................................................................................................................9-16

3-2. RF

3-2-1. GSM Receiver.......................................................................................................3-18

3-2-2. DCS Receiver.......................................................................................................3-19

3-2-3. PCS Receiver.......................................................................................................3-20

3-2-4. GSM Transmitter...................................................................................................3-23

3-2-5. DCS Transmitter...................................................................................................3-24

3-2-6. PCS Transmitter...................................................................................................3-25

3-2-7. Bluetooth Part .....................................................................................................3-27

4. Array course control

Software Downloading

4-1. Downloading Binary Files ..........................................................................................4-2

4-2. Pre-requsite for Downloading ....................................................................................4-2

4-3. S/W Downloader Program .........................................................................................4-3

Contents

5. MAIN Electrical Parts List

6. Block Diagrams

7. PCB Diagrams

8. Reference data

9. Safety Precautions

9-1. Repair Precaution ......................................................................................................9-1

9-2. ESD(Electrostatically Sensitive Devices) Precaution ...............................................9-2

10. Product Function

10-1. Main Function .........................................................................................................10-1

1. Specification

1-1

1-1. GSM General Specification

GSM 900

Phase 1 EGSM 900

Phase 2 DCS1800

Phase 1

Freq. Band[MHz]

Uplink/Downlink 890~915

935~960 880~915

925~960 1710~1785

1805~1880

ARFCN range 1~124 0~124 &

975~1023 512~885

Tx/Rx spacing 45 MHz 45 MHz 95 MHz

Mod. Bit rate/

Bit Period 270.833 Kbps

3.692 us 270.833 Kbps

3.692 us

Time Slot Period/Frame

Period 576.9 us

4.615 ms 576.9 us

4.615 ms

Modulation 0.3 GMSK 0.3 GMSK 0.3 GMSK

MS Power 33 dBm~13 dBm 33 dBm~5 dBm 30 dBm~0 dBm

Power Class 5 pcl ~15pcl 5pcl ~19pcl 0pcl ~15pcl

Sensitivity -102 dBm -102 dBm -100 dBm

TDMA Mux 8 8 8

Cell Radius 35 Km 35 Km 2 Km

Specification

1-2

1-2. GSM TX power class

TX Power

control level GSM900

533±2

dBm

631±2

dBm

729±2

dBm

827±2

dBm

925±2

dBm

10 23±2 dBm

11 21±2 dBm

12 19±2 dBm

13 17±2 dBm

14 15±2 dBm

15 13±2 dBm

16 11±3 dBm

17 9±3 dBm

18 7±3 dBm

19 5±3 dBm

TX Power

control level DCS1800

0 30±3 dBm

1 28±3 dBm

2 26±3 dBm

3 24±3 dBm

4 22±3 dBm

5 20±3 dBm

6 18±3 dBm

7 16±3 dBm

8 14±3 dBm

9 12±4 dBm

10 10±4 dBm

11 8±4 dBm

12 6±4 dBm

13 4±4 dBm

14 2±5 dBm

15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice

2. Exploded View and Parts List

2-1

This Document can not be used without Samsung's authorization

2-1. Cellular phone Exploded View

QFU01

QCK01

QIF01

QBA01

QKP02

QCA01

QSP01

QLC01

QME02

QFL01

QSC01

QCR05

QMO01

QVK01

QMP01

QAN02

QMI03

QME01

QBR04

QKP01

QVO01

QFR01

QHI01 : GH98-05660A

QRE01

QRF01

QBA00

QMI01

QVK02

QCR57

QPC01

QHI01 : GH98-04515A QCR57 QFL01 QFR01 QHI01

=++

SAMSUNG Proprietary-Contents may change without notice

Main Electrical Parts List

2-2

This Document can not be used without Samsung's authorization

Design LOC Discription SEC CODE

QAN02 　INTENNA-SGH_M600 GH42-01206A

QBA00 　PMO-BATT COVER GH72-39166A

QBA01 　INNER BATTERY PACK-800MAH,BLK, GH43-02719A

QBR04 　ASSY KEYPAD-BRACKET GH98-04516A

QCA01 　UNIT-CAMERA GH59-04415A

QCK01 　PMO-POWER KEY GH72-39161A

QCR05 　SCREW-MACHINE 6001-001478

QFU01 　ASSY COVER-SLIDE UPPER GH98-04439A

QKP01 　ASSY KEYPAD-MAIN(SER/DSA) GH98-05516A

QKP02 　ASSY KEYPAD-SUB(XEF/DSA) GH98-04443A

QLC01 　ELA UNIT-SGH_M600 LCD MODULE (GH96-02764A

QME02 　DOME SHEET-DOME SHEET 9KEY GH59-04438A

QMO01 　MOTOR DC-SGH-M600 GH31-00340A

QMP01 　PBA MAIN-SGHM600 GH92-03632A

QPC01 　MEA-FPCB KIT GH97-07862A

QRF01 　ASSY COVER-RF GH98-05002A

QSC01 　PMO-SCREW CAP GH72-39157A

QSP01 　SPEAKER 3001-002165

QVK01 　KEY FPCB-SIDE VOLUME GH59-04439A

QVK02 　KEY FPCB-SIDE POWER 1KEY FPCB GH59-04440A

QVO01 　PMO-VOLUME KEY GH72-39162A

QME01 　KEY FPCB-KEY PBA(34KEY) GH59-04437A

　QMI01 AS-MIC GH81-06707A

　QMI03 AS-MIC RUBBER GH81-06708A

QRE01 　ASSY COVER-REAR GH98-04442A

　QIF01 PMO-IF COVER GH72-39164A

QHI01 　ASSY HINGE GH98-04515A

　QCR57 SCREW-MACHINE 6001-002001

　QFL01 ASSY COVER-SLIDE LOWER GH98-04440A

　QFR01 ASSY COVER-FRONT GH98-04441A

　QHI01 ASSY HINGE-SLIDE GH98-05660A

2-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice

Main Electrical Parts List

2-3

This Document can not be used without Samsung's authorization

Discription SEC CODE

BAG PE 6902-000297

ADAPTOR-ATADS10EBE,BLK,EU GH44-01702A

EARPHONE-B-TYPE GH59-04557A

LABEL(P)-UNIT SEAL GH68-00518B

MANUAL-SFC GH68-04336A

LABEL(R)-WATER SOAK GH68-09361A

MANUAL USERS-EU RUSSIAN GH68-15270A

LABEL(R)-MAIN(SER) GH68-15468B

BOX(P)-UNIT MAIN(SER) GH69-05650C

MPR-REMOVE TAPE LCD GH74-13804A

MPR-TAPE LCD AGH74-24670A

MPR-INSU TAPE GH74-27151A

MPR-INSU TAPE GH74-28075A

MPR-INSU TAPE GH74-28241A

TAPE-FPCB BACK GH74-33643A

VINYL-BOHO MAIN GH74-33869A

SAMSUNG Proprietary-Contents may change without notice

Main Electrical Parts List

2-4

This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice

Main Electrical Parts List

2-5

This Document can not be used without Samsung's authorization

2-3. Assembly

1) Disjoint volume-key &pwr-key.

2) Remove the green tape on the connector

of key-pad FPCB.

※caution

1) Be careful for crumpling &crack of key-pad

FPCB.

1) Disjoint the intenna screw of 2points.

2) Disjoint the key-pad FPCB from connector.

3) Take off the motor from the FRONT plastic

using tweezers and disjoint pwr-key FPCB &

volume key FPCB from the FRONT plastic.

※caution

1) Be careful for scratch.

2) Be careful for the damage on the WIRE of

Motor

1) Remove RF cover using the pointed tool.

2) Disjoint the REAR Screw of 5Points.

※caution

1) Be careful for scratch

Disjoint REAR's lockers just like pictures

below.(pic1 &pic 2)

2) Disjoint other lockers too.

※caution

1) Be careful for scratch

2) Be careful for demage of lockers.

<pic 1>

<pic2>

Other manuals for SGH-M600

Table of contents

Other Samsung Telephone manuals
