Samsung HW-S60B Installation instructions

HW-S60B / HW-S61B

FULL MANUAL

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at www.samsung.com/register

ENG - 2

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

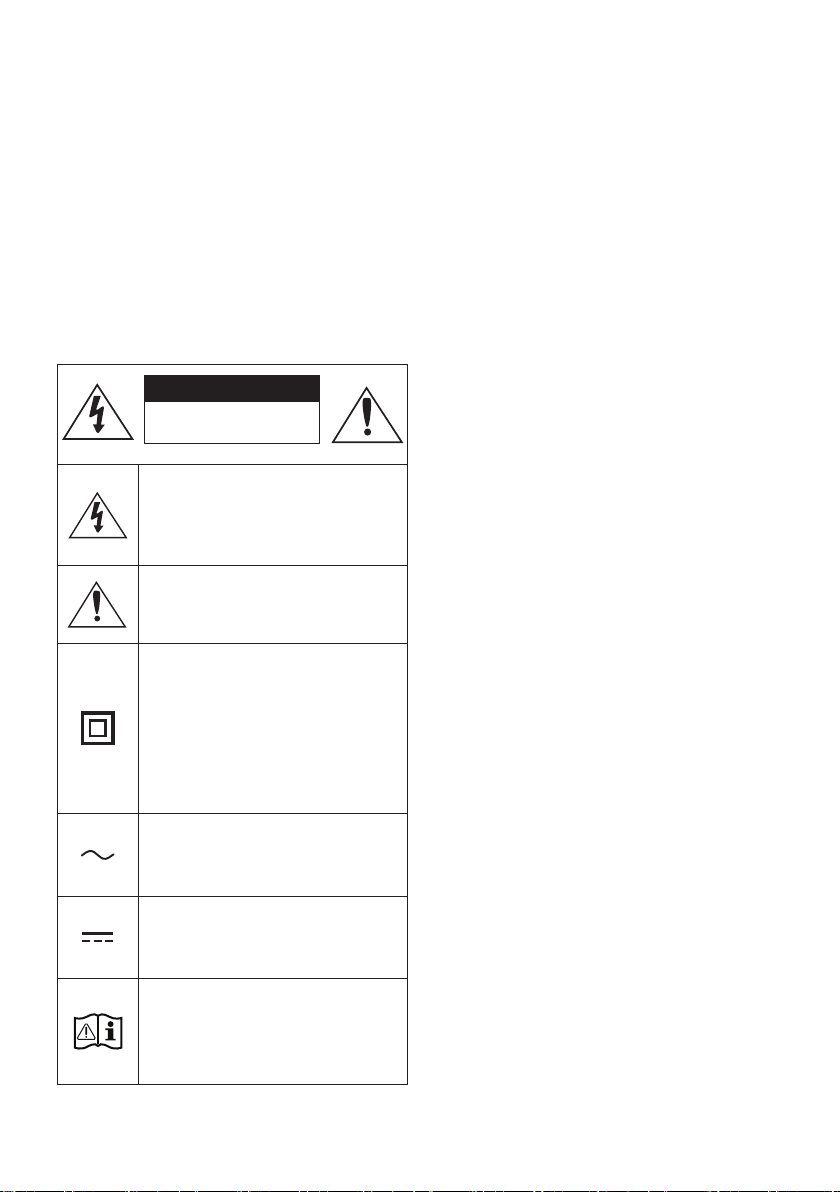

Refer to the table below for an explanation of

symbols which may be on your Samsung product.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage

is present inside. It is dangerous to

make any kind of contact with any

internal part of this product.

This symbol indicates that this product

has included important literature

concerning operation and maintenance.

Class II product : This symbol indicates

that it does not require a safety

connection to electrical earth (ground).

If this symbol is not present on a

product with a power cord, the product

MUST have a reliable connection to

protective earth (ground).

AC voltage : This symbol indicates that

the rated voltage marked with the

symbol is AC voltage.

DC voltage : This symbol indicates that

the rated voltage marked with the

symbol is DC voltage.

Caution, Consult instructions for use :

This symbol instructs the user to

consult the user manual for further

safety related information.

WARNING

•To reduce the risk of re or electric shock, do

not expose this appliance to rain or moisture.

CAUTION

•TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

•This apparatus shall always be connected to a

AC outlet with a protective grounding

connection.

•To disconnect the apparatus from the mains,

the plug must be pulled out from the mains

socket, therefore the mains plug shall be

readily operable.

•Do not expose this apparatus to dripping or

splashing. Do not put objects lled with

liquids, such as vases on the apparatus.

•To turn this apparatus off completely, you

must pull the power plug out of the wall

socket. Consequently, the power plug must

be easily and readily accessible at all times.

ENG - 3

PRECAUTIONS

1. Ensure that the AC power supply in your

house complies with the power

requirements listed on the identication

sticker located on the bottom of your

product. Install your product horizontally, on

a suitable base (furniture), with enough

space around it for ventilation (7~10 cm).

Make sure the ventilation slots are not

covered. Do not place the unit on ampliers

or other equipment which may become hot.

This unit is designed for continuous use. To

fully turn off the unit, disconnect the AC plug

from the wall outlet. Unplug the unit if you

intend to leave it unused for a long period of

time.

2. During thunderstorms, disconnect the AC

plug from the wall outlet. Voltage peaks due

to lightning could damage the unit.

3. Do not expose the unit to direct sunlight or

other heat sources. This could lead to

overheating and cause the unit to

malfunction.

4. Protect the product from moisture (i.e.

vases), and excess heat (e.g. a replace) or

equipment creating strong magnetic or

electric elds. Unplug the power cable from

the AC wall socket if the unit malfunctions.

Your product is not intended for industrial

use. It is for personal use only. Condensation

may occur if your product has been stored in

cold temperatures. If transporting the unit

during the winter, wait approximately

2 hours until the unit has reached room

temperature before using.

5. The battery used with this product contains

chemicals that are harmful to the

environment. Do not dispose of the battery

in the general household trash. Do not

expose the battery to excess heat, direct

sunlight, or re. Do not short circuit,

disassemble, or overheat the battery.

CAUTION : Danger of explosion if the battery

is replaced incorrectly. Replace only with the

same or equivalent type.

ENG - 4

CONTENTS

01 Checking the Components 6

02 Product Overview 7

Front Panel / Top Panel of the Soundbar ------------------------- 7

Bottom Panel of the Soundbar ------------------------- 9

03 Using the Remote Control 10

Inserting Batteries before using the Remote Control (AAA batteries X 2) ------------------------- 10

How to Use the Remote Control ------------------------- 10

Active Voice Amplier (AVA) ------------------------- 14

Using the Hidden Buttons (Buttons with more than one function) ------------------------- 14

Output specications for the different sound effect modes ------------------------- 15

Adjusting the Soundbar volume with a TV remote control ------------------------- 16

04 Connecting the Soundbar 17

Connecting Electrical Power ------------------------- 17

Connecting the Samsung Wireless Rear Kit and Subwoofer to your

Soundbar ------------------------- 17

05 Connecting to a TV 18

Connecting the TV that supports HDMI ARC (Audio Return Channel) ------------------------- 18

Connecting using an Optical Cable ------------------------- 20

Connecting via Bluetooth ------------------------- 21

Connecting via Wi-Fi ------------------------- 23

Connecting to a TV that supports Dolby Atmos® ------------------------- 24

Using the Q-Symphony Function ------------------------- 26

Using the SpaceFit Sound ------------------------- 27

ENG - 5

06 Connecting an External Device 28

Connecting using an Optical Cable ------------------------- 28

07 Connecting a Mobile Device 29

Method 1. Connecting via Bluetooth ------------------------- 29

Method 2. Connecting via Wi-Fi (Wireless Network) ------------------------- 32

Using the Tap Sound ------------------------- 33

08 Connecting via Apple AirPlay 2 34

09 Installing the Wall Mount 35

Installation Precautions ------------------------- 35

Wallmount Components ------------------------- 35

10 Installing the Soundbar in front of TV 37

11 Software Update 38

Auto Update ------------------------- 38

USB Update ------------------------- 38

Reset ------------------------- 39

12 Troubleshooting 40

13 Licence 42

14 Open Source Licence Notice 43

15 Important Notes About Service 43

16 SpecicationsandGuide 44

Specications ------------------------- 44

ENG - 6

01 CHECKING THE COMPONENTS

SOUND

MODE

WOOFER

TONE

CONTROL

CHLEVEL

Soundbar Main Unit Soundbar Remote Control

Batteries

HDMI Cable

A TYPE : 450mm

AC/DC Adapter

(Soundbar)

Power Cord

(Soundbar)

Wall Mount Guide

x 2 x 2

(M4 x L10)

x 2

Holder-Screw Bracket-Wall Mount Screw

•For more information about the power supply and power consumption, refer to the label attached

to the product. (Label: Bottom of the Soundbar Main Unit)

•To purchase additional components or optional cables, contact a Samsung Service Centre or

Samsung Customer Care.

•For more information about the wallmount see page 35.

•Design, specications, and App screen are subject to change without prior notice.

•The appearance of the accessories may differ slightly from the illustrations above.

ENG - 7

02 PRODUCT OVERVIEW

Front Panel / Top Panel of the Soundbar

󱂓

Top Panel

󱂔 󱂖󱂕

󱂓LED

indicator

The LED Indicator ashes, glows, or changes colour depending on the Soundbar's current

mode or status. The colour of the LED indicator and the number of lights indicate the active

mode as described below.

White LED

Multicolour LED

White LED

•The Multicolour LED changes to White, Cyan, Green, Red, and Blue depending on the

mode or status.

󱂔

Multi

Function

Button

•In standby mode, press the (Multi Function)button to turn on the Soundbar.

•Press the (Multi Function) button to change the mode. Each time you change the

mode, the LED lights in white and then turns off.

LED

Indicator

White On -> Off White On -> Off White On -> Off

“Digital Audio In” or

“TV ARC”“Wi-Fi” “Bluetooth”

󱂕Volume

Button Press the (Volume) button to adjust the volume.

ENG - 8

󱂖

Mic

On/Off

Button

Press the (Mic On/Off) button to turn the microphone on or off.

When the microphone is off, the LED Indicator will light red.

LED Indicator

Red On

“Mic Off”“Mic On”

•When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.

•When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

•If you hear sounds from both the TV and Soundbar, go to the Settings menu for the TV audio and

change the TV speaker to External Speaker.

•You can turn on and off audio feedback by using SmartThings app. To learn about using the

SmartThings app, refer to “Method 2. Connecting via Wi-Fi (Wireless Network)”.

ENG - 9

Bottom Panel of the Soundbar

SERVICE

DC 19V

DIGITAL

AUDIO IN

(OPTICAL)

HDMI

(ARC)

DIGITAL

AUDIO IN

(OPTICAL)

HDMI

(ARC)

SERVICE

DC 19V

DIGITAL

AUDIO IN

(OPTICAL)

HDMI

(ARC)

SERVICE

DC 19V

󱂓󱂕

󱂔󱂖

󱂓DC 19V (Power Supply In)

Connect the AC/DC power adapter. (See page 17)

󱂔SERVICE

Connect a USB storage device to upgrade the product's software.

󱂕DIGITAL AUDIO IN (OPTICAL)

Connect to the digital (optical) output of an external device. (See page 28)

󱂖HDMI (ARC)

Connect to the HDMI (ARC) port on a TV. (See page 18)

•When disconnecting the power cable of the AC/DC power adapter from a wall outlet, pull the plug.

Do not pull the cable.

•Do not connect this unit or other components to an AC outlet until all connections between

components are complete.

ENG - 10

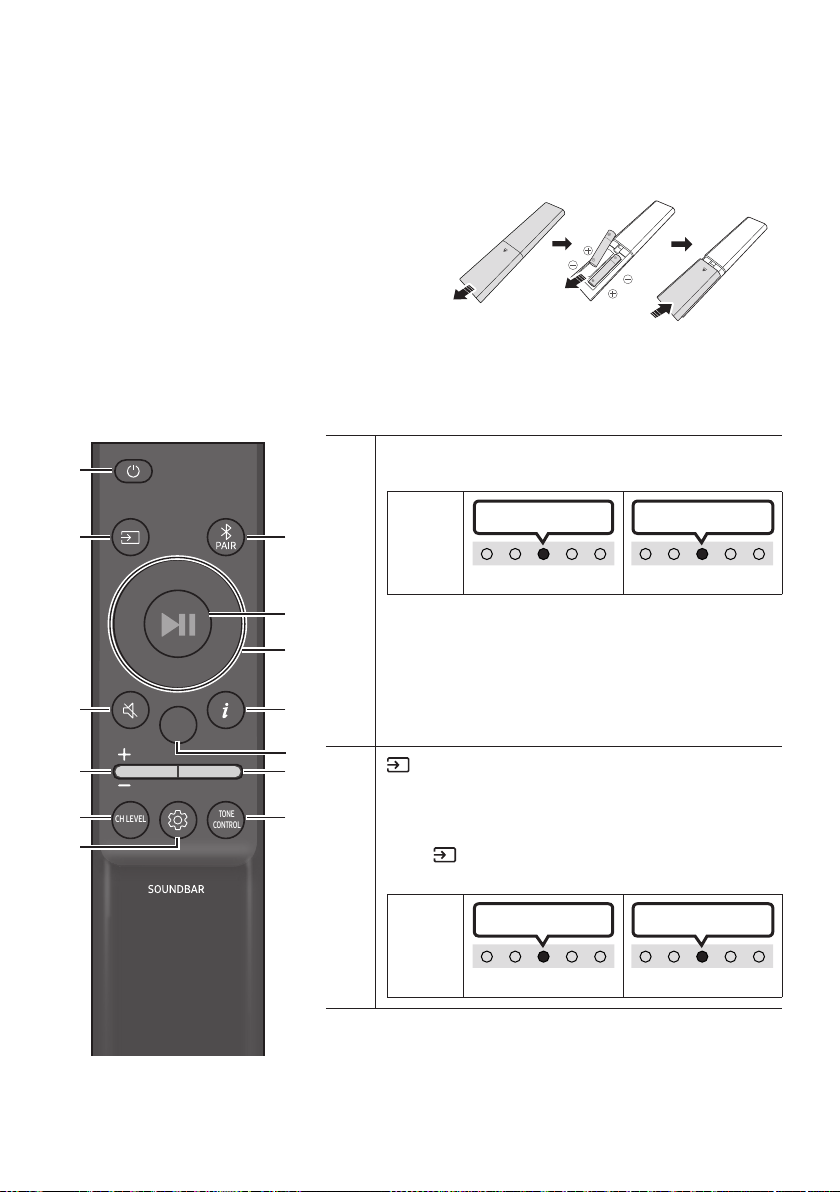

03 USING THE REMOTE CONTROL

Inserting Batteries before using the Remote Control (AAA batteries X 2)

Slide the back cover in the direction of the arrow

until it is completely removed.

Insert 2 AAA batteries (1.5V) oriented so that their

polarity is correct. Slide the back cover back into

position.

How to Use the Remote Control

SOUND

MODE

WOOFER

TONE

CONTROL

CH LEVEL

󱂓

󱂔

󱂕

󱂖

󱂗

󱂘

󱂙

󱂚

󱂛

󱂜

󱂝

󱂞

󱂟

󱂓Power

Turns the Soundbar on and off.

LED

Indicator

Cyan Blinks X1

On Off

Red Blinks X3

•Auto Power Down Function

The unit turns off automatically in the following

situations:

– In “Digital Audio In” or “TV ARC”/ “Wi-Fi” /

“Bluetooth” mode if there is no audio signal for 18

minutes.

󱂔(Source)

Press to select a source connected to the Soundbar.

•Audio Feedback On/Off

You can turn the Audio Feedback on or off. Press and hold

the (Source) button on the remote control for

5 seconds while the Soundbar is off (Standby mode).

LED

Indicator

Cyan Blinks X1

On Off

Red Blinks X1

Other manuals for HW-S60B

This manual suits for next models

Table of contents

Languages:

Other Samsung Speakers System manuals

Samsung

Samsung HW-T415 User manual

Samsung

Samsung HW-F350 User manual

Samsung

Samsung HW-Q870A Installation instructions

Samsung

Samsung Harman/Kardon HW-Q70R User manual

Samsung

Samsung HW-MS6500 User manual

Samsung

Samsung HW-S60A User manual

Samsung

Samsung Harman Kardon HWQ7CR/ZA Installation instructions

Samsung

Samsung HW-R470 Installation instructions

Samsung

Samsung HW-B660 Installation instructions

Samsung

Samsung HW-J7500 User manual

Samsung

Samsung HW-N310 Installation instructions

Samsung

Samsung MM-UC8H User manual

Samsung

Samsung Harman JBL KS12 User manual

Samsung

Samsung HW-A450 Installation instructions

Samsung

Samsung HW-J7500 User manual

Samsung

Samsung HW-M4500 User manual

Samsung

Samsung MX-T50 Installation instructions

Samsung

Samsung HW-Q67CB Installation instructions

Samsung

Samsung HW-K850 User manual

Samsung

Samsung HW-H750 User manual

Samsung

Samsung HW-J7500R User manual

Samsung

Samsung HW-N550 User manual

Samsung

Samsung HW-Q800A Installation instructions

Samsung

Samsung HW-R530 Installation instructions

Popular Speakers System manuals by other brands

JVC

JVC CA-MXK5R instructions

LG NB4532B owner's manual

JVC

JVC CA-FSH100 instructions

5Core

5Core Pro Series Operation manual

EAW

EAW MQV1394e Specifications

Lynx

Lynx GXR-LA10A user manual

iLive

iLive ITB066B user guide

RDX

RDX QuickStation 4 product manual

Electro-Voice

Electro-Voice S-122 Specifications

Sven

Sven SPS-619 GOLD Operation manual

Pioneer

Pioneer CS-7070 instruction manual

EAW

EAW UB82e Technical specifications

Sondpex

Sondpex Active Speaker System and Digital Music... User manual and installation instructions

JVC

JVC NX-PN7 instructions

Marshall Amplification

Marshall Amplification AR-DM61-BT user manual

Yamaha

Yamaha NX-A01 - Speaker Sys Product bulletin

SE Audiotechnik

SE Audiotechnik I-LINE manual

Gemini

Gemini WRX-843 Series user manual
