Uniform supply of cold in refrigerating room!

• Food can be refrigerated more freshly and evenly

by supplying cold even to the corners by means

of rotating wings to distribute cold, which are

installed to the cold outlet of the refrigerating

room. (Rotating cooling system).

Uniform supply of cold in the freezing room!

• Foods can be freezed more evenly by the air

shower function to jet cold evenly in the freezing

room.

Being fresh by Bio deodorizer!

• Bio deodorizer that remove every kinds of foods

smell in refrigerator maintains the origin flavor of

foods newly.

Rapid opening and closing by rail system!

• Vegetables and fruits can be rapidly accessible to

prevent loss of cold by employing a rail style

design in high-humidity vegetable room and

high-umidity special room which operates

smoothly only by pulling and pushing a handle

effortlessly.

Even slightly opened door is closed automati-

cally by itself!

• In case of slight opening of refrigerator door, it

will be closed automatically by employing

energy-saving, automatic closing function.

FEATURE

SUPER X-FLOW

X-Flow cooling system is a new rotating

cooling system that refrigerates the inside of

refrigerator quickly and uniformly by rotating

wings tramsmitting cold in all the corners.

TYPE A only: Please refer to page 11.

CONTENTS

FEATURE..........................................................1

WARNING FOR SAFETY ................................2

CAUTION FOR SAFETY..................................4

PREPARATIONS PRIOR TO USE...................6

HOW TO STORE FOODS CORRECTLY........7

INSTALLATION METHOD................................8

HOW TO USE FREEZING ROOM...................9

HOW TO USE FEFRIGERATING ROOM......11

HOW TO DISASSEMBLE ACCESSORIES...14

CLEANING METHODŒ.................................16

PROCEDURE OF INSTALLATION................18

CAUTIONS WHEN USING.............................19

CHECK PRIOR TO SERVICE REQUEST.....20

ANSWER TO THE QUESTION......................22

SR-V52/57 (ENG) 11/15/59 4:28 PM Page 2

WARNING FOR SAFETY

This is to prevent users or other persons from being wounded or injured, by using the present product

properly. Be sure to observe these contents for safety. (After reading these contents, please keep in such a

safe place as to look up)

WARNING

CAUTION

Represents the contents that

death or heavy injury of a person

is foreseen.

Represents the contents that

injury of a person or damage of

material is foreseen.

Represents the contents of progibition.

Represents the progibition of disassembly.

Represents the progibition of contact.

Represents what has to be observed.

Represents that a power plug has to be

separated from the plug socket.

Represents earth for prevention of electric

shock.

Do not insert the power plugs

for many products at the same

time.

• May cause abnormal generation

of heat or fire.

Do not spray inflammable gas

near the refrigerator.

• May cause explosion or fire.

Set the power plug free from the

back side of the refrigerator.

• Damaged power plug may cause

fire due to overheating.

Do not bend the power cord with

excessive force or do not have

the power cord pressed by

heavy article.

• May cause fire or electric shock.

Do not directly spray water inside

or outside of the refrigerator

• May cause fire or electric shock.

Do not store a volatile and

inflammable substance in the

refrigerator.

• Storage of benzene, thinner,

alcohol, ether, LP gas, etc., may

cause explosion.

Contents of Caution/Warning Contents of indication

SR-V52/57 (ENG) 11/15/59 4:28 PM Page 3

WARNING

Do not put a container filled with

water on the product.

• If water poured, it cause bad

insulation of the electric parts

which may lead to fire or electric

shock.

Do not disassemble, repair or

alter.

• It may cause fire or abnormal

operation which leads to injury.

If and when gas leaks, immediately ventilate

without touching the refrigerator and the plug.

• Explosion of gas may cause fire and a burn.

Dispose refrigerator after door or door's packing is

removed, if disposition is required.

• It is dangerous for child to enter the refrigerator for

play-in with door closed.

Do not install the refrigerator in

the wet place or the place which

water splashes.

• Deterioration of insulation of

electric parts may cause electric

shock or fire.

Pull the power plug out for

exchanging the interior lamp of

the refrigerator.

• It may cause electric shock.

Do not insert the power plug with

the wet hand.

• May cause electric shock.

Be sure to earth.

• If earthing is not done, it will cause

breakdown and electric shock.

(Please refer to page 6).

SR-V52/57 (ENG) 11/15/59 4:28 PM Page 4

CAUTION FOR SAFETY

CAUTION

Do not store too much foodstuffs therein.

• Opening of the door may cause pouring over which

may inflict a wound.

If the hole of the power plug socket is loose, do

not insert the power plug.

• It may cause electric shock and fire.

Do not store articles on the product.

• Opening or closing of the door may cause throwing

down which may inflict a wound.

Do not let a child be hung down from the door.

• Injury may occurs, when the product falls down or a

finger is jammed in the door.

Do not store narrow and lengthy bottles or foods

in a small multi-purpose room.

• It may hurt you when refrigerator door is opened and

closed resulting in falling stuff down.

Do not put bottles or kinds of glass in the freezing

room.

• Freezing of the contents may inflict a wound.

Do not pluck out the power cord by pulling the

portion of it.

• Damage of the cord portion may cause fire and

electric shock.

Do not store pharmaceutical products, scientific

materials, etc., in the refrigerator.

• The products which temperature control shall be

strict shall not be stored in the refrigerator.

SR-V52/57 (ENG) 11/15/59 4:28 PM Page 5

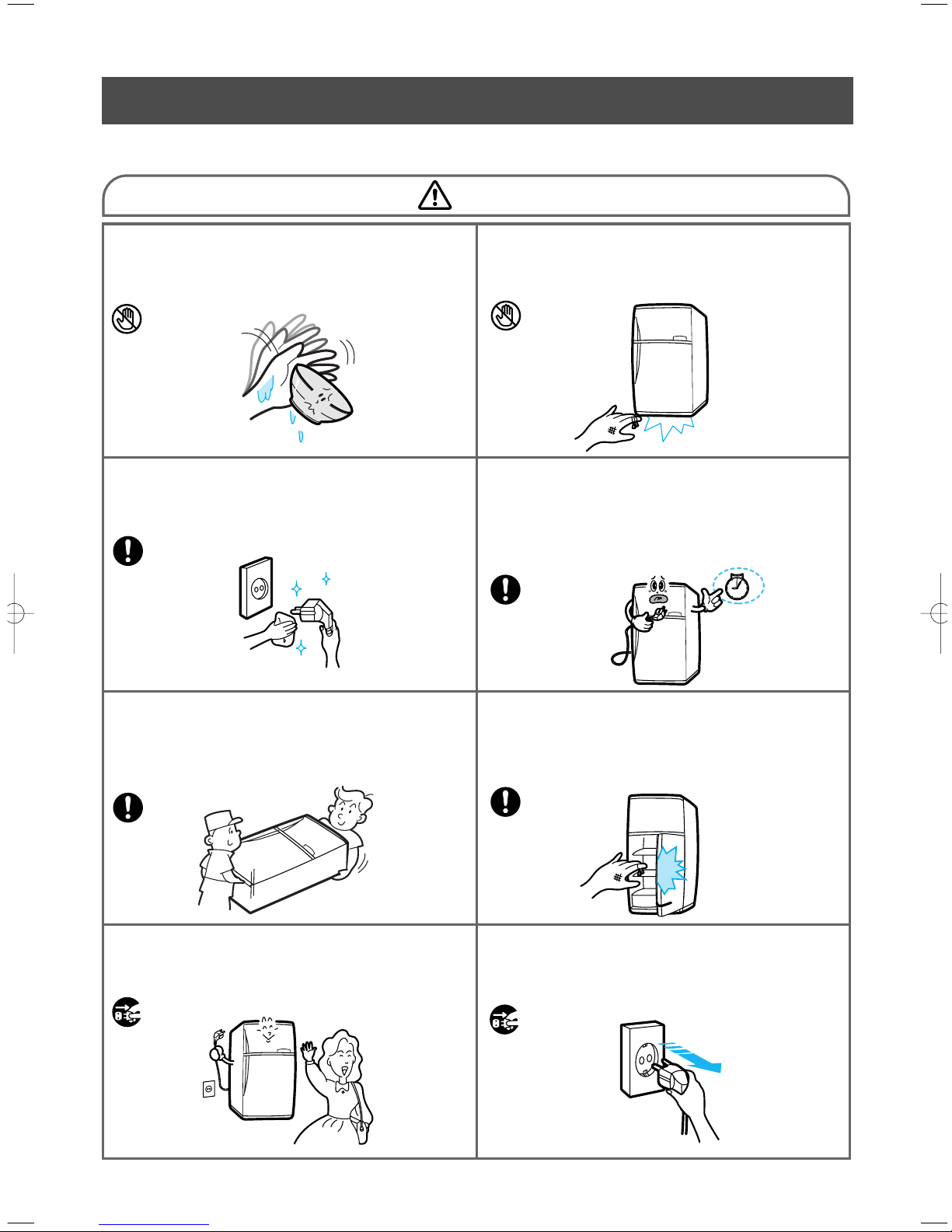

CAUTION

Do not touch the container and the food stuffs of

the freezing room with the wet hand.

• It may cause frostbite.

Please wipe out foreign materials of the metal

option of the power plug cleanly.

• Use of it as it is may cause fire.

Move it by catching the upper handle of rear side

and the lower handle of front side.

• Slippery is caused to hurt, when other part is

grasped.

If the refrigerator is not to be used for a long time,

pull out the power plug.

• Due to deterioration of insulation, may cause fire.

Do not enter the hand into the bottom surface of

the product.

• Sharp edge may inflict a wound.

If you want to insert the power plug again, please

insert it five minutes after pulling out of the plug

socket.

• Abnormal operation of freezing device may cause

breakdown of it.

Use handle when opening and closing the refriger-

ator door.

• In case of using other parts than handle, it may hurt

you with your finger jammed.

When abnormal sound, smell or smoke is noticed,

pull a power plug off immediately, then call service

center.

Afterfive minutes

SR-V52/57 (ENG) 11/15/59 4:28 PM Page 6

PREPARATIONS PRIORTO USE

1 2

3 4

5cm

30cm

25cm

The refrigerator should be installed

on flat floor leaving adequate

space.

Insert a power plug into the exclu-

sive receptacle.

• Earth connection should be done.

• It is recommended to connect

power one hour after installation.

Clean up the refrigerator

• Wipe out the inner and outer parts

of the unit with a dish clothe which

was squeezed dry.

Put foods into the refrigerator.

• It is recommended to put foods into

the unit after plugging-in 2 or 3

hours before stuffing to allow

cooling in the unit.

Grounding method

• Grounding should be done to prevent short circuit or electric shock resulting from the electricity leaking from the

refrigerator.

• Do not ground with gas pipe, telephone line or lightning arrester without fail because of being very dangerous

when lightning strikes.

In case of the exclusive electric outlet with a

grounding terminal.

• In case of electric outlet with a grounding terminal,

it does not require a separate grounding connection.

In case of the electric outlet without a

grounding terminal.

• Connect the "grounding wire" to the copper

plate, and bury it in the wet ground 25cm

deeper.

• Unusual noises or poor cooling may arise when

the unit is not levelled.

SR-V52/57 (ENG) 11/15/59 4:28 PM Page 7

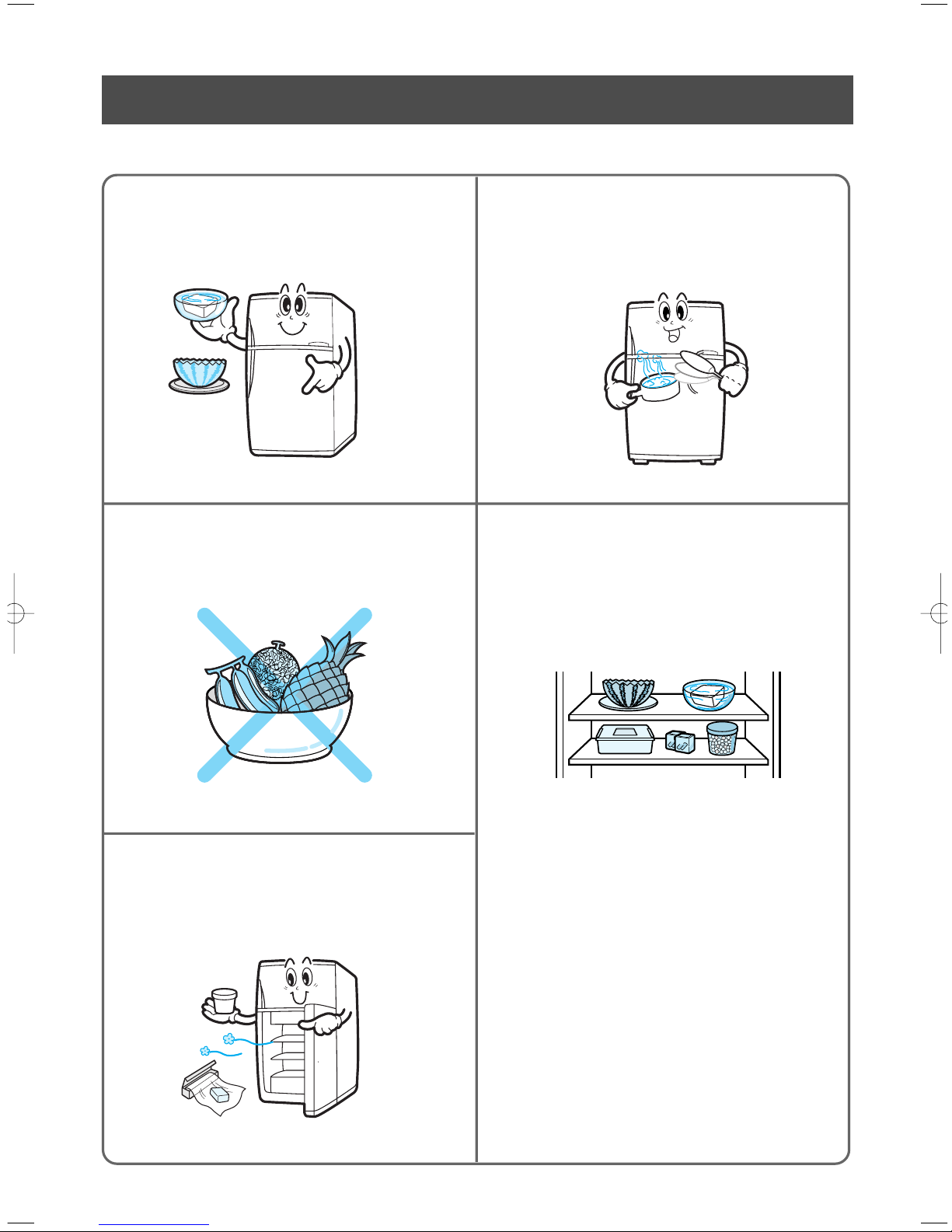

HOWTO STORE FOODS CORRECTLY

Store watery foods in front of shelf of refrigerat-

ing room.

Do not store the foods which are perishable at

low temperature.

• i.e.: Banana, Pineapple, Tomato etc

It is recommeded to store in a vessel with cover

or after wrapping-up with a vinyl sheet.

Cool the hot foods, then store them.

• Electric charges will reduce and cooling will be

much effective provided that hot foods are cooled.

Put foods at proper space.

• In case of cooling outlet plugged, storing effect of

food decreases because of poor circulation of cold.

SR-V52/57 (ENG) 11/15/59 4:28 PM Page 8

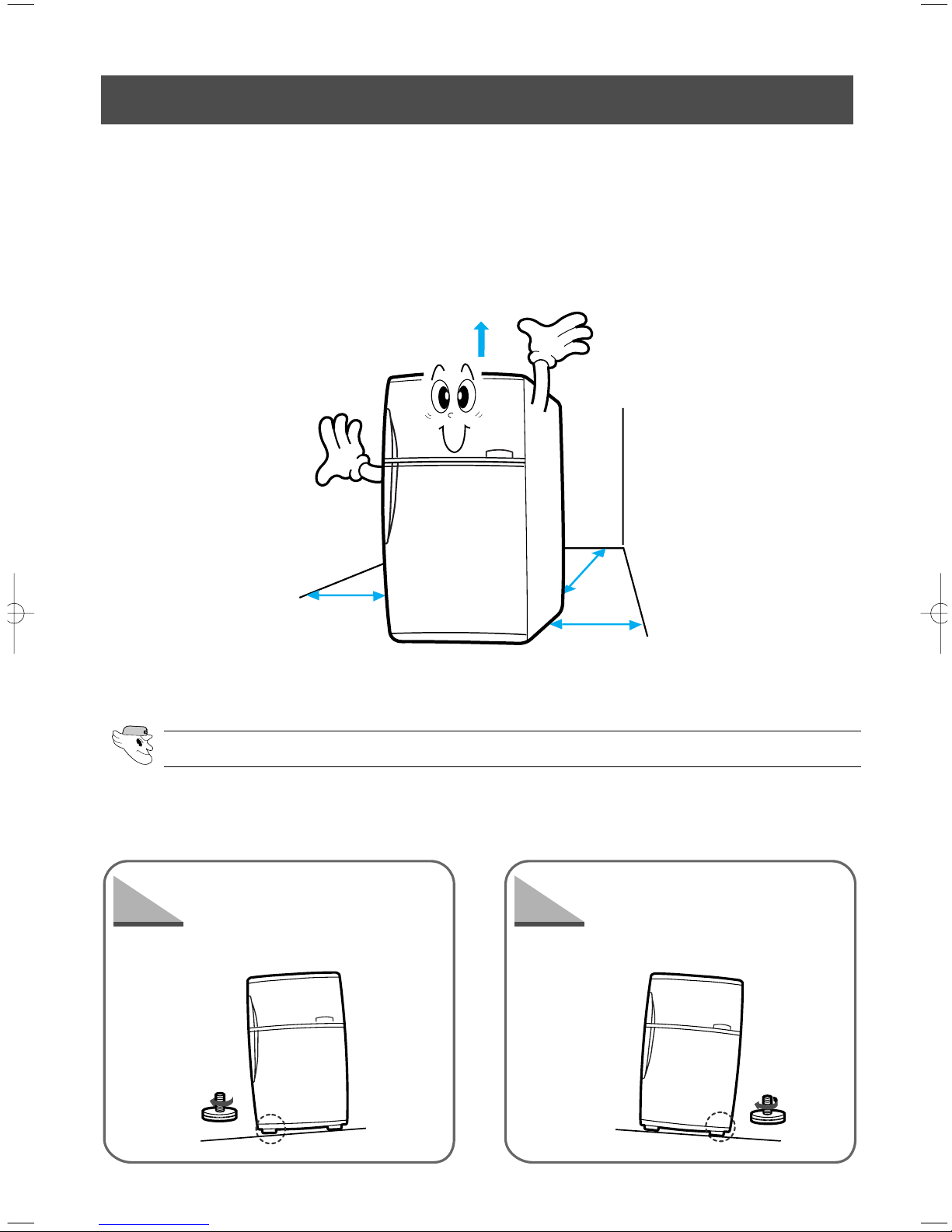

INSTALLATION METHOD

1 2

5cm

5cm 5cm

30cm

Allowing a 5cm space on the right, left and back sides when installing the unit, makes you have an advantage in

saving power consumption.

When you install the front of the unit on a little higher level, its door can be easily opened and closed.

When the door is sagged to the

left, downward.

Turn the left adjusting leg the the

arrow direction and level the unit.

When the door is sagged to the

right, downward.

Turn the right adjusting leg to the

arrow direction and level the unit.

LEVELTHE REFRIGERATOR

SR-V52/57 (ENG) 11/15/59 4:28 PM Page 9

HOWTO USE FREEZING ROOM

1 2

ICE BOX

Temperature controller in freezing room

Indoor light in freezing room

Drying room

Airshower: Function of airshower-foods can be

frozen more evenly by function of jetting cold

uniformly in freezing room.

Suction inlet of cold

HOW TO PRODUCE ICE

Pour water into ice box at a level of

water(Arrow). Put the ice box in the air shower shelf

of the freezing room.

Water level

SR-V52/57 (ENG) 11/15/59 4:28 PM Page 10

This manual suits for next models

Table of contents

Other Samsung Refrigerator manuals

Samsung

Samsung RSG257AA Series User manual

Samsung

Samsung RF28 DED Series User manual

Samsung

Samsung RF195ABRS User manual

Samsung

Samsung RL60 Series User manual

Samsung

Samsung RL27T Series User manual

Samsung

Samsung RS2530BSH User manual

Samsung

Samsung RS2533SW Safety guide

Samsung

Samsung RS25H5121 User manual

Samsung

Samsung RF266AB User manual

Samsung

Samsung DA99-01623D User manual

Samsung

Samsung RL62SB Series User manual

Samsung

Samsung RFG23UERS User manual

Samsung

Samsung RF220NCTA User manual

Samsung

Samsung BRR20R121 Series User manual

Samsung

Samsung RR20 Series User manual

Samsung

Samsung SIDE BY SIDE REFRIGERATOR Safety guide

Samsung

Samsung RF267AA SERIES User manual

Samsung

Samsung RS25H5111SR User manual

Samsung

Samsung RF23BB8 Series User manual

Samsung

Samsung RF26HFEND series User manual

Samsung

Samsung RL29THCSW User manual

Samsung

Samsung RS26TKA User manual

Samsung

Samsung RS26DDA Series User manual

Samsung

Samsung RL37SGPS User manual

Popular Refrigerator manuals by other brands

Bonnet Neve

Bonnet Neve SKYVIEW PLUS User instructions

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Instruction book

Sharp

Sharp SJ-BA31IEXW2-EU user manual

CORBERO

CORBERO CC2300MCW Instruction booklet

KitchenAid

KitchenAid 2205264 Use and care guide

Stengel

Stengel KU 1101 A++ user manual

NEFF

NEFF KI181 Series user manual

Hoshizaki

Hoshizaki Reach-In instruction manual

Amana

Amana ASD2524VES00 User instructions

BOMANN

BOMANN KGC 213 instruction manual

Danby

Danby DAR044A1SLDD Owner's use and care guide

Beko

Beko CSA31022 Instructions for use

IKEA

IKEA FROSTIG C 185 E manual

Electrolux

Electrolux ER 6821 D Instruction book

True

True TS-28 Specifications

Frigidaire

Frigidaire FSC23R5DW9 installation guide

Beko

Beko LSP4579W Instructions for use

Teledyne

Teledyne 6712FR and Installation and operation guide
