Samsung RT62K7 Series User manual

English

User servicing manual

MODEL CODE: RT62K7*

1. You may nd the installation, maintenance, repair, cleaning information about the device,

the list of spare parts of the device, and the necessary information for ordering spare

parts that can be supplied by authorized service http://samsung.com/support or call

center 4447711

2. The model code is labelled on the outer side of your product.

- You can check the model code and version on the barcode label at the bottom left of

the product.

3. For replacement parts, make sure the part name matches that of the illustration in this

manual.

- User-serviceable parts are limited to handles (some models only), gaskets, drawers, and

hinges.

NOTE

Following the repair by a non-authorised service provider, self-repair or non-professional

repair of the product, Samsung is not liable for any damage to the product, any injury or

any other product safety issue caused by any attempt to repair the product which does

not carefully follow these repair and maintenance instructions. Any damage to the product

caused by an attempt to repair the product by any person other than a Samsung certied

service provider will not be covered by the warranty.

CAUTION

• The part name listed on the site may differ from that in this manual. Please make sure you

choose the right part name.

• Replacing hinges requires extreme caution because it involves detaching the door.

• Be sure to wear safety gloves while making repairs.

TMF_RT7000_User-servicing-manual_EN.indd 1 2021-02-04  11:56:58

English

The actual image and provided parts of the refrigerator may differ, depending on the model

and the country.

01 Hinge Up 02 Hinge Mid

03 Hinge Low 04 Gasket

05 Drawer 06 Barcode label

TMF_RT7000_User-servicing-manual_EN.indd 2 2021-02-04  11:56:58

English

Handle replacement

CAUTION

• When replacing the door handle, take care not to scratch the front of the door.

• Firmly press the handles at the supports. Make sure there is no gap between the supports

and the door.

• Tightly fasten the screws when attaching the handle.

• Check that the handle is rmly attached before using the product.

To detach the handles

NOTE

This procedure applies to both the fridge and freezer compartment.

FRE 1. Pull out the handle and hit the handle

vertically. When the handle is released

from the lock To pull the handle toward

you(Refer to the picture)

CAUTION

• Be careful not to scratch.

• When disassembling, make sure the unit

turned off if you want to assembly fellow

the reverse order.

REF

TMF_RT7000_User-servicing-manual_EN.indd 3 2021-02-04  11:56:59

English

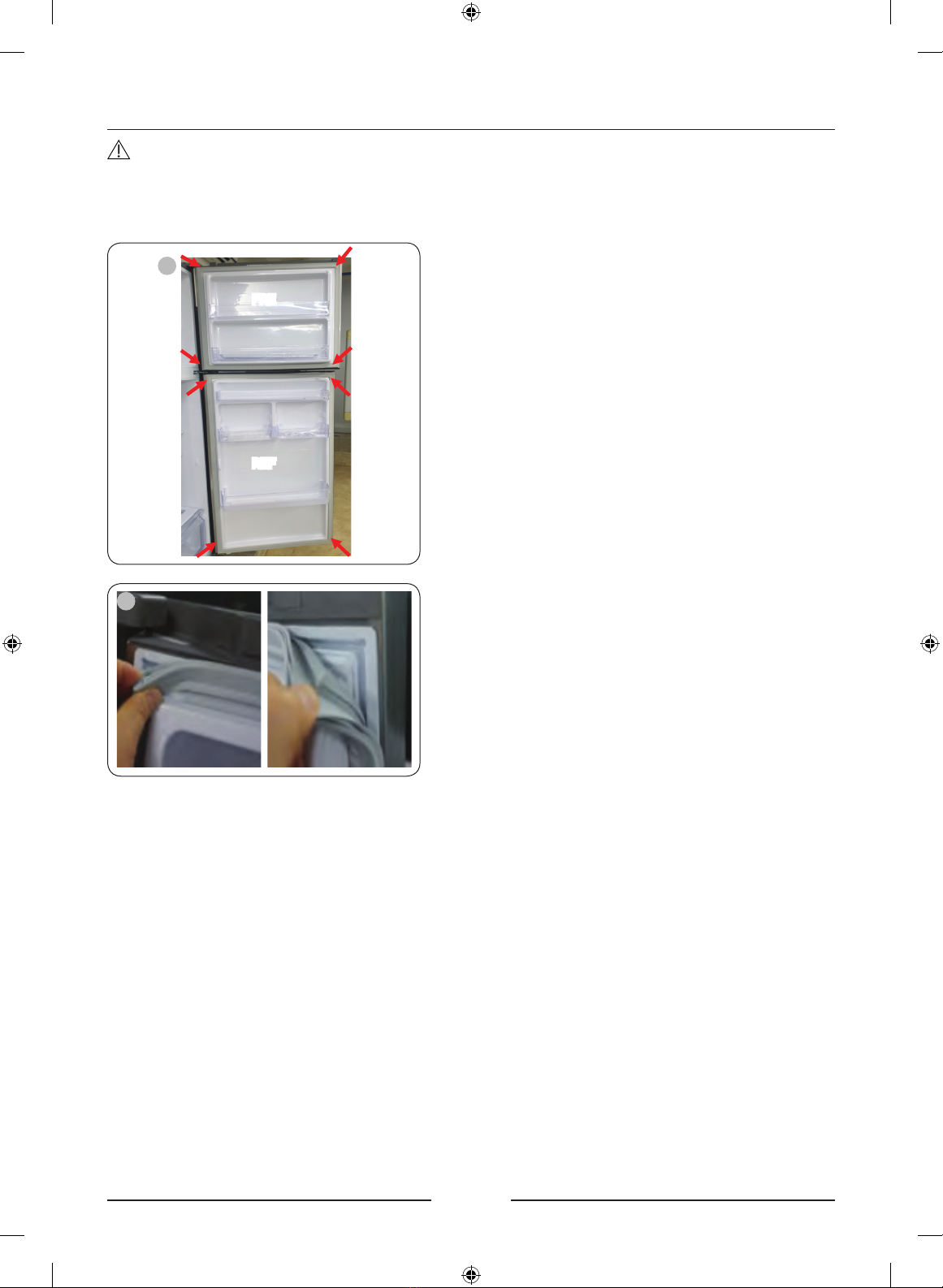

Gasket replacement

CAUTION

Make sure you rmly attach the gasket. Otherwise, cold air from the refrigerator may leak.

To remove the gasket

FRE

REF

1. Pull the 4 corners of gasket Fre & Ref.

2. Pull the center of gasket.

To replace the gasket

Attach a new gasket to the refrigerator door. Make sure there is no gap between the new

gasket and the door.

TMF_RT7000_User-servicing-manual_EN.indd 4 2021-02-04  11:56:59

English

Drawer replacement

CAUTION

Check that the drawer is inserted properly into the rail during assembly.

To remove the drawer

1. Remove the drawer by pulling the roller

part and lifting it up.

To reattach the drawers

Reattaching the drawers follows the reverse order of their respective removal steps.

Hinge replacement

To replace the hinges, you must remove the doors rst.

CAUTION

• When removing the doors, take extreme caution because the doors are heavy.

• Before replacing the hinges, put a soft pad such as cardboard on the oor to prevent

scratches on the door when you place the doors down.

• As the hinges must be handled carefully and replaced by two or more persons, we

recommend you to call for professional technical service.

• If you remove the hinge without holding the door, the door may fall and cause injury.

• Ensure that the shaft is rmly tightened on the hinge.

• Check that the hinge is rmly attached to the cabinet.

• Make sure the wire connectors are connected properly.

• Be careful not to damage the wires when fastening the top cover.

WARNING

• Tilting/laying the refrigerator requires a minimum of 2 people.

• Disconnect the power cord before reversing the doors.

TMF_RT7000_User-servicing-manual_EN.indd 5 2021-02-04  11:56:59

English

Tools required (not provided)

Phillips screwdriver Flat-head screwdriver 11 mm spanner

10 mm socket wrench Allen wrench (5 mm) 10 mm spanner

Reversing the door

Hinge Up



1. Remove cap cover hinge.



2. Remove screw 1 ea Cover hinge with the

(+) screwdriver and Open.



3. Pull the hooks and lift Cover hinge.

TMF_RT7000_User-servicing-manual_EN.indd 6 2021-02-04  11:57:00

English



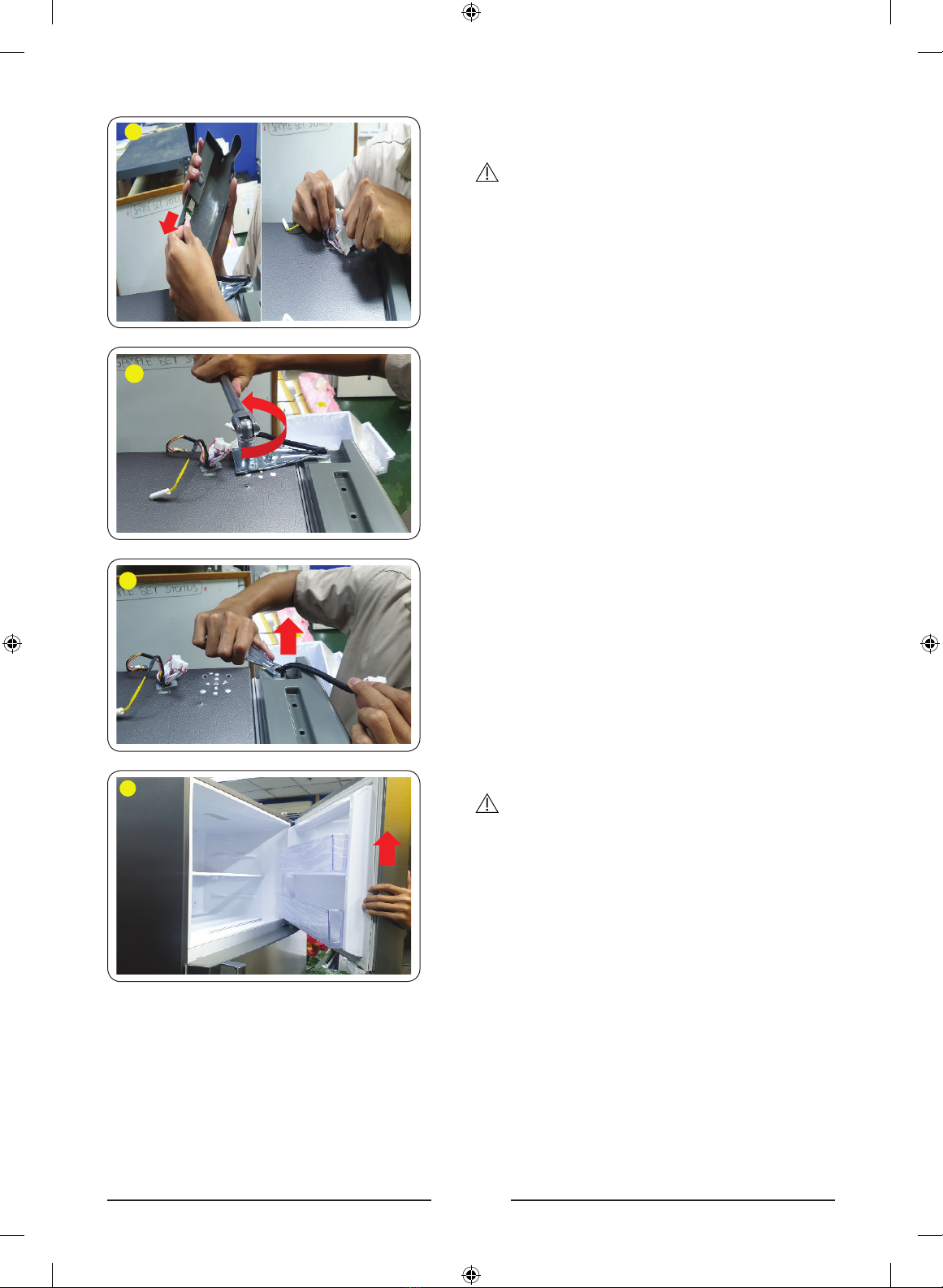

4. Disconnect the wire connector on the

hinge up.

CAUTION

Be sure to unplug the power cord before

performing the operation above.



5. Remove the 2 hex bolts that hold the

hinge on the top of the refrigerator with

the 10mm socket wrench.



6. Remove Hinge up R/L.



7. Remove Door.

CAUTION

Must working more than 2 people. One

person grab the door to prevent falling door.

TMF_RT7000_User-servicing-manual_EN.indd 7 2021-02-04  11:57:01

English

Hinge Mid



1. Remove the 2 hex bolts screw by

Hexagon wrench.



2. Remove the screw 1 ea the hinge With

(+) screwdriver.



3. Diassembly hinge mid from door ref up.

CAUTION

• Must working more than 2 people.

• Be sure to unplug the power cord before

performing the operation above.

TMF_RT7000_User-servicing-manual_EN.indd 8 2021-02-04  11:57:01

English

Hinge Low



1. Lay down product (Refer picture).

CAUTION

• Must to a pad underneath to protect the

back of the product from being damaged.

• Must working more than 2 people.

• Be sure to unplug the power cord before

performing the operation above.

 

2. Remove the 3 hex bolts that hold the

hinge with the 8 mm socket Wrench or

using (+) screwdriver.

3. Remove Hinge Low.

4. Reassemble in the opposite order of

disassembly after replacing the top,

middle, and/or bottom hinge.

CAUTION

• Make sure the wire connectors are

connected properly.

• Be careful not to damage the wires when

fastening the top cover.

TMF_RT7000_User-servicing-manual_EN.indd 9 2021-02-04  11:57:01

Türkçe

Kullanıcı servis kılavuzu

MODEL KODU: RT62K7*

1. Cihaza ilişkin kurulum, bakım, onarım, temizlik bilgileri, cihazın yedek parçalarının

listesi ve yetkili servis aracılığıyla temin edilebilecek yedek parçaların siparişi için

gerekli bilgilere http://samsung.com/support adresinden veya 4447711 numaralı çağrı

merkezinden ulaşabilirsiniz.

2. Model kodu ürününüzün dış tarafına etiketlenmiştir.

- Model kodunu ve sürümü ürünün sol altında bulunan barkod etiketinde görebilirsiniz.

3. Yedek parçalar için parça adının bu kılavuzdaki çizimdekiyle eşleştiğinden emin olun.

- Kullanıcının bakımını yapabileceği parçalar kollar (yalnızca bazı modellerde), contalar,

çekmeceler ve menteşeler ile sınırlıdır.

NOT

Yetkisi olmayan bir servis sağlayıcının yaptığı onarım, kendi kendini onarım veya

ürünün profesyonel olmayan onarımı sonrasında, üründe meydana gelen hasarlardan,

yaralanmalardan veya bu onarım ve bakım talimatlarını dikkatli bir şekilde izlemeden

onarmaya çalışmaktan kaynaklanan ürünle ilgili diğer güvenlik sorunlarından Samsung

sorumlu değildir. Samsung yetkili servis sağlayıcısı haricinde birinin ürünü onarmaya

çalışmasından kaynaklanan üründeki hasarlar garanti kapsamına alınmaz.

DİKKAT

• Sitede listelenen parça adı bu kılavuzdakinden farklı olabilir. Lütfen doğru parça adını

seçtiğinizden emin olun.

• Kapıyı çıkarmak gerektiğinden menteşeleri değiştirme aşırı dikkat gerektirir.

• Onarım yaparken güvenlik eldiveni taktığınızdan emin olun.

TMF_RT7000_User-servicing-manual_TR.indd 1 2021-02-04  11:56:53
