Samsung PS50C530C1W User manual

English -4

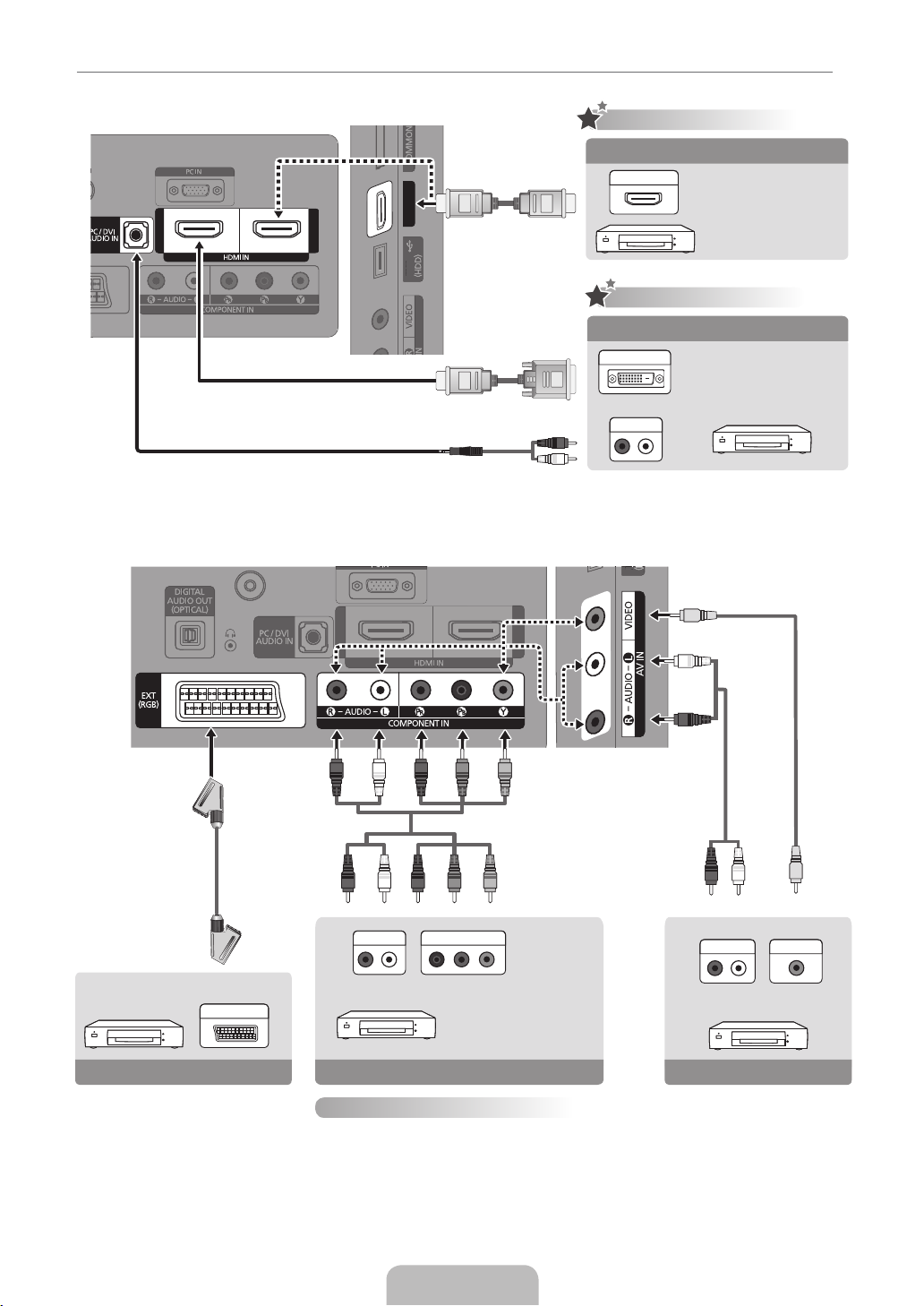

¦¦Connecting¦a¦AV¦device

1 (DVI)

(

DVI

)

1 (DVI)

USB

BHDMI IN 3

RR GB

HD¦connection

DVD / Blu-ray player

/ HD Cable Box / HD

STB (Set-Top-Box)

satellite receiver

Using an HDMI Cable

HDMI OUT

Device

Using a Scart Cable

EXT

1 (DVI)

(

DVI

)

1 (DVI)

USB

BHDMI IN 3

RR GB

HD¦connection

Device

Using an HDMI to DVI Cable

DVI OUT

AUDIO OUT

Component connection

AUDIO OUT VIDEO OUT

Device

Using an Audio/Video Cable

Using a Component Cable

DVD, Blu-ray player,

cable box, STB satellite

receiver, VCR

AUDIO OUT COMPONENT OUT

[PC530_QSG]BN68-02794A-00Eng.indd 1 2010-03-17 오전 10:20:24

¦¦The¦Supplied¦Accessories

yRemote Control & Batteries (AAA x 2)

yOwner’s Instructions

yQuick Setup Guide

yCleaning Cloth

yPower Cord

yBlanking Bracket

yCable Tie

yFerrite Core for Power Cord (2EA)

See separate guide for installing the stand.

(M4 X L12)

yStand (1EA)

yGuide Stand (1EA)

yScrews (8EA)

✎

Ferrite Core for Power Cord: The ferrite cores are used to shield the cables from interference. When connecting a cable,

open the ferrite core and clip it around the cable near the plug as shown in the figure.

Distance between the ferrite core and one end of the cord put into the TV set

y A : below 50 mm

y B : below 20 mm

Plasma TV

QUICK SETUP GUIDE

English - 1

BN68-02794A-00

[PC530_QSG]BN68-02794A-00Eng.indd 2 2010-03-17 오전 10:20:25

¦¦Installing¦the¦Stand

✎

Preset: Place the Guide Stand and Cover Neck onto the stand and fasten it using the screws. Applicable to models

(Depending on the model)

Step¦1.¦ Connect the Guide Stand to the Stand using ﬁve screws (M4 X L12) as shown.

✎

Make sure to distinguish between the front and back of the Stand and Guide Stand when assembling them.

✎

Make sure that at least two persons lift and move the PDP TV.

✎

Stand the product up and fasten the screws. If you fasten the screws with the PDP TV placed down, it may lean to

one side.

Step¦2.¦Fasten two screws (M4 X L12) at position 1, and then fasten two screws (M4 X L12) at position 2.

✎

Stand the product up and fasten the screws. If you fasten the screws with the PDP TV placed down, it may lean to

one side.

¦¦Using¦the¦remote¦control¦buttons

¦¦Installing¦Batteries¦in¦the¦Remote¦Control

English - 2

RETURN Button

Return to the previous menu.

ENTERE / DIRECTION Buttons

Move the cursor and select an

item. Select the currently selected

item. Conﬁrm the setting.

EXIT

Exit the on-screen menu.

MENU Button

Display the main on-screen menu.

CH LIST

MUTE

SOU

PRE-

GUIDE

MEDIA

TOO

RETURN

.MOD

IZE

.MODE

DUA

EXIT

HDMI

✎

NOTE

Use the remote control within 23 feet from the TV.

Bright light may affect the performance of the

remote control. Avoid using nearby special

fluorescent light or neon signs.

The colour and shape may vary depending on the

model.

Preset Step¦1 Step¦2

Back

Front

[PC530_QSG]BN68-02794A-00Eng.indd 3 2010-03-17 오전 10:20:27

English - 3

¦¦Plug¦&¦Play

When the TV is initially powered on, basic settings proceed automatically and subsequently.

If you want to reset this feature, press the MENU button to display menu.

You can set the Plug & Play by selecting ‘Setup → Plug & Play’.

On the screen, you can set as follows.

✎

The each step may vary depending on the Antenna source.

ANT OUT

1 (DVI)

(

DVI

)

VHF/UHF Antenna

Cable

Power Input

Step 1 Step¦2 Step¦3

Step¦4 Step¦5 Step¦6

Step¦7 Step¦8

Plug & Play

Select the OSD Language.

Menu Language : : English

▲

Nederlands

English

Eesti

▼

Move

Enter

Plug & Play

Select Country.

Country :

▲

Turkey

United Kingdom

Estonia

▼

Move

Enter

Plug & Play

Enjoy your TV.

Plug & Play

Select the usage mode.

Store Demo Home Use

Move

Enter

Plug & Play

Antenna Source : Air ►

Channel Source : Digital & Analogue

Previous Skip

Move

Enter

Serch

Plug & Play

Auto Store in progress.

Channels : 7

15%

Digital 2

TV:2 Radio:0 Data/Other: 0

Analogue 0

Enter

Stop

Plug & Play

Set the Clock Mode.

Clock Mode : Manual ►

Move

Enter

Auto

Manual

Plug & Play

How to get the best perfotmance from your new HDTV

1/2

Step 1. Connect the HD Box to the using HDMI or Component

cables.

TV rear view ►

HDMI Cable

Previous Skip ► Next

[PC530_QSG]BN68-02794A-00Eng.indd 4 2010-03-17 오전 10:20:28
