User Manual

The color and the appearance may differ depending on the product, and the specifications are subject to change without

prior notice to improve the performance.

The contents of this manual are subject to change without notice to improve quality.

Samsung Electronics owns the copyright for this manual.

Use or reproduction of this manual in parts or entiretywithout the authorization of Samsung Electronics is prohibited.

Trademarks other than that of Samsung Electronics are owned by their respective owners.

S22E348A S24E348A

•An administration fee may be charged if either

‒(a) an engineer is called out at your request and there is no defect in the product

(i.e. where you have failed to read this user manual).

‒(b) you bring the unit to a repair center and there is no defect in the product

(i.e. where you have failed to read this user manual).

•The amount of such administration charge will be advised to you before any work or home visit is carried out.

Table of contents

Before Using the Product

Securing the Installation Space 4

Precautions for storage 4

Safety Precautions 4

Symbols 4

Cleaning 5

Electricity and Safety 5

Installation 6

Operation 7

Preparations

Parts 9

Frontal Buttons 9

Reverse Side 10

Right Side View 11

Changing Brightness, Contrast and Sharpness

settings 11

Adjusting the Product Tilt and Height 12

Rotating the Monitor 12

Anti-theft Lock 13

Installing a Wall-mount Kit or Desktop Stand 13

Installation 15

Attaching the Stand 15

Removing the Stand 16

Connecting and Using a Source Device

Pre-connection Checkpoints 17

Connecting and Using a PC 17

Connection Using the D-SUB Cable (Analog Type)17

Connection Using the DVI Cable 18

Connection Using the DVI-HDMI Cable 18

Connection Using the HDMI Cable 18

Connection Using an HDMI-DVI Cable 18

Connecting the Power 19

Connecting a USB device 20

Correct posture to use the product 21

Driver Installation 21

Setting Optimum Resolution 21

Screen Setup

Brightness 22

Contrast 22

Sharpness 22

Eye Saver Mode 23

Game Mode 23

SAMSUNG MAGIC Bright 23

SAMSUNG MAGIC Angle 24

SAMSUNG MAGIC Upscale 24

Image Size 24

HDMI Black Level 25

H-Position & V-Position 25

Coarse 25

Fine 25

Table of contents

Configuring Tint

Red 26

Green 26

Blue 26

Color Tone 27

Gamma 27

Resizing or Relocating the Screen

Language 28

Menu H-Position & Menu V-Position 28

Display Time 28

Transparency 28

Setup and Reset

Reset All 29

Smart Eco Saving 29

Off Timer Plus 30

PC/AV Mode 30

Key Repeat Time 30

Source Detection 30

Information 31

Installing the Software

Easy Setting Box 32

Troubleshooting Guide

Requirements Before Contacting Samsung

Customer Service Center 33

Testing the Product 33

Checking the Resolution and Frequency 33

Check the following. 33

Q & A 35

Specifications

General 36

Standard Signal Mode Table 37

Appendix

Responsibility for the Pay Service

(Cost to Customers) 39

Not a product defect 39

A Product damage caused by customer's fault 39

Others 39

Extended warranty 40

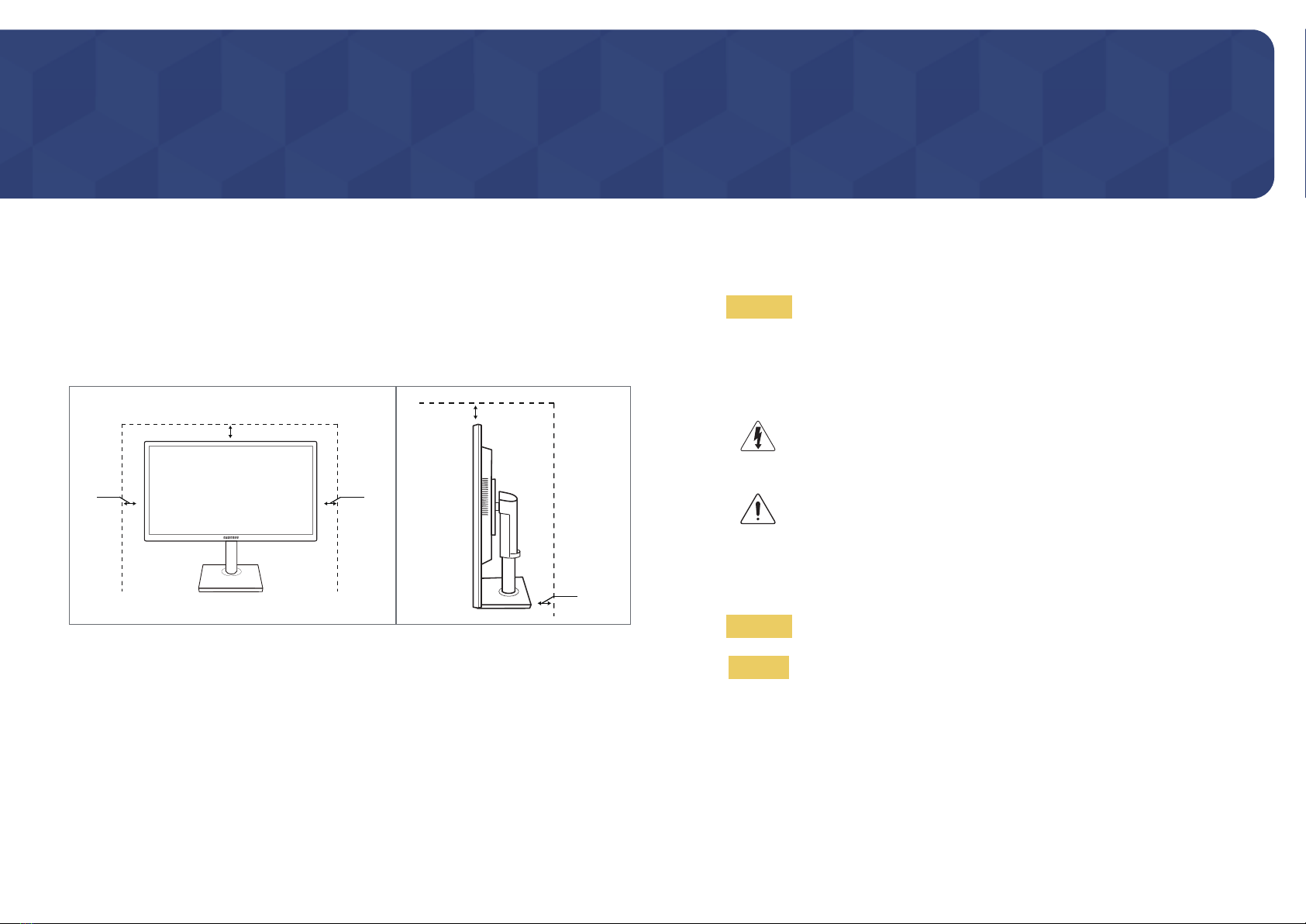

Securing the Installation Space

Ensure some space around the product forventilation. An internal temperature rise may cause fire and

damage the product. Be sure to allow the amount of space as shown below or greaterwhen installing

the product.

―The exterior may differ depending on the product.

10 cm

(3.93 inches)

10 cm

(3.93 inches)

10 cm (3.93 inches)

Precautions for storage

High-glossy models can develop white stains on the surface if an ultrasonic wave humidifier is used

nearby.

―Contact your nearest Samsung Customer Service Center if you want to clean the inside of the product

(Service fee will be charged.)

Safety Precautions

Caution RISK OF ELECTRIC SHOCK DO NOT OPEN

Caution : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE

COVER. (OR BACK)

THERE ARE NO USER SERVICEABLE PARTS INSIDE.

REFER ALL SERVICING TO QUALIFIED PERSONNEL.

This symbol indicates that high voltage is present inside.

It is dangerous to make any kind of contact with any internal part of

this product.

This symbol alerts you that important literature concerning operation

and maintenance has been included with this product.

Symbols

Warning A serious orfatal injury may result if instructions are not followed.

Caution Personal injury or damage to properties may result if instructions are

not followed.

Before Using the Product

Chapter 01

Cleaning

―Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.

―Take the following steps when cleaning.

Power off the product and computer.

Disconnect the power cord from the product.

―Hold the power cable by the plug and do not touch the cable with wet hands. Otherwise, an electric

shock may result.

Wipe the monitorwith a clean, soft and dry cloth.

‒Do not apply a cleaning agent that contains alcohol, solvent, or surfactant to the monitor.

‒Do not spray water or detergent directly on the product.

Wet a soft and dry cloth in water and wring thoroughly to clean the exterior of the product.

Connect the power cord to the product when cleaning is finished.

Power on the product and computer.

Electricity and Safety

Warning

•Do not use a damaged power cord or plug, or a loose power socket.

•Do not use multiple products with a single power socket.

•Do not touch the power plug with wet hands.

•Insert the power plug all the way in so it is not loose.

•Connect the power plug to a grounded power socket (type 1 insulated devices only).

•Do not bend or pull the power cord with force. Be careful not to leave the power cord under a heavy

object.

•Do not place the power cord or product near heat sources.

•Clean any dust around the pins of the power plug or the power socket with a dry cloth.

Caution

•Do not disconnect the power cord while the product is being used.

•Only use the power cord provided with your product by Samsung. Do not use the power cord with

other products.

•Keep the power socket where the power cord is connected unobstructed.

‒The power cord must be disconnected to cut off power to the product when an issue occurs.

•Hold the plug when disconnecting the power cord from the power socket.

Warning

•DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE PRODUCT. DO NOT

INSTALL THE PRODUCT NEAR HEAT SOURCES.

•Do not install the product in poorlyventilated spaces such as a bookcase or closet.

•Install the product at least 10 cm away from the wall to allow ventilation.

•Keep the plastic packaging out of the reach of children.

‒Children may suffocate.

•Do not install the product on an unstable orvibrating surface (insecure shelf, sloped surface, etc.)

‒The product may fall and become damaged and/or cause an injury.

‒Using the product in an area with excess vibration may damage the product or cause a fire.

•Do not install the product in a vehicle or a place exposed to dust, moisture (water drips, etc.), oil, or

smoke.

•Do not expose the product to direct sunlight, heat, or a hot object such as a stove.

‒The product lifespan may be reduced or a fire may result.

•Do not install the product within the reach of young children.

‒The product may fall and injure children.

•Edible oil (such as soybean oil) may damage or distort the product. Keep the product away from oil

pollution. And do not install or use the product in the kitchen or near the kitchen stove.

Caution

•Do not drop the product while moving.

•Do not set down the product on its front.

•When installing the product on a cabinet or shelf, make sure that the bottom edge of the front of

the product is not protruding.

‒The product may fall and become damaged and/or cause an injury.

‒Install the product only on cabinets or shelves of the right size.

•Set down the product gently.

‒Product failure or personal injury may result.

•Installing the product in an unusual place (a place exposed to a lot of fine dust, chemical

substances, extreme temperatures or a significant presence of moisture, or a place where

the product will operate continuously for an extended period of time) may seriously affect its

performance.

‒Be sure to consult Samsung Customer Service Center if you want to install the product at such a

place.

Installation

Warning

•There is a high voltage inside the product. Never disassemble, repair or modify the product

yourself.

‒Contact Samsung Customer Service Centerfor repairs.

•To move the product, first disconnect all the cables from it, including the power cable.

•If the product generates abnormal sounds, a burning smell or smoke, disconnect the power cord

immediately and contact Samsung Customer Service Center.

•Do not let children hang from the product or climb on top of it.

‒Children may become injured or seriously harmed.

•If the product is dropped orthe outer case is damaged, turn off the power and disconnect the

power cord. Then contact Samsung Customer Service Center.

‒Continued use can result in a fire or electric shock.

•Do not leave heavy objects or items that children like (toys, sweets, etc.) on top of the product.

‒The product or heavy objects may fall as children try to reach for the toys or sweets resulting in a

serious injury.

•During a lightning or thunderstorm, power off the product and remove the power cable.

•Do not drop objects on the product or apply impact.

•Do not move the product by pulling the power cord or any cable.

•If a gas leakage is found, do not touch the product or power plug. Also, ventilate the area

immediately.

•Do not lift or move the product by pulling the power cord or any cable.

•Do not use or keep combustible spray or an inflammable substance near the product.

•Ensure the vents are not blocked by tablecloths or curtains.

‒An increased internal temperature may cause a fire.

•Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects that burn easily (paper,

matches, etc) into the product (via the vent or input/output ports, etc).

‒Be sure to power off the product and disconnect the power cord when water or other foreign

substances have entered the product. Then contact Samsung Customer Service Center.

•Do not place objects containing liquid (vases, pots, bottles, etc) or metallic objects on top of the

product.

‒Be sure to power off the product and disconnect the power cord when water or other foreign

substances have entered the product. Then contact Samsung Customer Service Center.

Operation

Caution

•Leaving the screen fixed on a stationary image for an extended period of time may cause

afterimage burn-in or defective pixels.

‒Activate power-saving mode or a moving-picture screen saver if you will not be using the

product for an extended period of time.

•Disconnect the power cord from the power socket if you do not plan on using the product for an

extended period of time (vacation, etc).

‒Dust accumulation combined with heat can cause a fire, electric shock or electric leakage.

•Use the product at the recommended resolution and frequency.

‒Your eyesight may deteriorate.

•Do not hold the product upside-down or move it by holding the stand.

‒The product may fall and become damaged or cause an injury.

•Looking at the screen too close for an extended period of time can deteriorate your eyesight.

•Do not use humidifiers or stoves around the product.

•Rest your eyes for more than 5 minutes for every1 hour of product use.

•Do not touch the screen when the product has been turned on for an extended period of time as it

will become hot.

•Store small accessories out of the reach of children.

•Exercise caution when adjusting the product angle or stand height.

‒Your hand or finger may get stuck and injured.

‒Tilting the product at an excessive angle may cause the product to fall and an injury may result.

•Do not place heavy objects on the product.

‒Product failure or personal injury may result.

Preparations

Chapter 02

Parts

Frontal Buttons

―The color and shape of parts may differ from what is shown. Specifications are subject to change without

notice to improve quality.

Key Guide

Icons Description

Open or close the onscreen display (OSD) menu, or return to the parent menu.

OSD control lock: Maintain the current settings, or lock the OSD control to

prevent unintended changes to settings. Enable: To lock the OSD control,

press the button for10 seconds. Disable: To unlock the locked OSD

control, press the button for more than 10 seconds.

―If the OSD control is locked, Brightness and Contrast can be adjusted. Eye Saver

Mode is available. INFORMATION can be viewed.

The Eye Saver Mode function can be used by pressing the button. (The Eye

Saver Mode is available even when the OSD control is locked.)

Press to enable or disable Eye Saver Mode.

The items below are not available if the Eye Saver Mode function is enable.

•PICTURE Brightness, Game Mode,

SAMSUNG

MAGIC

Bright,

SAMSUNG

MAGIC

Angle

•COLOR

•SETUP&RESET Smart ECO Saving

Move to the upper or lower menu or adjust the value for an option on the OSD

menu.

Use this button to control the brightness, contrast and sharpness of the

screen.

Confirm a menu selection.

Pressing the button when the OSD menu is not displayed will change

the input source (Analog / DVI / HDMI). If you power on the product or change

the input source by pressing the button, a message that shows the

changed input source will appear at the top left corner of the screen.

―This function is not available for products with an Analog interface only.

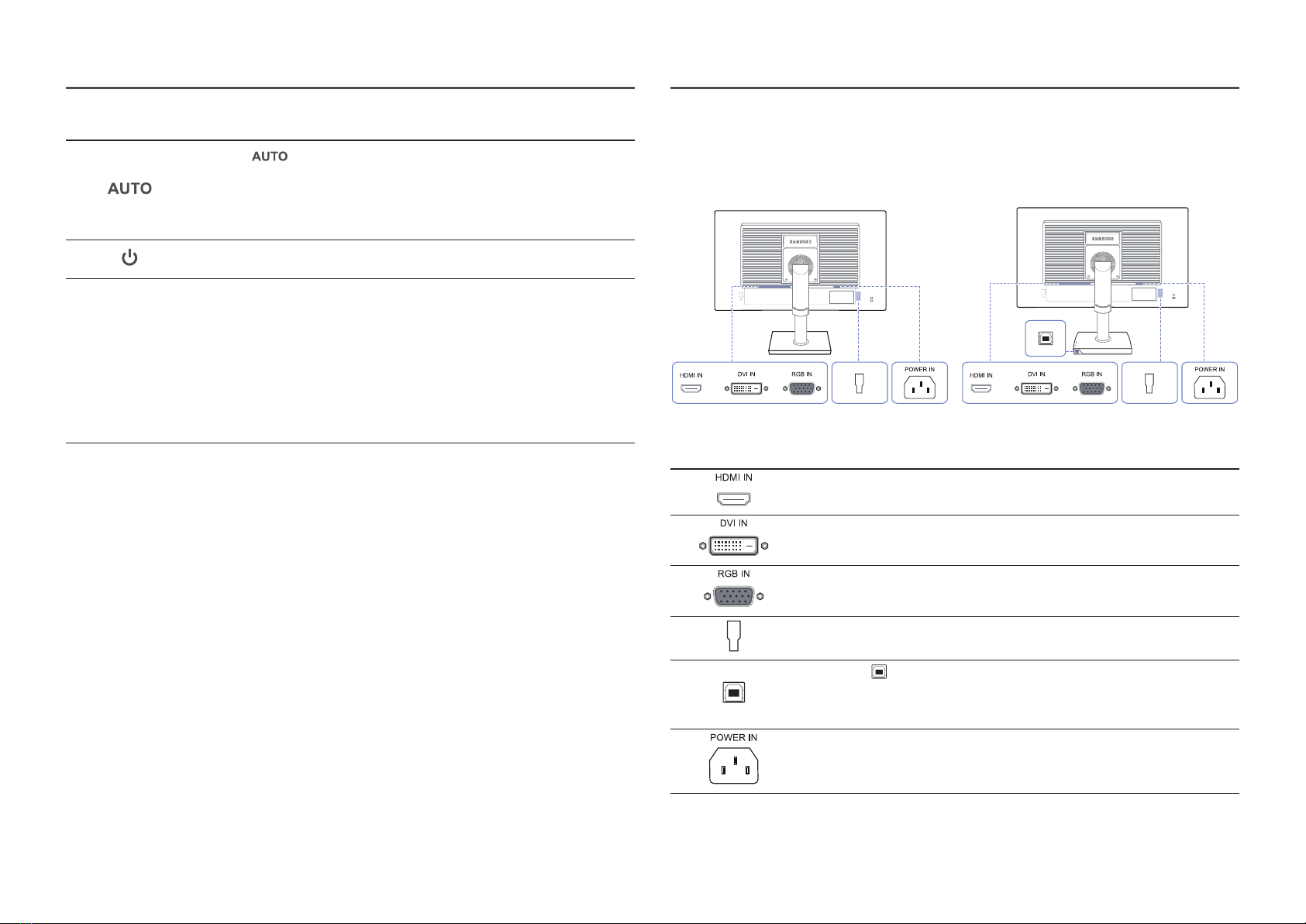

Icons Description

Press the button to automatically adjust the screen settings.

―Changing the resolution in Display Properties will activate the Auto Adjustment

function.

―This function is only available in Analog mode.

Turn the screen on or off.

Key Guide

When a control button on the product is pressed, the Key Guide will be

displayed before the onscreen menu opens. (The guide shows the function of

the button pressed.)

To access the onscreen menu when the guide is displayed, press the

corresponding button again.

The Key Guide may vary depending on the function or product model.

Refer to the actual product.

Reverse Side

―The color and shape of parts may differ from what is shown. Specifications are subject to change without

notice to improve quality.

Port Description

Connects to a source device using an HDMI cable or HDMI-DVI cable.

Connect to a PC using the DVI cable.

―The DVI IN terminal is supplied for the digital (DVI)-dedicated models only.

Connect to a PC using the D-SUB cable.

Connect to an external device.

Connect the port of the monitor and the USB port of the computerwith the

USB cable.

―Applicable to the stand models that have USB ports only.

Connect the power cord foryour monitor to the POWER IN port on the back of

the product.

This manual suits for next models

Table of contents

Other Samsung Monitor manuals

Samsung

Samsung SyncMaster 570B TFT User manual

Samsung

Samsung F2080 - SyncMaster - 20" LCD Monitor User manual

Samsung

Samsung 400FP-2 - SyncMaster - 40" LCD Flat Panel... User manual

Samsung

Samsung T260HD - SyncMaster - 25.5" LCD Monitor User manual

Samsung

Samsung Odyssey G5 S27AG55 Series User manual

Samsung

Samsung T220 - SyncMaster - 22" LCD Monitor User manual

Samsung

Samsung SYNCM.400B User manual

Samsung

Samsung S34A650UBE User manual

Samsung

Samsung 225BW - SyncMaster - 22" LCD Monitor User manual

Samsung

Samsung 460FP-2 - SyncMaster - 46" LCD Flat Panel... User guide

Samsung

Samsung SyncMaster 757P User manual

Samsung

Samsung SyncMaster 230MXN User manual

Samsung

Samsung SyncMaster 400DX-3 User manual

Samsung

Samsung OH46D User manual

Samsung

Samsung SyncMaster 275TPLUS User manual

Samsung

Samsung 400UXn - SyncMaster - 40" LCD Flat Panel... User manual

Samsung

Samsung SyncMaster 150MP User manual

Samsung

Samsung SyncMaster 570S TFT User manual

Samsung

Samsung SyncMaster 753 DFX User manual

Samsung

Samsung monitor User manual

Samsung

Samsung SyncMaster 192B User manual

Samsung

Samsung 400PX - SyncMaster - 40" LCD Flat Panel... User manual

Samsung

Samsung 151MP - SyncMaster 151 MP User manual

Samsung

Samsung SyncMaster 2232MW User manual

Popular Monitor manuals by other brands

Linear Acoustic

Linear Acoustic LQ-1000 user guide

AOC

AOC I2579V user manual

Gateway

Gateway FPD1520 user guide

Furuno

Furuno Mu 120c Operator's manual

Asus

Asus VB171D - 17" LCD Monitor Service manual

Dell

Dell S2230MX Setting up

Philips

Philips 107C64 user manual

Dell

Dell S2409WFP user guide

EverFocus

EverFocus EN-7517E instruction manual

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Service manual

Dell

Dell Precision 7680 Connection guide

LG 50PM1M - - 50" Plasma Panel Service manual

Bosch

Bosch DDU 9 manual

Acer

Acer A231HL user manual

Philips

Philips 86BDL4152T user manual

NEC

NEC AccuSync LCD5V user manual

Emay

Emay SleepO2 user manual

IBM

IBM 6360 Product support manual
