Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at

www.samsung.com/register

Model _____________Serial No. _____________

[UE6030-ZX]BN68-04458C.indb 1 2012-05-21 �� 11:18:40

English - 2

A detailed User’s Manual is built into your TV. For more information about how to view this e-Manual, see page 16.

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearances.

Product design and speciﬁcations may be changed without notice.

Still image warning

Avoid displaying still images (such as jpeg picture ﬁles) or still image elements (such as TV channel logos, panorama or 4:3 image format, stock

or news bars at screen bottom etc.) on the screen. Constant displaying of still pictures can cause ghosting of LED screen, which will affect image

quality. To reduce risk of this effect, please follow below recommendations:

• Avoid displaying the same TV channel for long periods.

• Always try to display any image on full screen, use TV set picture format menu for best possible match.

• Reduce brightness and contrast values to minimum required to achieve desired picture quality, exceeded values may speed up the burnout process.

• Frequently use all TV features designed to reduce image retention and screen burnout, refer to proper user manual section for details.

Providing Proper Ventilation for Your TV

When you install your TV, maintain a distance of at least 4 inches between the TV and other objects (walls, cabinet sides, etc.) to ensure proper ventilation.

Failing to maintain proper ventilation may result in a ﬁre or a problem with the product caused by an increase in its internal temperature.

✎

Whether you install your TV using a stand or a wall-mount, use parts provided by Samsung Electronics only.

If you use parts provided by another manufacturer, it may cause difficulties with the product or result in injury caused by the product

falling.

Installation with a stand. Installation with a wall-mount.

4 inches

4 inches 4 inches

4 inches

[UE6030-ZX]BN68-04458C.indb 2 2012-05-21 �� 11:18:41

English - 3

Accessories and Cables

✎

Please make sure the following items are included with your TV. If any items are missing, contact your dealer.

✎

The items’ colors and shapes may vary depending on the model.

✎

Check that there are no accessories hidden behind or under packing materials after you open the box.

yRemote Control & Batteries (AAA x 2)

yOwner’s Instructions

yPower Cord

yWarranty Card / Safety Guide

y3D Glasses

yHolder-Wire Stand

Assembling the Holder-Wire stand

Input Cables (Sold Separately)

To purchase the RS232 cable, contact www.SamsungParts.com.

RS232

HDMI HDMI-DVI Audio

Component Composite (AV) Coaxial (RF)

✎

Make sure you have the correct cable before plugging it in. Illustrations of common plugs and jacks are below.

Cable Ports

HDMI

USB

Optical

✎

For the best cable connection to this product, use cables no thicker than the cable illustrated below:

yMaximum thickness - 0.55 inches (14mm)

[UE6030-ZX]BN68-04458C.indb 3 2012-05-21 �� 11:18:43

English - 4

Connecting the Power Cord and the Antenna or Cable Connection

✎

Plug the power cord into a wall outlet only after you have made all other connections.

✎

If you are connecting your TV to a cable or satellite box using HDMI, Component, or Composite connections, you do not

need to connect the ANT IN jack to an antenna or a cable connection.

✎

Use caution when you move or swivel the TV if the antenna cable is tightly connected. You could break the antenna jack

off the TV.

Connecting to AV Devices (Blu-ray Players, DVD Players, etc.)

Using an HDMI cable or HDMI to DVI Cable for an HD connection (up to 1080p, HD, digital signals)

For the best quality HD picture, we recommend using an HDMI connection.

Use on DVD players, Blu-ray players, HD cable boxes, and HD satellite receivers (STB).

✎

HDMI IN 1 (DVI), 2

For better picture and audio quality, connect to digital devices using an HDMI cable.

An HDMI cable supports digital video and audio signals, and does not require an audio cable.

– To connect the TV to a digital device that does not support HDMI output, use an HDMI to DVI cable and

separate audio cables.

If you connect an external device to the TV that uses an older version of HDMI, the video and audio may not

work. If this occurs, ask the manufacturer of the device about the HDMI version and, if it is out of date, request

an upgrade.

Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may

occur.

We recommend using a basic high-speed HDMI cable or an HDMI cable that supports Ethernet. Note that this

TV does not support the Ethernet function via HDMI.

✎

If an HDMI to DVI cable is connected to the HDMI IN 1(DVI) port, the audio does not work.

The EX-LINK Cable Connection

EX-LINK

The EX-LINK connection is for service only.

ANT OUT

VHF/UHF Antenna

Power Input

Cable

Antenna Cable (Not Supplied)

EX-LINK

DIGITAL

AUDIO OUT

(OPTICAL)

AUDIO

OUT

EX-LIN

ITA

UDI

(

OPTICAL

)

AUDI

HDMI IN

1 (DVI)2

HDMI OUT

DVI OUT

Device

White

Red

HDMI to DVI Cable (Not Supplied)

HDMI Cable (Not Supplied)

Device

[UE6030-ZX]BN68-04458C.indb 4 2012-05-21 �� 11:18:44

English - 5

Connecting Audio Devices

Using an Optical (Digital) Cable Connection or a Standard Stereo Connection

Use on Digital Audio Systems, Ampliﬁers, and Home Theaters.

✎

DIGITAL AUDIO OUT (OPTICAL)

When you connect a Digital Audio System to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume

of both the TV and the system.

5.1 CH (channel) audio is available when you connect the TV to an external device supporting 5.1 CH.

When the receiver (home theater) is set to on, you can hear sound output from the TV’s optical jack. When the

TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theater receiver. When the source is

a digital component such as a DVD player / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver

and you connected it to the TV via HDMI, you will only hear 2 CH audio from the home theater receiver. If you

want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB

satellite receiver directly to an amplifier or home theater.

✎

AUDIO OUT: Connects to the audio input jacks on your amplifier/home theater.

When connecting, use the appropriate connector (sold separately).

When you connect an audio amplifier to the AUDIO OUT jacks, decrease the volume of the TV and adjust the

volume level with the amplifier’s volume control.

OPTICAL

EX-LINK

1 (DVI)2

EX-LIN

(

DVI

)

DIGITAL

AUDIO OUT

(OPTICAL)

AUDIO

OUT

R-AUDIO-L

AUDIO IN

Optical Cable (Not Supplied)

Audio cable (Not Supplied)

Digital Audio System

DVD Home Theater

Using a Component Cable (up to 1080p HD signals) or Video Cable (480i, analog signals only)

Use on DVD players, Blu-ray players, cable boxes, STB satellite receivers, and VCRs.

Red White Red Blue Green

Audio Cable

(Not Supplied)

Video Cable

(Not Supplied)

Audio Cable (Not Supplied) Component Cable (Not Supplied)

Yellow

Red White

Device

✎

When you connect a Video cable to AV IN,

the color of the AV IN [Y/VIDEO] jack (green)

will not match the video cable (yellow).

✎

For better picture quality, we recommend

the Component connection over the A/V

connection.

[UE6030-ZX]BN68-04458C.indb 5 2012-05-21 �� 11:18:46

English - 6

Connecting to a PC

Using an HDMI cable or an HDMI to DVI cable

✎

Your PC may not support an HDMI connection.

✎

Use your PC speakers for audio.

✎

If an HDMI to DVI cable is connected to the HDMI IN 1(DVI) port, the audio does not work.

Display Modes (HDMI Input)

Optimal resolution is 1920 X 1080@60Hz.

Mode Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H / V)

IBM 640 x 350 31,469 70,086 25,175 +/-

720 x 400 31,469 70,087 28,322 -/+

MAC

640 x 480 35,000 66,667 30,240 -/-

832 x 624 49,726 74,551 57,284 -/-

1152 x 870 68,681 75,062 100,000 -/-

VESA DMT

640 x 480 31,469 59,940 25,175 -/-

640 x 480 37,861 72,809 31,500 -/-

640 x 480 37,500 75,000 31,500 -/-

800 x 600 37,879 60,317 40,000 +/+

800 x 600 48,077 72,188 50,000 +/+

800 x 600 46,875 75,000 49,500 +/+

1024 x 768 48,363 60,004 65,000 -/-

1024 x 768 56,476 70,069 75,000 -/-

1024 x 768 60,023 75,029 78,750 +/+

1152 x 864 67,500 75,000 108,000 +/+

1280 x 720 45,000 60,000 74,250 +/+

1280 x 800 49,702 59,810 83,500 -/+

1280 x 1024 63,981 60,020 108,000 +/+

1280 x 1024 79,976 75,025 135,000 +/+

1366 x 768 47,712 59,790 85,500 +/+

1440 x 900 55,935 59,887 106,500 -/+

1600 x 900RB 60,000 60,000 108,000 +/+

1680 x 1050 65,290 59,954 146,250 -/+

1920 x 1080 67,500 60,000 148,500 +/+

HDMI OUT

DVI OUT

EX-LINK

DIGITAL

AUDIO OUT

(OPTICAL)

AUDIO

OUT

EX-LIN

ITA

UDI

(

OPTICAL

)

AUDI

HDMI IN

1 (DVI)2

HDMI to DVI Cable (Not Supplied)

HDMI Cable (Not Supplied)

[UE6030-ZX]BN68-04458C.indb 6 2012-05-21 �� 11:18:48

English - 7

Connecting to a Network

You can connect your TV to your local area network (LAN) using a wired or wireless connection.

✎

After you have “physically” connected your TV to your network, you must configure the network connection to complete

the process. You can configure the connection during the Initial Setup process (see page 10 ) or after the Initial Setup

process, through the TV’s menu (see page 15).

The Wireless Network Connection

You can connect your TV to your LAN through a standard wireless router or modem. To connect wirelessly, you must ﬁrst

attach a “Samsung Wireless LAN Adapter” (WIS09ABGNX, WIS12ABGNX - sold separately) to the USB port on the side of

your TV. See the illustration below.

Samsung’s Wireless LAN adapter is sold separately and is offered by select retailers, E-commerce sites, and Samsungparts.

com. Samsung’s Wireless LAN adapter supports the IEEE 802.11a/b/g and n communication protocols. Samsung

recommends using IEEE 802.11n. When you play video over a network connection using one of the other protocols, the video

may not play smoothly.

Wireless Security

Most wireless network systems incorporate a security system that requires devices that access the network through an access

point or AP (typically a wireless router or modem) to transmit an encrypted security code called an access key.

Your TV is compatible with the following security protocols:

yAuthentication Mode: OPEN, SHARED, WPAPSK, WPA2PSK

yEncryption Type: WEP, TKIP, AES

If you select Pure High-throughput (Greenﬁeld) 802.11n mode and the Encryption type is set to WEP or TKIP on your AP or

wireless router, your TV will not support a connection, in compliance with new Wi-Fi certiﬁcation speciﬁcations.

Wireless IP Sharer

(AP having DHCP Server) Samsung Wireless

LAN Adapter

TV Side Panel

The LAN Port on the Wall

LAN Cable (Not Supplied)

[UE6030-ZX]BN68-04458C.indb 7 2012-05-21 �� 11:18:49

English - 8

The Wired Network Connection

There are two main ways to connect your TV to your network using cable, depending on your network setup. They are

illustrated below:

✎

The TV does not support network speeds less than or equal to 10Mbps.

✎

Use Cat 6 (STP Type*) cable for the connection. (*Shielded Twisted Pair)

The Modem Port on the Wall TV Rear Panel

LAN Cable (Not Supplied)Modem Cable (Not Supplied)

External Modem

(ADSL / VDSL / Cable TV)

The Modem Port on the Wall TV Rear Panel

LAN Cable (Not Supplied)

[UE6030-ZX]BN68-04458C.indb 8 2012-05-21 �� 11:18:50

English - 9

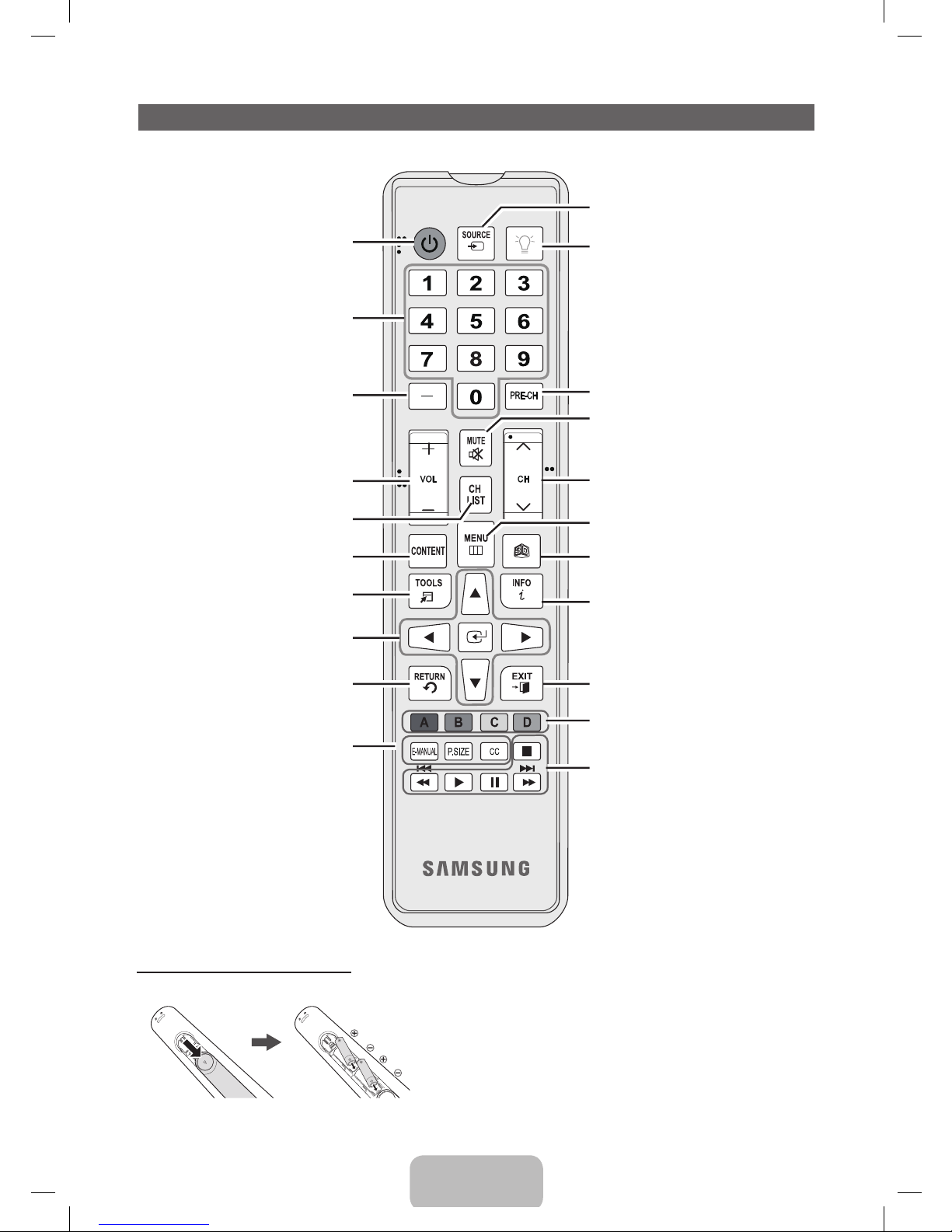

The Remote Control Buttons

✎

This remote control has Braille points on the Power, Channel, and Volume buttons and can be used by visually impaired

persons.

Press to select additional digital

channels being broadcasted by the

same station. For example, to select

channel ‘54-3’, press ‘54’, then press

‘-’ and ‘3’.

Return to the previous channel.

Press to directly access to channels.

Turns the TV on and off.

Display and select the available video

sources.

Use these buttons in a speciﬁc feature.

E-MANUAL:Displays the e-Manual.

P.SIZE: Lets you choose the picture size.

CC: Controls the caption decoder.

Cut off the sound temporarily.

Turns the 3D image on or off.

Displays the channel list on the screen.

Displays information on the TV screen.

Quickly select frequently used

functions.

Moves the cursor, selects the on-

screen menu items, and changes the

values seen on the menu.

Exit the menu.

Return to the previous menu.

Turns the remote control light on or off.

When on, the buttons become illuminated

for a moment when pressed. (Using the

remote control with this button set to On

will reduce the battery usage time.)

Use these buttons according to the

directions on screen.

Change channels.

Displays the main on-screen menu.

View Contents Home.

Adjusts the volume.

Installing batteries (Battery size: AAA)

✎

NOTE

Install the batteries so that the polarity of the batteries (+/-)

matches the illustration in the battery compartment.

Use the remote control within 23 feet of the TV.

Bright light may affect the performance of the remote control.

Avoid using when near fluorescent lights or neon signs.

The color and shape may vary depending on the model.

[UE6030-ZX]BN68-04458C.indb 9 2012-05-21 �� 11:18:51

English - 10

Conﬁguring the Basic Settings in Initial Setup

When you turn the TV on for the ﬁrst time, a sequence of screens and on-screen prompts will assist you in conﬁguring the TV’s

basic settings. Plug the power cord into a wall outlet, and then press the POWER

button to turn on the TV.

✎

Setup is available only when the Source is set to TV. See Changing the Input Source on page 12.

✎

To return to the previous step in the Setup sequence, select Previous, and then press ENTER

button.

✎

If you are not using a cable box or satellite box, make you sure have connected the TV to an antenna or cable

connection before you turn on the TV. See page 4 for instructions.

✎

If you want to configure a network connection, make sure you’ve connected the Samsung Wireless LAN Adaptor or a

LAN cable to your TV. See pages 7 and 8 for instructions.

1Menu Language:

Select a menu

language.

After you press the Power Button, the Start Screen appears. Press the

ENTER

button on your remote to continue. The Menu Language

screen appears.

Use the ▲/▼buttons to select a language, and then press ENTER

The cursor jumps to Next. Press the ENTER

button.

POWER

INFO GUIDE

2Use Mode: Select the

Use Mode.

On the Use Mode screen, press ENTER

to select the Home Use

mode. The cursor jumps to Next. Press the ENTER

button. The

Network Settings screen appears.

✎

Store Demo mode is for retail environments only. If you select

Store Demo, some functions will not work, and the TV will reset

all functions to their factory default every 15 minutes. For more

information about Store Demo, go to the end of this section.

3Network Settings:

Conﬁgure the network

settings.

1. The TV automatically senses whether you connected the Wireless Adaptor or a LAN

cable to the TV. To continue conﬁguring the network settings, press the ENTER

button, and then go to Wireless Network or Wired Network below.

✎

If you do not have a network, select Skip, press the ENTER

button, and

then go to Auto Program (1) on the next page.

✎

If you have a Network, you can also select Skip, and then configure your

network later through Network Settings in the TV’s Menu. For more

information, refer to “Setting the Wired Network / Setting the Wireless

Network” in the e-Manual or go to page 16 in this manual.

3aWireless Network 1.The TV searches for and then displays all the wireless networks within range. When

done, it displays a list of the networks. Use the ▲/▼buttons to select a network,

and then press ENTER

. The cursor jumps to Next. Press ENTER

The

Security Key screen appears.

✎

If you have a WPS(PBC) compatible router, select WPS(PBC) instead, press

ENTER

, and then follow the directions on the screen. When done, go to

Step 4.

2. Enter your network security key or WPS PIN using the remote.

✎

Enter numbers by pressing the number buttons on your remote.

✎

Enter letters by selecting a letter using the ▲/▼/◄/►buttons, and then

pressing ENTER

✎

To display capital letters (or redisplay small letters if capital letters are

displayed), select Shift, and then press ENTER

✎

To display symbols and punctuation, select , and then press ENTER

To redisplay letters, select Shift, and then press ENTER

3. When done, use the ▲/▼/◄/►buttons to select Next if you have entered

a security key or WPS PIN if you have entered a WPS PIN, and then press

ENTER

4. The TV checks the wireless connection. If the connection is successful, the “Your

wireless network and Internet connection are setup and ready to use.” message

appears. The cursor jumps to Next. Press ENTER

, and then go to 4 Software

Update on the next page.

✎

If the connection fails, select Previous, repeat Step 1 and 2, carefully

re-enter your security key or WPS PIN, then repeat Steps 3 and 4. If it

fails again, select Next on the “Connection Failed” screen, and then go to

Auto Program (1) on the next page. Configure your network later through

Network Settings in the TV’s Menu. For more information, refer to “Setting

the Wired Network / Setting the Wireless Network” in the e-Manual.

[UE6030-ZX]BN68-04458C.indb 10 2012-05-21 �� 11:18:53

Other manuals for UN40EH6030F

This manual suits for next models

Table of contents

Languages:

Other Samsung LED TV manuals

Samsung

Samsung HG32EA790 SERIES User manual

Samsung

Samsung Series 4+ User manual

Samsung

Samsung 7 Series User manual

Samsung

Samsung UE58H5204 User manual

Samsung

Samsung 6 series User manual

Samsung

Samsung UN32D6000SF Guide

Samsung

Samsung UE40H5003AW User manual

Samsung

Samsung 7050 series User manual

Samsung

Samsung UN32C4000PD User manual

Samsung

Samsung Serif GQ50LS01T User manual

Samsung

Samsung UN55B8500 User manual

Samsung

Samsung Smart TV 6200 User manual

Samsung

Samsung Series 4000 User manual

Samsung

Samsung GQ55Q8DN User manual

Samsung

Samsung UE32J4500A User manual

Samsung

Samsung UE40C69 VS Series User manual

Samsung

Samsung UN55B8000 - 55" LCD TV User manual

Samsung

Samsung UN48H6800AG User manual

Samsung

Samsung UE49MU7000U User manual

Samsung

Samsung LH43BECHLGUXEN User manual

Samsung

Samsung QE55QN95AATXXC User manual

Samsung

Samsung UN55C7000WF User manual

Samsung

Samsung 460 User manual

Samsung

Samsung QE43LS05B User manual

Popular LED TV manuals by other brands

LG 43UF680T-TA owner's manual

Philips

Philips 55PUS6272/12 manual

TCL

TCL L40E3020F Operation manual

Seiki

Seiki SC-55AU300 instruction manual

Sharp

Sharp AQUOS LC-60LE650U Specifications

Durabase

Durabase L24H472S4VD user guide

LG 32LH51 series owner's manual

Tesla

Tesla 43K625BUS quick start guide

Changhong Electric

Changhong Electric UD55GHE6000Ai Maintenance manual

LG LN41 Series owner's manual

Sharp

Sharp LC-32LE511E Service manual

Saba

Saba SB40FDS195 instruction manual

LG TL43 Series owner's manual

LG 22LN413Y-TD owner's manual

Philips

Philips 43PFT5102 user manual

SWEDX

SWEDX SS-42K15 user guide

Akai

Akai LT-3222AD instruction manual

LG 55UR640S Easy setup guide
