Samsung LW22A13W Quick start guide

English-1

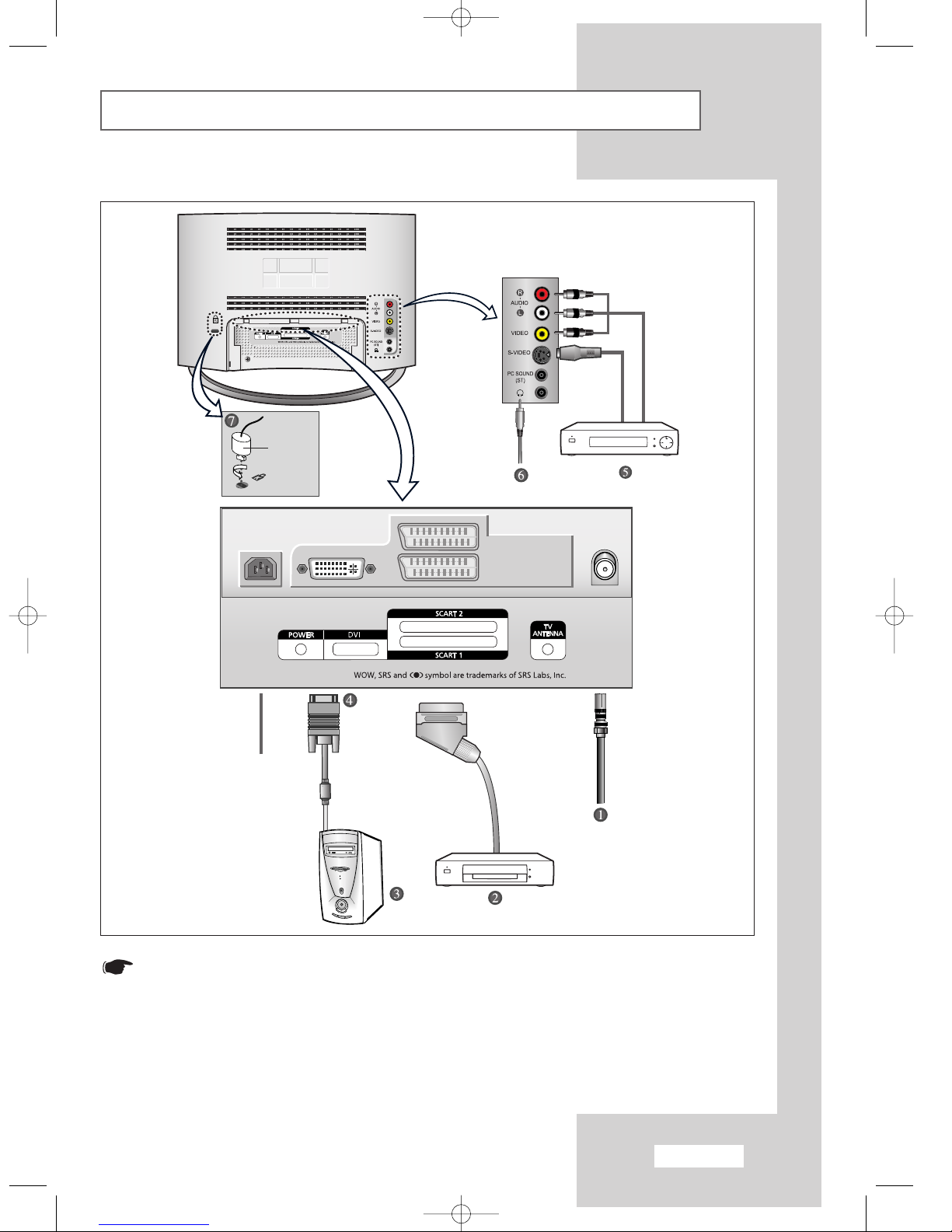

Viewing the Connection Panel

Whenever you connect an audio or video system to your set,

ensure that all elements are switched off.

Refer to the documentation supplied with your equipment for

detailed connection instructions and associated safety precautions.

Power Input

Option

01-BN68-00574C-00Eng.qxd 2/11/04 8:24 AM Page 5

English-2

Viewing the Connection Panel

Connecting an Aerial or Cable Television Network (depending on the model)

To view television channels correctly, a signal must be received by the set from one of the

following sources:

- An outdoor aerial

- A cable television network

- A satellite network

Connecting a Set-Top Box, VCR, or DVD

- Connect the VCR, or DVD SCART cable to the SCART connector of the VCR, or DVD.

- If you wish to connect both the Set-Top Box and VCR (or DVD), you should connect the

Set-Top Box to the VCR (or DVD) and connect the VCR (or DVD) to your set.

Connecting a Computer

- Connect the 24 Pin DVI connector to the PC video connector.

- Connect the stereo audio cable to the “Audio (ST)” jack on the rear of your set and the other end to

the “Audio Out” jack of the sound card on your computer.

➣24 Pin DVI connector

Pin Descrizione

1 Rx 2-

2 Rx 2+

3 Grounding

4 No connection

5 No connection

6 DDC Clock (SCL)

7 DDC Data (SDA)

8 Analog Vertical Sync

9 Rx 1-

10 Rx 1+

11 Grounding

12 No connection

13 No connection

14 DDC Input Power (+5V)

15 Self-Raster

Pin Descrizione

16 Output Signal Connection

17 Rx 0-

18 Rx 0+

19 Grounding

20 No connection

21 No connection

22 Grounding

23 Rx C-

24 Rx C+

25(C3) Analog (Blue)

26(C5) Analog Grounding

27(C4) Analog Horizontal sync.

28(C2) Analog (Green)

29(C5) Analog Grounding

30(C1) Analog (R

ed)

01-BN68-00574C-00Eng.qxd 2/11/04 8:24 AM Page 6

English-3

Viewing the Connection Panel

Connecting a DVD Player or Set-Top Box to the TV with a DVI-D Cable

Connect a DVI-D cable between the DVI-I INPUT connector on the TV and the DVI connector

on the DVD player/Set-Top BOX.

Connect a set of audio cables between the PC AUDIO INPUT jack on the TV and the AUDIO

OUTPUT jacks on the DVD player/ Set-Top BOX.

If you are using a DVI-D cable to connect

Be sure to connect the audio cable (sold separately) as shown above to get normal TV sound.

See Appendix “Display Modes” for supported resolutions.

The screen may have shifted to the right or to the left after connecting the cable.

Don't adjust the screen position in a Digital Signal.

Each external input Source device has a different back panel configuration.

Connecting External A/V Devices

- Connect RCA or S-VIDEO cables to an appropriate external A/V device such as a VCR, DVD,

or Camcorder.

- Connect RCA audio cables to “AUDIO (L)” and “AUDIO (R)” on the rear of your set and the other ends to

corresponding audio out connectors on the A/V device.

- Headphones may be connected to the headphone output ( ) on the rear of your set.

While the headphones are connected, the sound from the built-in speakers will be disabled.

Connecting Headphones

- Plug a set of headphones into the 3.5mm mini-jack socket on the rear of the set.

Kensington Slot

- This television has been designed to apply a burglarproof lock.

Retractable Stand

Tilt the screen until you feel comfortable.

The maximum tilt angle is 7 degrees in the backward direction.

Please do not tilt the television beyond the specified range.

Using excessive force to tilt the television beyond the

specified range may cause permanent damage to the

mechanical part of the stand.

01-BN68-00574C-00Eng.qxd 2/11/04 8:24 AM Page 7

English-4

How to connect the cables and stand base

Do NOT lift the TV set by the stand.

The stand is not screwed to the TV set and

lifting the set by the stand may cause injury.

Remove the cover as shown in

the picture.

1Connect the cables as shown in

the picture.

Replace the cover.

3Attach the stand to the

TV set as shown in the picture.

Note : The curved side of the stand base should be

placed at the back of the TV set as shown in

the above figure.

04-BN68-00574C-00Eng.qxd 2/17/04 2:43 AM Page 61
