Samsung LT-P266W Instruction Manual
YOUR NEW TV
Rear Panel Jacks
Use the rear panel jacks to connect an A/V component that will be connected
continuously, such as a VCR or a DVD player.
VI- INPUT
Connect to the digital video output jack on your
DVD/Set-top Box.
(DVI-D terminal does not support PC.)
PC VI EO ( -SUB) INPUT
Connect to the video output port on your PC.
PC AU IO ( -SUB) INPUT
Connect to the audio output jack on your PC.
VI- AU IO INPUT
Connect to the audio output jack on your
DVD/Set-top Box.
COMPONENT IN 1
Connect component video/audio from a
DVD/VCR/Set-top Box.
COMPONENT IN 2
Connect component video/audio from a
DVD/VCR/Set-top Box.
S-VI EO
Connect an S-Video signal from
a camcorder or VCR
VI EO/AU IO INPUT
Connect a Video signal from
a camcorder or VCR.
ANT IN
Connect to an antenna or to a cable TV
system.
SUBWOOFER OUTPUT
Connect to an active (powered)
subwoofer.
HEA PHONE JACK
Connect a set of external headphones
for private listening.
POWER INPUT
BN68-00656A-01Eng.qxd 5/7/04 9:33 AM Page 3
English-1
English-2
INSTALLATION
3
Connect a coaxial
cable between the
ANT OUT terminal
on the VCR and
the antenna terminal
on the TV.
4
Connect a set of
audio cables
between the AUDIO
OUT jacks on the
VCR and the AUDIO
jacks on the TV.
5
Connect a video
cable between the
VIDEO OUT jack on
the VCR and the
VIDEO jack on the
TV.
Follow the instructions in “Viewing a VCR or Camcorder Tape” to view your VCR tape.
* Each external input source device has a different back panel configuration.
A coaxial cable is usually included with a VCR. (If not, check your local electronics store).
If you have a “mono” (non-stereo) VCR, use the Y-connector (not supplied) to hook
up to the left and right audio input jacks of the TV. If your VCR is stereo, you must
connect two cables.

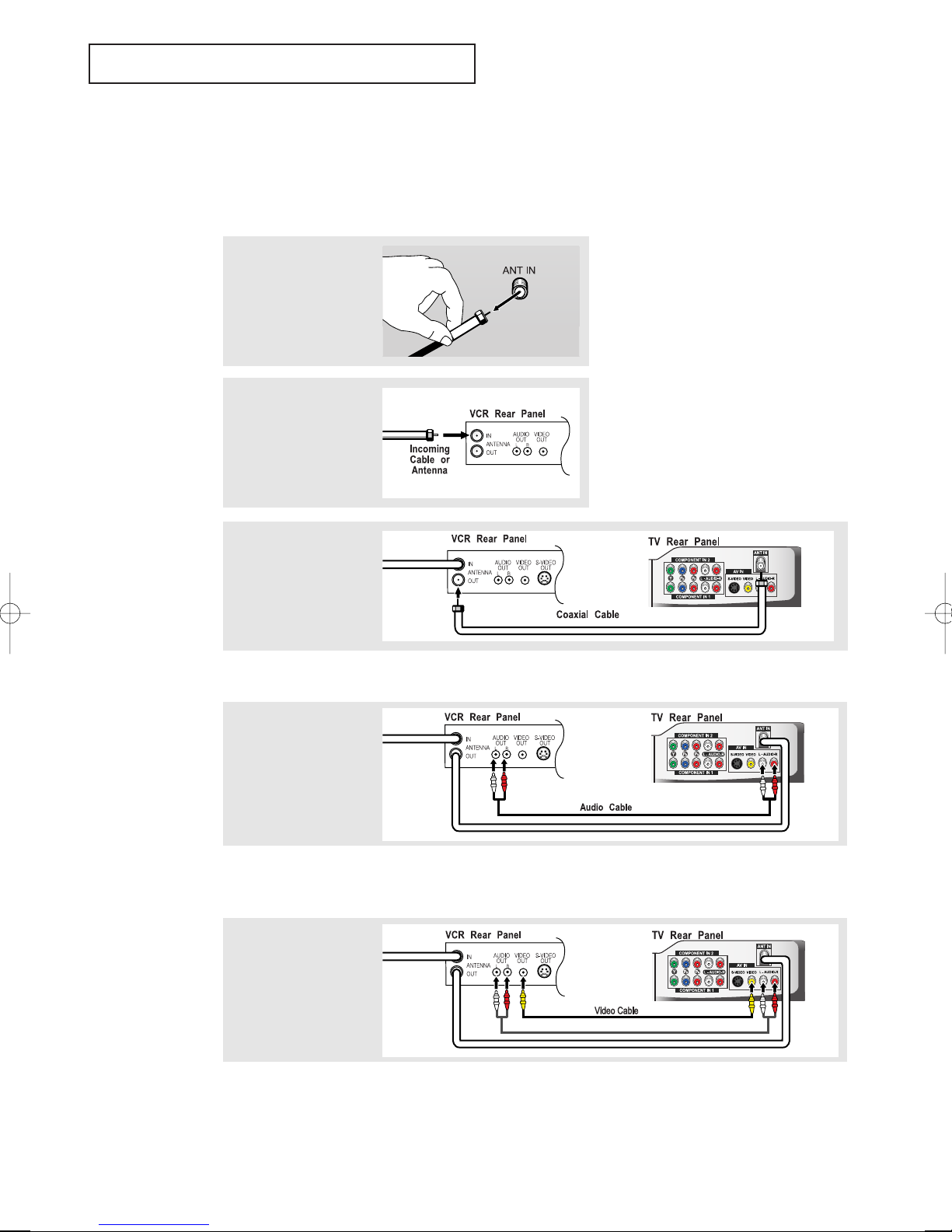

Connecting a VCR
These instructions assume that you have already connected your TV to an antenna or a
cable TVsystem .
Skip step 1 if you have not yet connected to an antenna or a cable system.
1
Unplug the cable or
antenna from the
back of the TV.
2
Connect the cable or
antenna to the
ANT IN terminal
on the back of the
VCR.
BN68-00656A-01Eng.qxd 5/7/04 9:33 AM Page 11
English-3
INSTALLATION
3
Connect an S-video
cable between the
S-VIDEO OUT jack on
the VCR and the
S-VIDEO INPUT jack
on the TV.
An S-video cable is usually included with an S-VHS VCR.
(If not, check your local electronics store.)
* Each external input source device has a different back panel configuration.
1
To begin, follow
steps 1–3 in the
previous section to
connect the antenna
or cable to your
VCR and your TV.

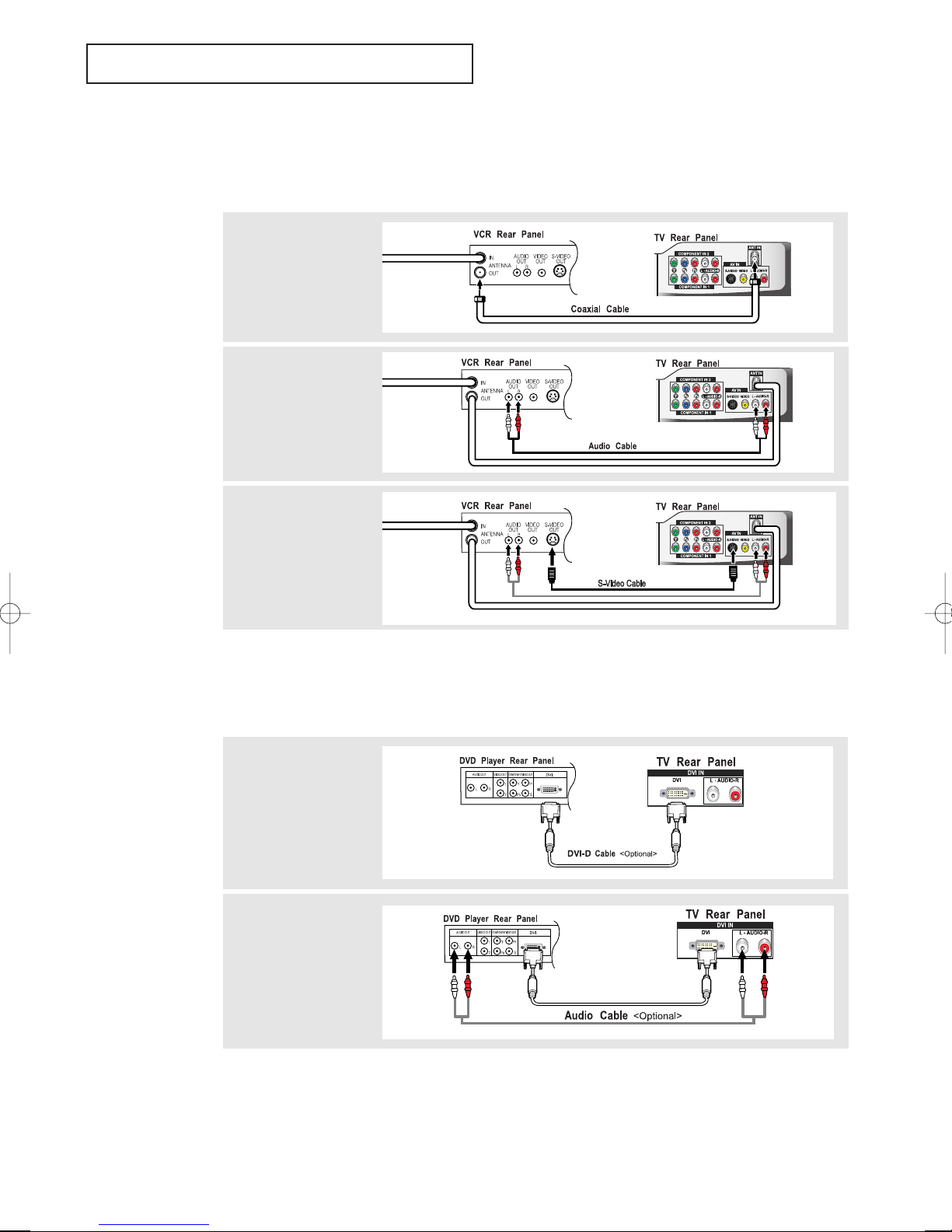

Connecting an S-VHS VCR
Your Samsung TV can be connected to an S-Video signal from an S-VHS VCR.
(This connection delivers a better picture as compared to a standard VHS VCR.)
2
Connect a set of audio
cables between the
AUDIO OUT jacks on
the VCR and the
AUDIO INPUT jacks
on the TV.
Connecting a VI- Cable
Note:If you are using a DVI-D cable to connect
1.Be sure to connect the audio cable (sold separately)as shown above to get normal TV sound.
.See Appendix “Display Modes ”for supported resolutions.
3.The screen may have shifted to the right or to the left after connecting the cable.
The screen must be adjusted on the source(Set-top box).
4.Each external input source device has a different back panel configuration.
1
Connect a DVI-D
cable between the
DVI-I INPUT
connector on the TV
and the DVI connector
on the DVD player/
Set-Top BOX.
2
Connect a set of audio
cables between the
PC AUDIO INPUT
jack on the TV and the
AUDIO OUTPUT jacks
on the DVD player/
Set-Top BOX.
BN68-00656A-01Eng.qxd 5/7/04 9:33 AM Page 12
English-4
INSTALLATION
Note: For an explanation of Component video, see your DVD player owner's manual.
* Each external input source device has a different back panel configuration.

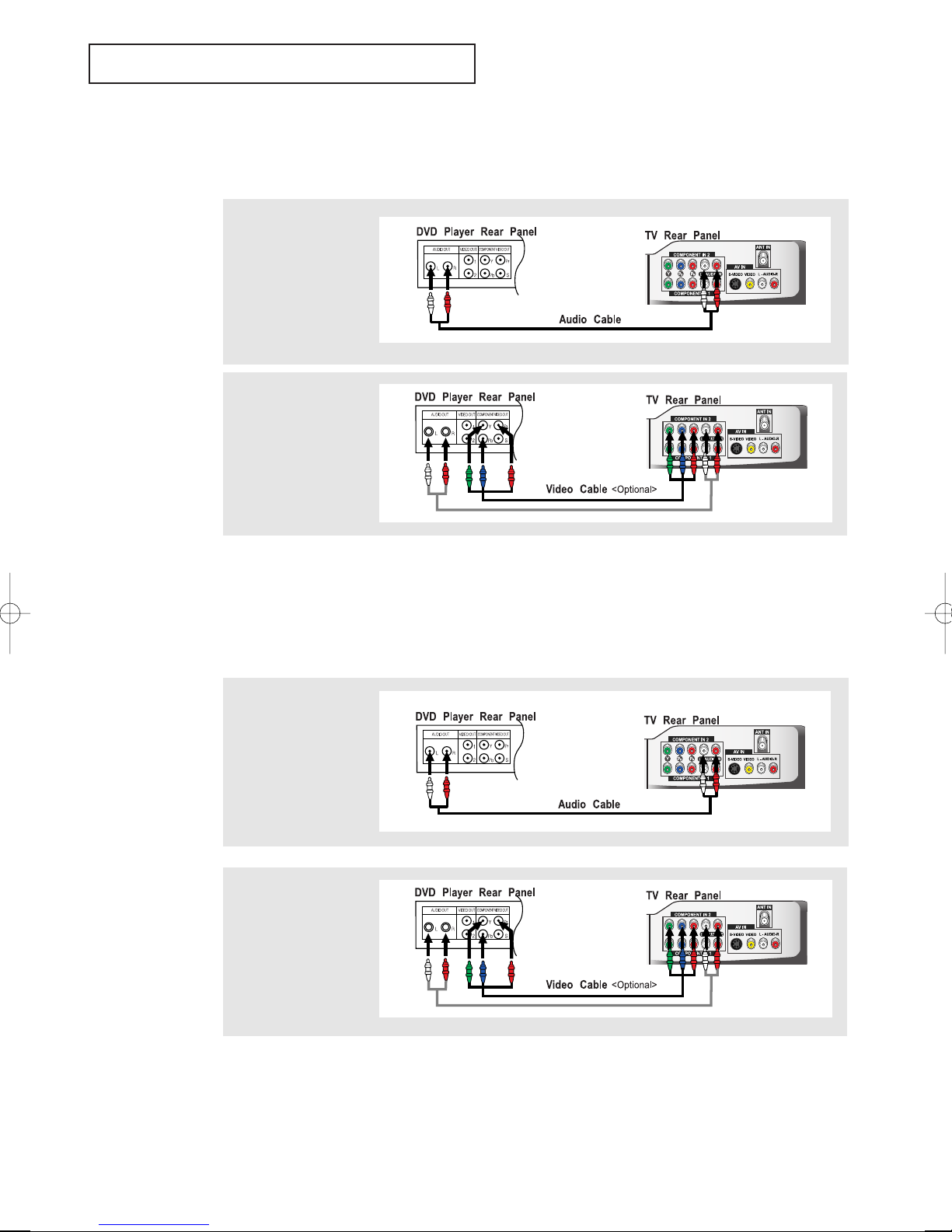

Connecting a V Player
The rear panel jacks on your TV make it easy to connect a DVD player to your TV.
1
Connect a set of audio
cables between the
COMPONENT1 or
COMPONENT2, L, R
AUDIO INPUT
jacks on the TV and
the AUDIO OUT jacks
on the DVD player.
2
Connect a video cable
between the
COMPONENT1 or
COMPONENT2
(Y, PB, PR) jacks on
the TV and the Y, PB,
PRjacks on the DVD
player.
Note: For an explanation of Component video, see your Set-Top Box owner's manual.
* Each external input source device has a different back panel configuration.
Connecting a igital TV Set-Top Box
The connections for a typical set-top box are shown below.
1
Connect a set of audio
cables between the
L, R COMPONENT1
or COMPONENT2
AUDIO INPUT jacks
on the TV and the
AUDIO OUT jacks on
the Set-Top Box.
2
Connect a video cable
between the
COMPONENT1 or
COMPONENT2
(Y, PB, PR) jacks on
the TV and the Y, PB,
PRjacks on the
Set-Top Box.
BN68-00656A-01Eng.qxd 5/7/04 9:33 AM Page 13
English-5
INSTALLATION

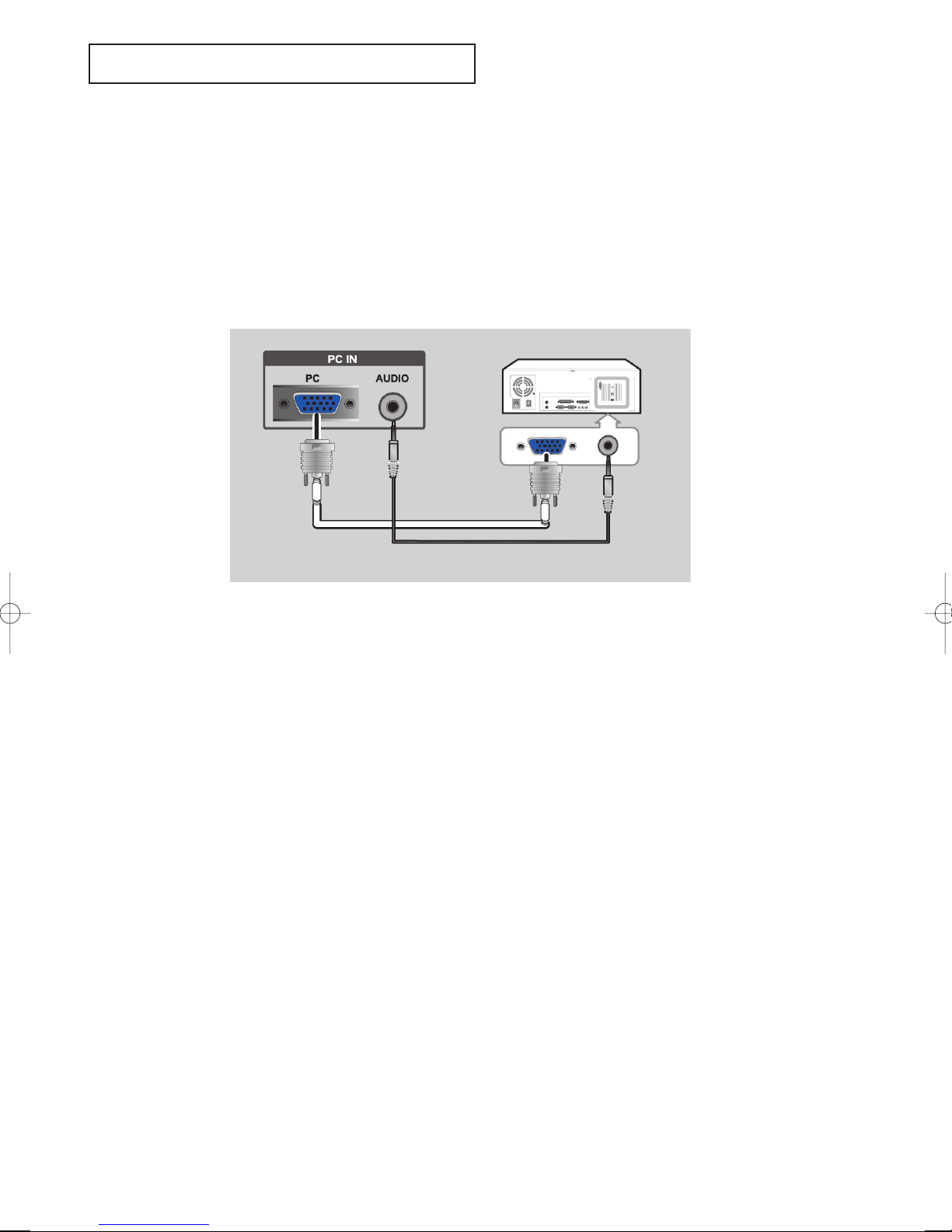

Connecting a PC
Note: This figure shows the Standard Connector-jack panel.
The actual configuration on your TV may be different, depending on the model.
TV Rear panel
PC VIDEO CABLE ( D-SUB )
<Not supplied>
PC AUDIO CABLE
<
Not supplied
>
- Connect the D- Sub cable to “PC (PC IN)” on the rear of your set.
- Connect the stereo audio cable to “AU IO (PC IN)” on the rear of your set
and the other end to “Audio Out” of the sound card on your computer.
BN68-00656A-01Eng.qxd 5/7/04 9:33 AM Page 14
