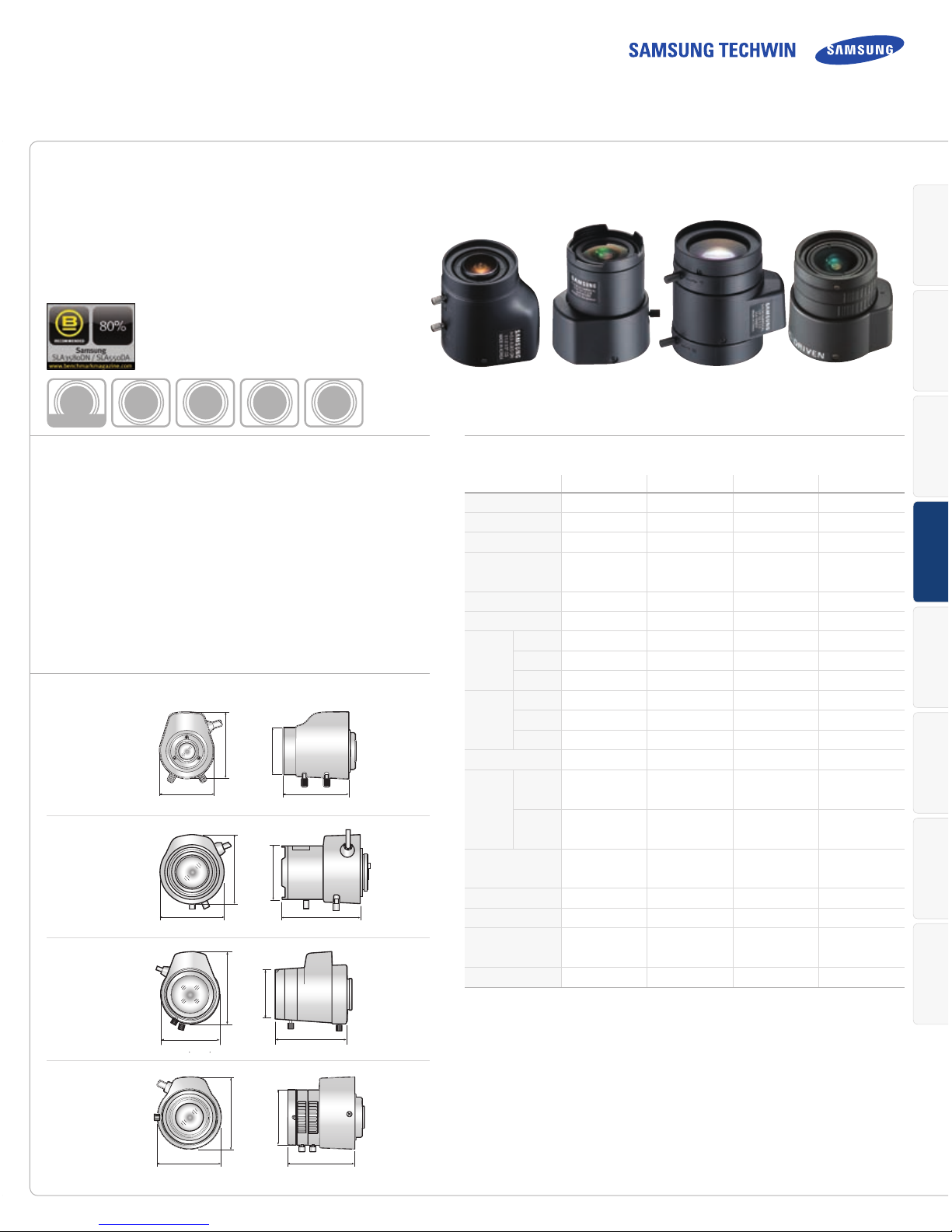

Samsung SLA-3580DN User manual

NETWORK

ANAlOGUE

CAmERA

DVRlENSPERIPHERAlmONITORCONTROllER

ACCESS CONTROl

SySTEm

SLA-3580DN SLA-2812DN SLA-550DV SLA-612DN

• F1.0 (SLA-3580DN), F1.3 (SLA-2812DN/550DV)

F1.6 (SLA-612DN) DC type auto iris

• Varifocal 3.5 ~ 8mm / 0.14" ~ 0.31" (SLA-3580DN)

2.8 ~ 12mm / 0.11" ~ 0.47" (SLA-2812DN)

5 ~ 50mm / 0.2" ~ 1.97" (SLA-550DV)

6 ~ 12mm / 0.24" ~ 0.47" (SLA-612DN)

35.2 (1.39")

43.5 (1.71")40.4 (1.6")

45.7 (1.8")

35.2 (1.39")

43.5 (1.71")40.4 (1.6")

45.7 (1.8")

34.0 (1.34")

45.3 (1.78")

46.0 (1.81")38.6 (1.52")

34.0 (1.34")

45.3 (1.78")

46.0 (1.81")38.6 (1.52")

SLA-3580DN

SLA-2812DN

SLA-550DV

SLA-612DN

Mount

CS Varifocal Manual

Zoom

Manual

Focus

DC Iris

SLA-3580DN SLA-2812DN SLA-550DV SLA-612DN

CCD 1/3" 1/3" 1/3" 1/2"

Resolution 520K pixel 520K pixel 520K pixel 520K pixel

Zoom Ratio 2.3x 4.2x 10x 2x

Focal Length 3.5 ~ 8mm

0.14" ~ 0.31"

2.8 ~ 12mm

0.11" ~ 0.47"

5 ~ 50mm

0.2" ~ 1.97"

6 ~ 12mm

0.24" ~ 0.47"

Max. Aperture Ratio 1 : 1.0 ~ 360 1 : 1.3 ~ 360 1 : 1.3 ~ 360 1 : 1.6 ~ 300

Max. Image Format 4.8(H) x 3.6(V) 4.8(H) x 3.6(V) 4.8(H) x 3.6(V) 6.4(H) x 4.8(V)

Angle

of View

Diagonal 111.2° ~ 44.7° 133.0˚ ~ 29.7˚ 64.0° ~ 6.9° 86.4° ~ 38.8°

Horizontal 83.5° ~ 35.6° 102.2˚ ~ 23.8˚ 51.8° ~ 5.6° 65.3° ~ 30.8°

Vertical 60.4° ~ 26.6° 74.2˚ ~ 17.8˚ 39.2° ~ 4.3° 47.4° ~ 23°

Operation

Iris Auto (F1.0 ~ 360) Auto (F1.3 ~ 360) Auto (F1.3 ~ 360) Auto (F1.6 ~ 300)

Focus Manual 0.3 ~ ∞0.8 ~ ∞Manual

Zoom Manual Manual Manual Manual

Iris Type DC DC DC DC

Effective

Lens

Aperture

Front Ø17.5mm

Ø0.69"

Ø23.0mm

Ø0.9"

Ø29.5mm

Ø1.16"

Ø17.9mm

Ø0.7"

Rear Ø8.8mm

Ø0.35"

Ø7.2mm

Ø2.8"

Ø8.7mm

Ø0.34"

Ø9mm

Ø0.35"

Back Focal Length 8.7 ~ 14.7mm

0.34" ~ 0.58"

20.2 ~ 8.1mm

0.8" ~ 0.32"

10.5 ~ 10.6mm

0.41" ~ 0.42"

7.55 ~ 12.13mm

0.3" ~ 0.48"

Flange Back Length 12.5mm / 0.49" 12.5mm / 0.49" 12.5mm / 0.49" 12.5mm / 0.49"

Mount CS-mount CS-mount CS-mount CS-mount

Dimensions (WxHxD)

38.6 x 45.3 x 46.0mm

(1.52" x 1.78" x 1.81")

43.0 x 48.0 x 56.0mm

(1.69" x 1.89" x 2.2")

47.0 x 57.5 x 57.7mm

(1.85" x 2.26" x 2.27")

40.4 x 45.7 x 43.5mm

(1.6" x 1.8" x 1.71")

Weight 54.5g (0.12 lb) 71g (0.16 lb) 100g (0.22 lb) 53g (0.12 lb)

Technical SpecificationsKey Features

Dimensions Unit : mm (inch)

SLA-3580DN/2812DN/550DV/612DN

1/3", 1/2" CS-mount Auto Iris Lens

REVISED 03-2013

Ø34.0 (1.34")

Ø35.2 (1.39")

45.7 (1.8")

46.0 (1.81")38.6 (1.52")

* The latest product information / specification can be found at www.samsungsecurity.com

45.3 (1.78")

43.0 (1.69") 56.0 (2.2")

48.0 (1.89")

Ø37.5 (1.48")

56.0 (2.2")

43.0 (1.69")

48.0 (1.89")

40.4 (1.6") 43.5 (1.71")

47.0 (1.77")

57.5 (2.26")

57.7 (2.27")

Ø39.2 (1.54")

57.7 (2.27")

47.0 (1.85")

57.5 (2.26")
