Samsung SCMX20 User manual

ENG POR ᑠ๞

FRA ፩ၭ

SPA

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please

www.samsung.com/global/register

Memory Camcorder

quick start guide

* Your memory camcorder comes with CD manual and Quick start guide(printed).

For more detailed instructions, refer to the user manual(PDF) provided on the CD.

SC-MX20

SC-MX20B

SC-MX20H

SC-MX20L

SC-MX20R

SC-MX20C

SC-MX20CH

SC-MX20E

SC-MX20EL

SC-MX20ER

2_English

getting to know your memory camcorder

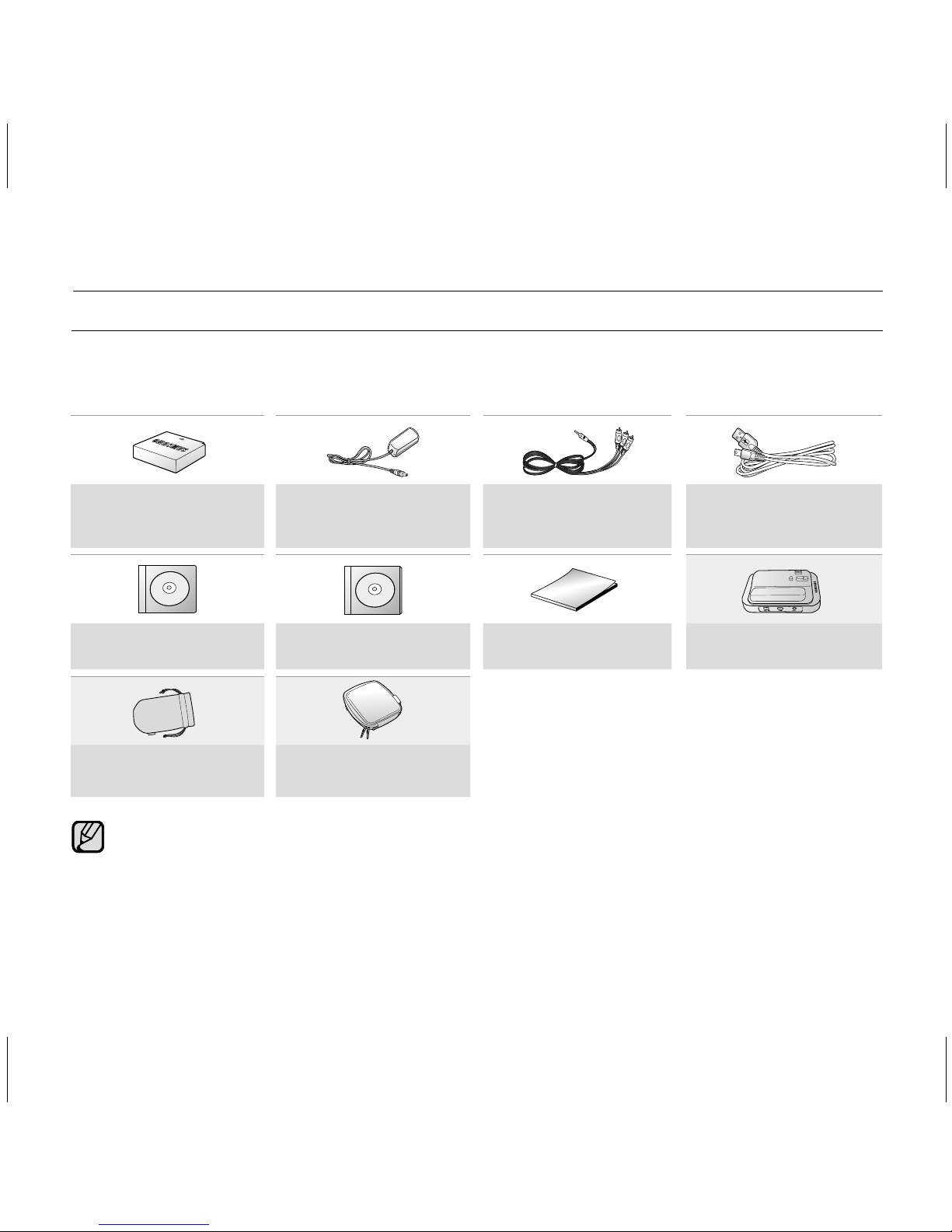

WHAT'S INCLUDED WITH YOUR MEMORY CAMCORDER

Your new memory camcorder comes with the following accessories. If any of these items is missing from your box, call

Samsung’s Customer Care Center.

+The exact shape of each item may vary by model.

The contents can vary depending on the sales region.

Parts and accessories are available at your local Samsung dealer and service center.

The memory card is not included.

You have to connect the AC power adaptor to the cradle when connecting external devices using the cradle.

Your camcorder includes user manual CD and quick start guide(printed). For more detailed instructions, refer

to the user manual (PDF) on the provided CD.

*(Option) : This is an optional accessory. To buy this one, contact your nearest Samsung dealer.

•

Battery pack

(IA-BP85ST)

AD43-00180A

AC power adaptor

(AA-E9 type)

AD44-00116B

Audio/Video Cable

AD39-00155A USB Cable

AD39-00153A

Software CD

AD46-00192A User manual CD

AD46-00192B Quick start guide

AD68-03076B Cradle*

AD97-16073A

Pouch*

AD69-00932A Carrying Case*

AD69-00929A

English_3

ENG

FRONT & LEFT & REAR & BOTTOM VIEW

MODE indicator

( Record ( ) / Player ( ))

Recording start/

stop button

MODE button Grip belt

AV cable jack Swivel Hand-grip

USB jack (USB) Grip belt hook

DC IN jack (DC IN) Cradle receptacle

Jack cover Tripod receptacle

Charging indicator (CHG) Memory card/

POWER switch Battery slot cover

Lens open/close switch LCD screen

Internal microphone Built-in speaker

Lens button

MENU button EASY Q button

OK button LCD ENHANCER ( )

button

Control button (

) Zoom lever (W/T)

Recording start/stop button

OPEN

123

789

121110

10 11 12

15 14 13

4_English

CONNECTING A POWER SOURCE

There are two types of power source that can be connected to your memory camcorder.

Do not use provided power supply units with other equipment.

- The battery pack: used for outdoor recording.

- The AC power adapter : used for indoor recording and playing back.

Inserting the battery pack

1. Slide and open the battery slot cover as shown in the ﬁgure.

2. Insert the battery pack into the battery slot until it softly clicks.

Make sure that the SAMSUNG logo is facing up while the

set is placed as shown in the ﬁgure.

3. Slide and close the battery slot cover.

Ejecting the battery pack

1. Slide and open the battery slot cover and push the battery lock.

Gently push the battery lock in the direction as shown in

the ﬁgure to eject the battery out.

2. Pull the ejected battery out in the direction as shown in the ﬁgure.

3. Slide and close the battery slot cover.

•

preparation

Charging the Battery Pack

1. Slide the POWER switch downward to turn off the power.

2. Open the LCD screen and insert the battery pack to the

memory camcorder.

3. Open the DC IN/USB/AV jack cover.

Connect the AC power adapter to the DC IN jack of your

memory camcorder.

5. Connect the AC power adapter to a wall socket.

The CHG (charging) indicator lights up in orange and showing

that the battery pack is charging.

The CHG (charging) indicator lights up in green when the

battery is fully charged.

When the battery pack is fully charged, disconnect the AC power adapter from the memory camcorder.

Even with the power switched off, the battery pack will still discharge if it is left attached to the memory camcorder.

It is recommended that you remove the battery pack from the

memory

camcorder.

•

CARD

Insert Eject

CARD

English_5

ENG

SELECTING THE STORAGE MEDIA (SC-MX20C/MX20CH/MX20E/MX20EL/MX20ER ONLY)

You can record on the built-in memory or a memory card, so you should select the desired storage media before

starting recording or playback.

Before inserting or ejecting the memory card, turn the memory camcorder off.

•

about the storage media

INSERTING / EJECTING THE MEMORY CARD

Inserting a memory card

1. Turn the memory camcorder off.

2. Slide the memory card slot cover to the right to open the cover.

Insert the memory card into the memory card slot in the direction of the

arrow shown in the ﬁgure until it softly clicks.

4. Close the cover.

Ejecting a memory card

1. Turn the memory camcorder off.

2. Slide the memory card slot cover to the right to open the cover.

3. Slightly push the memory card inwards to pop it out.

4. Pull the memory card out of the memory card slot and close the cover.

CARD

1. Press the MENU button.

The menu list will appear.

2. Press the Control button ( / ) to select "Settings".

Press the Control button ( / ) to select "Storage", then press the OK button.

4. Press the Control button ( / ) to select "Memory" or "Card", then press

the OK button.

"Memory": When using the built-in memory.

"Card": When using the memory card.

5. Press the MENU button to exit.

•

6_English

recording

RECORDING MOVIE IMAGES

Memory camcorder provides two Recording start/stop buttons.

One is on the rear side of the camcorder and the other one is on the LCD panel.

Select the Recording start/ stop button according to the use.

1. Turn the memory camcorder on.

Connect a power source to the memory camcorder.

(A battery pack or an AC power adapter)

Slide the POWER switch downward to turn on the power.

Set the appropriate storage media. (SC-MX20C/MX20CH/MX20E/MX20EL/MX20ER

only

) (If you want to record on a memory card, insert the memory card.)

Set the Lens open/close switch to open ( ). ´page 3

2. Check the subject on the LCD screen.

3. Press the Recording start/stop button.

The recording indicator ( ) will display and recording will start.

Pressing the Recording start/stop button again during recording will set the

memory camcorder to recording pause mode.

4. When recording is ﬁnished, turn the memory camcorder off.

•

MOVIE IMAGES PLAYBACK

You can ﬁnd a desired movie image quickly using thumbnail index view.

1. Turn the memory camcorder on.

Slide the POWER switch downward to turn on the power.

Set the appropriate storage media. (SC-MX20C/MX20CH/MX20E/MX20EL/MX20ER

only) (If you want to record on a memory card, insert the memory card.)

2. Open the LCD screen.

Adjust brightness or contrast of the LCD screen.

3. Press the MODE button.

Switches to Movie Play mode ( ).

The recorded movie images are displayed in thumbnail index view.

4. Use the Control button ( / / / ) to select the desired movie images,

and the press the OK button.

Shortcut menu for playback will be displayed for a while.

The selected movie images are played according to Play Option setting.

To stop playback and return to the thumbnail index view, move the zoom lever.

•

playback

English_7

ENG

connecting to a PC

INSTALLING THE CYBERLINK MEDIASHOW4

CyberLink MediaShow4 is a software for easy of editing MPEG, AVI, and other video ﬁles, still images, and other

contents for creating a movie.

Before you begin:

Quit any other software you are using. (Check that there are no other application icons on the status bar.)

• If you perform installation of software that is already installed, uninstallation will start.

In this case, perform the installation again after uninstallation is ﬁnished.

• This manual only refers to software installation and PC connection.

For more details on software, refer to the “Online help/Read me” on the CyberLink MediaShow4 CD.

¼¼

»»

8_English

CONNECTING THE USB CABLE

Connect the USB cable to copy movie images in a recording medium to the PC and vice versa. When the USB cable is

connected in Record / Play mode, the product will switch to USB mode immediately.

1. Connect the memory camcorder to the PC with a

USB cable.

Don’t apply excessive force when inserting

or extracting a USB jack.

Insert a USB jack after checking the

direction of its insertion is correct.

It is recommended to use the AC adapter

as the power supply instead of the battery

pack.

When the USB cable is connected,

turning on or off the camcorder causes

malfunctions of the PC.

•

PC Memory camcorder

USB cable

connecting to other devices

CONNECTING TO A TV

To playback your recordings, the television must be NTSC compatible.

We recommend that you use the AC power

adaptor as the power source for the memory

camcorder.

Use the provided AV cable to connect the memory

camcorder to a TV as follows:

1. Connect the end of the

cable with the single

plug to the AV jack of the memory camcorder.

2. Connect the other end with video (yellow) and left

(white) / right (red) audio cables to the TV.

•

VIDEOAUDIO

Memory camcorder

Normal TV

AV cable

Signal ﬂow

connecting to a PC

Red Yellow

White

FRA

imaginez toutes les possibilités

Merci d’avoir acheté un produit Samsung.

Pour obtenir notre service complet, enregistrez votre

produit sur le portail de

www.samsung.com/global/register

FRA

* Une copie (imprimée) du Démarrage rapide et un CD sont fournis avec le caméscope.

Pour plus de détails, reportez-vous au guide d’utilisation en format PDF sur le CD.

SC-MX20

SC-MX20B

SC-MX20H

SC-MX20L

SC-MX20R

SC-MX20C

SC-MX20CH

Caméscope à mémoire

Guide de démarrage rapide

02_French

ARTICLES COMPRIS AVEC VOTRE CAMÉSCOPE À MÉMOIRE FLASH

Votre nouveau caméscope est distribué avec les accessoires ci-après. S'il manque un accessoire dans la boîte de

livraison, contactez le Centre de Service à la clientèle Samsung.

+La forme exacte de chaque article peut varier selon le modèle.

Bloc-piles

(IA-BP85ST) Adaptateur CA

(TYPE AA – E9) Câble vidéo Câble USB

CD d’installation

des logiciels Guide d’utilisation

sur CD Guide de démarrage

rapide Socle de recharge*

Étui* Mallette*

présentation du caméscope à mémoire ﬂash

Le contenu peut varier en fonction du lieu de vente de l'appareil.

Les pièces et les accessoires sont disponibles chez votre revendeur Samsung le plus proche et auprès du

centre de service technique.

La carte mémoire n'est pas comprise.

Il faut relier l’adaptateur secteur au socle lors de la connexion de périphériques externes à l’aide de ce même socle.

Votre caméscope est fourni avec un manuel d’utilisation sur CD et un guide de démarrage rapide (imprimé). Pour obtenir

des instructions plus détaillées, reportez-vous au manuel d’utilisation (PDF) contenu sur le CD.

*(En option) : Cet accessoire est en option. Contactez votre revendeur Samsung le plus près pour vous en procurer.

•

Other manuals for SCMX20

This manual suits for next models

Table of contents

Languages:

Other Samsung Camcorder manuals

Samsung

Samsung SC HMX20C - Camcorder - 1080p User manual

Samsung

Samsung SC-D6040 Owner's manual

Samsung

Samsung HMX-P100 Operation and maintenance manual

Samsung

Samsung SC-HMX10 User manual

Samsung

Samsung VP-D903 Owner's manual

Samsung

Samsung VP-D6650I User manual

Samsung

Samsung VP-D375W Setup guide

Samsung

Samsung VP-M102 Owner's manual

Samsung

Samsung VP-DC171I Owner's manual

Samsung

Samsung VP-D5000i Owner's manual

Samsung

Samsung VP-D30 User manual

Samsung

Samsung SCW61 Owner's manual

Samsung

Samsung VP-L600B Setup guide

Samsung

Samsung VP-D381( i ) User manual

Samsung

Samsung HMX-S10BN User manual

Samsung

Samsung HMX-Q10BN User manual

Samsung

Samsung VP-D351I Owner's manual

Samsung

Samsung VP-D70 User manual

Samsung

Samsung SMX C10 - Camcorder - 680 KP User manual

Samsung

Samsung SCD 5000 User manual

Samsung

Samsung SC-DC173U Owner's manual

Samsung

Samsung VP-W60 User manual

Samsung

Samsung SC-D107 Owner's manual

Samsung

Samsung SC-DC564 User manual

Popular Camcorder manuals by other brands

Toshiba

Toshiba CAMILEO Z100 user guide

Panasonic

Panasonic NV-VS40B operating instructions

Canon

Canon RC 260 instructions

Sony

Sony Handycam DCR-DVD7E operating guide

Brinno

Brinno TimeLapse TLC200 user manual

JVC

JVC GR-SXM68AC Schematic diagram

Panasonic

Panasonic AG-HMC152EN operating instructions

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p user guide

MYDLINK

MYDLINK DCS-6100LH Quick installation guide

Sony

Sony video Hi8 Handycam CCD-TR555 operating instructions

SECURECOM

SECURECOM V-5014B installation guide

Panasonic

Panasonic HDC-SD100 operating instructions

Sharper Image

Sharper Image U-VIDEO instruction manual

JVC

JVC AA-V15EG instruction manual

Canon

Canon LEGRIA HV40 instruction manual

Sony

Sony Handycam DCR-VX2000 Service manual

RCA

RCA CC616 user guide

Panasonic

Panasonic NVM40 Service manual
