Samsung BD-ES6000 Quick start guide
USER GUIDE

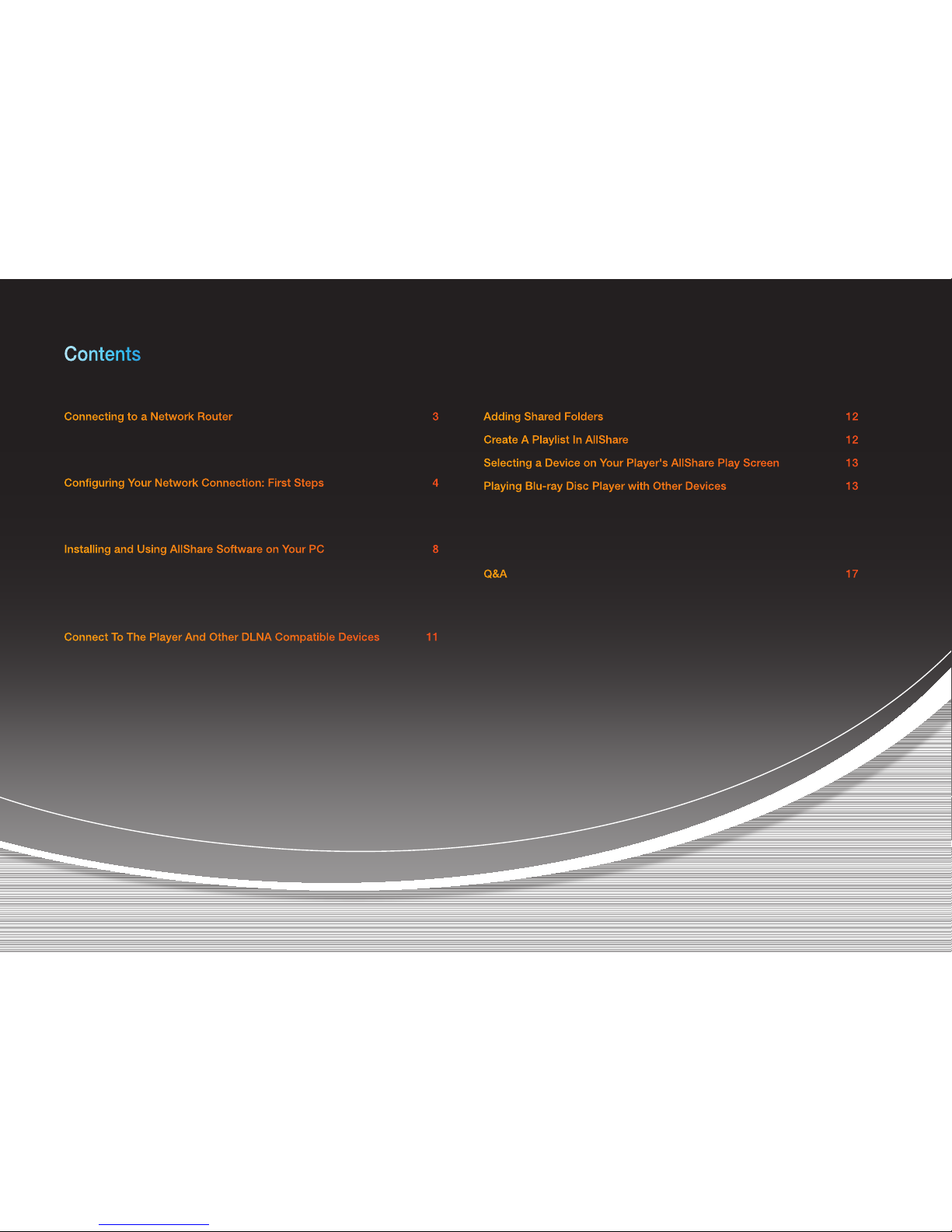

Contents
※The functions may vary depending on your player model.
※The figures in this manual are drawn for illustration purposes, and may differ somewhat from the actual appearance of the product.
Connecting to a Network Router 3
• Wired Network 3
• Wireless Network 3
Configuring Your Network Connection: First Steps 4
• For Wired Networks 5
• For Wireless Networks 6
Installing and Using AllShare Software on Your PC 8
• To Download the AllShare Software 8
• AllShare Installation 9
• AllShare Screen Layout 10
Connect To The Player And Other DLNA Compatible Devices 11
• Allowing A Connected Device Access 11
Adding Shared Folders 12
Create A Playlist In AllShare 12
Selecting a Device on Your Player's AllShare Play Screen 13
Playing Blu-ray Disc Player with Other Devices 13
• Smart Phone connects to a PC to play a file through a Blu-ray Disc Player
13
• Play Video Files From My Computer On Your Player 14
• Play Video Files From My Smart Phone On Player 16
Q&A17
3 - English
Connecting to a Network Router
Connect your player to your network router using one of the methods
illustrated on this page.
❙
Wired Network
✎Notes
● Internet access to Samsung’s software update server may not be allowed, depending
on the router you use or your ISP’s policy. For more information, contact your ISP
(Internet Service Provider).
● DSL users, please use a router to make a network connection.
● To use the AllShare function, you must connect your PC to your network as shown in
the illustrations on the left. The connection can be wired or wireless.
❙
Wireless Network
✎Notes
● For more information, please refer to your player's manual.
+
Broadband service
Wireless Router If the player does not WiFi-built in model,
you have to use the Samsung wireless
LAN adapter.
Broadband
service
Broadband modem
(with integrated router)
Broadband modem
Router
Or
Broadband
service
4 - English
Configuring Your Network Connection:
First Steps
1
Press the [HOME] button on the
remote control.
※If you have a wireless network, make sure the
access point you want to connect your player
to is turned on. The access point can be a
wireless router, modem, etc. If you have a wired
network, connect one end of a LAN cable to the
LAN port on the back of your player and the other end to a router or modem.
2
On the Home screen,
move to <Settings>,
and then press the
s
button.
3
Move to <Network>,
and then press the
s
button.
HOME SMART
HUB
4
Move to <Network
Settings>, and then
press
the
s
button.
5
When the Network
Settings window is
displayed, go to "For
Wired Networks"
on page 5 or "For
Wireless Networks"
on page 6 to
complete the network
configuration.
※Your player supports various network configuration methods (Wired/Wireless, WPS (PBC))
that let you configue your network easily and quickly.
5 - English
❙
For Wired Networks
Wired - Automatic
Use the automatic procedure if your network does not require a Static IP
address. Most networks do not require a Static IP address.
1
Select Start in the
Network Settings
menu, and then press
the
s
button.
✎<Start> is usually
highlighted
automatically.
2
The player verifies the
network connection
and then connects to
the network.
Press the
s
button
when the network
connection process is
complete.
Wired - Manual Configuration
If you have a static IP address or the Automatic procedure does not work,
you'll need to set the Network Settings values manually.
1
Select <Start> in the Network Settings screen, and then press
the
s
button. The Network Status screen appears. The player
attempts to verify the network connection and fails.
2
Select <IP Settings>
on the right of the
screen, and then
press the
s
button.
The IP Settings screen
appears.
3
Select the IP Mode field, and then set it to Manual.
6 - English
4
Use the number keypad on your remote to enter the Network values.
Use the ▲▼◄► buttons on the remote to move from entry field to
entry field.
✎You can get these values from your Internet provider. You can also view these
values on most Windows computers.
5
When done, highlight
OK, and then press
s
button. The player
verifies the network
connection and then
connects to the
network.
❙
For Wireless Networks
1
Make sure the access point you want to connect your
player
to is
turned on. The access point can be a wireless router, modem, etc.
2
Select Start in the
Network Settings
menu, and then press
the
s
button.
✎<Start> is highlighted
automatically.
3
Press the
s
button.
Your player starts
scanning for access
points. When done,
it displays a list of
access points it has
found.
7 - English
4
Move to the access
point you want to
connect your player
to, and then press
the
s
button.
<Next> is highlighted
automatically.
5
Press the
s
button.
The player connects
to your network.
✎If your network has
the Enter Security Key
window appears. Use
the keyboard to enter
the key. When done, use
the ▲▼◄►buttons to
select Next, press the
s
button, and then
go to Step 6.
5-1
If you want to use
a fixed IP address,
select <IP Settings>
on the screen, and
then enter the required
IP address settings
manually.
- IP Address
- Subnet Mask
- Gateway
- DNS Server
6
After you have
finished configuring
the network settings,
press the <OK>
button.
✔When using a device that supports WPS
1. Perform steps 1 to 5 in “Configuring Your Network Connection: First Steps”.
2. Select “WPS(PBC)”.
3. Follow the instructions displayed on the screen.
✎Notes
- Devices that support WPS have a WPS (PBC) button.
8 - English
Installing and Using AllShare Software on
Your PC
❙
To Download the AllShare Software
To use AllShare with your PC or DLNA device, you must install AllShare
software on your PC.
You can download the AllShare software and get detailed instructions for
using AllShare from the Samsung.com website.
1
Go to www.samsung.com.
2
Click Support at the top of the page.
3
On the Support page, enter the model number of your player into
the Model Number field, and then click the Find Product button.
4
On the page that appears, click Get downloads on the left side
under Downloads. The Download Center appears.
5
On the Download Center page, click the Software tab.
6
On the software tab, click the File icon on the right side of the AllShare
line.
7
In the pop-up that appears, click Save File.
8
Find the AllShare install file on your disk, and then double click the
file.
9
In the pop-up that appears, click Run, and then follow the directions
that appear on your screen.
9 - English
❙
AllShare Installation
To install the AllShare software follow these steps.
1
After downloading the AllShare software, launch the installer.
2
Select the language of
your choice, and then
click "OK"
3
Review the installation
location for the
software and the
license agreement,
if you agree, select
"I accept the terms
of the license
agreement", and then
click "Next".
4
The files required for
running the software
are installed.
5
When the installation
is complete and
the shortcuts have
been created, select
whether or not to
launch the software,
and then click "Finish"
to finish installation.
10 - English
❙
AllShare Screen Layout
There are three screens in the AllShare software.
File Management Screen
To go to the File management
screen, either select View >
File management screen
mode in the top menu or
click the File management
screen mode button.
A.
Browsing area
●Connected shared device : Shows shared content on devices that are connected
to your computer (identified as My Computer on the screen).
●Content list : Shows content by video/photo/music category.
●Transfer/Back up list : Shows the progress/completion status for transfer and
backup.
●Playlist : Create and play a customized playlist of songs, photos, or videos.
B.
Content list area
●Shows the content of the list you selected in the browsing area.
C.
Play on another device/Transfer to another device/Save to My
Computer buttons
●Play on another device : Brings up the selection screen for the device you want to
play the selected content on.
●Transfer to another device : Brings up the selection screen for the device you
want to transfer the selected content to.
●Save to My Computer : Brings up the selection screen for the folder you want to
save the selected content to.
D.
Additional features
●Refresh : Refreshes the entire list.
●List view/Thumbnail view : Click to change the list view method.
●Search : Searches the content within the Content list area.
E.
Player control screen mode
●Switches to Player control screen mode.
