SAGEMCOM D790 User manual
D
7
90
-
D
7
90A
U
ser
g
uid
e
1
Dear customer,
You have just acquired a new generation Sagemcom telephone. Thank you
for placing your confidence in us.
This device has been manufactured with the utmost care. If you should have
difficulties in operating it, we recommend that you consult this user manual.
This product follows a strategy of continuous development. We reserve the
right to make changes, modifications and improvements without notice to the
products described in this quick start guide.
To operate the device safely and easily, please read carefully the paragraph
“Recommendations and safety instructions”, page 2.
The CE label confirms that the product complies with the 1999/5/EC
regulations of the European Union Parliament regarding wireless
systems and telecommunications.
The declaration of compliance may be looked up on the
www.sagemcom.com website section «Support», or can be obtained
from the following address:
Sagemcom Broadband SAS
250, route de l'Empereur
92848 Rueil-Malmaison Cedex - France
Copyright © Sagemcom Broadband SAS
All rights reserved
Sagemcom is a registered trademark.
2
Recommendations and safety instructions
Recommendations and safety
instructions
For safety reasons, never put the handset in the base
station without the battery inserted or without the lid on
the battery compartment as this could cause an electric
shock.
To avoid damaging your handset/base, only use certified
rechargeable batteries NiMH 1.2 V 650 mAh, never use
never use non-rechargeable batteries. Insert the batteries
in the handset/base battery compartment respecting
polarity.
Only use the enclosed Sagemcom power supply unit and
connect it to your plug socket as per the instructions in
this user guide and on the power supply unit's sticker. As
a precaution if there is a risk of danger, the power plug
can be pulled out to disconnect the 230 volt power supply.
Therefore the sockets should be near the device and
easily accessible.
Do not install your DECT telephone in a damp
environment, such as a bathroom, washroom, kitchen etc,
and not within 1.50 metres of a source of water or outside.
This device is designed for use in temperatures of
between 5 °C and 45 °C.
In regions greatly affected by electrical storms we
recommend that you protect your telephone circuit with a
special fixture for excess voltage.
Do not attempt to remove screws or open the appliance. It
does not contain any user-replaceable parts.
3
This product is intended to be connected to the public
analogue telephone network of any British and Irish
network operator.
Should you experience any problems, contact your
nearest specialst dealer or the Sagemcom Support Team
on 0845 0900 316.
Your DECT telephone has a range of approx. 50 metres
indoors and up to 300 metres outdoors. The range can be
affected by the proximity of metal objects, such as a
television and electrical devices.
Zones without reception may appear owing to elements in
the building. This can cause brief interruptions in the
conversation, caused by faulty transmission.
Certain medical equipment and highly-sensitive machines
or security systems may be affected by the transmission
power of the telephone. In these cases we recommend
adhering to the safety information.
Your D790-D790A has anti-skid pads that should leave no
traces on your furniture and ensure stability. However,
given the the wide variety of finishes used by furniture
manufacturers, traces may appear on surfaces in contact
with the parts of your D790-D790A. Sagemcom
Broadband SAS decline all responsibility in any such
cases of damage.
The used battery must be disposed of in line with the
recycling regulations in this user manual.
4
Overview
Recommendations and safety instructions ............. 2
Discover... ............................................................. 6
The pack.................................................................................... 6
Your phone ................................................................................ 7
Connecting the base .................................................................. 9
Setting up the handset ............................................................. 10
Battery replacement ................................................................ 12
Charging your phone ............................................................... 13
Browsing through the menus ................................................... 13
Making and receiving calls... .................................20
Managing a call........................................................................ 20
Managing several calls ............................................................ 22
Using additional handsets........................................................ 23
Options during a call................................................................ 25
Locating your handset ............................................................. 27
Organizing your contacts......................................28
Using the phonebook ............................................................... 28
Listening and Recording... (model D790A) ...........30
Enabling/disabling the answering machine .............................. 30
Answering machine message .................................................. 31
Messages ................................................................................ 32
5
Setting up... ..........................................................35
The phone................................................................................ 35
The handset ............................................................................. 39
The base .................................................................................. 42
The line.................................................................................... 44
Answering machine settings .................................................... 46
Enjoy... .................................................................48
The alarm................................................................................. 48
The Surveillance mode............................................................. 49
Tracing your calls... ..............................................51
Call logs................................................................................... 51
The events log.......................................................................... 52
Troubleshooting ...................................................53
FAQ ......................................................................................... 53
Environment .........................................................54
Guarantee ............................................................55
6
Discover...

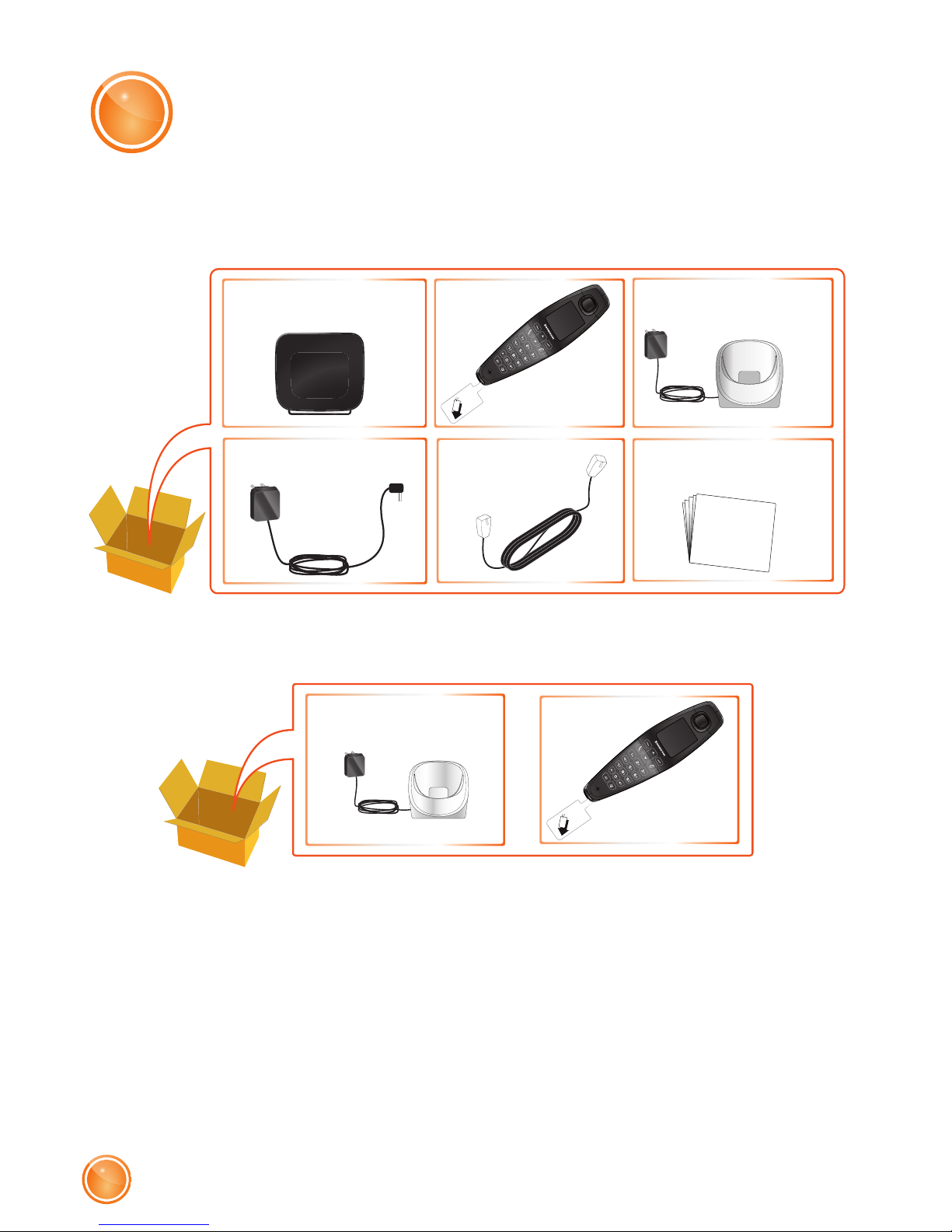

The pack
Make sure that your pack contains the following items:
In the case of purchasing a pack DUO or TRIO, you will find in addition:
Discover...
1
a D790 or D790A base
according to the model
a handset
an AC power supply
a handset charger
a telephone
connection cord
a quick installation
guide
a handset charger
DUO - or -TRIO
a handset
7
Your phone
The base
Caption Description
1Indicator light
2Telephone socket
3Power socket
4button Paging/Pairing :
•Short press: paging of handsets
•Long press: pairing of handsets
23
4
1
Note Indicator light operation:
• Fixed for 10 seconds: base startup.
• Fast flashing: the base is in pairing mode.
•Medium Flashing : searching for handsets paired on the base.
•Slow flashing: ongoing call in progress.
8
Discover...
The handset
* Your D790-D790A has an indicator light on
the back of the handset.
14
4
3
13
10
1
2
5
6
8
9
12
7
11
Key Description
1Speaker
2Graphic screen
3Programmable / cancel
shortcut key
4Browsing through the
menus
5Hang up key.
Long press: Switch off
handset
6Alphanumeric keypad
7# key.
Hold down during a call :
Deactivate / Activate the
microphone
8Phonebook access key
9Microphone.
10 Hands-free key
11 Star key :
Long press: keypad lock /
unlock
12 Pick-up key / Hands-free.
Long press: Switch on
handset
13 Programmable/confirm
shortcut key.
14 Indicator light *.
9
Indicator light operation:
Connecting the base
Take the base and turn it over.
1Take the telephone connecting cord, plug the phone into its socket.
2Connect the other end of the cord to the telephone wall outlet.
3Take the power adapter. Connect the power adapter cord to the underside
of the base.
4Connect the power adapter to the wall power socket.
5Position the base in its final location.
On: When pressing a keypad button.
Flashing: When paging or receiving a call (internal/external)
Slowflashing: A new event occured
Note Check the safety instructions (page 2) before setting up your
phone.
2
1
3
4
