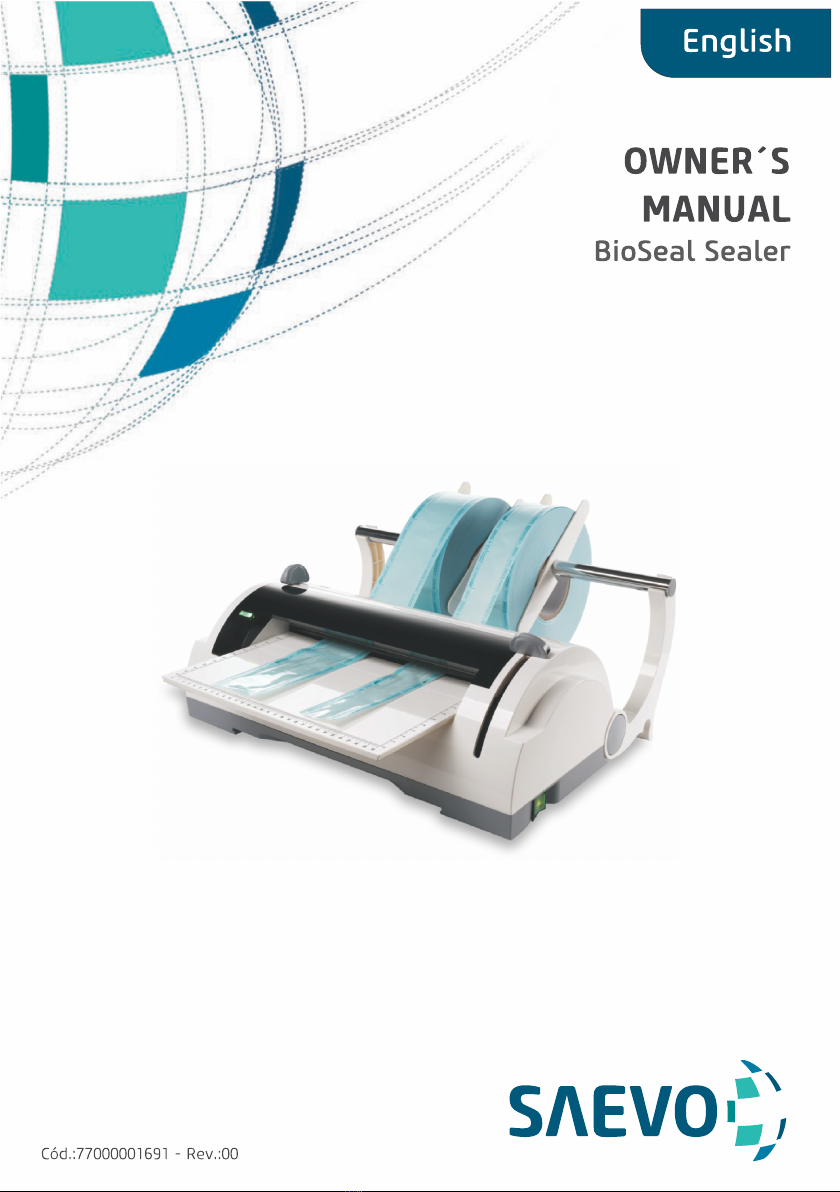

SAEVO BioSeal User manual
2
PAGE INTENTIONALLY LEFT BLANK
3
MANUAL PRESENTATION
Trade Name: Sealer
Model: BioSeal
Brand: Saevo
ZHEJIANG FOMOS MEDICAL TECHNOLOGY CO.,LTD.
No.205 Guangyuan Road Jiangbei District Ningbo 315033 CHINA
Phone:86-574-87116972 Fax:86-574-87118655
77000001691 - Rev.: 00 - July/22
Importer/Distributor
Alliage S/A Indústrias Médico Odontológica
Rodovia Abrão Assed, Km 53 + 450m - CEP 14097-500
Ribeirão Preto - SP - Brasil
Phone: +55 (16) 3512-1212
4
TRADEMARKS
All terms mentioned in this manual are well-known trademarks, registered trademarks or service
marks that have been properly labeled as such. Other products, services, or terms mentioned in
this manual may be trademarks, registered trademarks, or service marks of their respective holders.
Alliage S/A does not make any claim to these brands. The use of a term in this manual should not
be construed as inuencing the validity of any trademark, registered trademark, or service mark.
Saevo and BioSeal are trademarks registered by Alliage S/A.
Copyright © 2021 Alliage S/A. All rights reserved
5
SUMMARY
01 GENERAL INFORMATION 07
1.1. DEAR CUSTOMER 07
1.2. INDICATIONS FOR USE 07
1.3. CONTRAINDICATIONS 07
1.4. SYMBOLOGY 08
02 WARNINGS, CAUTIONS AND RECOMMENDATIONS 10
03 GENERAL SYSTEM DESCRIPTION 14
3.1. SYSTEM DESCRIPTION 14
3.2. OPERATION PRINCIPLES 14
3.2.1. User prole 14
3.3. PRODUCT MAIN COMPONENTS 15
3.3.1. Parts included with the product 15
04 INSTALLATION 17
4.1. GENERAL PRECAUTIONS 17
4.2. ELECTRICAL CONNECTION 17
4.3. PRODUCT PREPARATION 17
4.4. SURGICAL GRADE PAPER REEL INSTALLATION 18
05 OPERATION 20
5.1. PREPARATION 20
5.2. PAPER LOADING 20
5.3. SEALING AND CUTTING 20
5.4. FINISHING 21
06 CLEANING 23
6.1. GENERAL CLEANING 23
07 TROUBLESHOOTING, INSPECTION AND MAINTENANCE 25
7.1. WARNING SIGNAL TO THE OPERATOR 25
7.2. PROBLEM SOLVING 26
7.3. PERIODIC INSPECTION 27
7.4. PREVENTIVE MAINTENANCE 27
7.5. CORRECTIVE MAINTENANCE 28
7.6. BLADE REPLACEMENT 28
7.7. FUSES REPLACEMENT 28
08 TECHNICAL SPECIFICATIONS 30
8.1. DEVICE INFORMATION 30
8.2. SAFETY DEVICES 30
9 WARRANTY 33
10 ALLIAGE AUTHORIZED SERVICES 35
6
Alliage S/A Indústrias Médico Odontológica
Phone: +55 (16) 3512-1212
Highway Abrão Assed, Km 53 – CEP 14097-500 –Ribeirão Preto – SP –Brasil
1
GENERAL INFORMATION
7
1. GENERAL INFORMATION
1.1. DEAR CUSTOMER
Congratulations for your excellent choice. By purchasing ALLIAGE quality equipment, you can be
sure of purchasing products with technology compatible with the world's best in its class. This
manual oers you a general description of your equipment, describing important details that can
guide you in its correct use, as well as in the solution of small problems that may eventually occur.
You should read this manual completely and keep it for future reference.
1.2. INDICATIONS FOR USE
This equipment must be used and handled by a qualied person (professional duly accredited, in
accordance with the local legislation of the country) observing the instructions contained in this
manual. It is the user's obligation to use the equipment only in perfect condition and to protect
himself, patients and third parties against possible risks.
1.3. CONTRAINDICATIONS
None known so far.
8
1.4. SYMBOLOGY
The following symbols are used in this manual and on the product. Make sure you fully
understand each symbol and follow the instructions go together.
Fragile, handle with care Maximum Stack
Protect from the rain This side Up
Manufacturer Manufacturing date
General warning Attention
Model number Serial number
Model Catalog number
Indicates that the product must
be taken to a special waste
collection point at the end of
its working life. It applies to the
equipment and its accessories.
Mandatory action
Use instructions High temperature
9
Alliage S/A Indústrias Médico Odontológica
Phone: +55 (16) 3512-1212
Highway Abrão Assed, Km 53 – CEP 14097-500 –Ribeirão Preto – SP –Brasil
2
WARNINGS, CAUTIONS AND RECOMMENDATIONS
10
General warnings
2. WARNINGS, CAUTIONS AND RECOMMENDATIONS
Read and understand all instructions contained in these instructions for use
before installing or operating this equipment.
Only use the equipment in perfect conditions and protect yourself, patients
and third parties against possible dangers.
This equipment must be installed and operated by personnel familiar with all
necessary precautions.
• Do not spill liquids on the body of the equipment.
• Never operate the equipment in a humid environment.
• Use the equipment only with the supplied accessories.
• Do not make changes to the equipment or open its compartments.
General prohibition indication. The functionality of the system can be destroyed
in the case of incorrect use. If unauthorized alterations have been made to the
system and the supplied accessories, the Manufacturer's warranty will be void.
Alliage will not accept any responsibility for product malfunction in this case.
If one of the following conditions occurs, disconnect the equipment from the power supply and
contact the authorized technical service:
• The power cord or power adapter are damaged.
• The equipment was exposed to water.
• The equipment was damaged.
• The equipment does not work properly when the Operating Instructions are followed.
There is a risk of electric shock when opening or attempting to open any part of
the system; Only authorized technical service should open parts of the system.
