Hardware Installation and Reference Guide Product Overview

1 Product Overview

Ruijie RG-AP130(L) Wall AP is designed for wireless deployment in hotels, offices, residential buildings and settings alike.

The wall-mountable AP has the same size as a standard 86-type faceplate with integrated Ethernet and VoIP ports.

Featuring a concise design and easy deployment, the AP enables zero disruption to the interior finishes and offers the

best solution for scenarios with delicate interior design.

The dual-radio, dual-band AP supports concurrent operation of 802.11a/n/ac and 802.11b/g/n, delivering data rates of up

to 300Mbps in 802.11n and 866Mbps in 802.11ac. The Wall AP provides four 10/100/1000Base-T LAN ports and one

10/100/1000Base-T WAN port, delivering optimal wireless network coverage and cost protection with additional wired

network interfaces and VoIP ports.

RG-AP130(L) supports security, radio frequency (RF) control, mobile access, Quality of Service (QoS) and seamless

roaming. Teaming up with Ruijie RG-WS Wireless Controller Series, wireless data forwarding, high performance security

and access control can be accomplished with ease.

1.1 Technical Specifications

Table 1-1 Technical Specifications of RG-AP130(L)

Hardware Specifications

Radio

2.4G: 2 x 2MIMO

5G: 2 x 2MIMO

Transmission

Protocol

2.4G : 802.11b/g/n

5G : 802.11a/n/ac

Operating Bands

802.11b/g/n: 2.4 GHz to 2.4835 GHz

802.11a/n/ac: 5G: 5.15 GHz to 5.35 GHz, 5.47 GHz to 5.725 GHz, 5.725 GHz to 5.85GHz

(Country-specific)

Antenna

Built-in low-radiation omnidirectional antenna (Base gain 3dBi)

Spatial Streams

2 streams

Max Throughput

802.11b/g/n: up to 300Mbps

802.11a/n/ac: up to 867Mbps

Up to 1.167Gbps per AP

Modulation

OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps

DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and [email protected]/11Mbps

MIMO-OFDM: BPSK, QPSK, 16QAM , 64QAM and 256QAM

Receive Sensitivity

11b/g: -94dBm(1Mbps), -74dBm(54Mbps)

11a: -90dBm(6Mbps), -74dBm( 54Mbps)

11nHT20: -72dBm@MCS7, -68dBm@MCS15

11ac HT20: -90dBm( MCS0) , -65dBm( MCS8)

11ac HT40: -85dBm( MCS0) , -60dBm( MCS9)

11ac HT80: -82dBm( MCS0) , -58dBm( MCS9)

Max Transmit Power

≤100mw (20dBm, RF card transmit power only)

(Depending on the country of use, laws and regulations.)

Hardware Installation and Reference Guide Product Overview

Transmit Power

Adjustment

1 dBm

Dimensions

(W x D x H)

116mm x 86mm x 42mm

Weight

0.23kg

Service Ports

Front:

Four 10/100Base-T LAN ports

Side:

1 RJ-45 Voice/PoE pass-through port (RJ-11 combo)

Rear:

One 10/100/1000Base-T WAN port

1 RJ-45 Voice/PoE pass-through port (RJ-11 combo)

Management Ports

1 Micro USB port for console management (hidden)

LED Indicators

Indicator for AP, Ethernet and wireless status

Power Supply

PoE: IEEE 802.3af/802.3at-compliant (compatible).

Power Consumption

≤8W

Temperature

Operating: -10 to 45°C (14 to 113°F)

Storage: -40 to 70°C (-40 to 158°F)

Humidity

Operating: 10% to 95% (non-condensing)

Storage: 5% to 95% (non-condensing)

Installation

Ceiling/wall mount in a 86-type faceplate

IP Rating

IP41

Safety Standards

GB4943

EN/IEC 60950-1

EMC Standards

IEC61373

GB9254

EN301489

EN50121

EN50155

Vibration

China Radio Transmission Equipment Type Approval Certificate

EN300 328

EN301 893

Radio

China Radio Transmission Equipment Type Approval Certificate

EN300 328

EN301 893

MTBF

>250,000H

Software Functions

Security

Data encryption

Support

Frame Filtering

WPA(TKIP), WPA2 (AES), WPA-PSK, WEP

(64 or 128 bits) and WAPI (hardware)

User isolation

Whitelist

Static blacklist

Dynamic blacklist

Hardware Installation and Reference Guide Product Overview

Rogue AP detection and countermeasure

Support

Dynamic ACL assignment

Support

RADIUS

Support

CPU Protection Policy (CPP)

Support

Network Foundation Protection Policy (NFPP)

Support

Routing

IPv4 address

Support

IPv6 CAPWAP tunnel

Static IP address or DHCP

ICMPv6

Support

IPv6 address

Support

IPv6 tunnel

Not Supported

ISATAP

Not Supported

Multicast

Multicast to unicast conversion

Network management

SNMP v1/v2C/v3, Telnet, TFTP, and FTP and

Web management

Management and

Maintenance

Fault detection and alarm

Support

Statistics and logs

Support

FAT/FIT switchover

Support

1.2 Product Image

The AP provides two built-in radio ports, one 10/100/1000Base-T Ethernet WAN port, and four 10/100Base-T Ethernet

LAN ports.

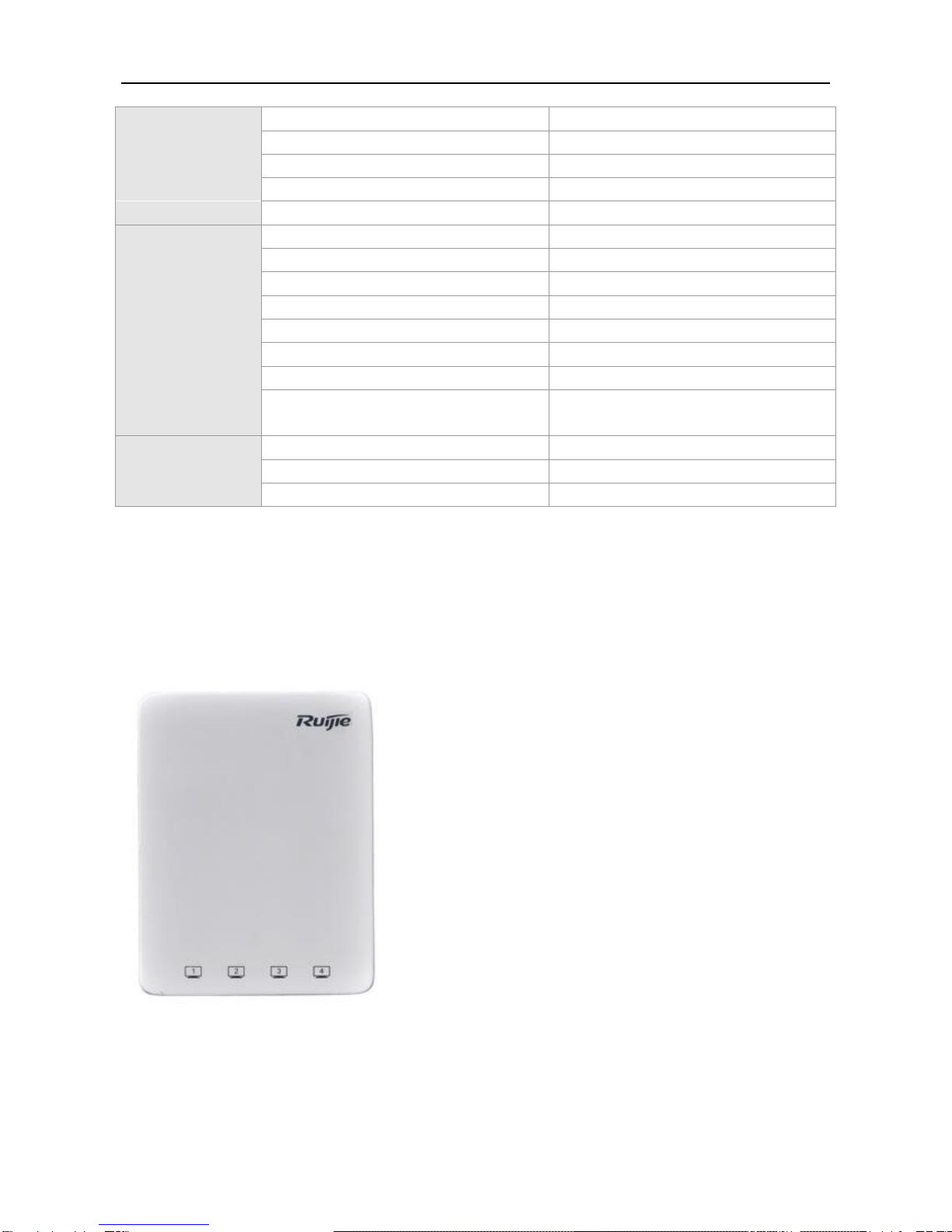

Figure 1-1 Image of RG-AP130(L)

PoE/UpLNK port, the yellow port, is the 10/100/1000Base-T WAN port (PoE-capable).

Pass Through port, the blue port, and its equivalence on the side are straightly connected.

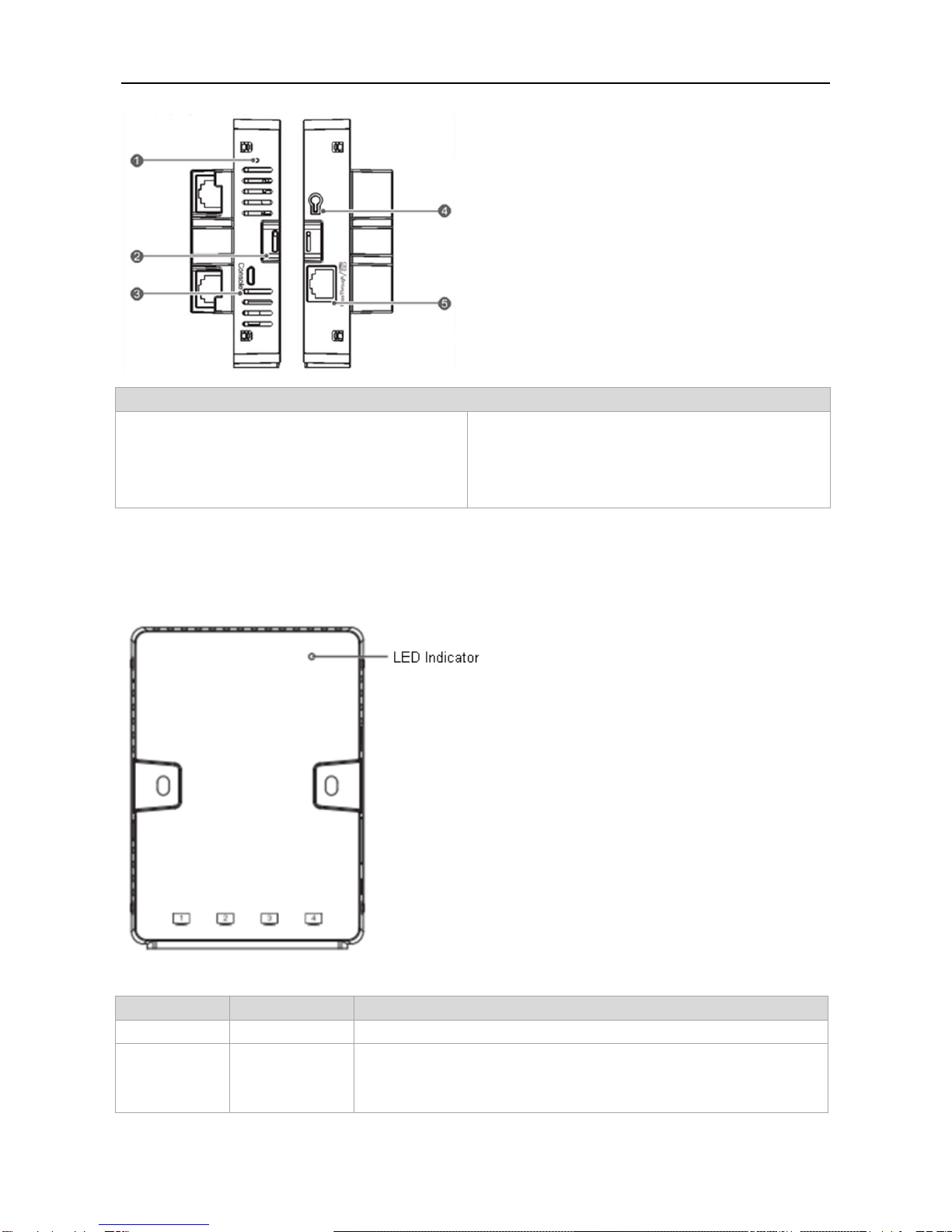

Figure 1-2 Side View of RG-AP130(L)

Hardware Installation and Reference Guide Product Overview

Note

1. Reset button

2. Lock Slot

3. Micro USB management port (Console)

4. Keyhole

5. Pass Through port on the side

1.3 LED Indicators

Figure 1-3 Indicator on the AP

State

Frequency

Meaning

Off

N/A

The AP is powered off. Or the AP is in Silent mode.

Fast blinking

green before

solid green

2.5Hz (fast

blinking green)

Initialization is in progress. The AP is operational.

Hardware Installation and Reference Guide Preparing for Installation

Fast blinking red

2.5Hz

Firmware upgrade in progress. Do not power off the AP.

Blinking orange

1Hz

AP is operational and Ethernet link is down.

Blinking green

1Hz

AP is operational and Ethernet link is up. CAPWAP error.

Slow blinking

green

0.4Hz

AP is operational and CAPWAP connection is established. At least one client is

associated.

1.4 Power Sources

The AP is powered through Power over Ethernet (PoE). To use a PoE device, make sure it supports the IEEE 802.3af

PoE standard.

Input voltage range: 44-57V

Rated current: 0.25A

When powered through PoE, the AP can be used with Ruijie’s other products supporting 802.3af PoE.

1.5 Cooling Solution

The AP adopts fanless design. Because it is installed in an 86-style faceplate on the wall, to guarantee airflow for proper

ventilation, keep the device uncovered.

2 Preparing for Installation

2.1 Safety Suggestions

RG-AP130(L) must be used inside the room. To ensure normal operation and a prolonged useful life of the equipment, the

installation site must meet the following requirements.

To prevent device damage and bodily injury, please read carefully the safety recommendations described in this chapter.

The recommendations do not cover all possible hazardous situations.

2.2 Installation

Do not expose the AP to high temperature, dusts, or harmful gases.

Do not install the AP in an inflammable or explosive environment.

Keep the AP away from EMI sources such as large radar stations, radio stations, and substations.

Do not subject the AP to unstable voltage, vibration, and noises.

Keep the installation site dry. Installing the device near sea is not recommended.

Keep the AP at least 500 meters away from the seaside and do not face it toward the wind from the sea.

The installation site should be free from water flooding, seepage, dripping, or condensation.

Hardware Installation and Reference Guide Preparing for Installation

The installation site shall be selected according to network planning and features of communications equipment, and

considerations such as climate, hydrology, geology, earthquake, electric power, and transportation.

2.3 Temperature and Humidity

Required temperature and humidity are as follows:

Operating temperature: -10°C ~ 45°C (14°F to 113°F)

Storage temperature: -40°C ~ 70°C (-40°F to 158°F)

Operating humidity: 10%～95% (non-condensing)

2.4 Cleanness

Dust poses a serious threat to device operation. Dust that falls onto the surface of the device can be absorbed onto metal

contact points by static electricity, resulting in poor contact. Electrostatic absorption of dust occurs more easily when the

relative humidity is low, which may shorten the service life of the device and cause communication failures. Table 2-2

shows the maximum concentration and diameter of dust allowed in the equipment room.

Table 2-1

Maximum diameter (μm)

0.5

Maximum concentration

(Particles/m3)

1.4 x 10

7 x 10

2.4 x 10

1.3 x 10

Besides, the contents of salts, acids and sulfides in the air are also strictly limited for the equipment room. These

substances can accelerate metal corrosion and the aging of some parts. Table 2-3 describes the limit of some hazardous

gases such as SO2, H2S, NO2and Cl2 in the equipment room.

Table 2-2

Gas

Average (mg/m3)

Maximum (mg/m3)

SO2

0.2

1.5

H2S

0.006

0.03

NO2

0.04

0.15

NH3

0.05

0.15

Cl2

0.01

0.3

2.5 EMI Consideration

Various interference sources, from either outside or inside the equipment or application system, affect the system in the

conductive ways such as capacitive coupling, inductive coupling, and electromagnetic radiation. There are two types of

electromagnetic interferences: radiated interference and conducted interference, depending on the type of the

propagation path. When the energy, often RF energy, from a component arrives at a sensitive component via the space,

the energy is known as radiated interference. The interference source can be both a part of the interfered system and a

completely electrically isolated unit. Conducted interference results from the electromagnetic wire or signal cable

connection between the source and the sensitive component, along the cable the interference conducts from one unit to

Hardware Installation and Reference Guide Installing the Access Point

another. Conducted interference often affects the power supply of the equipment, but can be controlled by a filter.

Radiated interference may affect any signal path in the equipment, and is difficult to shield.

Effective measures should be taken for the power system to prevent the interference from the electric grid.

The working ground of the routers should be properly separated and kept as far as possible from the grounding

device of the power equipment or the anti-lightning grounding device.

Keep the equipment away from high-power radio transmitter, radar transmitting station, and high-frequency

large-current device.

Measures must be taken to isolate static electricity.

2.6 Installation Tools

Common Tools

Phillips screwdriver, straight screwdriver, related copper and fiber cables, bolts, diagonal pliers,

cable ties

Special Tools

Anti-static tools

Meter

Multimeter

The listed tools, apart from bolts, are customer supplied.

3 Installing the Access Point

Make sure you have carefully read Chapter 2, and be sure that the requirements set forth in Chapter 2 have been

met.

Table of contents

Other Ruijie Wireless Access Point manuals

Ruijie

Ruijie RG-AP680-AR Installation and operating manual

Ruijie

Ruijie RG-AP630 Series Installation and operating manual

Ruijie

Ruijie RG-AP680-I Installation and operating manual

Ruijie

Ruijie RG-SAP685-SP Installation and operating manual

Ruijie

Ruijie RG-AP730-L Series Installation and operating manual

Ruijie

Ruijie AP630 Series Installation guide

Ruijie

Ruijie RG-SAP185-SP-W Installation and operating manual

Ruijie

Ruijie RG-AP820-I Installation and operating manual

Ruijie

Ruijie RG-AP820-L(V2) Series Installation and operating manual

Ruijie

Ruijie RG-AP720-I User manual

Ruijie

Ruijie Reyee RG-RAP2200 Installation and operating manual

Ruijie

Ruijie Reyee RG-RAP2260 Installation and operating manual

Ruijie

Ruijie RG-AP180P-L Installation and operating manual

Ruijie

Ruijie RG-AP180 Series User manual

Ruijie

Ruijie Reyee RG-RAP52-OD Installation and operating manual

Ruijie

Ruijie RG-SAP885-SP Installation and operating manual

Ruijie

Ruijie RG-AP680-A Installation and operating manual

Ruijie

Ruijie Reyee RG-RAP52-OD User manual

Ruijie

Ruijie AP850-AR Installation and operating manual

Ruijie

Ruijie RG-AP180-I Installation and operating manual

Ruijie

Ruijie RG-AP210-L Series Installation and operating manual

Ruijie

Ruijie RG-AP680-O User manual

Ruijie

Ruijie RG-AP630 IDA2 Series Installation and operating manual

Ruijie

Ruijie RG-AP630 Directional User manual

Popular Wireless Access Point manuals by other brands

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Quick installation guide

Ubiquiti

Ubiquiti NanoStation NSM2 quick start guide

Cisco

Cisco Aironet 1550 Series Getting started guide

Aruba

Aruba IAP-335 user guide

Advantek Networks

Advantek Networks AWN-AP-54MR user manual

IP-COM

IP-COM AP355 user guide

Buffalo

Buffalo AirStation WLA-L11G user manual

EnGenius

EnGenius EnStationACv2 user manual

D-Link

D-Link DAP-3662 Quick installation guide

xG Technology

xG Technology xMax CN1300 installation guide

Widelink

Widelink ezWave WAP-1100 Series user guide

Edimax

Edimax CAP1200 user manual

Ubiquiti

Ubiquiti LBE-5AC-Gen2 quick start guide

Aruba

Aruba AP-203R installation guide

LuXout Shades

LuXout Shades LUXSHADE MOTION manual

CreatComm

CreatComm TB5F user manual

SineDigital

SineDigital MW-1500AP(H) installation guide

TP-Link

TP-Link AP9650 V1 Quick installation guide
