Rowley R-TEC Automation RTMSOLAR2 User manual
© 2021 Rowley®Company. All rights reserved. R-TEC Automation®is a registered trademark of the Rowley®Company, LLC. 1
Solar Panel Battery Charger
RTMSOLAR2
When paired with our solar panel, Li-ion motors or battery packs remain powered by harnessing
the natural energy of the sun. Sleek design allows for unobtrusive placement behind most headrails.
The charger uses industry leading, crystal technology to maximize sun ray absorption in a wide range of locations and
orientations. Renewable power means motors stay running for longer, without the need for regular charging.
Solar Panel Battery Charger - Use the sun to your
advantage with our R-TEC Automation®Solar Panel,
even when Solar Panel is partially shaded.
FEATURES
USB
Charge
Solar
Powered
Sleek
Design
Crystal
Technology
Low Light
Efficiency
Eco
Friendly
Plug &
Play
© 2021 Rowley®Company. All rights reserved. R-TEC Automation®is a registered trademark of the Rowley®Company, LLC. 2
TABLE OF CONTENTS
Compliance Statement 3
Technical Data / Pack Contents 3
Product Specifications
Kit Components
Safety 4
Installation Location Guide 5 - 7
Sun's Seasonal Declination Differences
Sun's Seasonal Performance
Light Transmission
Assessing the Installation Location 8 - 10
Pre Installation Assessment
Example of Pre Installation Assessment
Installation 11 - 17
Mounting Options
Installation Process
Bending Bracket
Connecting Solar Panel with Motor
Dimensions 18
Troubleshooting 19
© 2021 Rowley®Company. All rights reserved. R-TEC Automation®is a registered trademark of the Rowley®Company, LLC. 3
Parameters Value
COMPLIANCE STATEMENT
TECHNICAL DATA / PACK CONTENTS
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired operation.
167
2
3 5
4
KIT COMPONENTS
1. Solar Panel
2. L-Bracket - Aluminum
3. Cable: Male Micro USB to Male Micro USB Connector Cable
4. Cable: Male Barrel to Male 2 Pin SMR
5. Alcohol Wipe Cloths (Twin Pack)
6. Dual Lock Type 250 Fastener
7. Slot & Screw Cover Stickers / Label Set
PRODUCT SPECIFICATIONS
Max Output Power (Under 1 SUN - 1200W/m²) 2.73 W
Round Connector
Vmax 12.6 V
Imax 220 mA
USB Connector
Vmax 5 V
Imax 300 mA
IP Rating IP40
© 2021 Rowley®Company. All rights reserved. R-TEC Automation®is a registered trademark of the Rowley®Company, LLC. 4
SAFETY
Any changes or modifications to this unit not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment. Incorrect installation can lead to serious injury and will void
manufacturer’s liability and warranty.
WARNING
Do no dispose of in general waste.
Please recycle batteries and damaged electrical
products appropriately.
CAUTION
• Do not expose to moisture or extreme temperatures.
• Do not allow children to play with this device.
• Use or modification outside the scope of this instruction manual will void warranty.
• Installation and programming to be performed by a suitably qualified installer.
• For use within Li-ion Motors and rechargeable battery packs only.
• Do not cut power cables.
• Use only R-TEC Automation®hardware.
• NOT suitable for exterior application.
• Do not drill into Solar Panel body.
• The routing of cable through walls shall be protected by isolating bushes or grommets.
• Ensure power cable is clear and protected from moving parts.
• If cable or power connector is damaged, do not use.
IMPORTANT SAFETY INSTRUCTIONS TO BE READ PRIOR
TO OPERATION
• It is important for the safety of persons to follow the enclosed instructions. Save these instructions for future reference.
• Persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge
should not be allowed to use this product.
• Frequently inspect for improper operation. Do not use if repair or adjustment is necessary.
• Keep Solar Panel away from children.
© 2021 Rowley®Company. All rights reserved. R-TEC Automation®is a registered trademark of the Rowley®Company, LLC. 5
Avoid shadowing from trees, awnings, etc. for optimal performance.
IMPORTANT
INSTALLATION LOCATION GUIDE
SUN’S SEASONAL DECLINATION DIFFERENCES
Take into account the movement of sun throughout the season.
Northern Hemisphere
Southern Hemisphere
© 2021 Rowley®Company. All rights reserved. R-TEC Automation®is a registered trademark of the Rowley®Company, LLC. 6
SUN’S SEASONAL PERFORMANCE
Northern Hemisphere
© 2021 Rowley®Company. All rights reserved. R-TEC Automation®is a registered trademark of the Rowley®Company, LLC. 7
Southern Hemisphere
LIGHT TRANSMISSION
Light transmission can vary widely with the number of window panes and types of coatings. The type of glass needs to be
assessed. Approximate transmission factors are:
Glass Type Transmission Factors
Single Panel 70%
Double Panel 63%
Double Panel with bronze tint 30%
Double Panel with selective low-e coating 45% - 57%
© 2021 Rowley®Company. All rights reserved. R-TEC Automation®is a registered trademark of the Rowley®Company, LLC. 8
ASSESSING THE INSTALLATION LOCATION
PRE INSTALLATION ASSESSMENT
Hold the Lux meter directly against the window glass indoors in the location you wish to mount the solar panel, and observe
the KLux Reading.
Lux Meter
Measuring sunlight through the window
© 2021 Rowley®Company. All rights reserved. R-TEC Automation®is a registered trademark of the Rowley®Company, LLC. 9

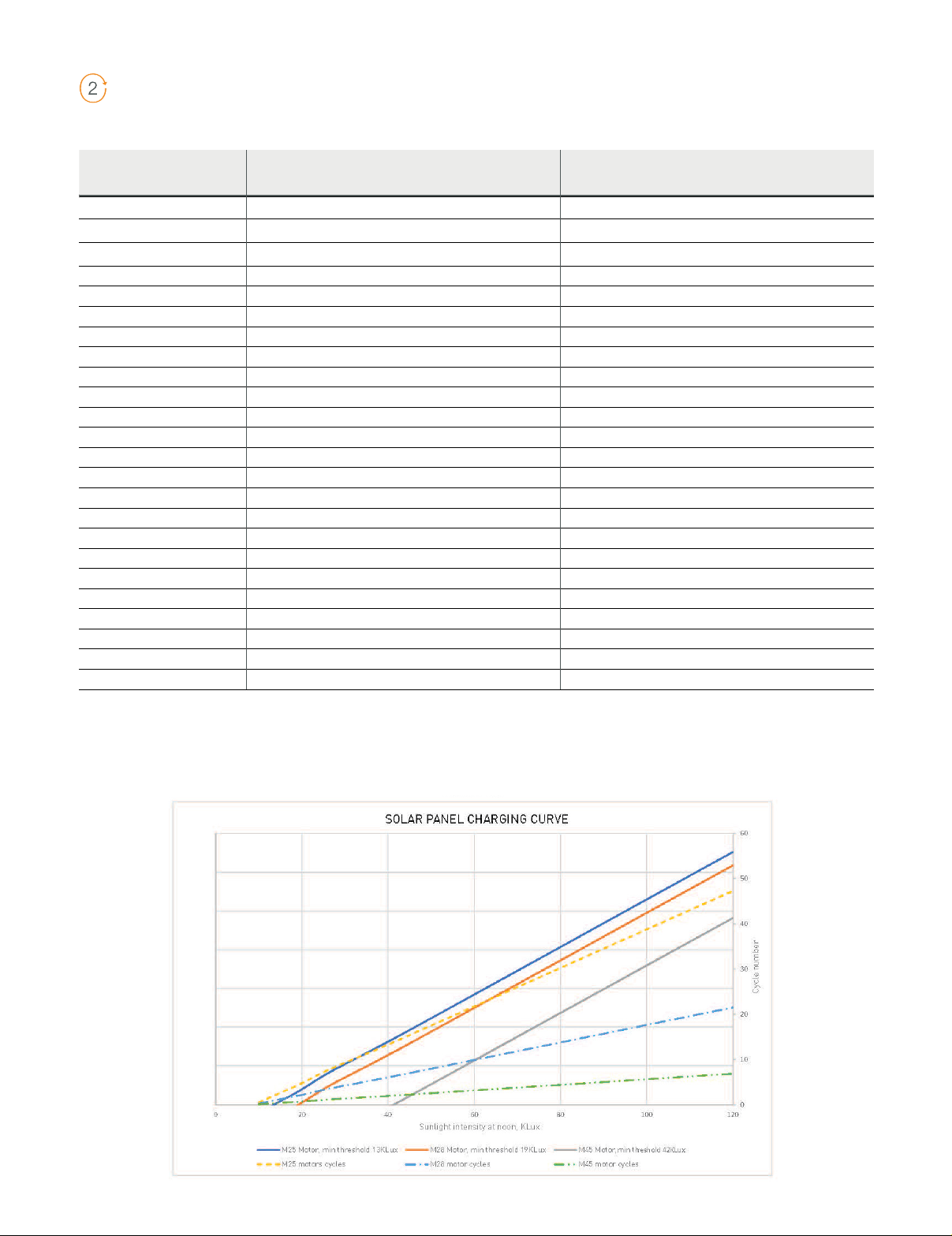

Using the time of the day that the measurement was taken, select the coefficient that corresponds to your region / time of year.
Use the value calculated from the table above with the graph below to estimate the number of cycles that the solar panel can
provide over a 24 hour period.
Note: 0.00 coefficient means that the sunlight intensity is too low to be measured accurately.
Estimate performance
Time of Measurement
on a Particular Day
Coefficient in January (North Hemisphere)
& July (South Hemisphere)
Coefficient in July (North Hemisphere)
& January (South Hemisphere)
1:00 AM 0 0
2:00 AM 0 0
3:00 AM 0.00 0.00
4:00 AM 0.00 0.00
5:00 AM 0.00 0.00
6:00 AM 0.00 13.64
7:00 AM 0.00 4.96
8:00 AM 0.00 2.97
9:00 AM 5.57 1.95
10:00 AM 1.79 1.53
11:00 AM 1.24 1.34
12:00 PM 1.00 1.09
1:00 PM 1.02 1.00
2:00 PM 1.06 1.07
3:00 PM 1.51 1.16
4:00 PM 2.26 1.32
5:00 PM 0.00 1.69
6:00 PM 0.00 2.56
7:00 PM 0.00 5.34
8:00 PM 0.00 0.00
9:00 PM 0.00 0.00
10:00 PM 0.00 0.00
11:00 PM 0.00 0.00
12:00 PM 0.00 0.00
© 2021 Rowley®Company. All rights reserved. R-TEC Automation®is a registered trademark of the Rowley®Company, LLC. 10
EXAMPLE OF PRE INSTALLATION ASSESSMENT
Measure the KLux using a Lux meter
Measured Value = 20KLux
Measuring sunlight through the window
Measuring sunlight intensity at 3:00 PM during winter of Northern Hemisphere, for a M25 motor installation:
Multiply the measured Value by the coefficient in the table on page 9.
Sunlight intensity = Measured Value x coefficient
Sunlight intensity = 20KLux x 1.51 = 30.2KLux
Estimate performance
Calculated sunlight intensity = 30.2KLux
Locate 30.2KLux on the x-axis and draw a vertical line from it until it meets the motor curve.
Draw a horizontal line intersecting the vertical line and the y-axis; gives an estimated number of cycles (within a 24-hour
period) that can be achieved without depleting the battery level. i.e. the motor is only consuming energy harvested from
the sun.
In this case it is approximately 10 cycles.
3:00 PM 1.51 1.16
