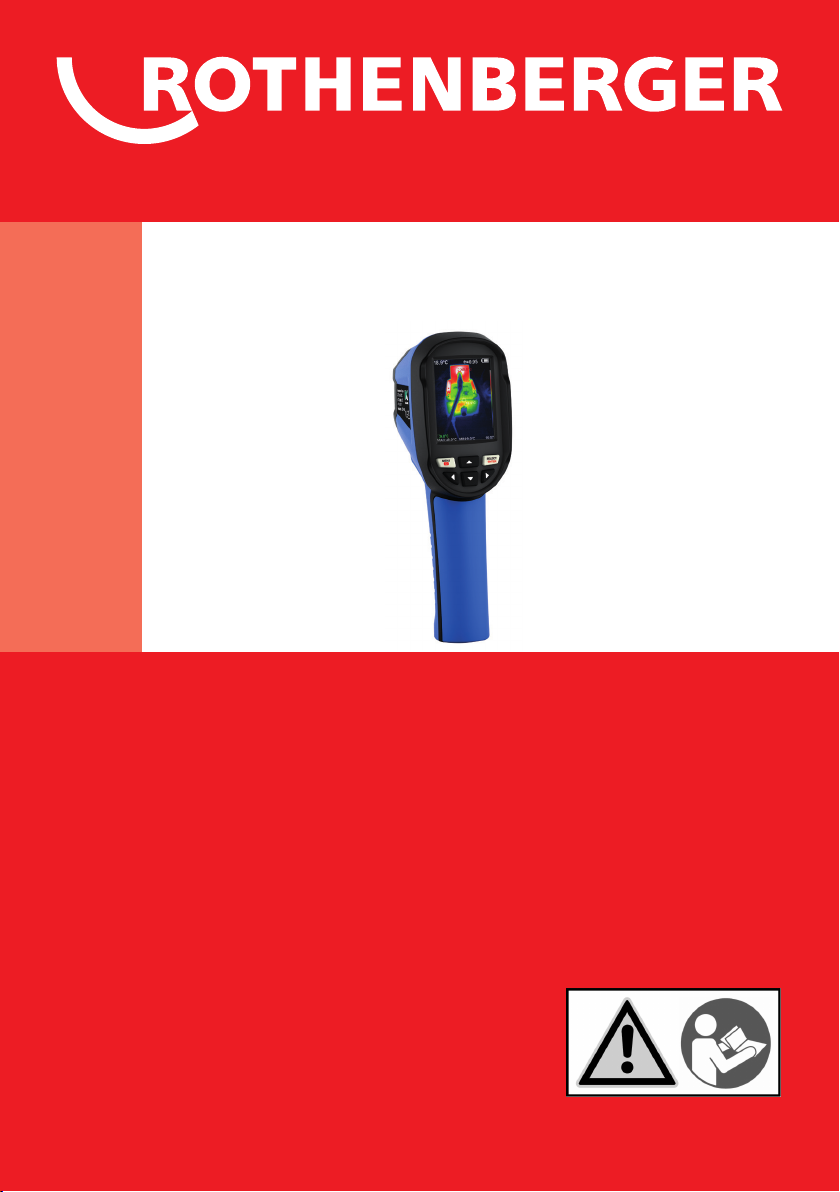

RO THERMAL IMAGING
CAMERA
rothenberger.com
MAN00150 REV 1.00321Part No. 1000003350
RO THERMAL IMAGING CAMERA
EN Instructions for use
2ENGLISH
Contents Page
1 Introduction ..........................................................4
2 General saftey.......................................................4
3 RO thermal imaging camera overview ................5
4 Maintenance .........................................................5
4.1 Cleaning ........................................................................5
4.2 Lens maintenance.........................................................5
5 Batteries................................................................6
5.1 How to charge batteries...............................................6
5.2 Optimal battery performance ......................................6
5.3 Battery disposal............................................................6
6 Specifications........................................................7
7 Layout ....................................................................8
8 Display ..................................................................9
8.1 Colour code ...................................................................9
8.2 Central point temperature cursor ................................9
8.3 Highest point temperature cursor ...............................9
9 Keypad buttons ..................................................10
10 Operation............................................................10
10.1 Power on/off ...............................................................10
10.2 LCD screen display ......................................................10
10.3 LED light......................................................................10
10.4 Switching between image types ...............................11
10.5 Image capture .............................................................11
10.6 Hide highest & lowest temperature...........................11
10.7 Image output ..............................................................11
11 Menu .................................................................11
11.1 Image overlapping sub menu .....................................11
11.2 Image overlapping application...................................12
11.3 Image submenu – view image....................................12
11.4 Deleting images ..........................................................12
11.5 Colour palatte sub menu - description.......................13
11.6 Application of colour palatte .....................................13
ENGLISH 3
Contents Page
11.7 Emissivity sub menu - description...............................14
11.8 Emissivity setting.........................................................14
11.9 Application of emissivity measurement .....................15
11.10 Emissivity vaule of common materials .......................15
12 Settings ...............................................................16
12.1 Auto shutdown setting................................................16
12.2 Intensity setting...........................................................16
12.3 Language setting.........................................................17
12.4 Unit setting ..................................................................17
12.5 Time format setting.....................................................17
12.6 Time & date setting .....................................................17
12.7 Enable/disable hotspot cursor.....................................18
13 Troubleshooting..................................................18
14 EU declaraton of conformity ..............................19
4ENGLISH
Thank you for purchasing our instrument. Use according to these instructions
and maintain properly for optimal performance.
IMPORTANT: Please read these instructions carefully. Note the safe opera-
tional requirements, warnings & cautions. Use the product
correctly and with care for the purpose for which it is intended. Failure to do
so may cause damage and/or personal injury and will invalidate the warran-
ty. Keep these instructions safe for future use.
1 Introduction
Ensure that you have read & understood the safety precautions described in
the following text before using the product.
Safety warning
When using this product you must adhere to relevant practice regulations –
such as Health & Safety, general workshop and local authority.
• DO familiarise yourself with the applications, limitations and potential
hazards of the Thermal Imaging Camera.
• DO use the correct charging adapter that is supplied with the Thermal
Imaging Camera.
• DO keep the Thermal Imaging Camera Clean and in good condition.
• DO protect the Thermal Imaging Camera from thermal shock - caused by
large and/or fluctuations in temperature and high temperatures.
• DO NOT assemble or dismantle the Thermal Imaging Camera.
• DO NOT use the Thermal Imaging Camera if it is damaged.
• DO NOT get the Thermal Imaging Camera wet or use in damp or wet
conditions or areas where there is condensation.
• DO NOT use the Thermal Imaging Camera for any purpose other than that
for which it is designed.
• DO NOT allow untrained persons (particularly children) to operate the
Thermal Camera.
2 General saftey
ENGLISH 5
• DO NOT operate the Thermal Imaging Camera when you are tired or
under the influence of alcohol, drugs or intoxicating medication.
Safety warning
The warnings, cautions and instructions in this manual do not cover all
possible conditions and situations that may occur. Logic and attention must
be applied by the operator.
3 RO thermal imaging camera overview
The RO Thermal imaging camera Thermal Imaging Camera combines surface
temperature measurement & real-time thermal imaging.
The large colour display screen provides the user with visual information
based on the current activity including an on-screen curser to accurately
locate temperature hotspots.
The RO Thermal imaging camera uses a data storage system allowing the
user to store images on the device. These can be extracted through USB to
generate reports.
Suitable for many industries including plumbing & heating (radiators,
underfloor heating, energy auditing or water damage), automotive (heated
seats and windows, high resistance in wiring, overheating wiring or
components).
4 Maintenance
Use a damp cloth and light soap to clean the outer casing of the device. Don’t
use abradant, isopropanol or solvent to clean. The lens & screen should be
cleaned with cleaning agents for professional optical glasses.
To prevent damage of the refined anti-reflective coating:
• Don’t clean with force.
• Use a cleaning solution for lens maintenance, such as an alcohol-based
4.1 Cleaning
4.2 Lens maintenance
6ENGLISH
commercial lens cleaner & a lint-free cloth or paper towel.
• Wipe the lens surface by making circular motion. Then discard the cloth.
• If it is necessary to repeat above step, please use new cloth to dip with the
cleaning solution to wipe.
• Compressed air tanks can be used to remove loose particles.
• Use Micro USB cable to charge.
• The product has built-in chargeable 18650 lithium-ion batteries.
• When the battery level is low, the top right of the screen will display
“ ”.
• Ensure that the product is turned off before charging.
• Remove the Micro USB cable after fully charging.
• Don’t charge the battery for more than 24 hours.
• To extend the battery life, charge the product for two hours at least
every three months.
• Don’t try to charge the battery in extremely cold conditions.
This Product contains lithium-ion batteries. Always dispose of depleted
batteries using approved disposal methods that protect the environment.
5.1 How to charge batteries
5.2 Optimal battery performance
5.3 Battery disposal
5 Batteries
ENGLISH 7
Model RO Thermal imaging camera
Display screen 2.8-inch full-view TFT display
Temperature
measurement range
-20℃to 300℃(-4°F to 572°F)
Measurement accuracy ±2℃/±2% (whichever is greater)
Infrared image resolution 220×160
Visible image resolution 35200 pixel
LCD resolution 320×240
Field angle 35°×26°
Focal distance (shortest) 0.15m
Thermal sensitivity 0.07℃
Frame rate of thermal images 9Hz
Focus mode Fixed
Wavelength coverage 8-14um
Emissivity Adjustable from 0.01 to 1.00
Colour palette Rainbow, iron oxide red, cold col-
our, black & white, white & black
Storage capacity Built-in memory 3GB
File format JPG
USB Micro USB 2.0
Power supply Built-in chargeable 18650 battery
Detachable
Working time 2-3 hours
Setting command Unit, language, date, time,
information
Language English & French
Automatic power-off time Selectable: 5 minutes/20 minutes/
not power off automatically
Product size 96mm×72mm×226mm
Product weight 389g
6 Specifications
8ENGLISH
7 Layout
Work temperature 0℃to 45℃
Storage temperature -20℃ to 60℃
Relative humidity < 85%RH
This product has been tested for compliance with the following EMCThis product has been tested for compliance with the following EMC
Directive 2014/30/EU.Directive 2014/30/EU.
Colour display screen
Keypad
Select & enter
Handle
On/Off switch &
Menu
Micro USB
Infrared imaging
sensor
Visible light camera
LED lighting lamp
Image capture
trigger
ENGLISH 9
8 Display
Battery
power
Colour code
Time
Central point
temperature
cursor
Lowest
temperature
cursor
Central point
temperature
Maximum value & minimum value of
eld temperature
Highest
temperature
cursor
Current emissivity
Marks the colour corresponding to the relative temperature from low to high.
(See colour palette menu for more details).
Indicates the central position of the screen. The temperature value is also
displayed in the top left corner of the screen.
Indicates the highest temperature position in the screen area. The temperature
value is also displayed in the bottom left corner of the screen.
8.1 Colour code
8.2 Central point temperature cursor
8.3 Highest point temperature cursor
10 ENGLISH
9 Keypad buttons
10 Operation
After turning on, the screen shows the thermal imaging status.
Note: Time adjustment may be required when you move the camera between
environments with varying ambient temperatures.
Hold down the “image capture trigger” for 5 seconds to power on/off the
LED light.
Press & hold the key for 3 seconds to turn the Thermal Imaging Camera
on or off.
10.2 LCD screen display
10.3 LED light
10.1 Power on/off
Menu key & On/off key Selection key/Enter key
Navigation keys: Up, down, left & right
