Rosemor Rotomatic User manual
Operation and Maintenance Manual
Automatic escalator Deep Cleaning Machine
Rosemor International Ltd
UNIT F Moses Winter Way
Wallingford
Oxon
OX10 9FE
TEL: (+44)01491 838 011
WEB: www.rosemor.com
Email: [email protected]
Designed & Assembled
in Oxfordshire, UK.
The
A brief introduction…
22/11/2019 Written and illustrated by Ben Sprules
Rosemor International Ltd 2019 © 2
Automatic Escalator Deep Cleaning Machine – Rotomatic v1.0

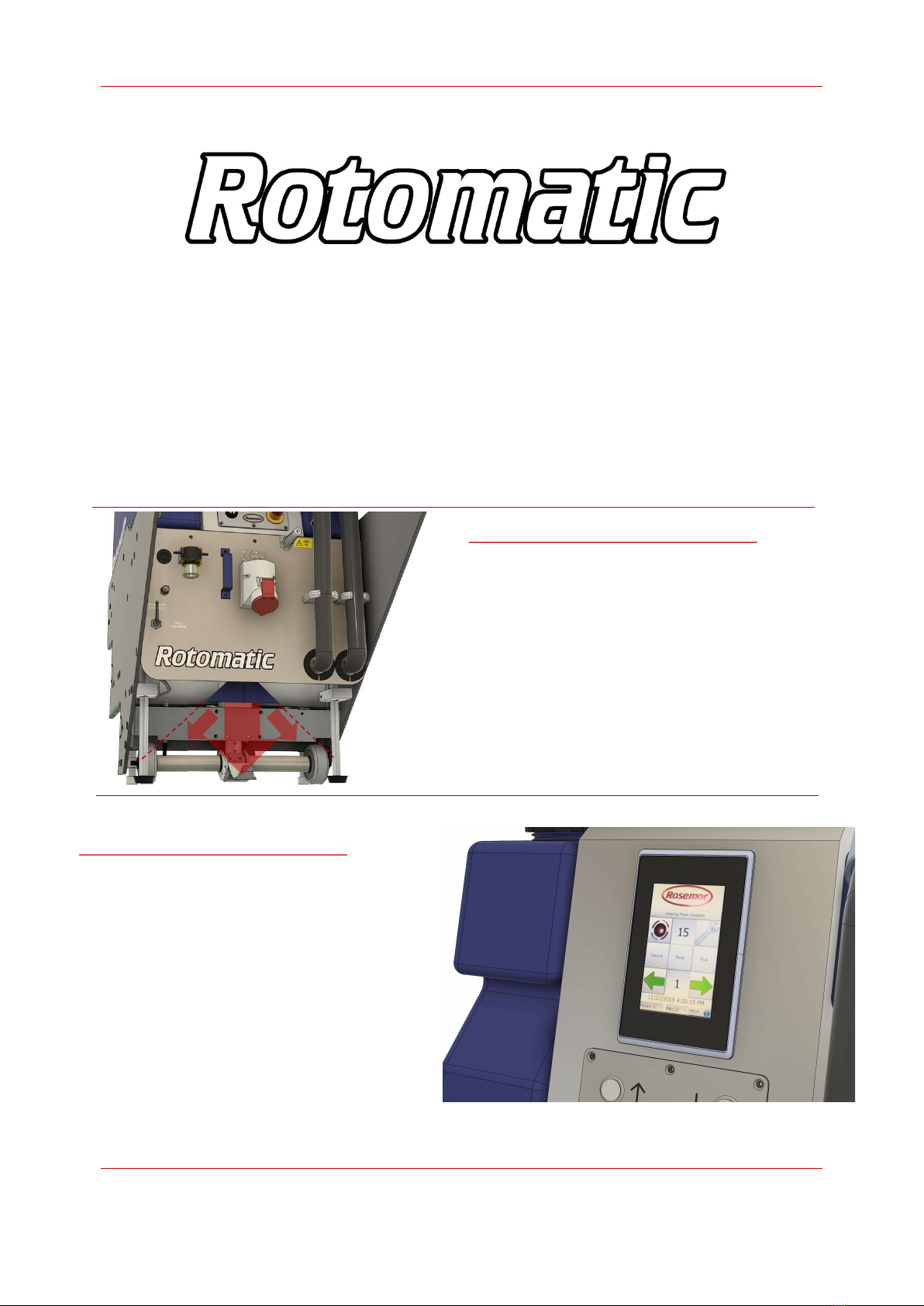

“The Rotomatic is the most technologically
advanced escalator cleaning system in the world!”
It’s been several years in development. We’ve been listening to feedback from escalator cleaning
machine operators and dealerships all over the world and this has led us to our newest and most
feature-rich machine we have ever produced. We have literally reinvented the proverbial wheel.
Energy Efficient 2-stage step drying
All previous automatic escalator cleaning machines
use suction to remove the wastewater from the
steps. This works well, but still left some residual
moisture and foam in the escalator step treads.
The new Rotomatic utilizes the very same suction as
before with the addition of a powerful air-blower
nozzle that blasts warm air at the steps leaving
them even dryer and ready for use, than ever before
seen.
Industrial Touchscreen Controller
Rotomatic comes with a powerful touchscreen
interface. This allows the operator more
control than ever before. Access onboard
tuition and guides for the machine, view any
errors or alerts (in order to be easily able to
identify and correct them), select cleaning
programs for both escalators and travellators
(using the optional T10 travellator attachment)
and access new features found only on the
Rotomatic Escalator Cleaning Machine.
22/11/2019 Written and illustrated by Ben Sprules
Rosemor International Ltd 2019 © 3
Automatic Escalator Deep Cleaning Machine – Rotomatic v1.0
Rosemor International Ltd reserves the right to adjust the machine and any documentation. This
operation and maintenance instruction manual is intended for service personnel only.
Preliminary remarks
Safety and reliability are essential to guarantee a long and trouble-free service life of the Rotomatic.
In order to fulfil these requirements, the operator must obtain sufficient skills in both handling and
operating the machine and of its maintenance and care. It is therefore vital that the operator
receives instruction and training from either Rosemor International Ltd or one of its specialists
before the cleaning machine is used for the first time.
This operation and maintenance manual only represent additional assistance for the operator in
correct and safe use of the cleaning machine. Reading this manual does not qualify any person for
safe use of the Rotomatic.
Rosemor International Ltd or one of its customer service centre’s should be informed immediately if
any technical fault in this cleaning machine is suspected or has occurred.
Automatic Self-Cleaning Mode
Rotomatic is equipped with a revolutionary new
feature: Self-Cleaning Mode.
Now, after you’ve finished cleaning an escalator,
save yourself valuable time and energy on the
laborious task of manually cleaning the
underside of the machine by now simply
activating the self-cleaning mode.
Self-cleaning mode diverts and sprays clean
fresh water back up inside the machine, across
the brushes and flushes out the vacuum recovery
tray all in one, automatic program that requires
just 5 minutes (300 seconds) to complete.
This feature, combined with our new 10s ‘Rapid’
cleaning program, makes the Rotomatic the
fastest and most efficient escalator cleaning
machine in the world.
More info on this exciting new feature can be
found on Pg. 26 of this manual.
Table of Contents
22/11/2019 Written and illustrated by Ben Sprules
Rosemor International Ltd 2019 © 4
Automatic Escalator Deep Cleaning Machine – Rotomatic v1.0
1 Safety Precautions ……………………………………………………...5
1.1 Preliminary Remarks ……………………………………………….5
1.2 Owner’s Guide …………………………………………………………….5
1.3 Intended & Specified Use ……………………………………….5
1.4 Who may operate the machine .………………………….5
1.5 Safety for the Operator ………………………………………….5
1.6 Modifications & changes to the machine …………6
1.7 General safety instructions …………………………………..6
1.8 Safety Instructions ……………………………………………………6
1.9 Information on Warning Signs …………………………...6
1.10 Warning Signs & Stickers ……………………………………7
1.11 Product Liability ………………………………………………………7
1.12 Emissions ………………………………………………………………….7
1.13 Leaving the machine unattended ……………………7
2 Technical Data …………………………………………………………….8
2.2 Location of Components ……………………………………...9
2.2.1 List of Components ……………………………………………11
2.3 Touch Screen Functions and Layout ……………….12
2.3.1 List of Touch Buttons ………………………………………….13
3 Operation ………………………………………………………………………14
3.1 Before Starting …………………………………………………………14
3.2 Install/Check Brushes ………………………………………….14
3.2.1 Procedure for changing the brushes ……………14
3.3 Filling Detergent Tank …………………………………….......15
3.3.1 Replacing Tank ……………………………………………………15
3.4 Preparations on site ……………………………………………16
3.5 Safety measures on site ………………………………………16
3.6 Preliminary inspection and work ……………………..16
3.7 Removing machine from trolley …………………......16
3.8 Positioning machine on Escalator ……………………17
3.9 Leg Setting / Step Height Adjustment …………….17
3.10 Select Cleaning Program ………………………………….18
3.10.1 Cleaning Programs Explained ……………………….19
3.11 Cleaning the Escalator ……………………………………….20
3.11.1 Shimmying the machine sideways ………………20
3.11.2 Cleaning a step ……………………………………………………21
3.11.3 Cleaning an entire escalator …………………………22
3.12 Additional Manual Cleaning & Detailing ………22
3.13 Refilling the tanks ………………………………………………22
3.14 Emptying the wastewater tank ……………………….22
3.15 Removing machine from Escalator ………………23
3.16 Use of the Transportation Trolley ………………….24
3.16.1 Service Mode ………………………………………………………25
3.17 Self-Cleaning Mode………………………………………………26
4 Maintenance ………………………………………………………………..27
4.1 Maintenance ……………………………………………………………..27
4.2 Daily Care …………………………………………………………………27
4.3 Weekly Care ……………………………………………………………27
4.4 Maintenance after 30 hours ………………………………27
4.5 Maintenance after 100 hours cleaning ………….27
4.6 Annual Maintenance ……………………………………………28
4.6.1 Tightening the Chain ………………………………………….28
4.6.2 Yellow Jets ………………………………………………………….28
5 Maintenance ……………………………………………………………….29
5.1 Help Menu ………………………………………………………………….29
5.2 Alarm Menu ……………………………………………………………29
5.3 Basic Troubleshooting …………………………………………30
.
Page
1. Safety Precautions
22/11/2019 Written and illustrated by Ben Sprules
Rosemor International Ltd 2019 © 5
Automatic Escalator Deep Cleaning Machine – Rotomatic v1.0
1.1 Preliminary Remarks
The automatic escalator deep cleaning machine
(Rotomatic) was designed and manufactured
according to state-of-the-art technology and in
compliance with all relevant regulations. This,
however, does not guarantee that some other
unavoidable dangers for persons and property
can occur. All personnel working with this
machine must therefore read and follow these
operating instructions, and in particular, be fully
trained in all of the relevant safe operating
procedures provided by Rosemor International
Ltd or one of its authorised specialists.
These operating instructions must remain at the
machine for use by the operator. Each operator
must receive thorough training on handling and
working with the machine.
1.2 Owner’s duties
In accordance with EU directive on the use of
operating equipment 89/655/EEC Art.6(1) and 7
and EU framework directive 89/391/EEC Art.1(1)
and Art. 6(1), the owner of the equipment is
obliged to instruct all persons, particularly with
regard to safety, who will be authorised to work
on assembly, operation, maintenance, repair or
dismantling of the machine.
The owner is also obliged in accordance with EU
directive on the use of operating equipment
89/655/EEC Art.4a to inspect the machine before
start-up, following repair work and following
faults or malfunction.
1.3 Intended and specified use
The automatic escalator deep cleaning machine
Rotomatic is exclusively intended for basic
cleaning of indoor and outdoor escalators. Any
use beyond this stipulation must be considered
as contrary to the manufacturer’s intentions. The
manufacturer will not be liable for any damage
resulting from such work; all risk in this case
will be borne exclusively by the operator.
Correct use of the machine also includes
compliance with the conditions of operation and
maintenance stipulated by the manufacturer.
• The automatic escalator deep cleaning machine
Rotomatic is not intended, nor suitable for
cleaning hazardous dirt or substances.
• The machine is not fire-proof.
• The machine is also not licensed for use in
cleaning public streets and paths.
1.4 Who may operate the machine?
The machine may only be used by persons who
have been trained in its operation and who are
expressly authorised to carry out such work.
These persons should be at least 18 years old.
All relevant accident prevention regulations and
other generally recognised rules of safety,
engineering, industrial medicine and the
Highway Code must be strictly observed.
Assembly, equipment, maintenance and repair
work demand special knowledge and may only
be carried out by specially trained persons.
1.5 Safety for the operator
• The user must under no circumstances touch
the plug of the power supply with damp hands.
• When the machine is being disconnected from
the power network, only the plug itself may be
pulled - never the power cable.
• The machine may be repaired or opened only
by qualified personnel.
- Non-Slip safety footwear is essential when
using this machine.
- The operator should never be allowed to
become distracted or startled when
operating this machine. Do not try to engage
in conversation or attain the attention of the
operator when they are using this machine.
If work on the opened machine within
connected current is absolutely
necessary, such work may be carried out
only by a qualified electrician who is
familiar with all attendant dangers and
the relevant work stipulations (VDE0100).
When work is carried out on machine or
parts when live, only tools specially
intended for this purpose may be used.
1. Safety Precautions
22/11/2019 Written and illustrated by Ben Sprules
Rosemor International Ltd 2019 © 6
Automatic Escalator Deep Cleaning Machine – Rotomatic v1.0
1.6 Modifications and changes to the machine
It is forbidden for reasons of safety to carry out
modifications to this machine. Any unauthorised
modifications to the machine automatically
invalidate all warranty and liability claims
against the manufacturer for any damage
caused by the modified machine.
Original parts and accessories have been
specially designed for this machine. Parts and
fittings made by other manufacturers have not
been tested by us and are therefore not
approved for use. Assembly and installation of
such parts could impair the safety and the
perfect functioning of the machine. Rosemor
International Ltd expressly refuses to accept
liability for any damage resulting from the use of
non-original parts and accessories or from
work carried out by unauthorised entities.
1.7 General safety instructions
• When the machine is not in use, it must always
be locked away and the key removed. If it is not
possible to lock away the machine, some other
suitable measures must be taken to prevent
unauthorised use.
• Neither the electrical nor mechanical safety
devices on the machine may be changed or put
out of action.
• It must be ensured that no other persons, in
particular children, are in the vicinity of the
machine when it is in operation.
• The machine may only be transported in
elevators whose permitted load is adequate for
this purpose.
• The machine should only be transported when
it is loaded into it’s transportation trolley.
• When cleaning an escalator, always attempt to
prevent slip and trip hazards by cordoning off
the working area and placing out adequate
signage to inform any person that should enter
the area of the hazards that are present (such
as trailing cables and slippery surfaces).
1.8 Safety instructions for mains operated
machines
Care must be taken that the mains cable incurs
no damage by being crushed, torn, frayed, driven
over, etc. This connection must be examined
regularly for damage, bare points, scorched
areas, etc. The machine may not be used unless
the mains connections are in perfect condition.
The plug must always be disconnected prior to
any cleaning or maintenance work on the
machine, or when accessories are being fitted
and replaced.
When parts, such as brushes, mains connection
cables, plugs etc are being replaced; all
technical data provided by the manufacturer
must be observed and only original spare parts
used. Otherwise safety of the machine could be
impaired. If the power cable is damaged, it must
be replaced by a service workshop approved by
Rosemor International Ltd as specialist tools
are required to properly carry out such work.
1.9 Information on the warning signs
The purpose of the warning signs used in this
operating manual is to emphasise certain
sources of danger in the automatic escalator
deep cleaning machine, Rotomatic.
The following symbols are used in these
operating instructions:
Indicates a possibly dangerous situation
through contact with parts conducting
electricity.
Failure to observe these warnings could
lead to death or serious injury.
Indicates a possibly dangerous
situation.
Failure to observe such warnings could
lead to serious injury.
Indicates special information for
optimum use or to facilitate operation
of the machine.
1. Safety Precautions
22/11/2019 Written and illustrated by Ben Sprules
Rosemor International Ltd 2019 © 7
Automatic Escalator Deep Cleaning Machine – Rotomatic v1.0
1.10 Warning signs and stickers
Markings, warning signs and stickers may never
be removed!
Damaged or illegible warning signs and stickers
must be replaced or repaired immediately!
1.11 Product Liability
It is assumed that whenever the operator is
transporting this machine, working on this
machine or carrying out any maintenance task
on this machine; that they will wear, at least, the
minimum level of PPE (Personal Protective
Equipment) as required by their local laws or
regulations – This includes but is not limited to:
Eye protection
Hand protection
Foot protection
Ear protection
The operator is expressly notified that the
machine must be used only for the intended
purpose. If the machine is not used for the
intended purpose, such use will be at the sole
risk and responsibility of the user. Rosemor
International Ltd will not accept any liability in
such cases.
1.12 Emissions
The A-assessed equivalent continuous sound
level of this machine measures 85 ± 2 dB (A).
It is recommended that the operator wear ear
defenders when using this machine.
1.13 Leaving the machine unattended
If the operator wishes to leave the machine
unattended, they must first lower the machine
down, i.e. let the machine rest on the green glide
rails/strips. The machine must then be moved as
far forward onto the step (as though to start a
cleaning program). In this lowered position, now
move the Rotomatic to the bottom end of the
escalator (where the cleaning would normally
start). Remove the key and then disconnect and
stow away the mains cable before leaving the
machine unattended.
1.14 Procedure in case of emergency
Press ‘Emergency Stop’ button immediately to
disengage power to the machine controls (this
does not electrically isolate machine!) – If it is
safe to do so, also disconnect power from
machine. Make the emergency known to your
supervisor.
2. Description
22/11/2019 Written and illustrated by Ben Sprules
Rosemor International Ltd 2019 © 8
Automatic Escalator Deep Cleaning Machine – Rotomatic v1.0
2.1 Technical Data
Working width: 520 mm
Min step height: 185 mm
Max step height: 235 mm
Rapid cleaning per step: 10s (2x)
Fast cleaning per step: 15 s (2x)
Regular cleaning per step: 30 s (2x)
Intensive cleaning per step: 45 s (2x)
Deep clean per step: 60 s (2x)
Max. air volume of suction: 162 m³ / h
Low pressure: 300 mbar
Type of current/ frequency: AC for motors &
low voltage DC for controls/pump
50-60 Hz
Rated voltage: 230v (115v available on request)
Rated power input: 1900 W
Power output: Brush motor (inverter controlled) 750 W
Suction motor (supply voltage) 1500W
Leg Motors (inverter controlled) 2 x 180 W
Pump & Solenoid (24vdc) 13 W + 14W (27W)
Number of brushes: 16
Max’ Capacity of fresh-water tank: Max 20L of premixed detergent
(RC91)
20 L
Max’ Capacity of dirty-water tank: Recommend using 10-15L water and
1L detergent to make lifting easier
20 L
Max’ Dimensions (on Trolley) Length 1400mm
Width 840mm
Height 1050mm
Operational weight (Including filled
fresh-water tank and mains cables):
170Kg
Noise level 85 ± 2 dB (A)
Automatic Self-Cleaning Mode
Automatic self-rinsing cycle flushes
water through brushes and waste
recovery tray to clean machine
internally after use 5-minute automatic program
2. Description
22/11/2019 Written and illustrated by Ben Sprules
Rosemor International Ltd 2019 © 9
Automatic Escalator Deep Cleaning Machine – Rotomatic v1.0
2.2 Location of Components
1
2
3
4
5
6
7
8
9
27
29
10
11
12
13
14
15
16
17
28
18
19
Right
Left
2. Description
22/11/2019 Written and illustrated by Ben Sprules
Rosemor International Ltd 2019 © 10
Automatic Escalator Deep Cleaning Machine – Rotomatic v1.0
2.2 Location of Components
20
21
22
23
24
25
26
Rear Front
Table of contents
Other Rosemor Cleaning Equipment manuals
