Roolen Breath User manual
Smart Ultrasonic Humidifier

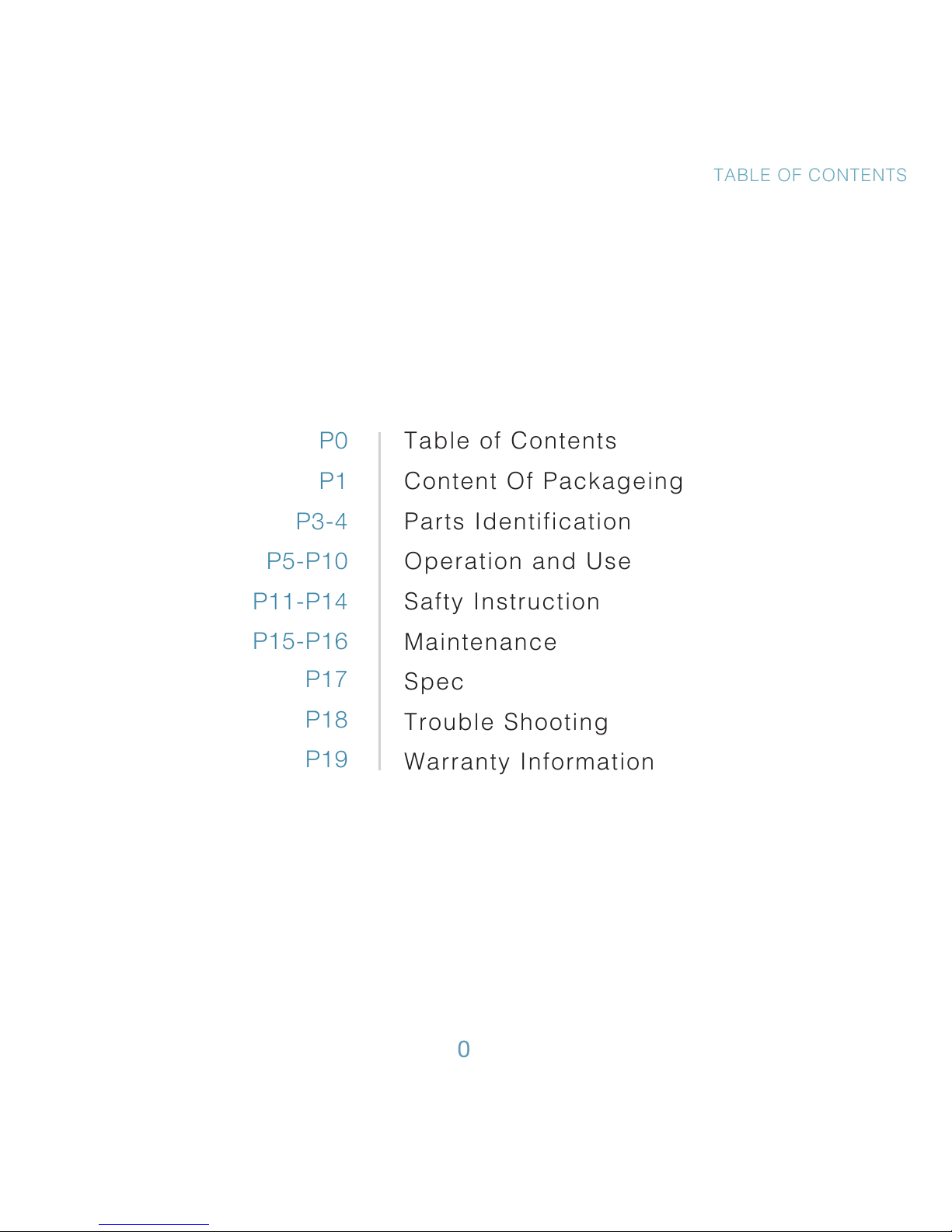

Table of Contents
Content Of Packageing
Parts Identification
Operation and Use
Safty Instruction
Maintenance
Spec
Trouble Shooting
Warranty Information
P0
P1
P3-4
P5-P10
P11-P14
P15-P16
P17
P18
P19
TABLE OF CONTENTS
0
1

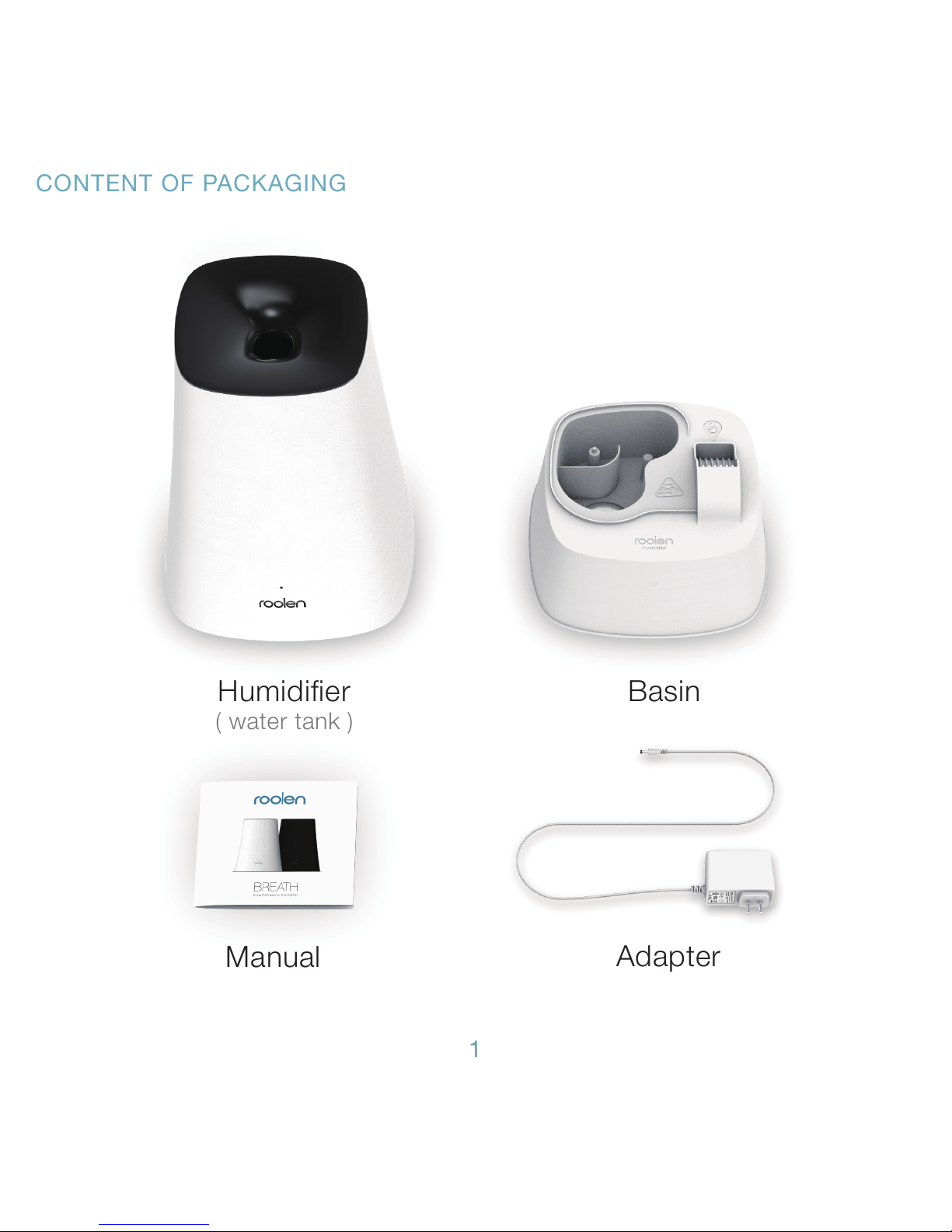

Adapter
Manual
( water tank )
Basin
CONTENT OF PACKAGING
Humidifier

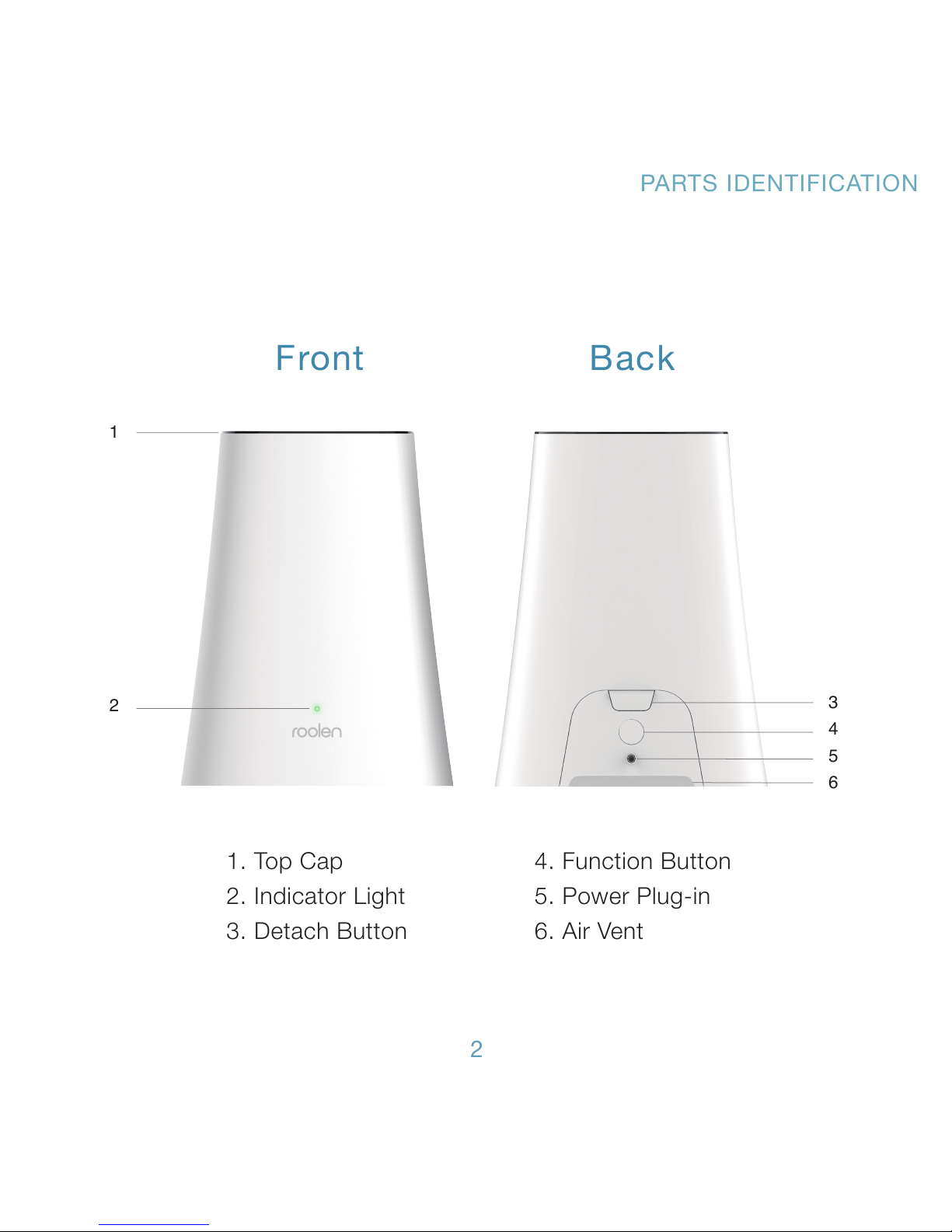

1. Top Cap
2. Indicator Light
3. Detach Button
4. Function Button
5. Power Plug-in
6. Air Vent
2
1
3
4
5
6
PARTS IDENTIFICATION
Front Back
2

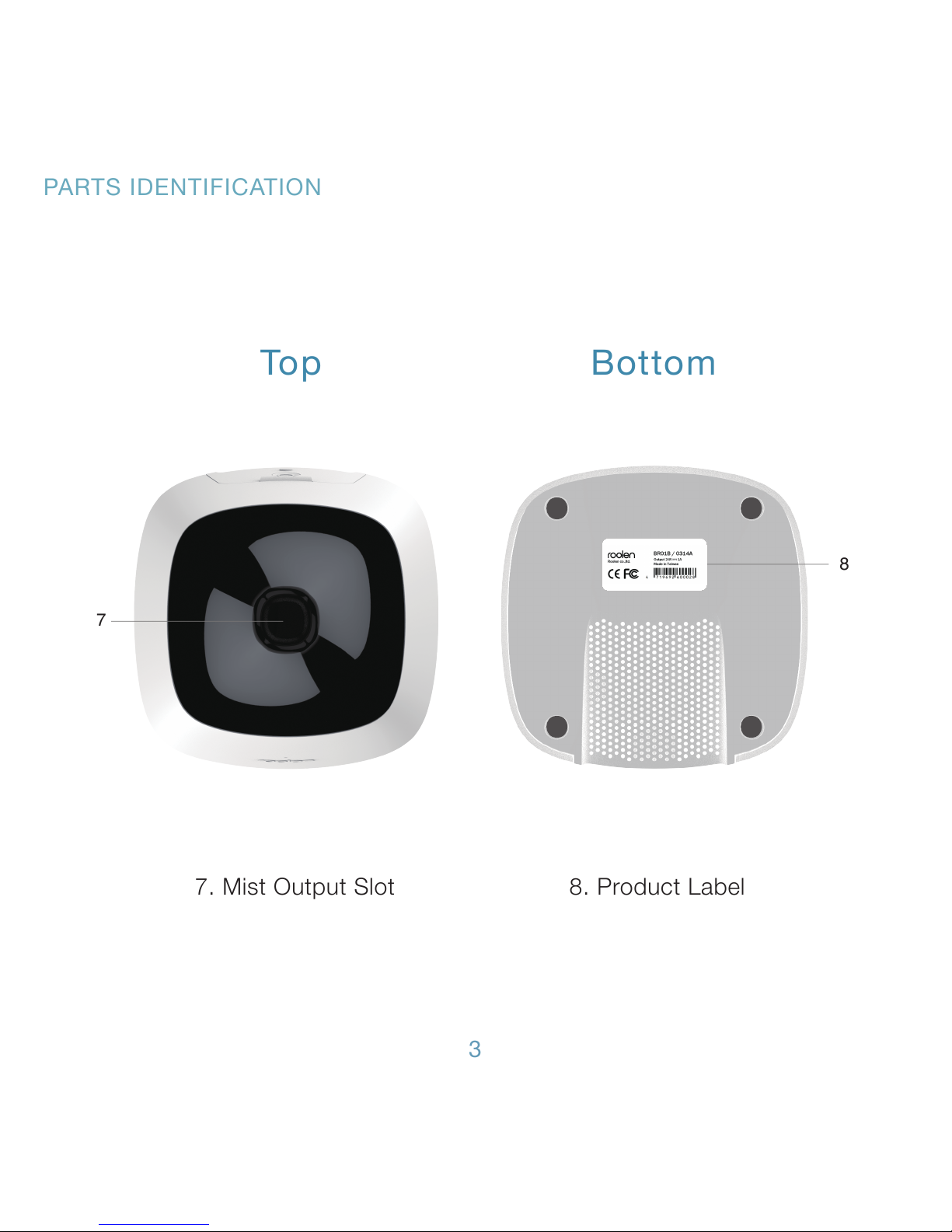

7. Mist Output Slot 8. Product Label
7
Top Bottom
PARTS IDENTIFICATION
8
3

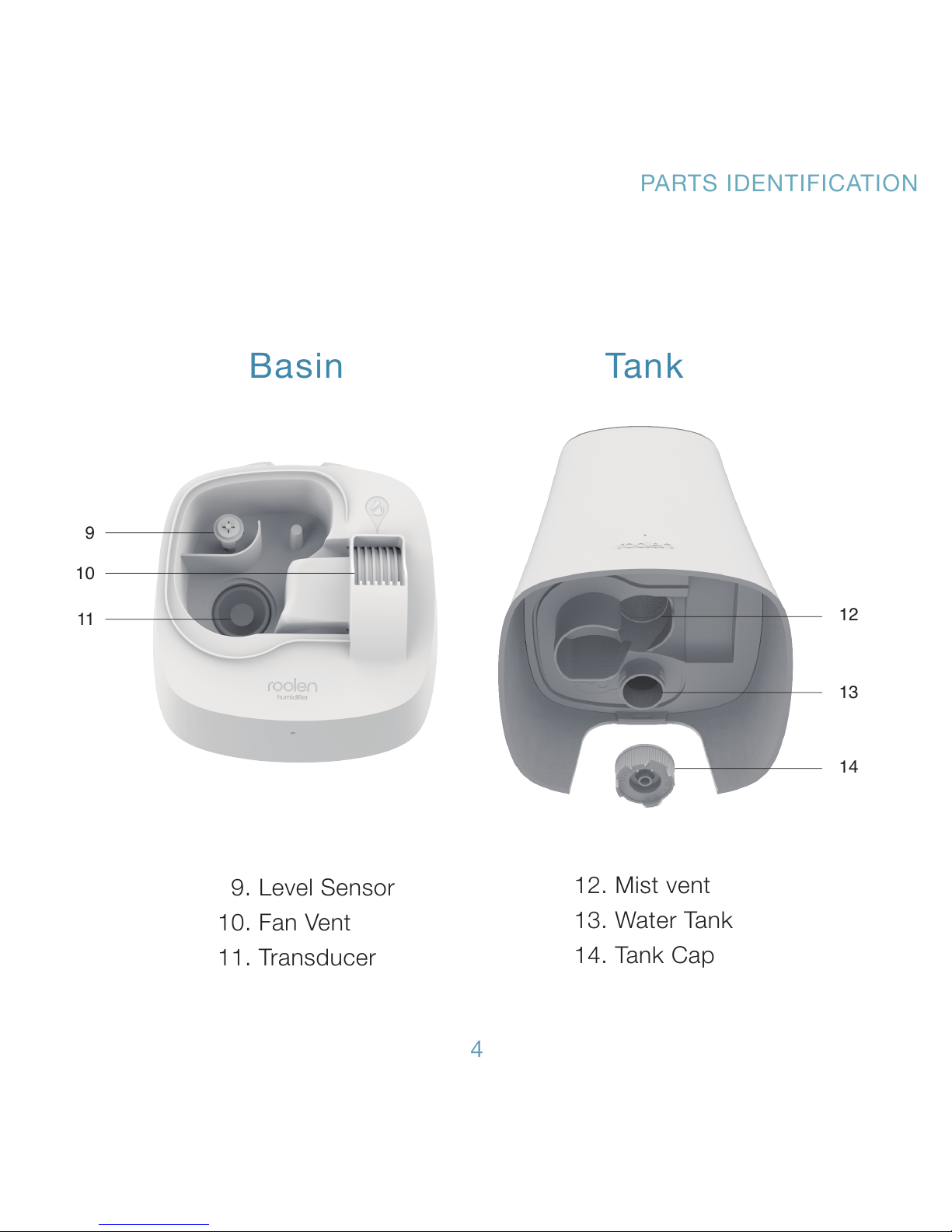

12. Mist vent
13. Water Tank
14. Tank Cap
9. Level Sensor
10. Fan Vent
11. Transducer
Basin Tank
12
13
14
9
10
11
PARTS IDENTIFICATION
4
OPERATION AND USE
5
P. 7

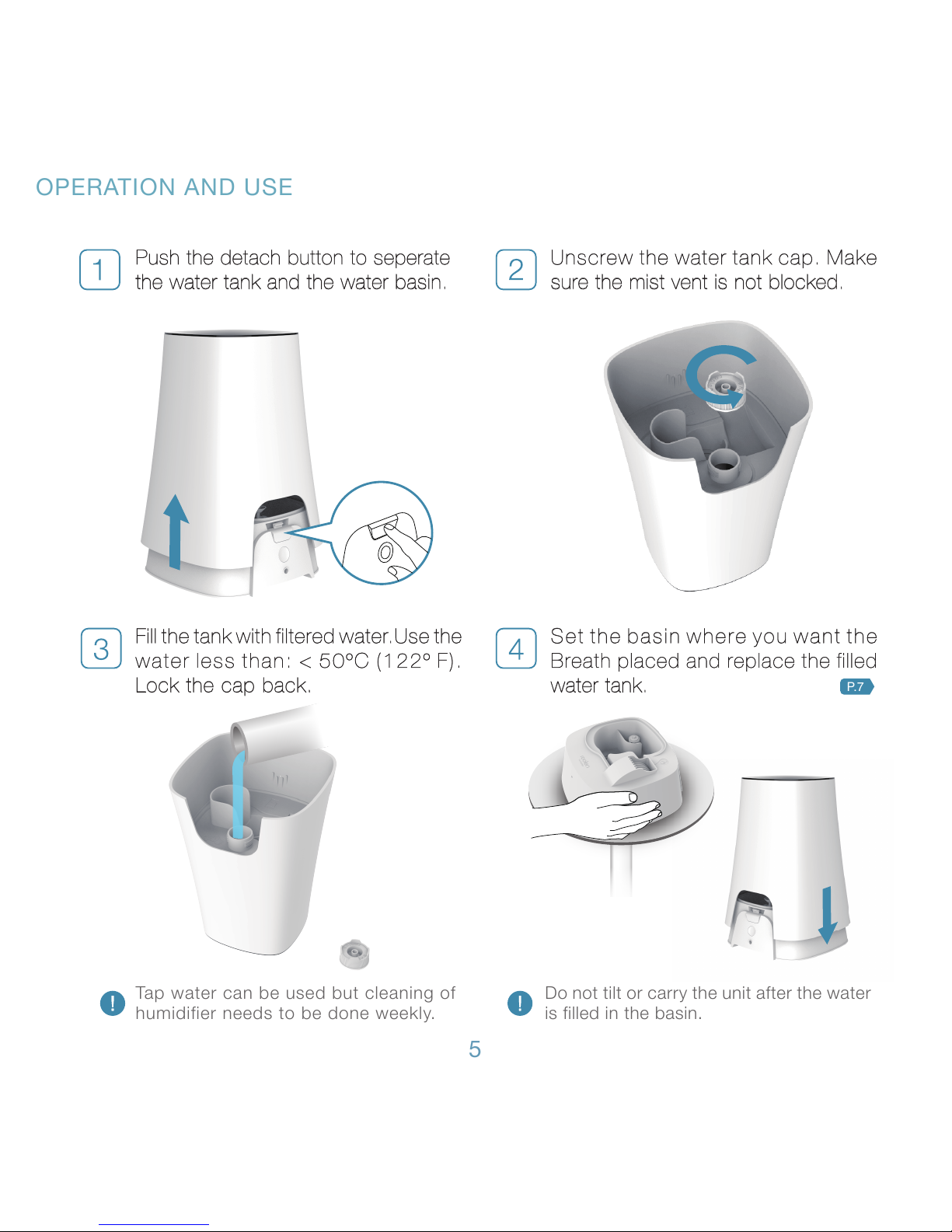

Set the basin where you want the
Breath placed and replace the filled
water tank.
Fill the tank with filtered water.Use the
water less than: < 50ºC (122º F).
Lock the cap back.
Tap water can be used but cleaning of
humidifier needs to be done weekly.
Do not tilt or carry the unit after the water
is filled in the basin.
Push the detach button to seperate
the water tank and the water basin.
Unscrew the water tank cap. Make
sure the mist vent is not blocked.
Stand by
Low
High
Auto
Out of water
OPERATION AND USE
6

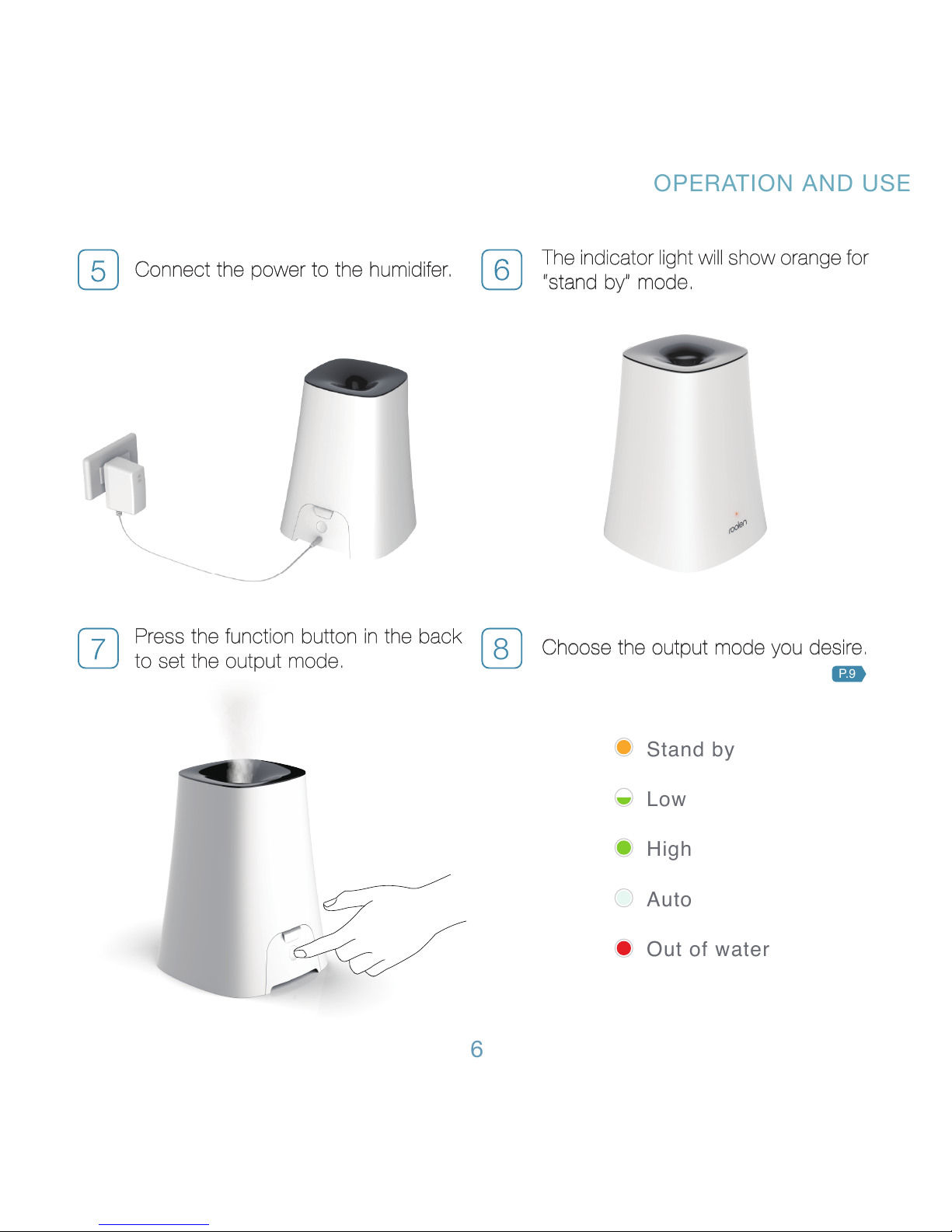

Choose the output mode you desire.
8
The indicator light will show orange for
“stand by” mode.
Press the function button in the back
to set the output mode.
Connect the power to the humidifer.
P. 9
OPERATION AND USE

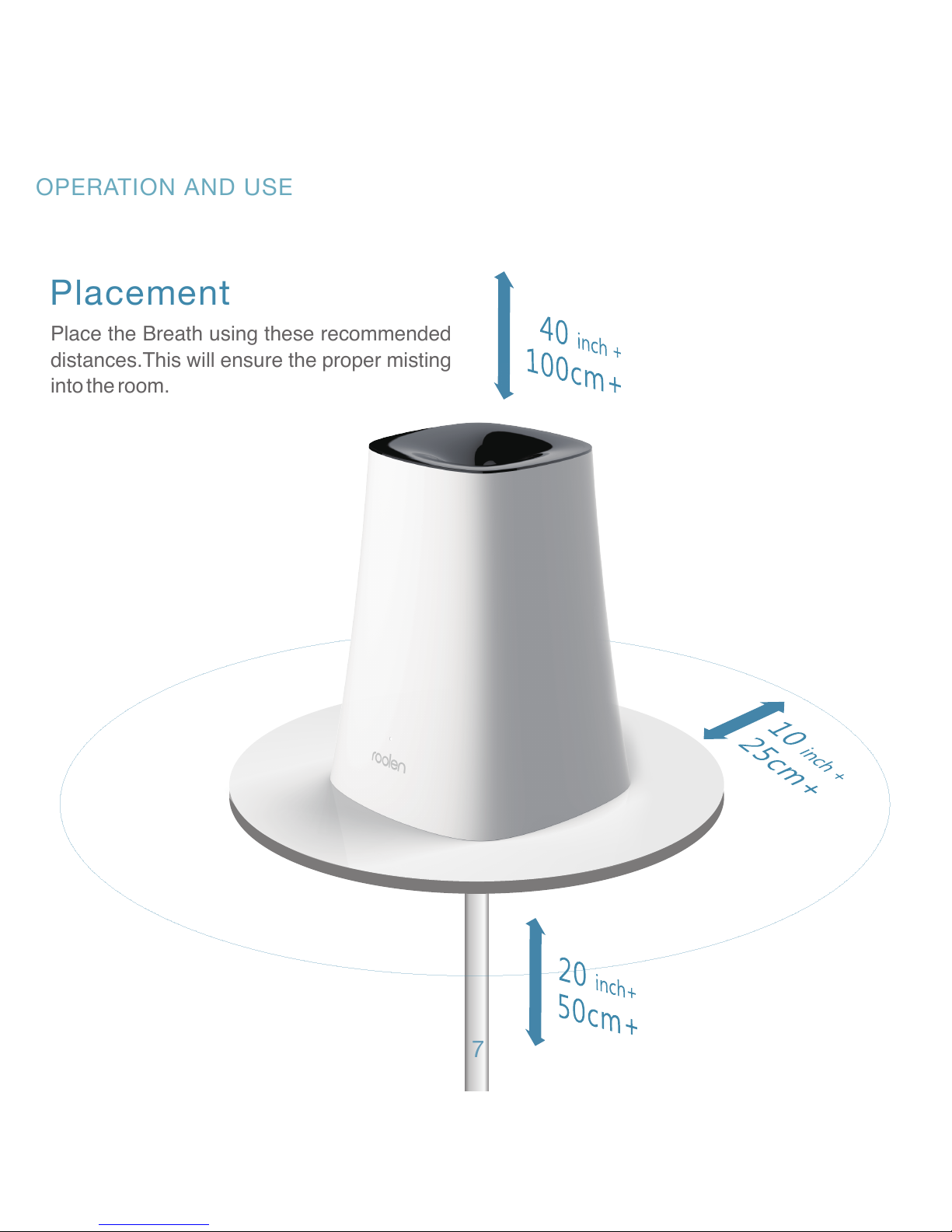

Placement
7
Place the Breath using these recommended
distances.This will ensure the proper misting
into the room.
OPERATION AND USE

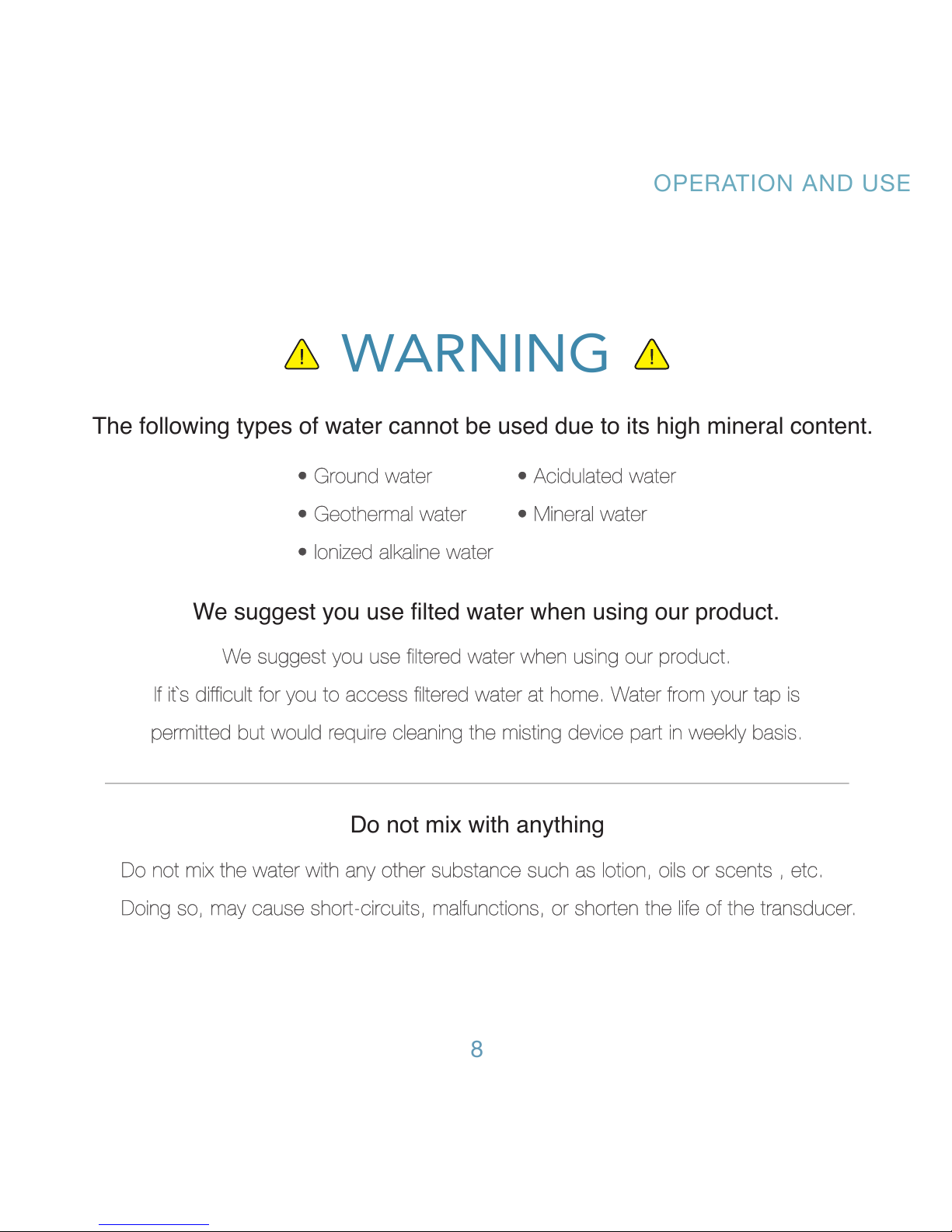

The following types of water cannot be used due to its high mineral content.
WARNING
Do not mix with anything
Do not mix the water with any other substance such as lotion, oils or scents , etc.
Doing so, may cause short-circuits, malfunctions, or shorten the life of the transducer.
• Acidulated water
• Mineral water
• Ground water
• Geothermal water
• Ionized alkaline water
We suggest you use filtered water when using our product.
If it`s difficult for you to access filtered water at home. Water from your tap is
permitted but would require cleaning the misting device part in weekly basis.
We suggest you use filted water when using our product.
8
