Rolls MX41b User manual
MX41b Stereo
Line Mixer
SCHEMATIC
Rolls Corporation
10/05
MX41b Mixer
•
Stereo 1/4” and 1/8” Inputs
•
Stereo 1/4” and 1/8” Outputs
•
100K Ohm Potentiometers
The MX41b is a stereo four channel
passive mixer for expanding a console
mixer, mixing instruments, cd players,
cassette players, computers etc. It
requires no batteries or other power
source. The unit may also be used as
a 1 In 4 Out stereo splitter box when
all controls are set to maximum.
SPECIFICATIONS
Input Impedance: 10K to 47K
Ω
Output Impedance: 2.5K to 10K
Ω
Gain: -12 dB MAX
Dimensions: 3.6" x 2.7" x 1.42" (W x H x D)
Weight: 1 lb.
INTRODUCTION
Congratulations and thank you for your purchase
of the MX41b. This unit is a stereo, four channel
passive mixer for expanding a console mixer, mix-
ing instruments, cd or cassette players, or other
signal sources. It requires no batteries or other
power source. The unit may be used as a stereo
1-in 4-out box when all controls are set to maxi-
mum.
DESCRIPTION
OUTPUTS: Stereo 1/4” TRS, and stereo 1/8” TRS
jacks for connection to a mixer input or other input
device.
INPUTS 1 - 4: 4 stereo 1/4” TRS, and 4 stereo 1/8”
TRS jacks for connection to line, instrument, or
consumer level devices.
VOLUME 1 - 4: Control the level of the signals
coming from Inputs 1 - 4.
Table of contents
Other Rolls Music Mixer manuals
Rolls
Rolls MX41s User manual
Rolls
Rolls RM74 User manual
Rolls
Rolls RM68 User manual
Rolls
Rolls RM65B HexMix User manual
Rolls
Rolls MX153 Mix Mate User manual
Rolls
Rolls RM316 User manual
Rolls

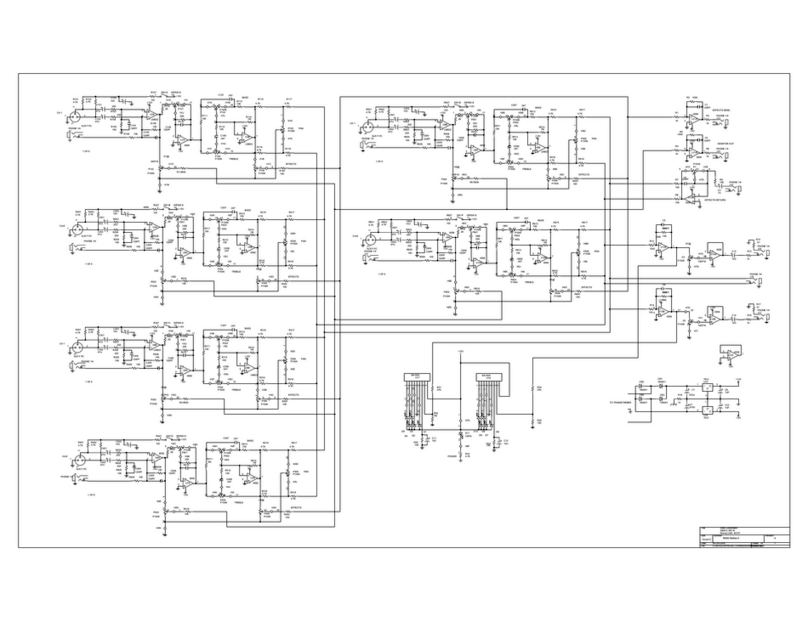

Rolls RM64 - SCHEMA Quick start guide
