Roland Aerophone mini User manual

Owner’s Manual

* Before using this unit, carefully read “USING THE UNIT SAFELY” (p. 16) and

“IMPORTANT NOTES”(p. 18). After reading, keep the document(s) where it

will be available for immediate reference.

Contents

Panel Descriptions ................... 2

Before You Play ...................... 4

Selecting the Power Source .......... 4

Turning the Aerophone mini On ...... 5

Wrapping the Band ................. 5

Changing the Sound Settings ........ 6

Provide As Necessary................ 8

Connecting Your Headphones or

External Speakers ............... 8

Returning to the Factory Settings

(Factory Reset) .................. 8

Playing ............................. 9

Attaching the Neck Strap ............ 9

Holding the Aerophone mini......... 9

How to Make Sound ................10

Using the Octave keys...............10

Pressing the Performance Keys .......11

Using the Bluetooth Functionality ..... 12

Here’s What You Can Do .............12

Connection Procedure ..............12

Performing Along with Music

Played by Your Smartphone ......12

Using the Aerophone mini with

an App......................... 13

If You Can’t Connect via Bluetooth ....14

Caring for the Aerophone mini ........15

USING THE UNIT SAFELY .............. 16

IMPORTANT NOTES .................. 18

Panel Descriptions

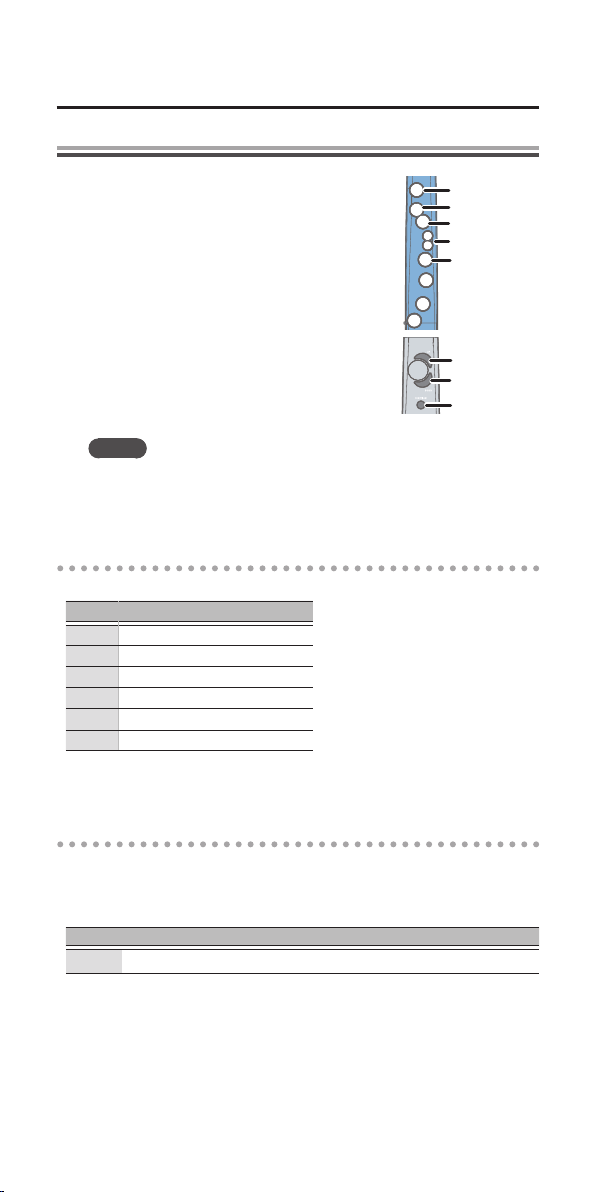

1Mouthpiece

A mouthpiece that is constructed as a single unit with the reed.

2Performance keys

These keys are used for performance. You can play using ngering that’s

based on that of a recorder.

&“Pressing the Performance Keys”(p. 11)

3Built-in speakers

4Mouthpiece Cap

Protects the mouthpiece. When you’re not playing, leave the mouthpiece

cap attached. Taking care that it does not touch the reed, press it on until

you hear it click into place.

5Octave keys (UP/DOWN)

Switch the octave. You can use these to raise or lower the pitch by one

octave. Operate them using the left-hand thumb.

You also use these keys to select the value of a sound setting.

&“Using the Octave keys” (p. 10)

&“Changing the Sound Settings” (p. 6)

6Thumb rest

Place your left thumb here.

&“Holding the Aerophone mini”(p. 9)

7[FUNCTION] button

Use this button to specify various settings such as the sound, volume,

and transposition.

&“Changing the Sound Settings” (p. 6)

Panel Descriptions

8Thumb hook/Strap ring

Place your right thumb under the hook. You can attach a neck strap to

the strap ring.

&“Holding the Aerophone mini”(p. 9)

&“Attaching the Neck Strap” (p. 9)

9Battery case

If you are using the Aerophone mini on batteries, insert four Ni-MH

batteries (AA).

&“Selecting the Power Source”(p. 4)

* Please note that alkaline batteries and zinc-carbon batteries cannot be

used.

Water drain

Drops of water will exit here. Wipe them o with a soft cloth.

PHONES/OUTPUT jack

Connect this jack to your headphones or external speakers.

&“Connecting Your Headphones or External Speakers”(p. 8)

Bluetooth LED (blue)

The LED indicates the Bluetooth connection status.

Lit Connected via Bluetooth

Blinking Waiting to connect via Bluetooth

Unlit Bluetooth o

Power LED (orange)

The LED indicates whether the power is on/o and the amount

remaining in the batteries.

Lit Power on

Blinking Batteries are low

Unlit Power o

[L] switch

This switches between power o, power on, and power on + Bluetooth

on.

&“Turning the Aerophone mini On” (p. 5)

Power Select Switch

This selects the Aerophone mini’s power source (batteries or USB AC

adaptor).

&“Selecting the Power Source”(p. 4)

USB Port

If you are powering the Aerophone mini from a USB AC adaptor, connect

the included USB cable.

&“Selecting the Power Source”(p. 4)

* Do not use any cable other than the included USB cables.

Cord hook

When using a USB cable, use this cord hook to secure it.

&“Selecting the Power Source”(p. 4)

Step 1 Selecting the Power Source

The Aerophone mini can be powered by batteries or by a USB AC adaptor.

When using batteries

This allows approximately 10 hours of playing.

1. Insert four Ni-MH (AA) batteries.

* Please note that alkaline batteries and zinc-carbon batteries cannot be

used.

2. Set the power select switch to“BATTERY.”

* When turning the unit over, be careful so as to protect the buttons and knobs

from damage. Also, handle the unit carefully; do not drop it.

* Battery life can vary depending on the specications of the batteries, capacity

of the batteries, and the conditions of use.

* When the batteries run low, the power LED (orange) blinks.

* If you handle batteries improperly, you risk explosion uid leakage. Make sure

that you carefully observe all of the items related to batteries that are listed in

“USING THE UNIT SAFELY” (p. 16) and“IMPORTANT NOTES”(p. 18).

When using USB AC adaptor

You can play without being concerned about how much battery power you

have left.

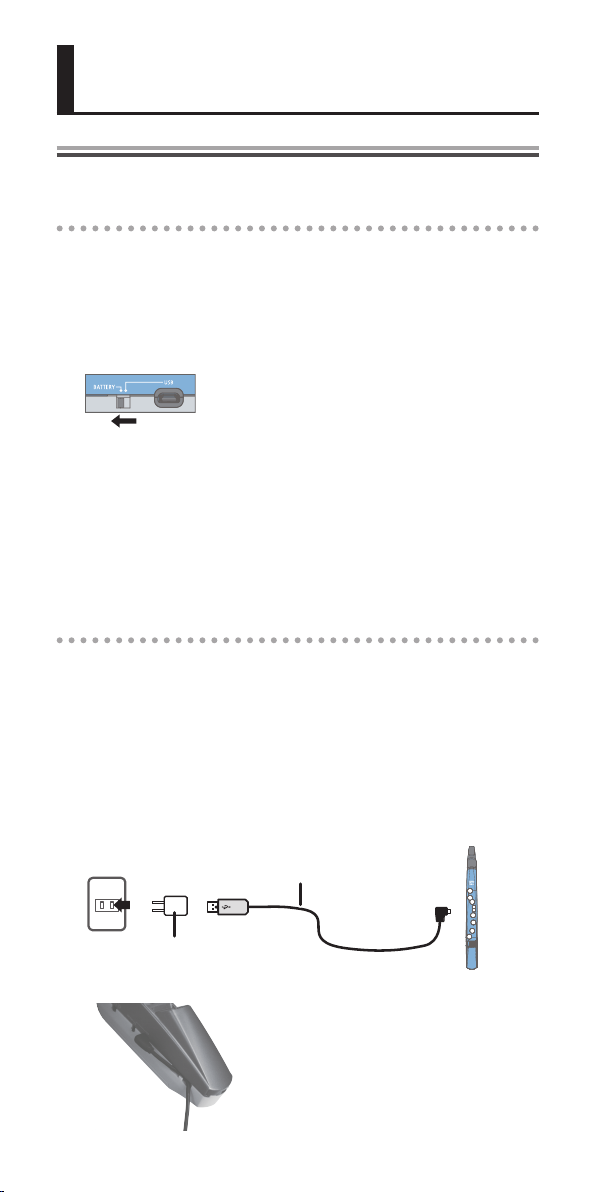

1. Connect a USB cable (included) and USB AC adaptor

(sold separately) to the Aerophone mini’s USB port.

* A USB AC adaptor is not included. Use a charger such as intended for a

smartphone or tablet.

* This unit cannot charge batteries that are installed in it, even if it is

connected by a USB cable to a USB AC adaptor that’s plugged into an AC

outlet.

USB cable

USB AC adaptor

2. Use the cord hook to secure the USB cable.

Before You Play

3. Set the power select switch to“USB.”

* Use only the included power supply USB cable. When connecting or

disconnecting the cable, grasp the plug itself; do not pull the cable.

* Handle USB cables with care. If saliva drips down the USB cable and reaches

the interior of the USB AC adaptor, malfunctions or electrical shock might

occur.

Step 2 Turning the Aerophone mini On

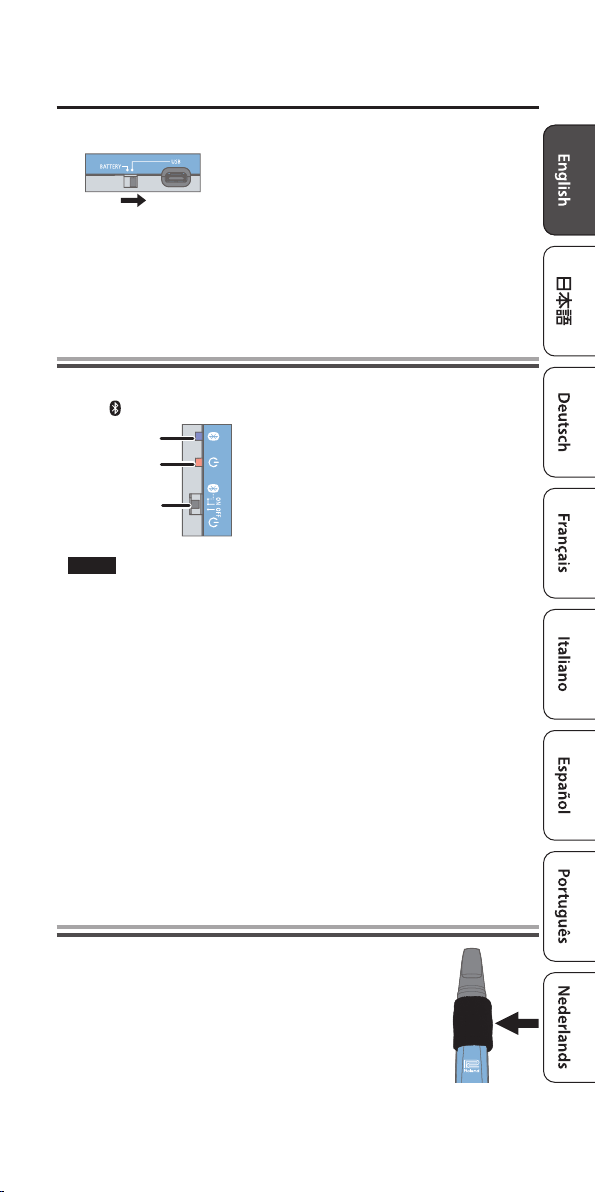

Set the [L] switch to “ON.” If you want to use Bluetooth functionality, set it

to the “ ” position.

[L] switch

Power LED

Bluetooth LED

NOTE

The sensitivity of the mouthpiece is automatically adjusted when you

turn on the power (this unit takes about seven seconds for the system to

start). For this reason, don’t bite or touch the mouthpiece while turning

on the [L] switch.

* The power LED indicates whether power is on or o.

* When you turn the power switch“OFF,”the power LED blinks and the shutdown

process occurs. Do not remove the batteries or disconnect the USB AC adaptor

until the LED goes dark.

* The power to this unit will be turned o automatically after a predetermined

amount of time has passed since it was last used for playing music, or its

buttons or controls were operated (Auto O function). To prevent the power

from turning o automatically, make settings in the app to disable the Auto O

function. To turn the power on again, set the [L] switch to the “OFF”position,

and then move it back to the“ON” position.

Step 3 Wrapping the Band

If you continue playing for an extended time, saliva from

your mouth might drip down across the instrument and

enter the interior from around the [L] switch or any keys.

When playing the instrument, wrap the included band

around it as shown in the illustration.

Before You Play

Step 4 Changing the Sound Settings

1. While holding down the [FUNCTION] button,

press the performance key of the item you

want to set, pressing it the appropriate

number of times for the setting you want.

Each time you press the performance key, the

setting value increases, and you hear a number of

beeps corresponding to the selected value.

Example: If you want to change the“1: SAX”

tone to“5: VIOLIN,”hold down the [FUNCTION]

button and press the [TONE] button four times in

succession.

MEMO

You can also change the value of a setting by holding down the

[FUNCTION] button and using the [UP][DOWN] buttons.

Tone Performance key 1 [TONE]

Tone List

Value Tone Name

1SAX

2FLUTE

3CLARINET

4TRUMPET

5VIOLIN

6SAW LEAD (Synthesizer sounds)

* The tone names are also listed on the battery cover of the Aerophone mini

unit.

Volume Performance key 2 [VOLUME]

This adjusts the volume of the Aerophone mini unit. This aects the volume

of the built-in speaker and the volume from the device that’s connected to

the PHONES/OUTPUT jack.

Value Explanation

1–5 Higher values are a louder volume; lower values are a lower volume.

[TONE]

[VOLUME]

[BREATH]

[REVERB]

[FUNCTION]

[UP]

[DOWN]

[TRANSPOSE]

Before You Play

How your breath aects the sound Performance key 3 [BREATH]

Species how the sound responds to the force of your breath.

Value Explanation

1 Light2 We recommend these settings if you’re a beginning wind

instrument player, or if you’re not condent of your lung

capacity. Fortissimo () can be produced even by blowing

relatively softly.

2 Light1

3 Middle This setting is the closest to the response of an actual wind

instrument.

4 Heavy1 We recommend these settings for wind instrument players.

Fortissimo () is produced only when you blow quite strongly.

5 Heavy2

Reverberation Performance key 4 [REVERB]

This adjusts the depth of reverberation.

Value Explanation

1–5 Higher values produce deeper reverberation; lower values

produce shallower reverberation (A value of 1 is no reverberation).

Selecting the key Performance key ¾oro²[TRANSPOSE]

You can transpose in semitone steps. For example if you’re reading music

written for alto sax, set this to“+3”(E²).

MEMO

If you press [UP] and [DOWN] simultaneously, the transpose setting is

reset to “C.”

Value Key Explanation

+6 F

You hear a short, high-pitched “beep” for a number of times

corresponding to the value of the setting.

+5 F

+4 E

+3 E²

+2 D

+1 C¾

0C You hear a medium-pitched “beep”twice.

-1 B

You hear a long, low-pitched“beep” for a number of times

corresponding to the value of the setting.

-2 B²

-3 A

-4 A²

-5 G

Before You Play

Step 5 Provide As Necessary

Connecting Your Headphones or External Speakers

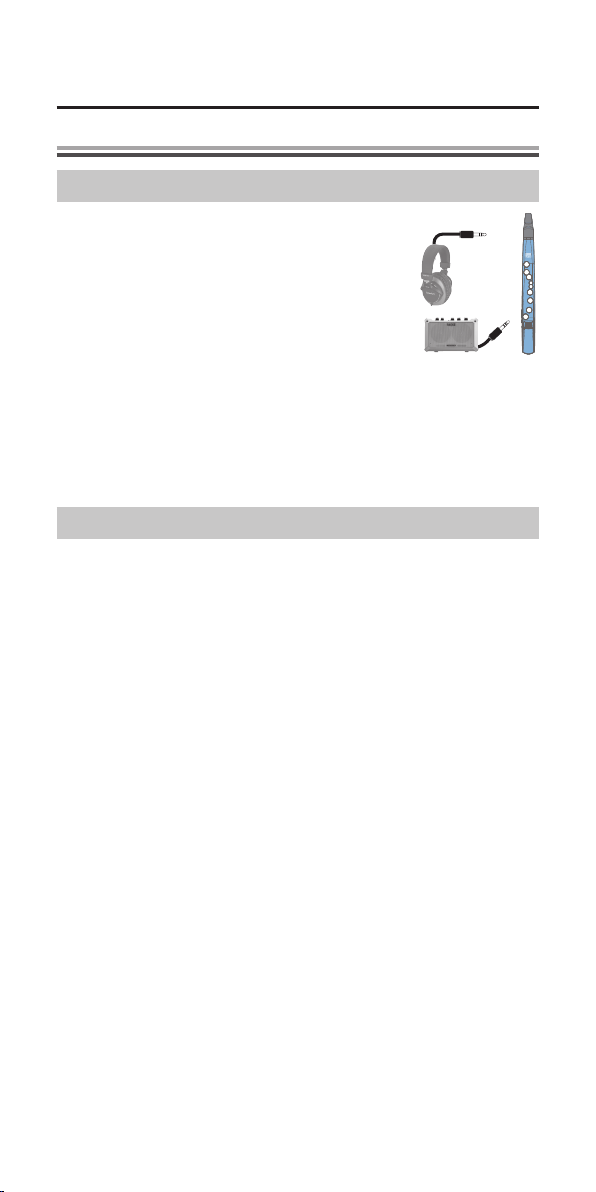

If you want to connect headphones or an external

speaker, connect them to the PHONES/OUTPUT jack.

* To prevent malfunction and equipment failure, always

turn down the volume, and turn o all the units before

making any connections.

Headphones

Since sound is not produced by the built-in speaker of the Aerophone mini,

this is convenient for night-time practice.

External speakers

Since this allows high volume to be produced, it is convenient when you’re

performing live for a large number of people.

Returning to the Factory Settings (Factory Reset)

Here’s how to return the Aerophone mini to its factory-set state.

1. While holding down both of the buttons [UP] and [DOWN], turn

the [L] switch “ON.”

A series of short “beeps”is heard, asking you to conrm the operation.

2. Press the [FUNCTION] button.

A long “beep”is heard, and the settings return to the factory-set state.

3. Turn the power o, and then on again.

This completes the factory reset.

Playing

Step 1 Attaching the Neck Strap

Attach the hook of the strap to the strap ring of the Aerophone mini.

Step 2 Holding the Aerophone mini

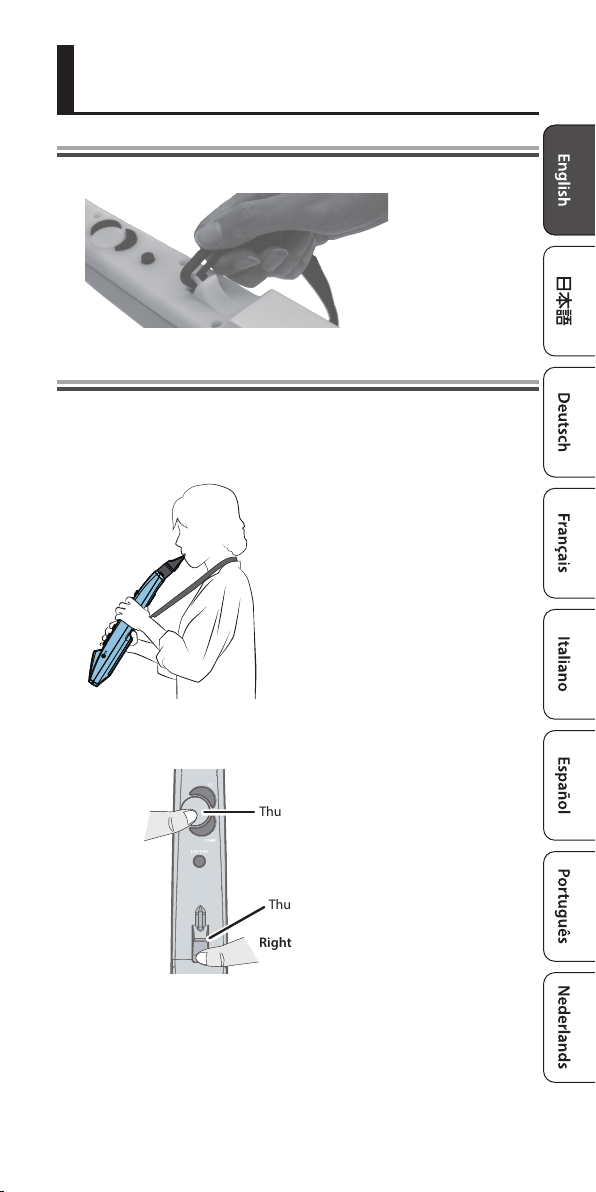

1. Hold it as shown in the illustration.

* If saliva runs down during performance, use a dry cloth to wipe it o

diligently.

2. Place your left thumb on the thumb rest, and place your right

thumb under the thumb hook.

Left thumb

Right thumb

Thumb hook

Thumb rest

1010

Playing

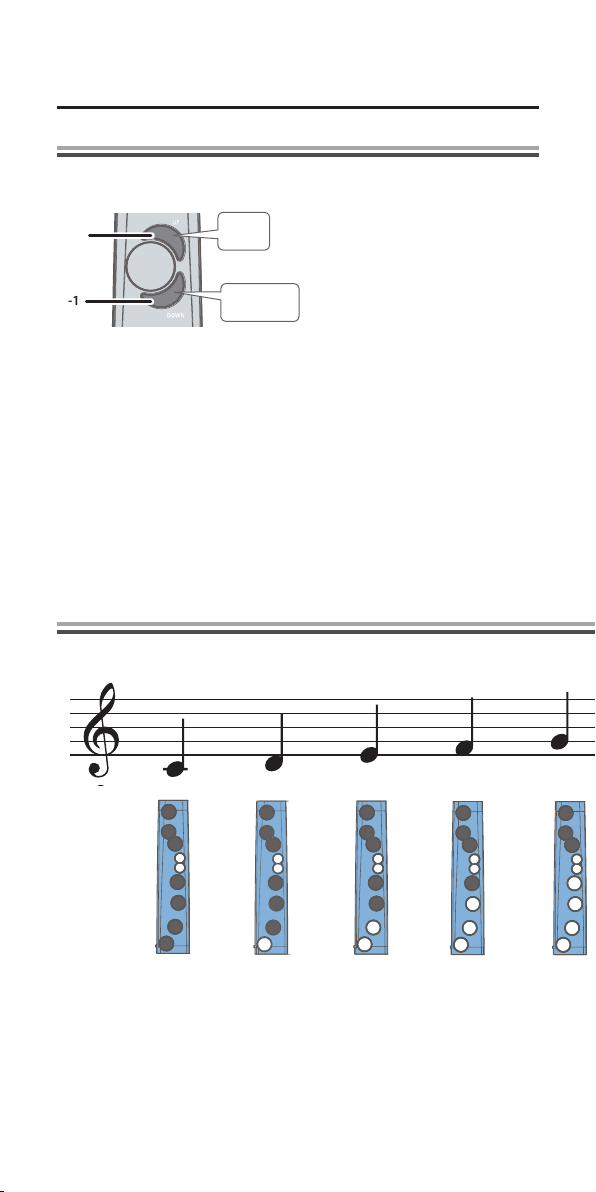

Step 3 Using the Octave keys

Use your left thumb to switch the octave.

You can raise or lower the pitch by one octave.

-1

+1 UP

DOWN

Step 5 How to Make Sound

To begin, let’s try playing C D E F G A B C.

Take a deep breath, and blow as through you’re lling the entire instrument.

C D E F G A B C

&For details on ngering, refer to “Fingering Chart”

at the end of this manual.

Table of contents

Other Roland Musical Instrument manuals

Roland

Roland VS-2000 User manual

Roland

Roland RS-101 Strings Quick start guide

Roland

Roland Atelier AT-80SL User manual

Roland

Roland RP301 User manual

Roland

Roland FR-4X User manual

Roland

Roland RD-170 User manual

Roland

Roland HP601 User manual

Roland

Roland DP-990R User manual

Roland

Roland VS-880EX User manual

Roland

Roland RD-1000 User manual

Roland

Roland PX-7B Operating and maintenance manual

Roland

Roland VR-09 Editor User manual

Roland

Roland Music Atelier AT 5 User manual

Roland

Roland RD-150 User manual

Roland

Roland VS-1680 V-XPANDED User manual

Roland

Roland RD-2000 User manual

Roland

Roland E-50, E-60 User manual

Roland

Roland KF-90 User manual

Roland

Roland FP-9 User manual

Roland

Roland GC-1 GK Ready Strat Setup guide

Roland

Roland ATELIER 5100001499 User manual

Roland

Roland RD-88 Manual

Roland

Roland GO:KEYS User manual

Roland

Roland JUNO-G User manual

Popular Musical Instrument manuals by other brands

Kawai

Kawai CN17 Operation guide

Yamaha

Yamaha PCY130 owner's manual

Korg

Korg SP-170S owner's manual

Johannus

Johannus Rembrandt 200 user manual

Yamaha

Yamaha Clavinova CVP-709 owner's manual

Yamaha

Yamaha YC-20 owner's manual

Yamaha

Yamaha Clavinova CVP-609 Reference manual

Casio

Casio celviano ap-700 user guide

Yamaha

Yamaha PSR-E473 owner's manual

Modulus

Modulus Quantum Series owner's manual

Gear4music

Gear4music SDP-4 user manual

HOMCOM

HOMCOM 390-006 Assembly instruction

Xotic Guitars

Xotic Guitars ProVintage Series owner's manual

Sadowsky

Sadowsky MetroLine Series operating manual

Bosendorfer

Bosendorfer CEUS user manual

Gewa

Gewa UP 260 G owner's manual

Casio

Casio TONEBANK MT-750 Operation manual

Yamaha

Yamaha Electone EL-17 owner's manual
