Rocktron Unity Tuner User manual

Unity Tuner

Instruction Manual

This pedal is:

Your Unity Tuner™pedal has been tested and complies with the following

Standards and Directives as set forth by the European Union:

Council Directive(s): 89/336/EEC Electromagnetic Compatibility

Standard(s): EN55013, EN50082-1

This means that this product has been designed to meet stringent guidelines

on how much RF energy it can emit, and that it should be immune from other

sources of interference when properly used. Improper use of this equipment

could result in increased RF emissions, which may or may not interfere with

other electronic products.

To insure against this possibility, always use good shielded cables for all

audio input and output connections. This will help insure compliance with the

Directive(s).

For more information about other Rocktron products, please see your local

dealer or one of our importers closest to you (listed on the Rocktron website

(www.rocktron.com).

Read all instructions contained in this manual.

Keep these instructions

Heed all warnings

Follow all instructions.

Do not use this apparatus near water.

Clean with dry cloth

Compliance

Do not block any ventilation openings (if applicable). Install in accordance

with the manufacturer’s instructions.

Do not install near any heat sources such as radiators, heat registers, stoves

or other apparatus (including ampliers) that produce heat.

This product is not equipped with a plug or cable. This pedal runs on a 9

Volt Battery, if a 9Volt DC adapter is the used please follow adapter manu-

facturer’s operation instructions.

Only used attachments/accessories specied by the manufacturer.

Do not use this product with any case, stand tripod, bracket or table that

is not specied by the manufacturer. Insure that the case, stand, tripod,

bracket etc. is properly adjusted and setup (follow all instructions). Extra

care and caution should be taken to avoid tip over and injury.

Unplug this apparatus during lightening storms or when unused during long

periods of time.

Refer all service to qualied service personnel. Servicing is required when

the apparatus has been damaged in any way, such as power supply or plug

is damaged, liquid has been spilled or objects have fallen into the apparatus

or if the apparatus has been exposed to rain or moisture, does not operate

normally or has been dropped.

DO NOT ATTEMPT TO SERVICE THIS EQUIPMENT. QUALIFIED

PERSONNEL SHOULD SERVICE THIS EQUIPMENT ONLY. DO

NOT MAKE ANY INTERNAL ADJUSTMENTS OR ADDITIONS TO

THIS EQUIPMENT AT ANY TIME OR TAMPER WITH INTERNAL

ELECTRONIC COMPONENTS AT ANY TIME. FAILURE TO FOL-

LOW THESE INSTRUCTIONS MAY VOID THE WARRANTY OF THIS

EQUIPMENT AS WELL AS CAUSING A SHOCK HAZARD.

OPERATING TEMPERATURE

Do not expose this unit to excessive heat. This unit is designed to operate

between 32 F and 104 F (0 C and 40 C). This unit may not function prop-

erly under extreme temperatures.

Precautions

Introduction:

Congratulations on your purchase of the Rocktron Unity Tuner.

The Unity Tuner is a true “on-stage” tuner for any gig. The Unity

Tuner’s large LED NOTE display makes it easy to see what note

you are tuning, even from a distance. Several Red LEDs are also

used to help you easily determine if you are sharp or at and by

how much.

A unique feature to the Unity Tuner are the photocells. These

photocells sense the lighting situation you are playing in and

adjust the brightness of the LED Note Display to accommodate

that lighting. When you are playing outside on a sunlit stage,

the photocells sense that the area is bright and increase the LED

intensity making the LEDs brighter and easier to see. The opposite

effect happens when playing on a dark, low light situation. The

photocells sense that the lighting is low and dim the LED Note

Display making it easier on the eyes.

The Unity Tuner is equipped with a “STROBE” function for those

who require extremely accurate tuning. The STROBE function is a

sensitive tool that really allows you to dial in the exact tuning.

Two outputs are provided as well. The jack marked “OUTPUT”

provides a constant signal path to other effects or amps when you

turn on the tuner. This allows you to hear what you are tuning

through your amp. When the “OUTPUT (MUTE)” is used, the

Unity Tuner cuts the signal to the next effect or amp and allows you

to tune in silence, This is a very useful on-stage tool.

You are now ready to tune in all playing situations!

Descriptions

Descriptions continued.........

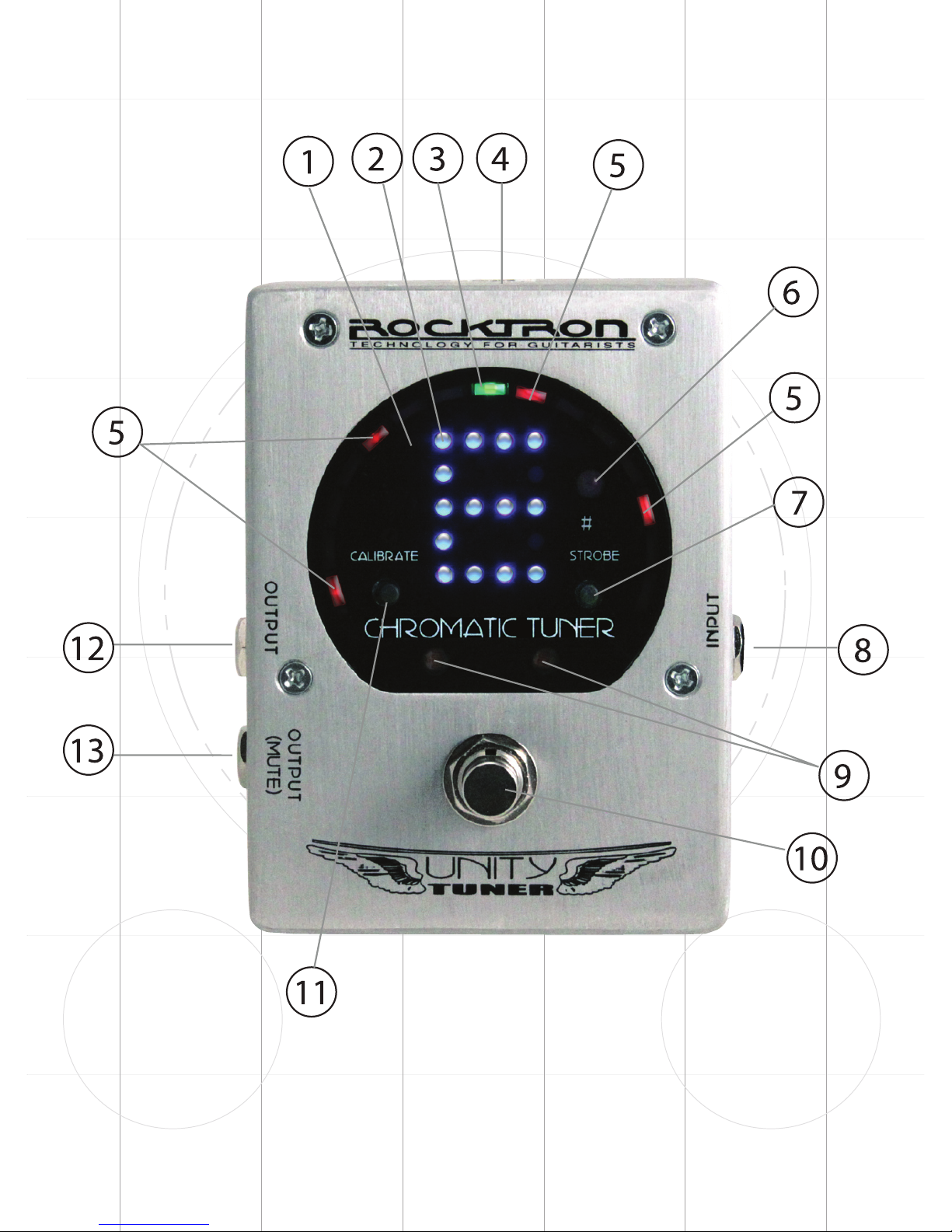

DISPLAY Window - This black window houses the LEDs and controls

for the Unity Tuner

NOTE LED BANK - This bank of blue LEDs will display the note being

played or tuned.

IN TUNE Green LED - when the note being played is “in tune” this LED

will light.

9VDC Input - This input jack provides 9VDC power to the pedal from the

Rocktron DC OnTap 9V power supply (sold separately).

SHARP/FLAT LEDS - These Red LEDs show you if your note is Sharp

or Flat. Red LEDs to the right of the green LED are sharp and the string

should be tuned down. The farther right the LED is away from the Green

in Tune LED the more the note is SHARP. Red LEDs to the left of the

green LED are at and the string should be tuned up. The farther left the

LED is away from the Green in tune LED the more the note is at.

SHARP/FLAT Indicator - If the note being played is “sharp” the “sharp”

(#) symbol will “light.”

STROBE Button - To turn ON or OFF “strobe” tuning press this button.

To learn how to use the “strobe” function, see section called “STROBE

TUNING” later in this manual.

INPUT Jack - Using a standard 1/4” guitar cable, plug your guitar into

this jack.

PHOTOCELLS - These two photocells sense the lighting of the venue

you are playing. When playing outside on a bright sunny day, the NOTE

LEDs will increase in intensity slightly to make it eaiser to see. When

playing on a dark stage the NOTE LEDs will decrease in intensity.

FOOTSWITCH - Use this switch to turn the pedal ON or OFF

Descriptions continued.........

CALIBRATE button - this button is used to calibrate the tuner to match

the pitch of any instrument or audio source (like an old piano or tape

player). For details on this function - see section titled “Calibration.”

OUTPUT Jack - This jack provides output to your amp or the next pedal

in the signal chain. Use a 1/4” guitar cable to plug into the next effect or

into a guitar amplier. This jack provides a contant output whether the

tuner is on or off and does not mute the output.

OUTPUT JACK (MUTE)- This jack provides output to your amp or the

next pedal in the signal chain. Use a 1/4” guitar cable to plug into the

next effect or into a guitar amplier. This jack will MUTE the output to

the next pedal or amp when the tuner is turned on. This is ideal for silent

tuning on stage.

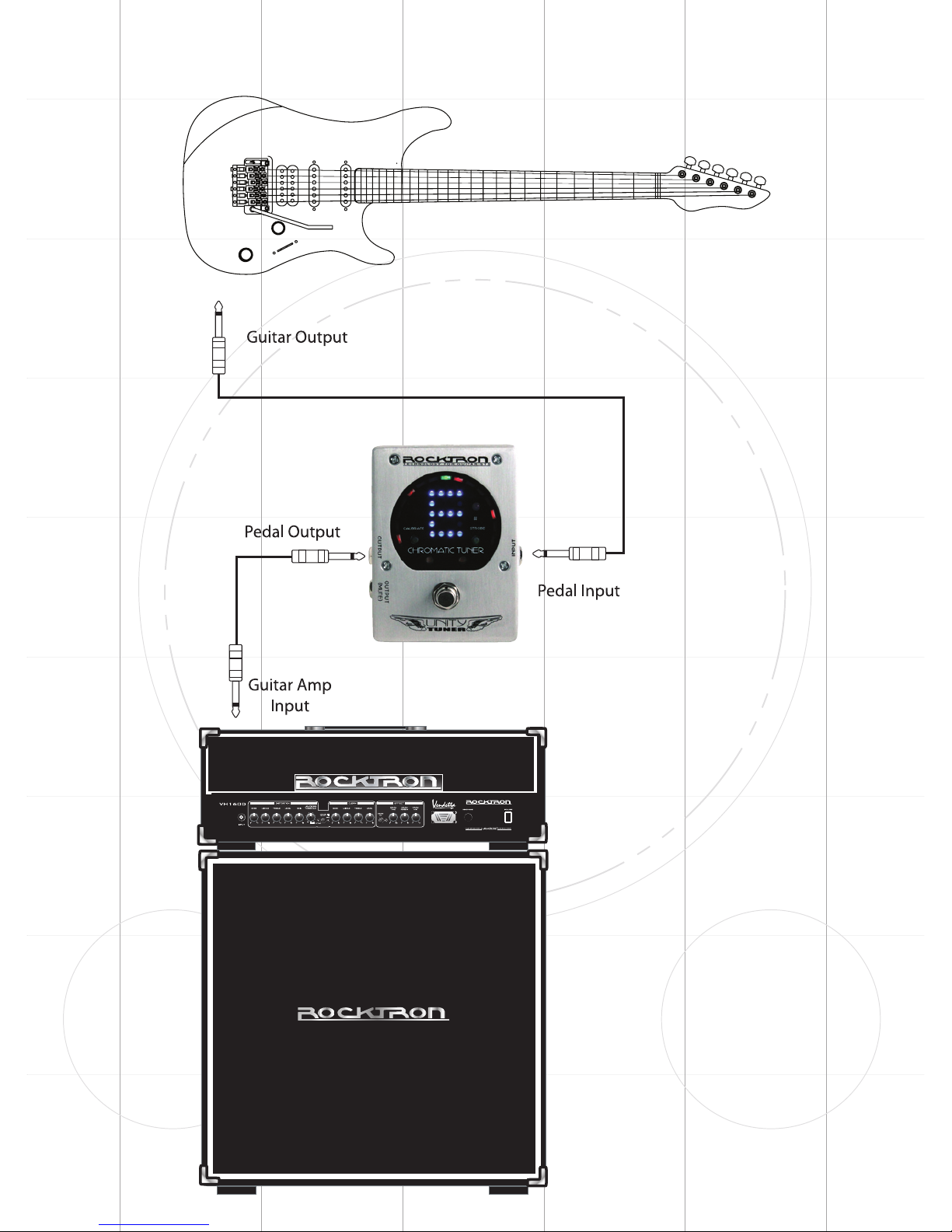

MUTED Connection

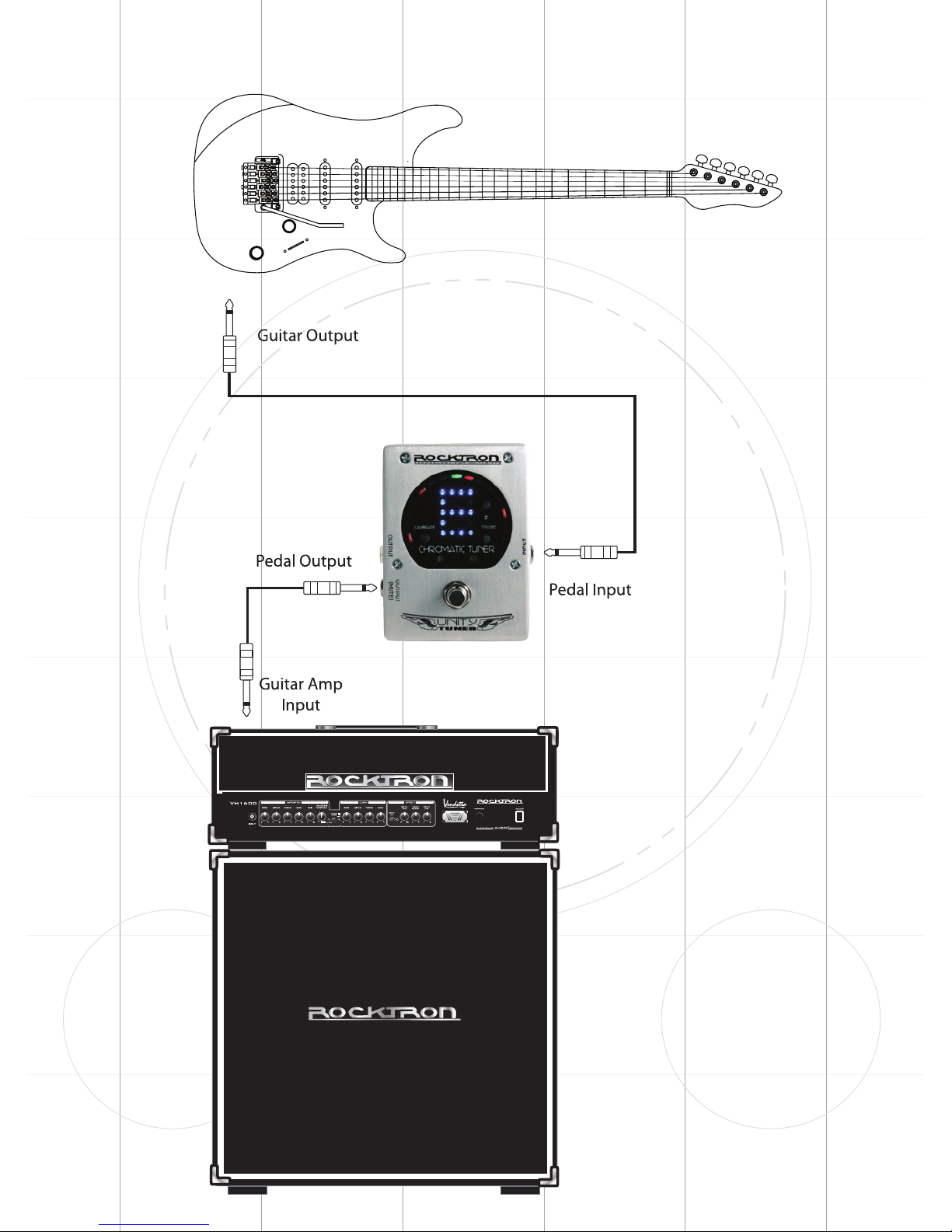

CONSTANT Connection

Step 1 - plug the guitar/bass into the tuner - see “connections” section.

Step 2 - play a note on your guitar. Pluck your E string, if needed, adjust your

tuning machine on your instrument until the letter “E” appears in the NOTE

Display window.

Step 3 - if your note is at - the “FLAT” LEDs to the left of the IN TUNE green

LEDs will light. The farther away the red LED is from the green IN TUNE LED

the more at the tuning is. If a Flat LED is lit, tune your string up. During this

process the LEDs will begin to light and move closer to the green IN TUNE

LED.

Step 4 - if your note is sharp - the “SHARP” LEDs to the right of the IN TUNE

green LEDs will light. The farther away the red LED is from the green IN

TUNE LED the more sharp the tuning is. If a sharp LED is lit, tune your string

down. During this process the LEDs will begin to light and move closer to the

green IN TUNE LED.

Step 5 - Continue with step 3 or step 4 until the at or sharp LEDs are not lit

and the green “IN TUNE” LED lights. At this point the string is in tune.

Step 6 - Continue steps 2-5 but using your other strings on your guitar or bass.

Tuning Instructions:
