Rockford Fosgate RFD2218 Guide

RFP3208

RFP3210

RFP3212

RFP3215

RFD2208

RFD2210

RFD2110

RFD2212

RFD2112

RFD2115

RFD2215

RFD2218

RFR3110

RFR3112

RFR3115

INSTALLATION &

OPERATION

DUAL VOICE COIL

SUBWOOFER

Páginas de Referencia para la Instalación

Schéma d’Installation

Installations Beiblatt

Istruzioni di Installation

– i –

Dear Customer,

Congratulations on your purchase of the world's finest brand of car audio speakers.

At Rockford Fosgate, we are fanatics about musical reproduction at its best, and we

are pleased you chose our product. Through years of engineering expertise, hand

craftsmanship, and critical testing procedures, we have created a wide range of prod-

ucts that reproduce music with all the clarity and richness you deserve.

For maximum performance, we recommend you have your new Rockford Fosgate

product installed by an Authorized Rockford Fosgate Dealer, as we provide special-

ized training through Rockford Technical Training Institute (RTTI). Please read your

warranty and retain your receipt and original carton for possible future use.

Great product and competent installations are only a piece of the puzzle when it

comes to your system. Make sure that your installer is using 100% authentic instal-

lation accessories from Connecting Punch in your installation. Connecting Punch

has everything from RCA cables and speaker wire to Power line and battery connec-

tors. Insist on it! After all, your new system deserves nothing but the best.

To add the finishing touch to your new Rockford Fosgate image, order your Rockford

wearables, which include everything from T-shirts and jackets to hats and sunglasses.

To get a free brochure on Rockford Fosgate products and Rockford accessories, in the

U.S. call 480-967-3565 or FAX 480-967-8132. For all other countries, call +001-

480-967-3565 or FAX +001-480-967-8132.

PRACTICE SAFE SOUND™

CONTINUOUS EXPOSURE TO SOUND PRESSURE LEVELS OVER

100dB MAY CAUSE PERMANENT HEARING LOSS. HIGH POWERED

AUTOSOUND SYSTEMS MAY PRODUCE SOUND PRESSURE LEVELS

WELL OVER 130dB. USE COMMON SENSE AND PRACTICE SAFE

SOUND.

If, after reading your manual, you still have questions regarding this product,

we recommend that you see your Rockford Fosgate dealer. If you need further

assistance, you can call us direct at 1-800-669-9899. Be sure to have your ser-

ial number, model number, and date of purchase available when you call.

The serial number can be found on the outside of the box. Please record it in

the space provided below as your permanent record. This will serve as verifi-

cation of your factory warranty and may become useful in recovering your

product if it is ever stolen.

Serial Number:__________________________________

Model Number: ________________________________

–ii –

Sections marked

TROUBLESHOOTING

include recommendations for

curing installation problems

Sections marked

INSTALLATION

include “slam dunk”

wiring connections

Welcome to Rockford Fosgate! This manual is designed to provide informa-

tion for the owner, salesperson and installer. For those of you who want

quick information on how to install this product, please turn to the

Installation Section of this manual or refer to the icons listed below. Other

information can be located by using the Table of Contents. We, at Rockford

Fosgate, have worked very hard to make sure all the information in this

manual is current. But, as we are constantly finding new ways to improve

our product, this information is subject to change without notice.

GETTING STARTED

+ -

TROUBLE-S

Visit our website for the latest information on all Rockford products.

–iii –

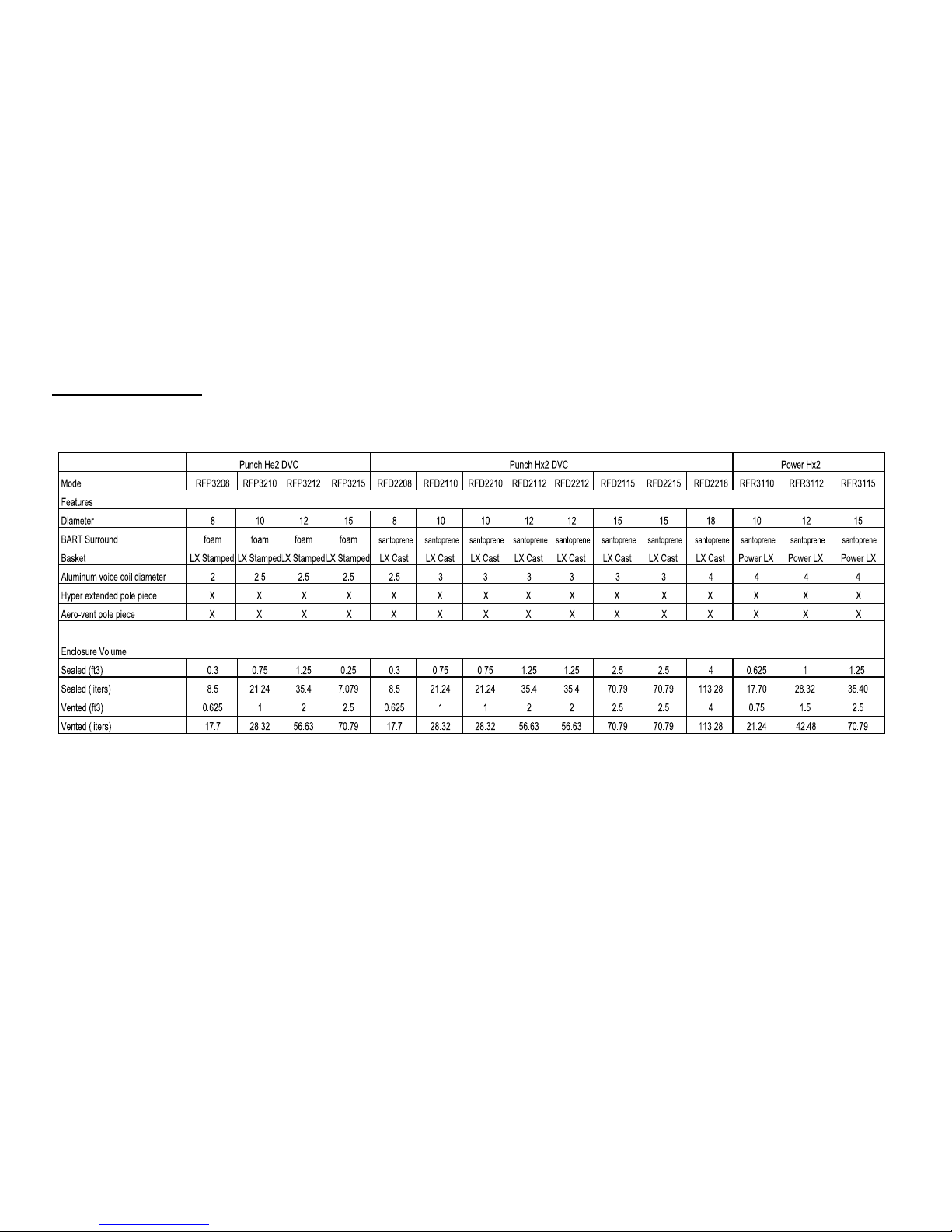

SpecificationS

–iv –

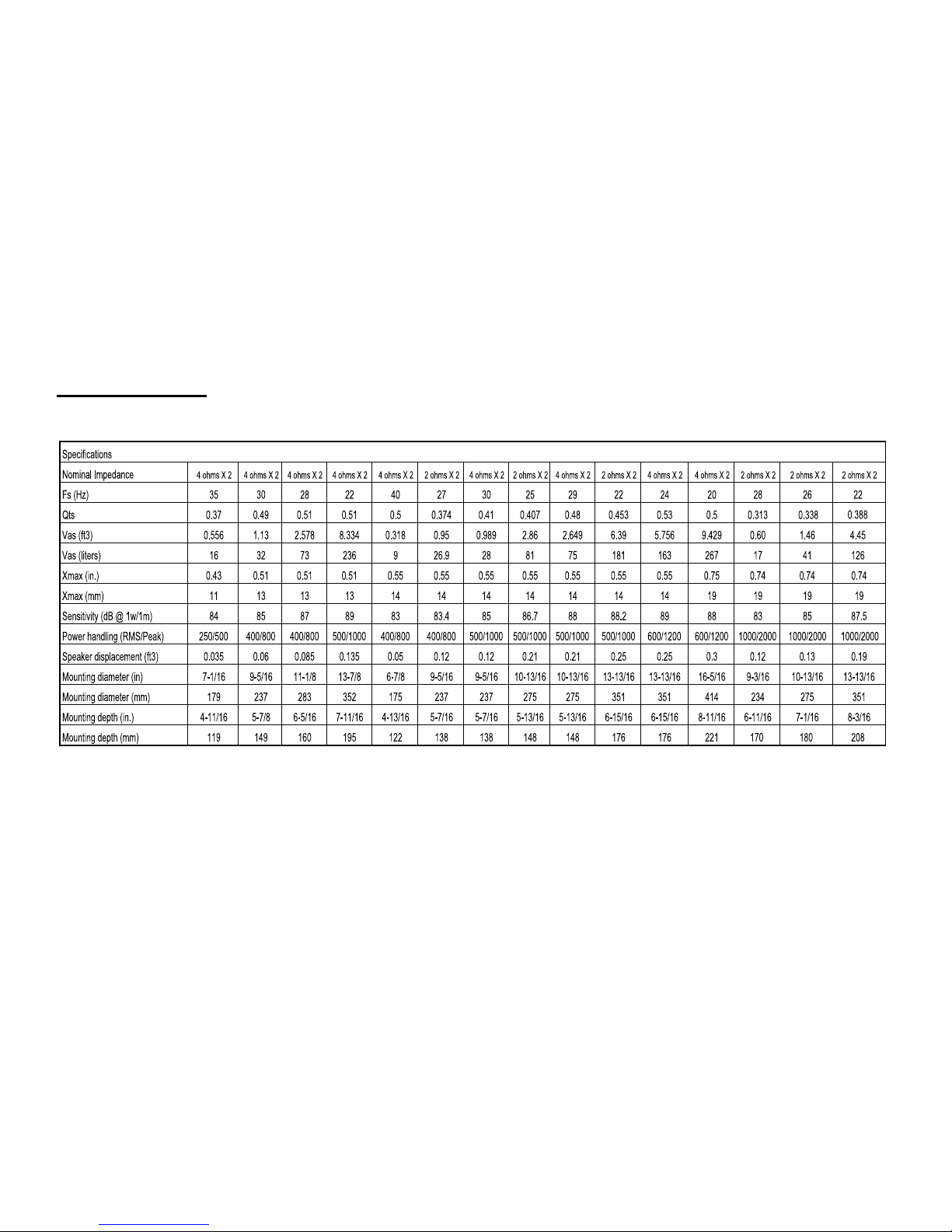

SpecificationS

Introduction

The Punch HE2 DVC, Punch HX2 DVC, Power HX2 DVC are high perfor-

mance, low frequency drivers with dual voice coils. These woofers were

designed for use primarily in small sealed and small ported enclosures. By

utilizing the latest materials and construction techniques, we are able to

offer a speaker with high output at low frequencies while requiring a mini-

mum of operating space.

CONTENTS

Punch HE2 DVC

Punch HE2 DVC Woofer

Installation & Operation Manual

Power HX2 DVC

Power HX2 DVC Woofer

Installation & Operation Manual

Punch HX2 DVC

Punch HX2 DVC Woofer

Installation & Operation Manual

Table of Contents

Dear Customer ..........................................................................................i

Getting Started ..........................................................................................ii

Specifications ..........................................................................................iii

Introduction ..............................................................................................v

DVC Woofer Contents ..............................................................................v

Recommended Enclosures ........................................................................1

Installation ................................................................................................2

Wiring Configurations ..............................................................................4

Building An Enclosure ..............................................................................5

Calculating Volume ..................................................................................5

Subwoofer Crossovers ..............................................................................5

Warranty Information ................................................................................6

International Information ..........................................................................7

–v –

This manual outlines two specific types of enclosures that

provide distinctly different performance. This section is to

help you decide which type is best for your application.

Sealed

Sealed enclosures are the simplest to build. The most important part of

building a sealed enclosure is to make sure that the enclosure is airtight.

Using glue and some type of sealant on all seams will ensure solid con-

struction and prevent air leaks. The box volume will directly impact the

performance of the speaker. Larger enclosures will provide flatter

response and deeper bass where smaller boxes will provide a bump in

the response curve and generally higher output for greater SPL.

Advantages of sealed enclosures:

•Small enclosures

•Linear (Flat) response

•No port noise

•High power handling at all frequencies

•Excellent for sound quality

Recommended Enclosures

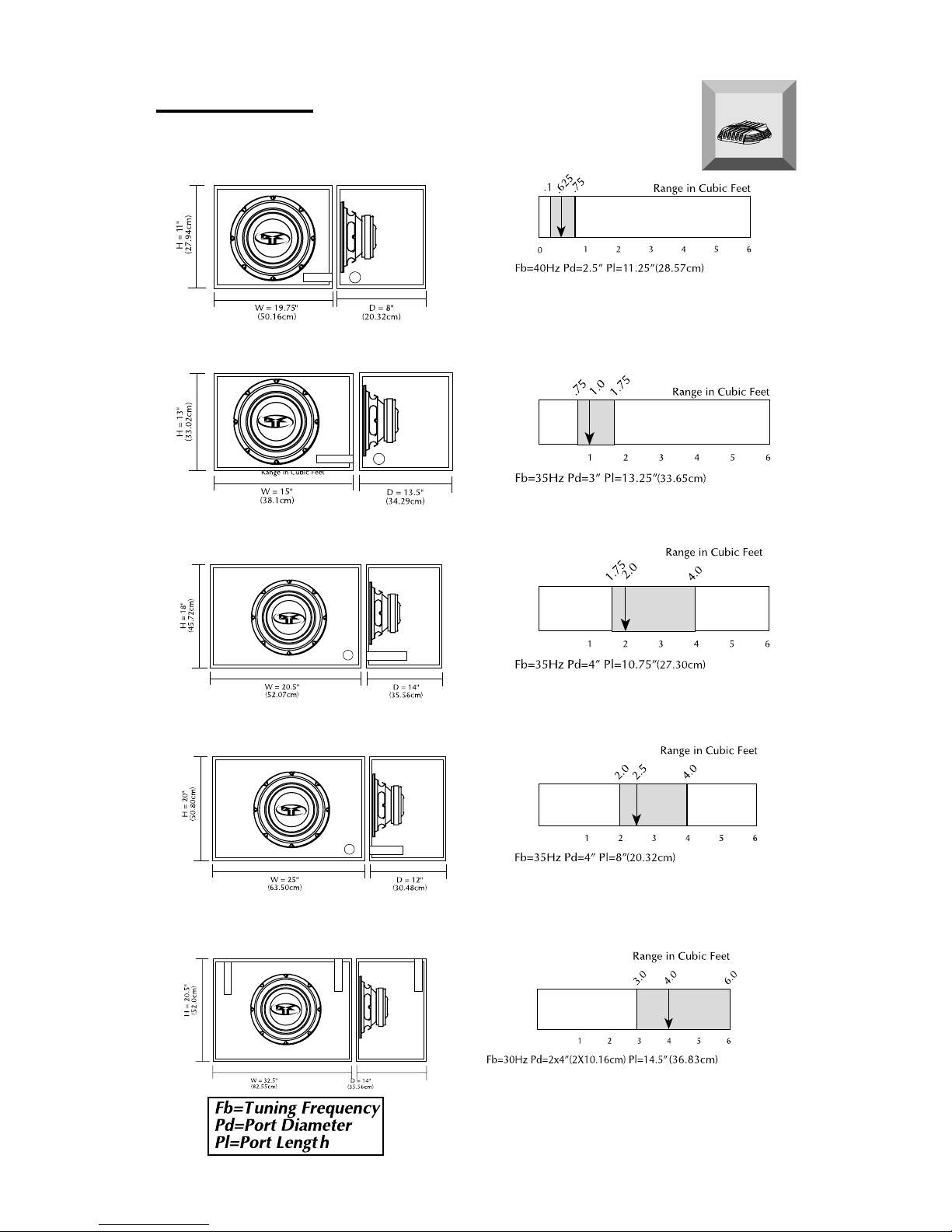

Vented Enclosures

Vented enclosures vary only from the sealed enclosure in that a vent or

port is added to “tune”the enclosure. The enclosures recommended are

designed for great overall performance. Larger boxes tend to be easy to

tune to lower frequencies while medium and small boxes are easier to

tune to higher frequencies. The vented design is less linear in response

than the sealed box but with noticeably more output at the tuning

frequency.

Advantages of vented enclosures:

•Higher average output than sealed

•Tuning frequency can be easily adjusted by changing port length

•Deep bass response with lower power requirements

•Great for high output with limited power

+ -

Installation

+ -

Vented

Punch HE2 8”– Punch HX2 8”

Punch HE2 10”– Punch HX2 10”– Power HX2 DVC 10”

Punch HE2 12”– Punch HX2 12” – Power HX2 DVC 12”

Punch HE2 15”– Punch HX2 15” – Power HX2 DVC 15”

Punch HX2 18”

Recommended vented 0.625ft

(17.70L)

Recommended vented 1.0ft

(28.32L)

Recommended vented 2.0ft

(56.63L)

Recommended vented 2.5ft

(70.79L)

Recommended vented 4.0ft

(113.27L)

+ -

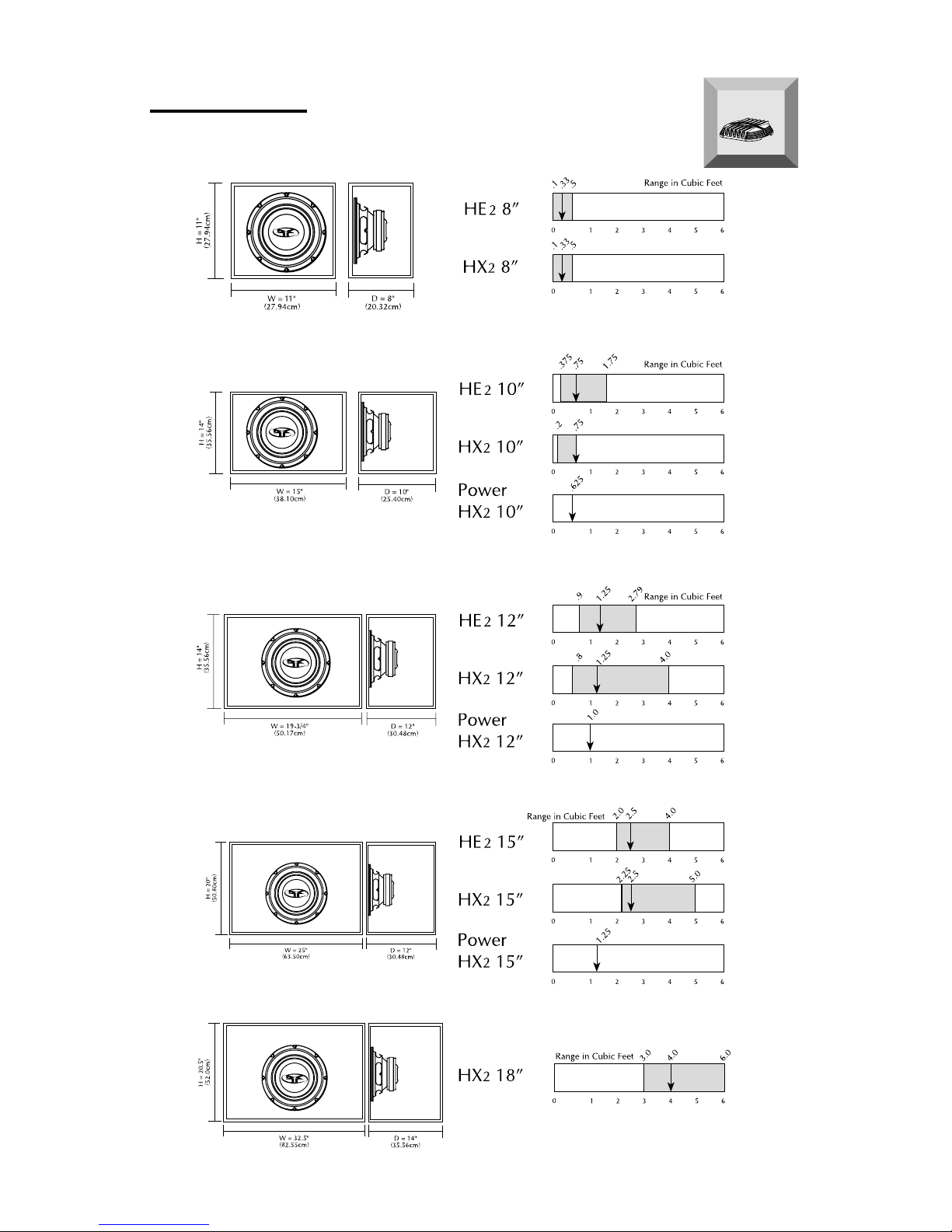

Installation

Sealed

Punch HE2 8”– Punch HX2 8”

Recommended sealed 0.30ft

(8.50L)

Punch HE2 10”– Punch HX2 10”—Recommended sealed 0.75ft

(21.24L)

Power HX2 DVC 10”

Recommended sealed 0.625ft

(17.7L)

Punch HE2 12”– Punch HX2 12”—Recommended sealed 1.25ft

(35.40L)

Power HX2 DVC 12”

Recommended sealed 1.0ft

(28.32L)

Punch HE2 15”– Punch HX2 15”—Recommended sealed 2.5ft

(70.79L)

Power HX2 DVC 15”

Recommended sealed 1.25ft

(35.4L)

Punch HX2 18”

Recommended sealed 4.0ft

(113.27L)

Wiring Configurations

By varying the wiring configuration of your speakers you can create an

impedance load to match your system. Since each voice coil of a DVC

speaker carries its own impedance, altering the wiring configurations give

a range of options for impedance load. Series, Parallel, or Series-Parallel

wiring configurations are different techniques for wiring speakers that pro-

vide different loads. Series configuration is a string method where speakers

are wired end to end. Parallel configuration uses two or more speakers

wired across common terminals. Series-Parallel configuration combines

both techniques. Choose the wiring diagram below that corresponds the

number of woofers and the impedance of your amplifier.
