Robot Coupe CL60 User manual

Vegetable Processor

Commercial

All Metal

Vegetable

Processor

High Volume Vegetable Prep.

Up to 1,200 lbs. per hour

For high volume processing for a wide range of sizes

and shapes of vegetables and fruits. Magnetic safety

switch. Accommodates 39 different processing

discs. Comes with large lead assembly

and one slicing and one grating disc.

• Four different interchangeable

heads available which permit

machine to adapt to a wide variety

of vegetable processing functions

on a continuous feed basis.

• New heavy-duty 3-phase, 2-speed,

4HP motor; 425 RPM on low

speed, 850 RPM on high speed,

magnetic safety switch.

• Control panel with push-type “high

& low” buttons and “stop” button.

• Compact design, four legs and

special handle facilitates moving.

• Optional stainless steel cart with

castors holds full size food box

(R198) to aid in handling large

volume processing.

• Stainless steel motor base.

• Packed with 2 processing discs

(C446SA & C450GPA) as standard.

• Unit is water resistant, easy to

clean and designed to conform to

strict sanitation standards.

• 1 year warranty on parts and labor.

Robot Coupe U.S.A., Inc.

P.O. Box 16625

Jackson, MS 39236-6625

1-800-824-1646 • (601) 898-8411

Fax: (601) 898-9134

www.robotcoupeusa.com • e-mail: [email protected]

SPECIFICATIONS ON REVERSE SIDE

“The Inventor & World Leader in Food Processors”

“Series D”

CL60

Shown with

optional R198

Food Tray

Cart

Optional

Bulk Feed

Assembly has

french fry

capability.

Robot Coupe U.S.A., Inc.

P.O. Box 16625

Jackson, MS 39236-6625

1-800-824-1646

(601) 898-8411

Fax: (601) 898-9134

www.robotcoupeusa.com

e-mail: [email protected]

Distributed by:

Robot Coupe reserves the right to change specifications. Call the factory for latest specifications and recommendations.

Specifications

STANDARD PACK: Motor base unit with

large lead assemply and two discs, one

1/8" (3mm) slicing disc and one 1/8"

(3mm) medium grating disc.

ELECTRICAL REQUIREMENTS: 4 H.P.,

208/240V, 60Hz, Two-Speed

(425/850 RPM), 5.3/5.8 Amps, Three

Phase. Contact your electrician for local

code requirements. NEMA L15-20

Electrical Plug.

SWITCHING: Control panel with high

and low butons, also a stop button.

MOTOR: Heavy duty, 2-speed, 4 HP, 425 RPM on low

speed, 850 RPM on high speed.

WEIGHT: 150 lbs. approximate shipping wt.

“The Inventor & World Leader in Food Processors” Vegetable Processor

“Series D”

CL60

 

  

  

  

  

  

  

  

  

   ! "#

  

$  

$  

  

 

 

 

  

  

  

  

$  

$  

$  

$  

  

$  

$  

  

  

  

  

 

 

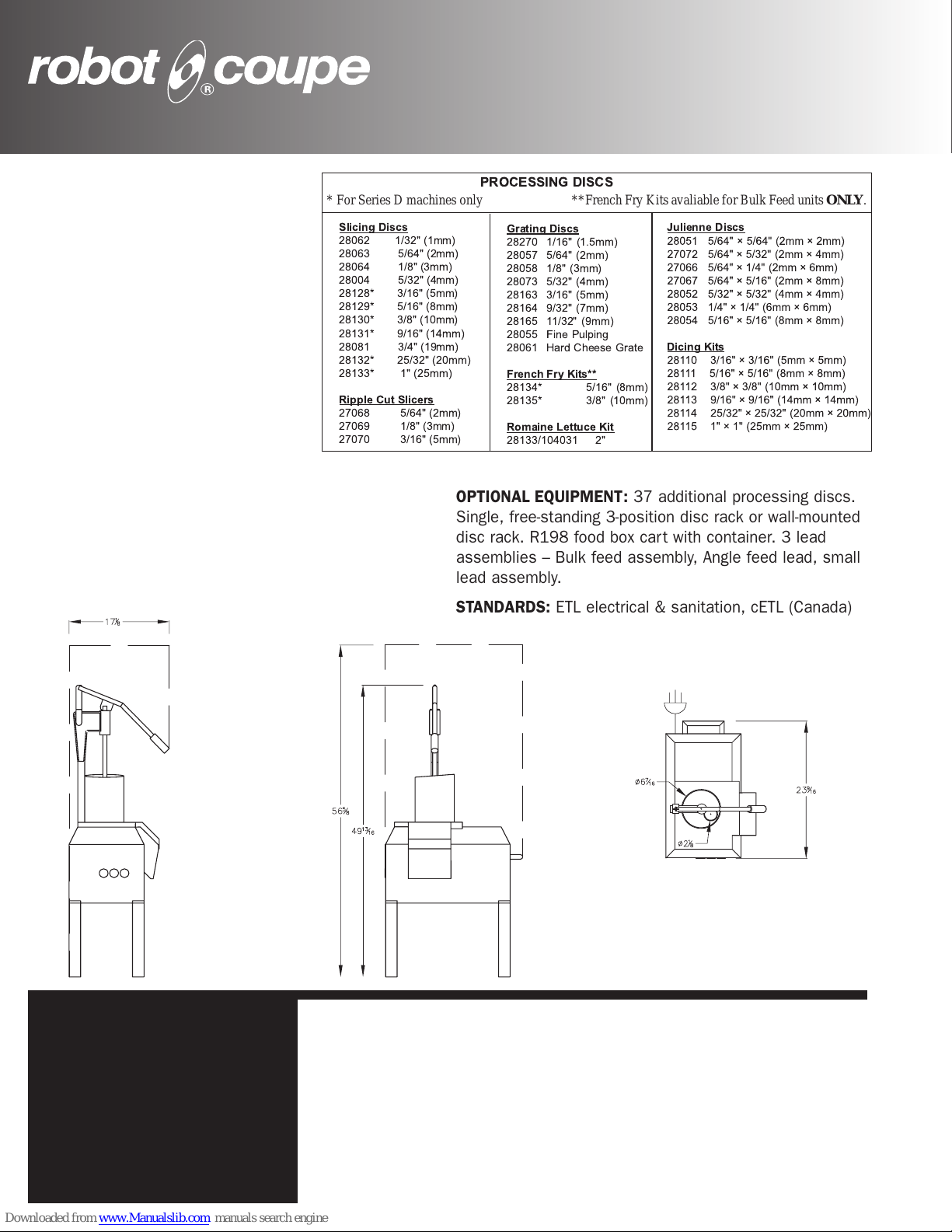

* For Series D machines only **French Fry Kits avaliable for Bulk Feed units ONLY.

OPTIONAL EQUIPMENT: 37 additional processing discs.

Single, free-standing 3-position disc rack or wall-mounted

disc rack. R198 food box cart with container. 3 lead

assemblies – Bulk feed assembly, Angle feed lead, small

lead assembly.

STANDARDS: ETL electrical & sanitation, cETL (Canada)
