ROBLIN CUBIX CENTRALE 600 User manual

Libretto di Istruzioni

Instructions Manual

Manuel d’Instructions

Bedienungsanleitung

Cubix Centrale 600

Instructions Manual

INDEX

RECOMMENDATIONS AND SUGGESTIONS....................................................................................................................17

CHARACTERISTICS............................................................................................................................................................18

INSTALLATION....................................................................................................................................................................20

USE.......................................................................................................................................................................................24

MAINTENANCE....................................................................................................................................................................25

Manuel d’Instructions

SOMMAIRE

CONSEILS ET SUGGESTIONS ..........................................................................................................................................28

CARACTERISTIQUES.........................................................................................................................................................29

INSTALLATION....................................................................................................................................................................31

UTILISATION........................................................................................................................................................................35

ENTRETIEN..........................................................................................................................................................................36

RECOMMENDATIONS AND SUGGESTIONS

INSTALLATION

• The manufacturer will not be held liable for any damages resulting

from incorrect or improper installation.

• The minimum safety distance between the cooker top and the extrac-

tor hood is 650 mm.

• Check that the mains voltage corresponds to that indicated on the

rating plate fixed to the inside of the hood.

• For Class I appliances, check that the domestic power supply guaran-

tees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum

diameter 120 mm. The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combus-

tion fumes (boilers, fireplaces, etc.).

• If the extractor is used in conjunction with non-electrical appliances

(e.g. gas burning appliances), a sufficient degree of aeration must be

guaranteed in the room in order to prevent the backflow of exhaust

gas. The kitchen must have an opening communicating directly with

the open air in order to guarantee the entry of clean air.

USE

• The extractor hood has been designed exclusively for domestic use to

eliminate kitchen smells.

• Never use the hood for purposes other than for which it has ben de-

signed.

• Never leave high naked flames under the hood when it is in operation.

• Adjust the flame intensity to direct it onto the bottom of the pan only,

making sure that it does not engulf the sides.

• Deep fat fryers must be continuously monitored during use: over-

heated oil can burst into flames.

• The hood should not be used by children or persons not instructed in

its correct use.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carry-

ing out any maintenance work.

• Clean and/or replace the Filters after the specified time period.

• Clean the hood using a damp cloth and a neutral liquid detergent.

650 mm min.

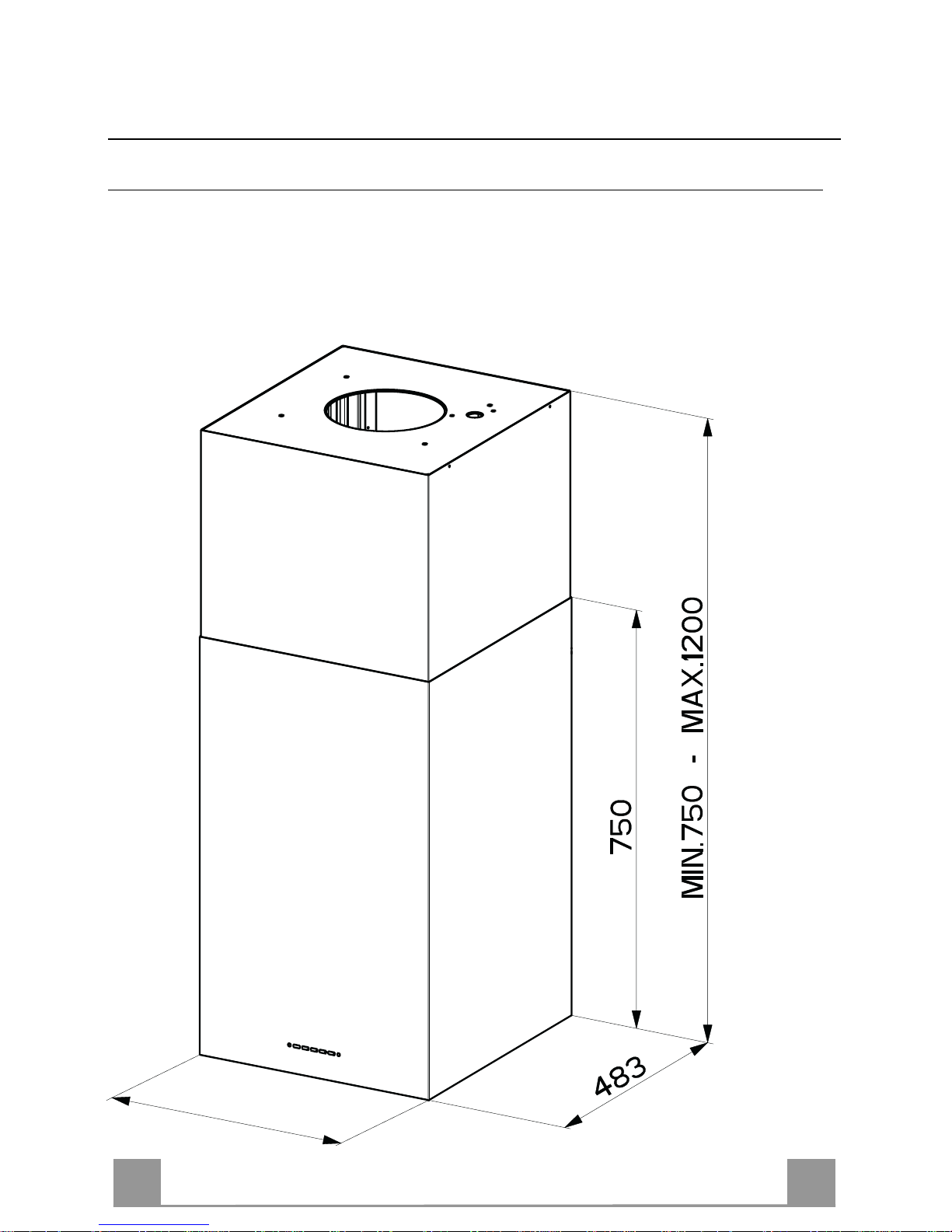

CHARACTERISTICS

Dimensions

448-598

Components

Ref. Q.ty Product Components

11 Hood Body, complete with: Controls, Light, Blower,

Filters

21 Upper Chimney

7.1 1 Telescopic frame complete with extractor, consisting of:

7.1a 1 Upper frame

7.1b 1 Lower frame

91 Reducer Flange ø150-120 mm

10 1 Damper

13 1 Gasket

14 1 Hood BodyAir Outlet Extension Piece

15 1 Air Outlet Connection

25 2 Pipe clamps

26 1 Fixing Part of the upper Chimney

29 1 Air outlet connection tube

Ref. Q.ty Installation Components

11 4 Wall Plugs ø 10

12c 4 Screws 2,9 x 9,5

12f 4 Screws M6 x 15

12g 4 Screws M6 x 80

12h 4 Screws 5,2 x 70

12w 2 Screws M3 x 8

21 1 Drilling template

22 4 6.4 mm int. dia washers

23 4 M6 nuts

24 2 Fixing knobsforthe air outletconnectionpiece

Q.ty Documentation

1 Instruction Manual

12h

12f

7.1

7.1b

7.1a

12g

12w

12c

INSTALLATION

Drilling the Ceiling/shelf and fixing the frame

DRILLING THE CEILING/SHELF

• Use a plumb line to mark the centre of the hob on the ceiling/support shelf.

• Place the drilling template 21 provided on the ceiling/support shelf, making sure that the

template is in the correct position by lining up the axes of the template with those of the hob.

• Mark the centres of the holes in the template.

• Drill the holes at the points marked:

• For concrete ceilings, drill for plugs appropriate to the screw size.

• For hollow brick ceilings with wall thickness of 20 mm: drill ø 10 mm(immediately insert

the Dowels 11 supplied).

• For wooden beam ceilings, drill according to the wood screws used.

• For wooden shelf, drill ø 7 mm.

• For the power supply cable feed, drill ø 10 mm.

• For the air outlet (Ducted Version), drill according to the diameter of the external air ex-

haust duct connection.

• Insert two screws of the following type, crossing them and leaving 4-5 mm from the ceiling:

• For concrete ceilings, use the appropriate plugs for the screw size (not provided).

• for Cavity ceiling with inner space, with wall thickness of approx. 20 mm, Screws 12h,

supplied.

• For wooden beam ceilings, use 4 wood screws (not provided).

• For wooden shelf, use 4 screws 12g with washers 22 and nuts 23, provided.

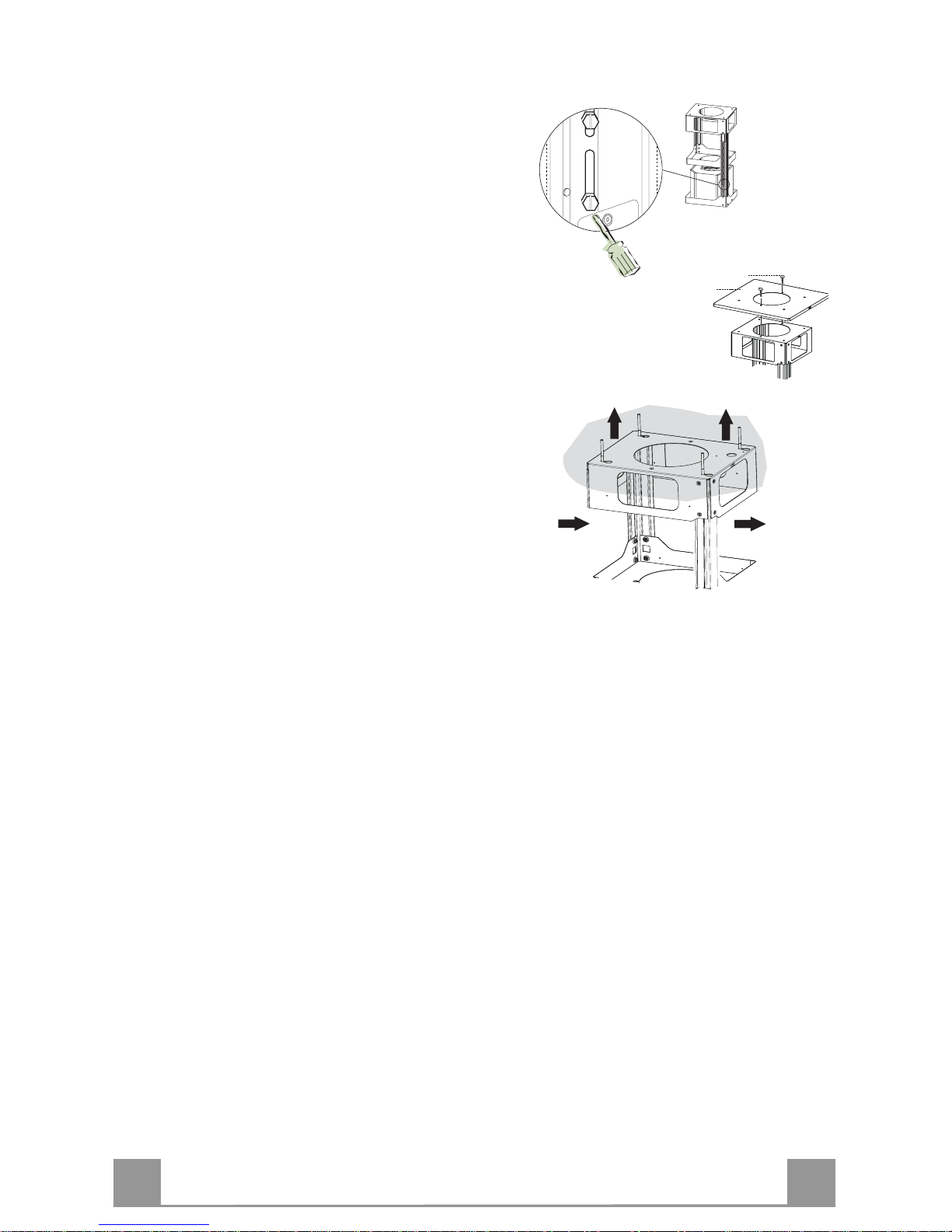

FIXING THE FRAME

If you wish to adjust the height of the frame, proceed

as follows:

• Unfasten the eight metric screws joining the two col-

umns, located at the sides of the frame.

• Adjust the frame to the height re

quired, then

replace all the screws removed as above.

• Fix the Fixing Part of the Upper Chimney 26 to the

hanging kit using the 2 screws 12w (M3 x 8).

• Lift up the frame, fit the frame slots onto the screws

up to the slot end positions.

• Tighten the two screws and fasten the other two

screws provided; before locking the screws com-

pletely, it is possible to adjust the frame by turning it,

making sure that the screws do not come out of their

housing in the adjustment slot.

• It is now possible to place and tighten the 4 safety

screws, Proceed as follows:

• drill the ceiling with a 10 mm ø bit taking as refer-

ence the holes of the side parts of the upper

chimney fixing part.

• insert the 4 dowels (provided).

• insert the washers (provided) to the screws and

tighten the screws

• The Frame must be securely fastened so as to support

both the weight of the Hood and the stress caused by

occasional axial pressure against the fitted Appli-

ance. After fixing, make sure that the base is stable

even when the Frame is subjected to lateral stress.

• If the Ceiling is not strong enough in the area where

the hood is to be fixed, the Installer must strengthen

the area using suitable plates and counterplates an-

chored to resistant structures.

12w

Connections

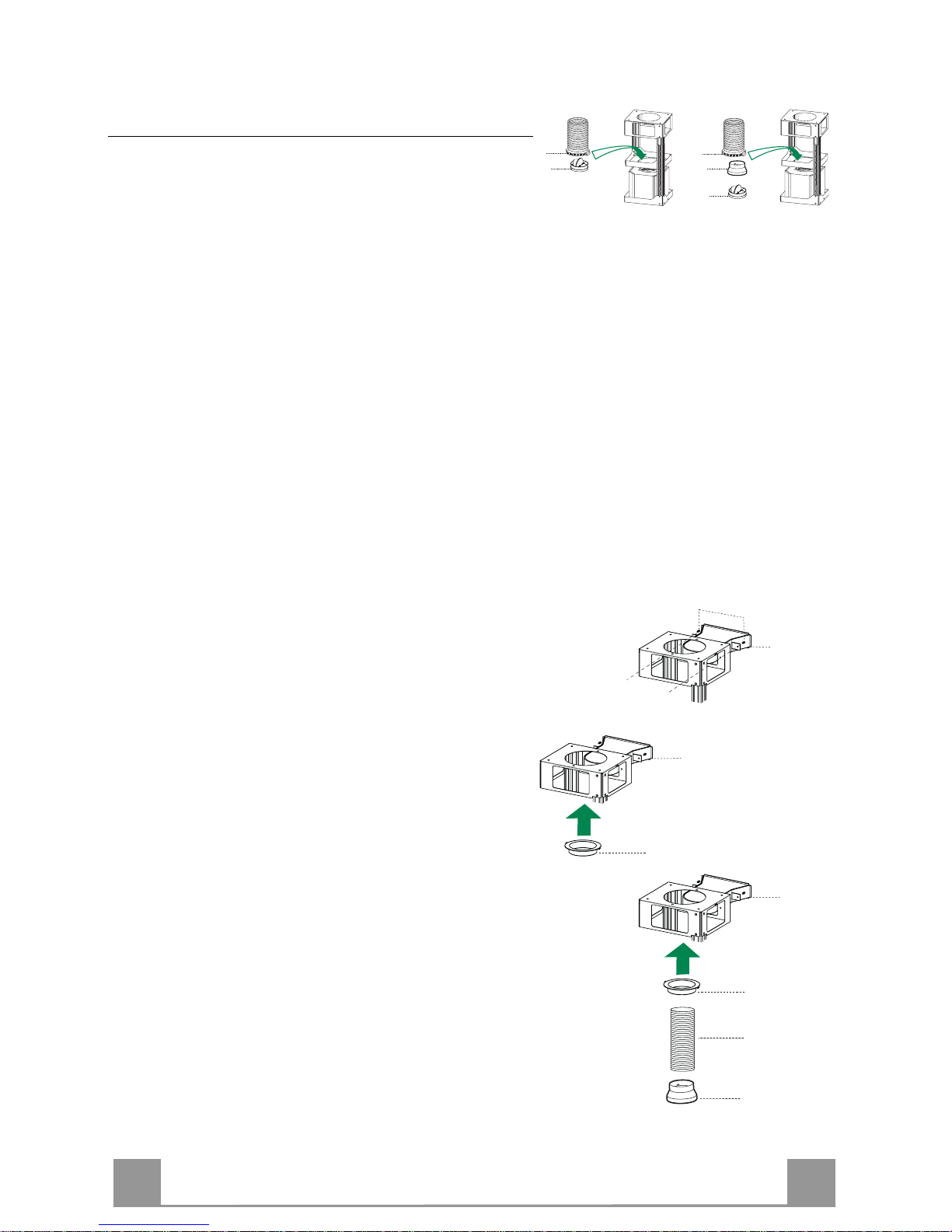

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to

the chimney using either a flexible or rigid pipe ø 150

or 120mm, the choice of which is left to the installer.

To install a ø 150

• To install the dumper 10

• Fix the pipe in position using sufficient pipe clamps

(not supplied).

To install a ø 120

• To install a ø 120 mm air exhaust connection, insert

the reducer flange 9 on the dumper 10.

• Fix the pipe in position using sufficient pipe clamps

(not supplied).

• Remove any activated charcoal filters.

ø 150

ø 120

RECIRCULATION VERSION AIR OUTLET

• Insert the reducer flange 9on the air outlet of the ex-

tractor.

• Attach the adhesive Novastik gasket 13 to the air out-

let connection 15 and fix this to the upper frame us-

ing the 2 knobs 24.

• Fix the air outlet connection extension piece 14 to the

air outlet connection 15.

• Place the air outlet connection tube 29 between the

two air outlets.

Flue assembly - Mounting the hood body

• Place the upper chimney section and fix the upper part to the

the Fixing Part of the Upper Chimney using the 4 screws 12c

(2,9 x 9,5) provided.

Recirculation version

• It is necessary to make sure that the air outlet connection 15 is

placed correctly so that the air outlet grid in it corresponds to

that of the chimney.

• If the grids of the two parts are not corresponding to each

other, it will be necessary to remove the chimney and to adjust

the position of the air outlet connection 15, and at last to as-

sembly the parts again by following the earlier indications.

Before fixing the hood body to the frame:

• Open the suction panel by turning the specific knob.

• Disconnect the panel from the hood canopy by sliding the fix-

ing pin lever.

• Remove the grease filters from the hood body.

• Remove any activated charcoal filters.

• From below, use the 4 screws 12f (M6 x 10) provided to fix the

hood body to the frame.

12c

12f

ELECTRICAL CONNECTION

• Connect the Hood to the mains power supply, inserting a two-

pole cut-out switch with contact aperture of at least 3 mm

along the line.

• Pull the Comfort Panel to open it, ensure that the supply cable

connector is properly inserted into the Suction device socket

• Join the connectors.

• Install the odour filter and the charcoal filter in case the hood is

to be used in recycling version.

• Install the grease filter again, and successively the suction

panel.
