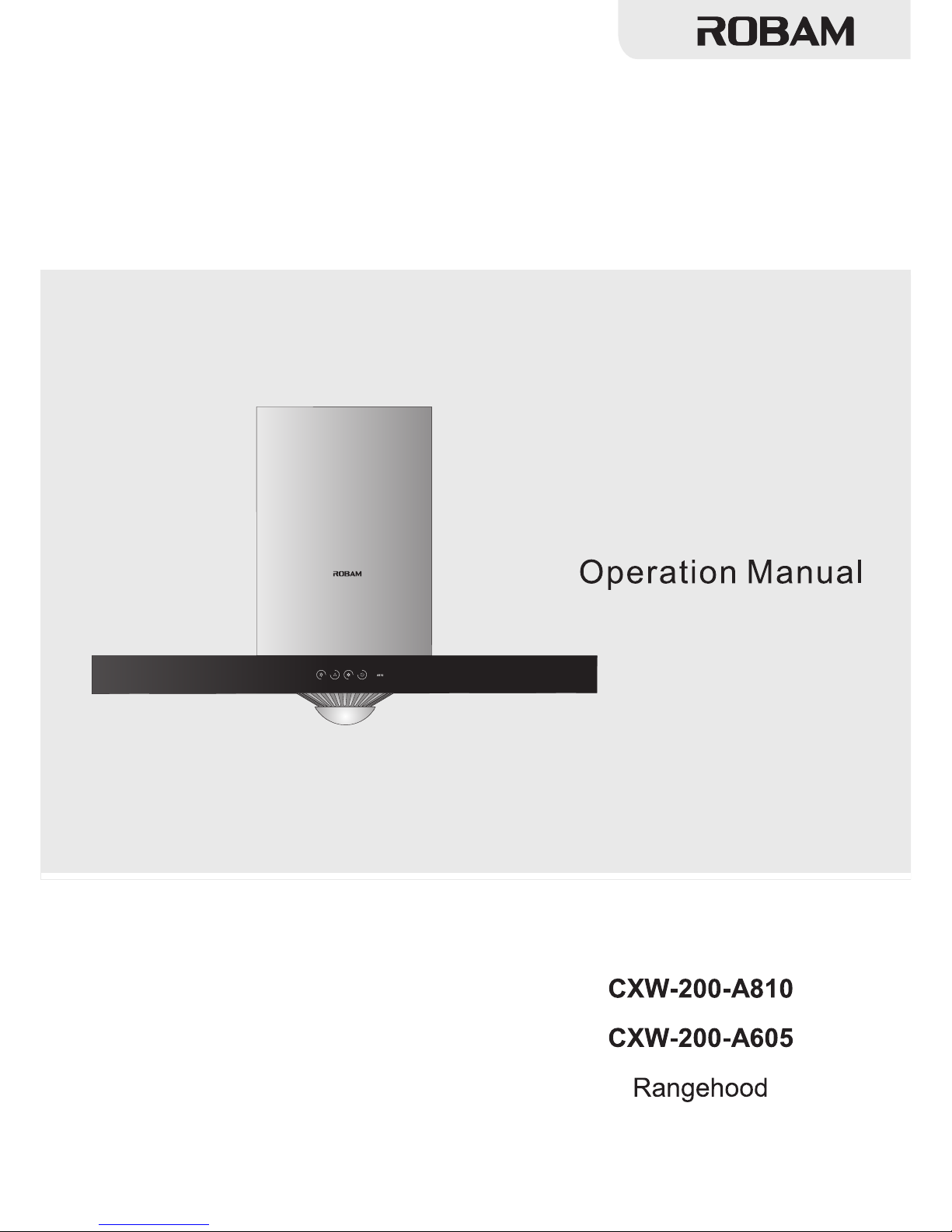

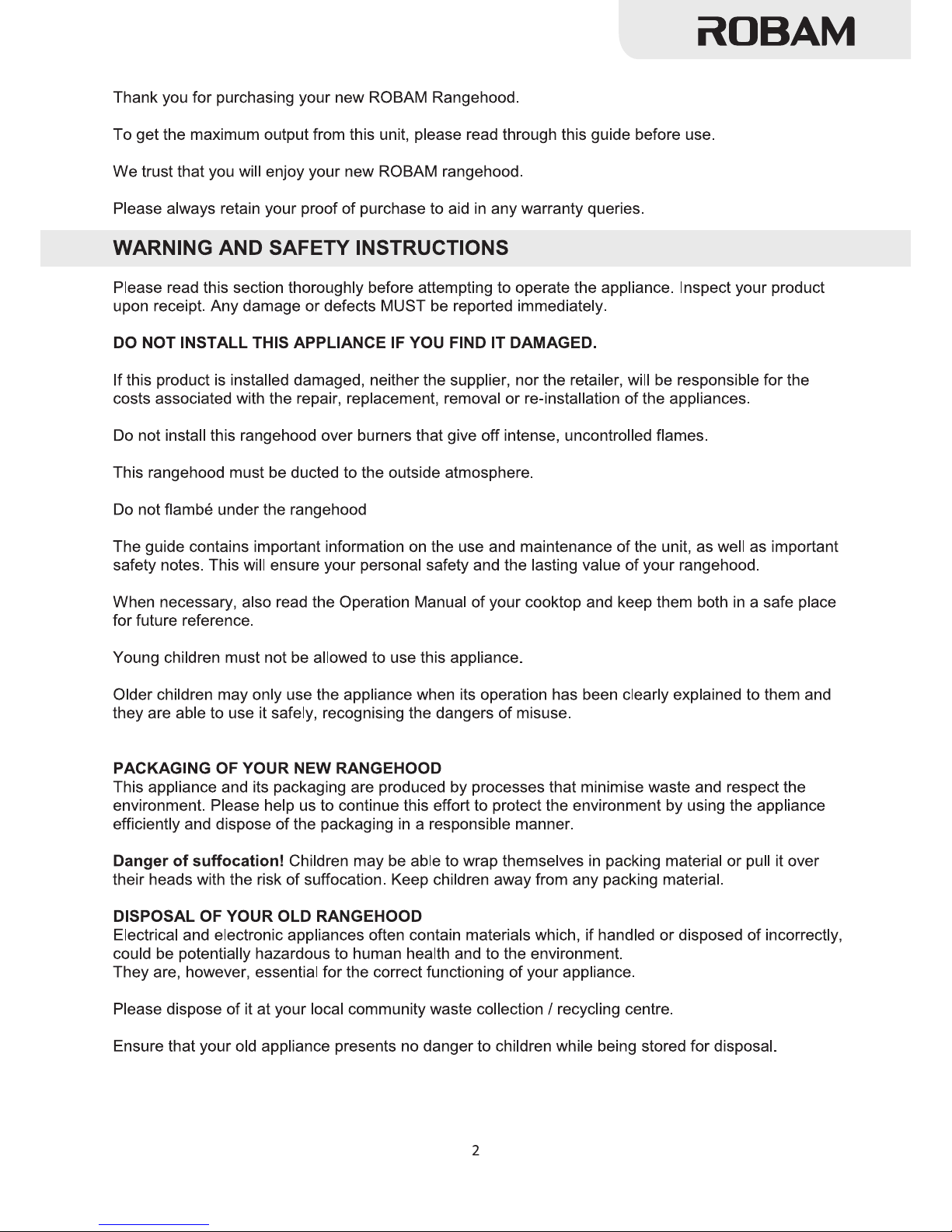

Robam CXW-200-A810 User manual

….....

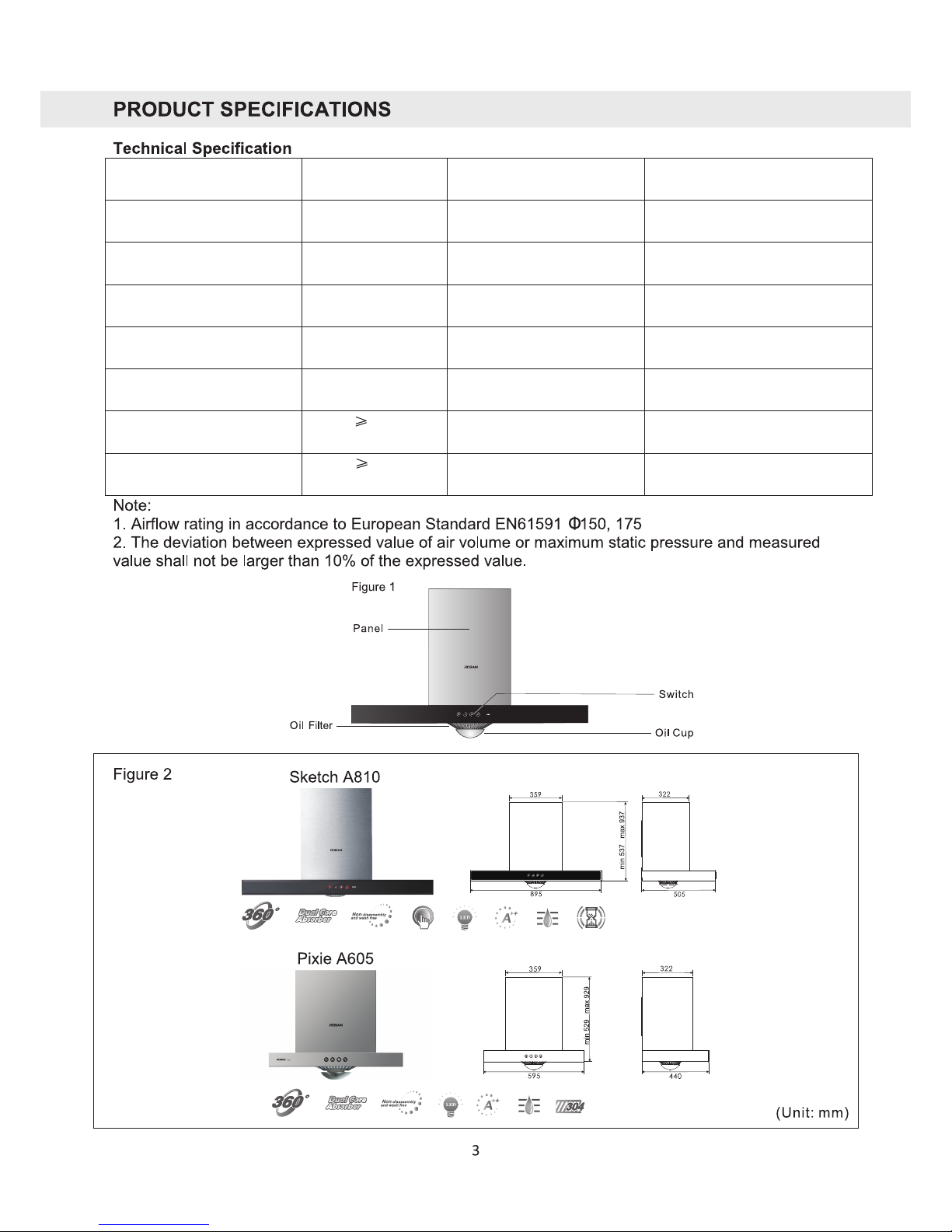

Model

CXW-200-A810

CXW-200-A605

Maximum Noise Level

≤55dB(A)

Power Supply

220-240V ~ 50Hz

Rated Total Input Power

A810: 204W

A605: 203W

Full Pressure Efficiency

≥23%

Rated Motor Input Power

200W

Nominal Pressure

≥

220Pa

Maximum Lighting Power

A810:

≤

2Wx2

A605: ≤1.5Wx2

European Standard

Maximum Airflow Rating

1020m³/hr

Dimensions (L x W x H)

A810: 895 x 505 x 537 (mm)

A605: 595 x 440 x 529 (mm)

Maximum Static

Pressure

≥

310Pa

Net Weight

A810: 21.5kg

A605: 17kg

Odour Decrease Rate

(Normal)

98%

Grease Separation Rate

≥92%

Odour Decrease Rate

(Instantaneous)

76%

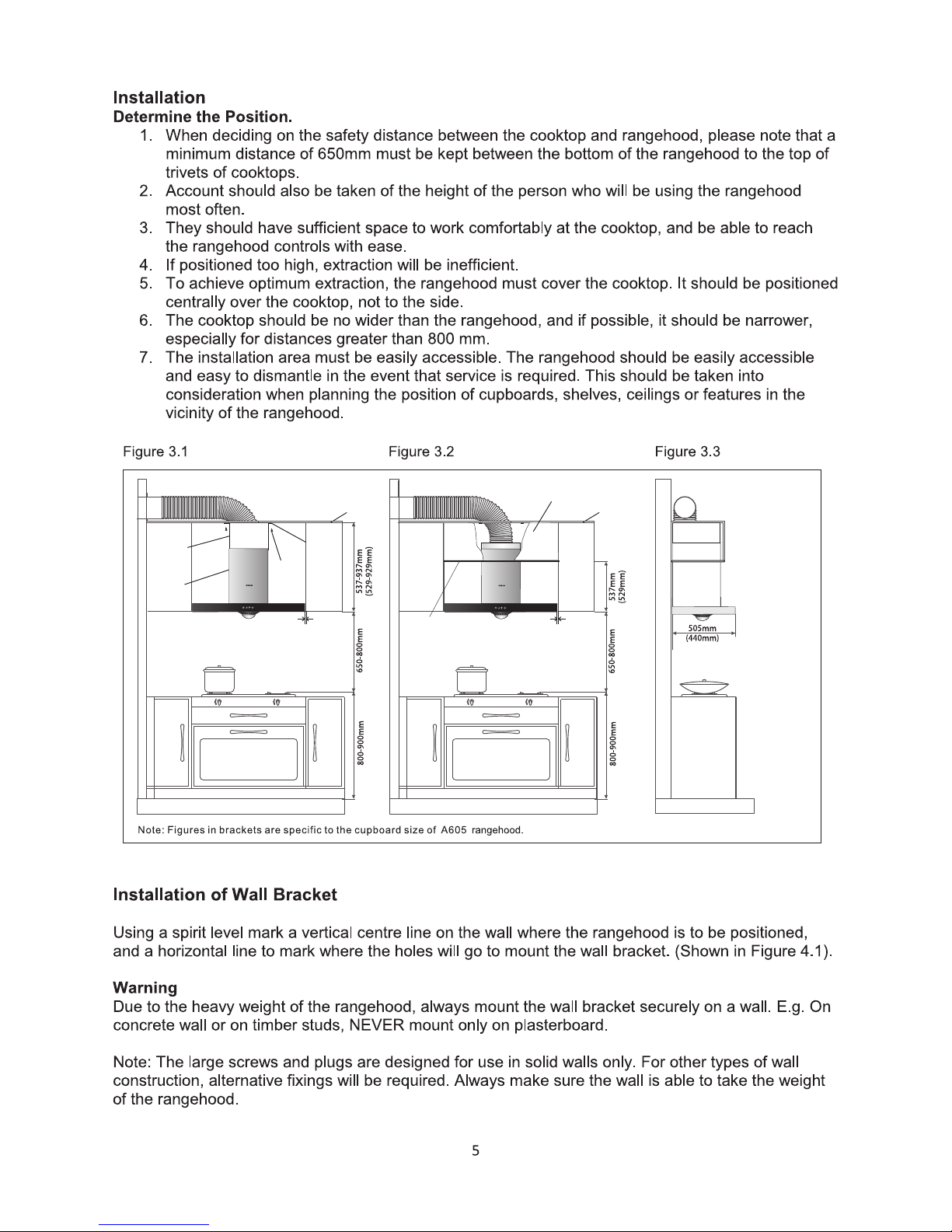

Minimum Distances

Cooktop: 650mm

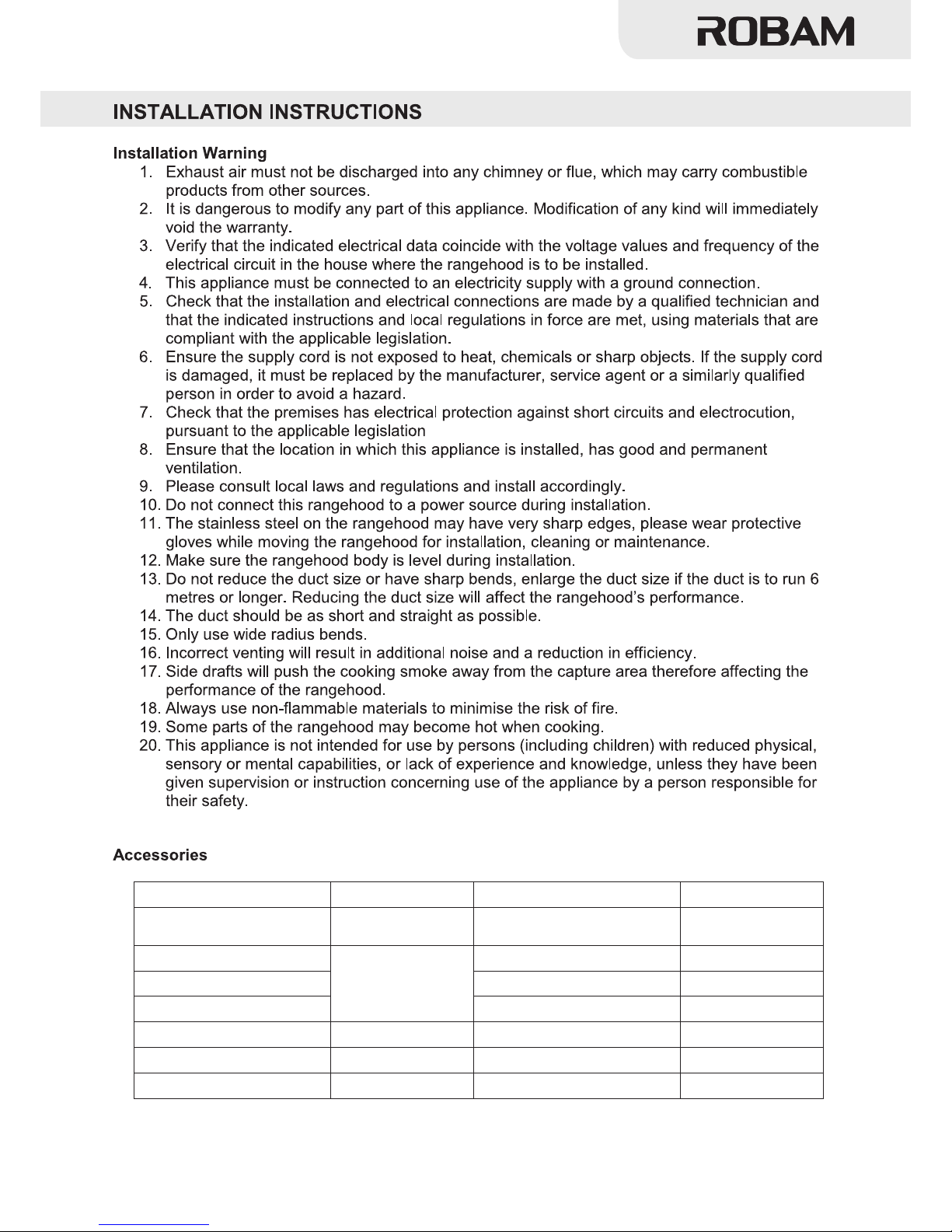

Name

Quantity

Name

Quantity

Rangehood 1 piece ST4x18 Self Tapping

Screws

10 pieces

Non-Return Valve

1 set

ST4.8x50 Timber Screws

4 pieces

Valve Seal

Solid Wall Plug

4 pieces

Valve connector

M6 Solid Wall Anchor

1 piece

Wall Bracket

1 piece

Stopper Foot

1 piece

Oil Cup

1 piece

Semi-Rigid Duct with Tape

1 piece

User Manual

1 piece

Reducing Collar

1 piece

Ceiling

Drawing panel

10mm

Ceiling

Removable panel

Removable baffle

10mm

Mounting hole

of the drawing

panel

ST4X1 8 self-tapping

screws

Decorative panel

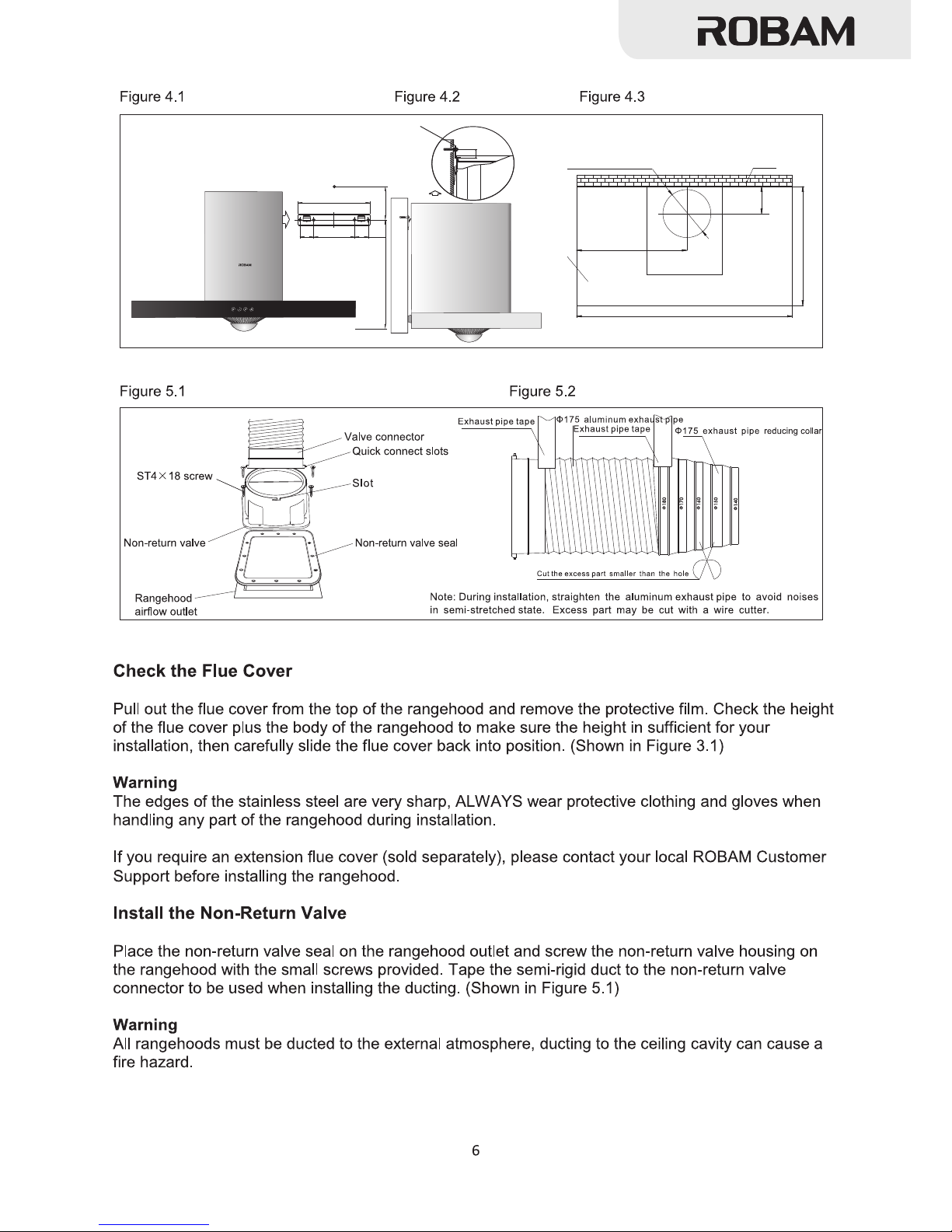

CX W -200-8 3 1 2

8321 8321

Φ180

Φ170

Φ160

Φ150

Φ140

235mm

110mm55mm 55mm

495mm 65±2mm

35±2mm

CX W -200-8 3 1 2

100mm

468(318)mm

Ceiling drilling size chat

(The size of A605 in the bracket)

505(440)mm

895(595)mm

Projection size of

the hood top

Wall

Hole size of the exhaust p ipe Φ2 00mm

8321

Top view

of rangehood

Wall Bracket

Stopper Foot

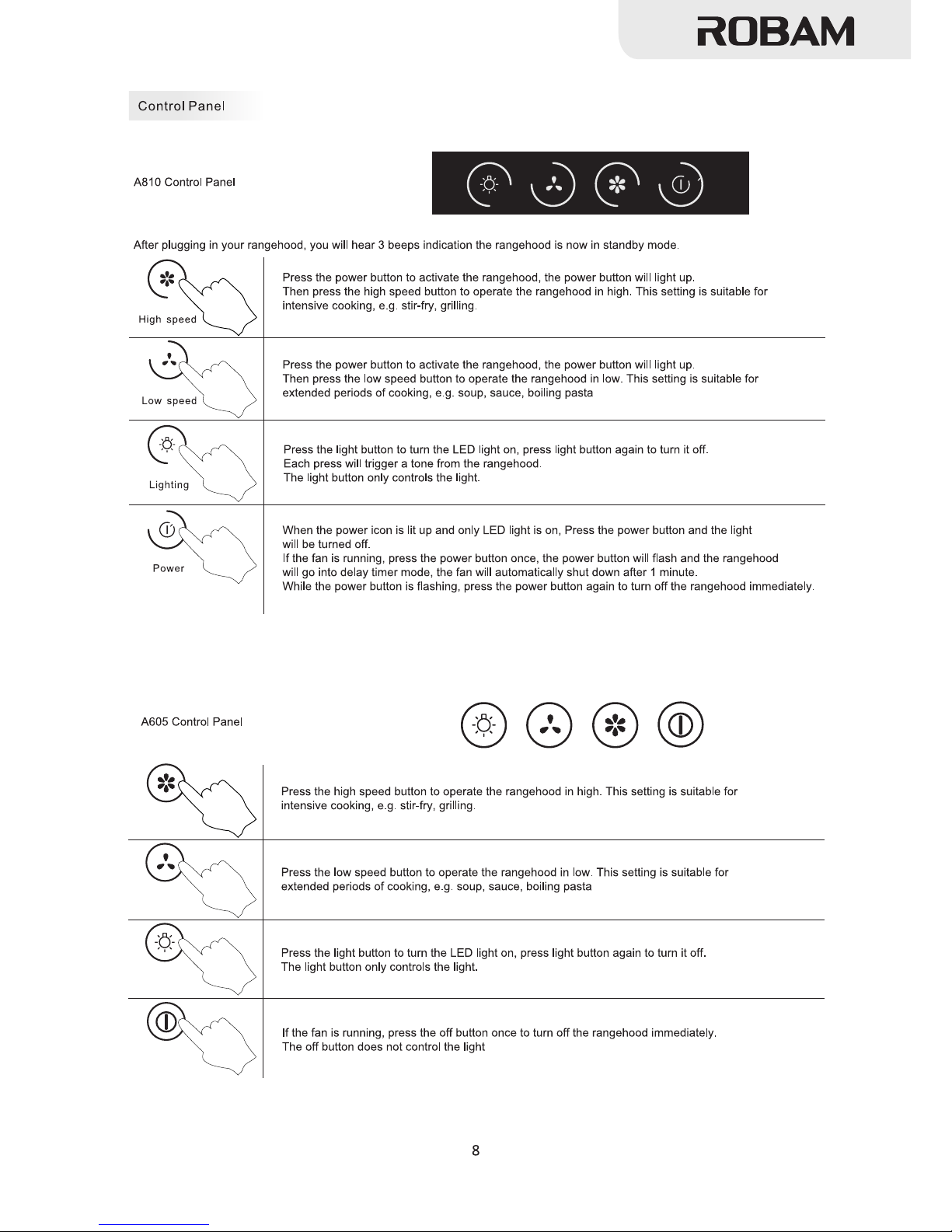

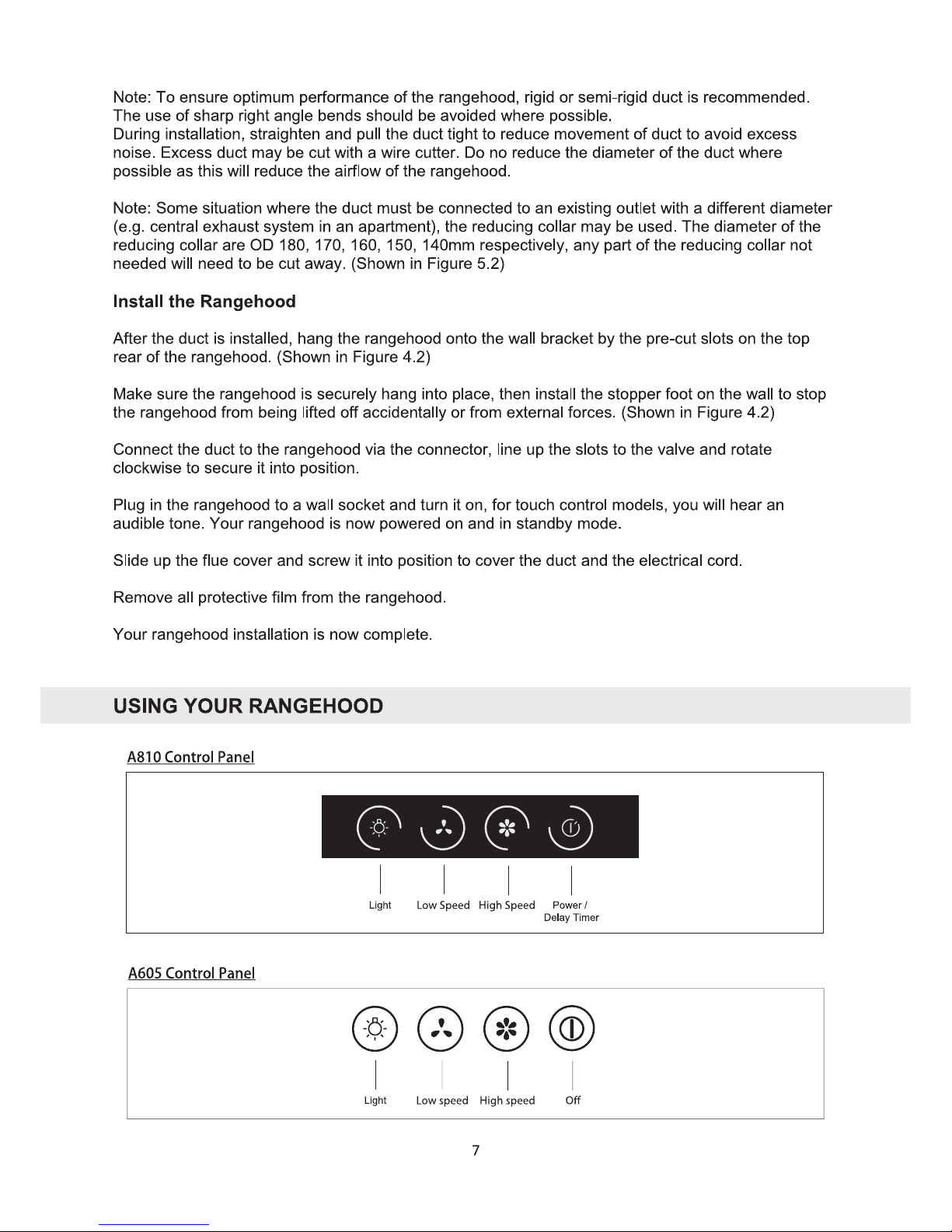

High speed

Low speed

Lighting

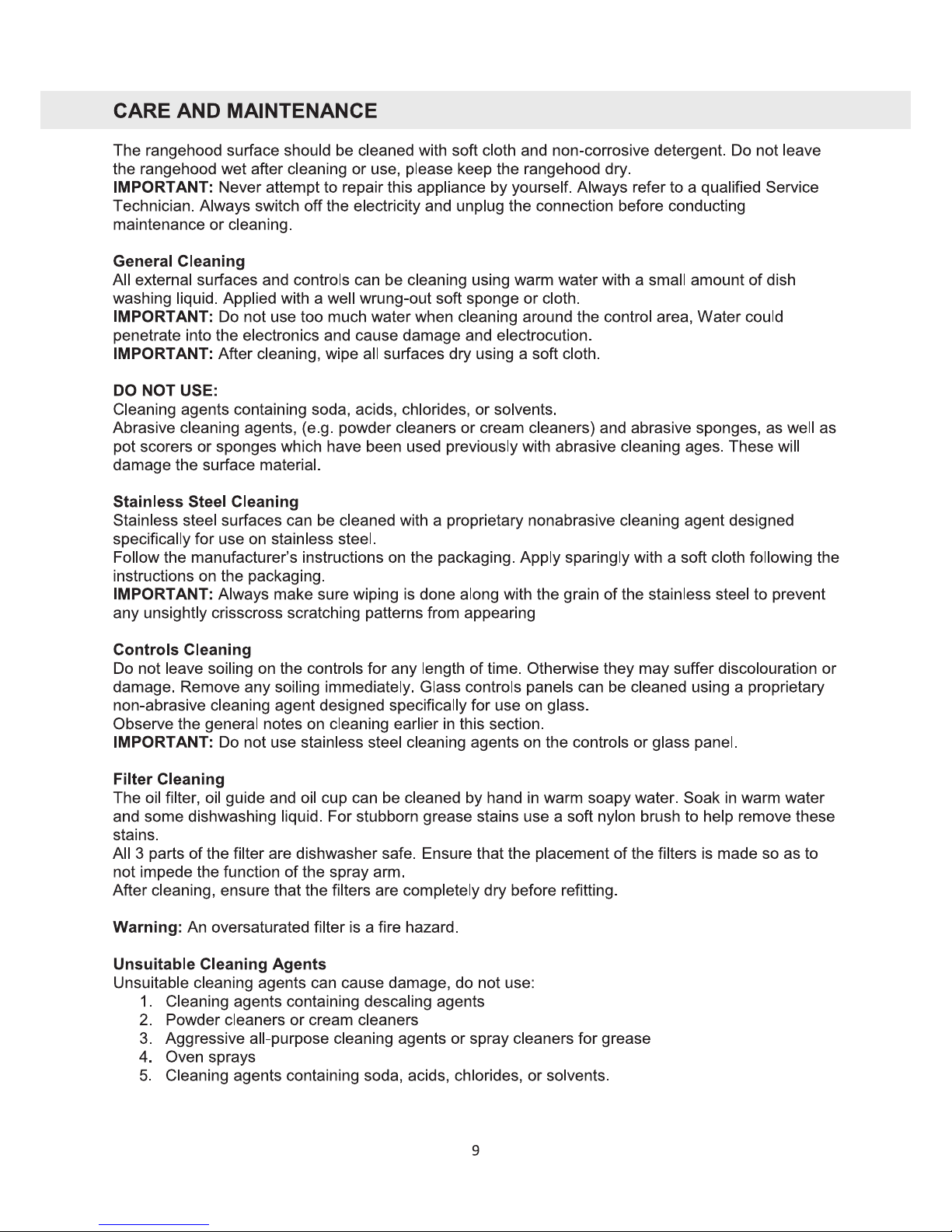

Off
