RITE-HITE RHH User manual

RHH Hydra-RiteTM / Base

Dock Leveler

Owners Manual

This Manual Covers Dock Levelers Built After Serial Numbers:

05BD480001M and up

PRINTED IN U.S.A.

RITE-HITE PRINT SHOP

PUBLICATION NO. 1210

NOVEMBER 2009

MADE IN U.S.A.

part of the SMOOTH TRANSITION DOK SYSTEMTM

RHH HYDRA-RITETM

Dock Leveler Shown

2Pub. No. 1210 - November 2009

RITE-HITE®RHH Dock Leveler Owner’s Manual

NOTES

Pub. No. 1210 - November 2009 3

NOTICE TO USER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

SAFETY WARNINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

OWNER RESPONSIBILITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

OPERATION INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

MAINTENANCE PROCEDURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

LEVELER ADJUSTMENTS / TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

HYDRAULIC SCHEMATIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

ELECTRICAL WIRING CHARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

ELECTRICAL SCHEMATICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

STANDARD WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .BACK COVER

RITE-HITE®RHH Dock Leveler Owner’s Manual

TABLE OF CONTENTS

PRODUCT SPECIFIC WARRANTY

RITE-HITE®warrants the RHH Hydra-RiteTM / Base Dock Leveler for five-years parts and one-year labor from date of

shipment in accordance with Rite-Hite's Standard Warranty Policy.

NOTICE TO USER

Your local RITE-HITE®representative provides a Planned Maintenance Program (P.M.P.) which can be fitted to your

specific operation. Call your local representative or the RITE-HITE®Corporation at 414-355-2600.

The RITE-HITE®products in this manual are covered by one or more of the following U.S. patents: 5,040,258;

5,271,183; 5,323,503; 5,375,965; 5,440,772; 5,442,825; 5,531,557; 5,546,623; 5,553,987; 5,582,498; 5,664,930;

5,702,223; 5,762,459 (RE: 37,570); 5,882,167; 5,964,572; 6,010,297; 6,052,268; 6,065,172; 6,070,283; 6,074,157;

6,085,375; 6,092,970; 6,106,212; 6,116,839; 6,190,109; 6,220,809; 6,238,163; 6,276,016; 6,311,352; 6,318,947;

6,322,310; 6,360,394; 6,368,043; 6,431,819; 6,488,464; 6,497,076; 6,499,169; 6,505,713; 6,524,053; 6,634,049;

6,654,976; 6,676,360; 6,726,432; 6,773,221; 6,832,403; 6,880,301; 6,892,411; 7,032,267; 7,062,814; 7,134,159;

7,213,285; 7,216,391; 7,363,670; 7,380,305 and pending U.S and foreign patent applications.

RITE-HITE®, LEVEL-RITE®, THINMANTM, SAFE-T-LIP®, HYDRACHEK®, WHEEL-LOKTM, DOK-LOK®, DUAL-DOK®,

SAFE-T-STRUTTM, DOK-COMMANDER®, JUMBOTM, HYDRA-RITETM, SAFE-T-GATE®, and SMOOTH TRANSITION

DOK SYSTEMTM, are trademarks of RITE-HITE®Corporation.

4Pub. No. 1210 - November 2009

RITE-HITE®RHH Dock Leveler Owner’s Manual

SAFETY WARNINGS

LOCKOUT/TAGOUT PROCEDURES

The Occupational Safety and Health Administration (OSHA) requires, in addition to posting safety warnings and barri-

cading the work area (including, but not limited to, trucking office and loading docks), that the power supply has been

locked in the OFF position or disconnected. It is mandatory that an approved lockout device is utilized. An example of

a lockout device is illustrated. The proper lockout procedure requires that the person responsible for the repairs is the

only person who has the ability to remove the lockout device.

In addition to the lockout device, it is also a requirement to tag the power control in a manner that will clearly note that

repairs are under way and state who is responsible for the lockout condition. Tagout devices have to be constructed

and printed so that exposure to weather conditions, or wet and damp locations, will not cause the tag to deteriorate or

become unreadable.

RITE-HITE®does not recommend any particular lockout device, but recommends the utilization of an OSHA approved

device (refer to OSHA regulation 1910.147). RITE-HITE®also recommends the review and implementation of an entire

safety program for the Control of Hazardous Energy (Lockout/Tagout). These regulations are available through OSHA

publication 3120.

When working with electrical or electronic con-

trols, make sure that the power source has been

locked out and tagged out according to OSHA

regulations and approved local electrical codes.

XXXXXXXXXXXX

XXXXXXXXXXX

OPERATE

DO NOT

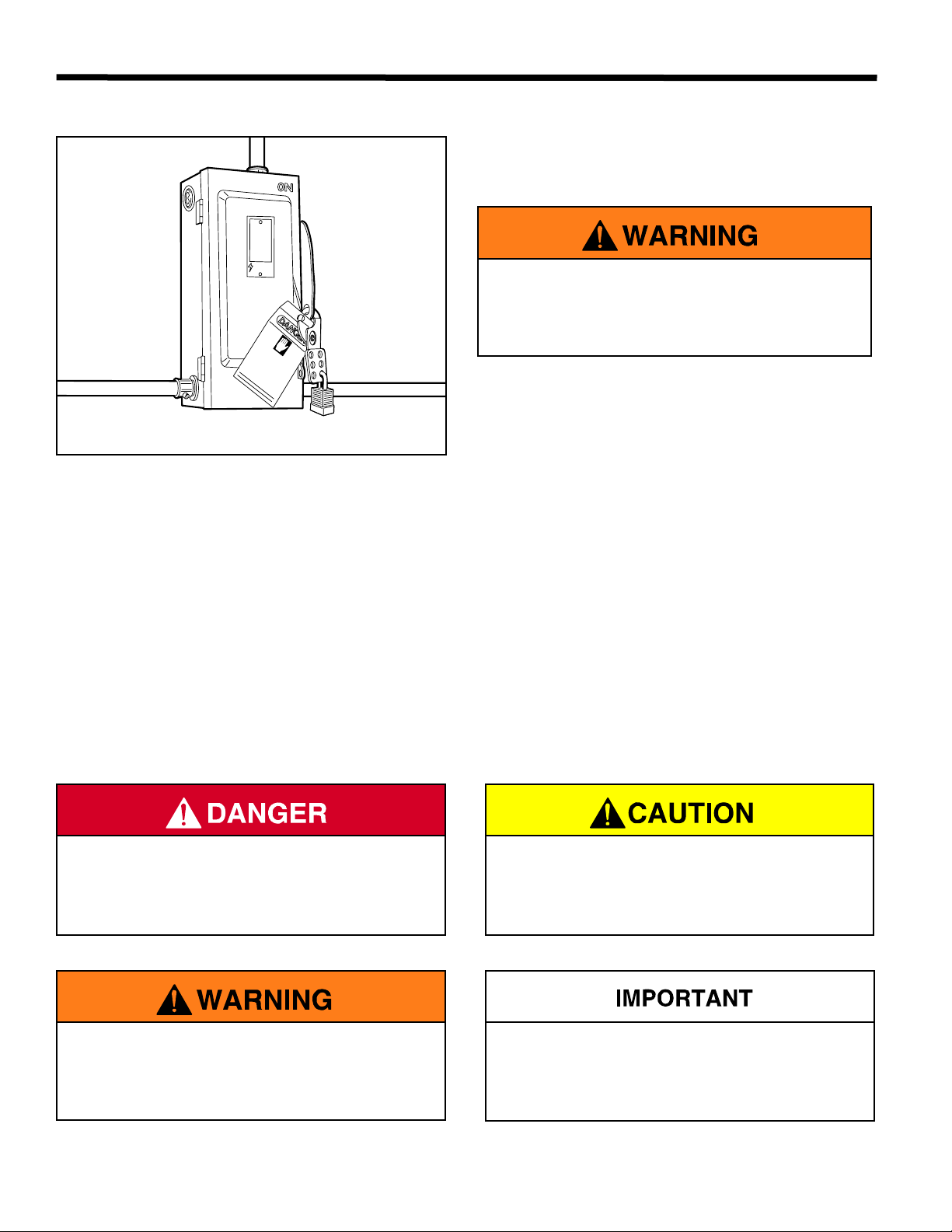

FIGURE 1 - LOCKOUT/TAGOUT

This is a statement of serious hazard. Failure to

follow the listed instructions could place the

individual at risk of serious injury or death.

This is the highest level statement. Failure to

follow the listed instructions will most likely

result in severe injury or death.

The statements used with this level of warning

deal with a safe operating procedure. If the pro-

cedure is ignored the possibility of personal

injury may exist.

IMPORTANT is used to draw attention to a pro-

cedure that needs to be followed to prevent

machine damage.

Pub. No. 1210 - November 2009 5

RITE-HITE®RHH Dock Leveler Owner’s Manual

OTHER IMPORTANT OPERATIONAL SAFETY WARNINGS

Never be under the dock leveler platform or lip

without:

• Installing the Safe-T-StrutTM or other

supporting device.

• If lip needs to be extended, follow

procedures shown under Safety Devices on

the following page.

• Turning off power to the control box.

• Locking out and tagging out the main

power source, as shown under Safety

Warnings on preceding page.

Always barricade the dock leveler at ground

level and dock level from any form of traffic

when maintenance is required.

Inspect the dock leveler monthly to ensure that

there are no broken or worn parts which could

cause injury to personnel or damage to the

equipment.

• Before starting installation or maintenance,

check and follow the safety procedures of

the facility where the dock leveler is being

installed.

• Never enter a truck/trailer until its brakes are

set, air has been dumped from air ride

suspension (if applicable), and you have

visually inspected to be sure truck/trailer is

securely held in place by a vehicle restraint

or wheel chock per OSHA regulations.

• Never operate the leveler with you, anyone,

or anything on, or in front of the leveler, or

without a truck/trailer parked in position, or

from on the truck/trailer bed.

• DO NOT operate with anyone under platform

or in front of the lip.

• When leveler is not in use, always store it so

that it is supported by the lip supports and

that it is level with the surrounding dock

floor.

• If a malfunction does occur, always call your

authorized RITE-HITE®service representative

immediately.

6Pub. No. 1210 - November 2009

RITE-HITE®RHH Dock Leveler Owner’s Manual

SAFETY DEVICES

Never be under the dock leveler platform or lip

without:

• Installing the Safe-T-Struttm. See below right.

This can be done with the assistance of

another person by:

- Raise leveler until platform reaches its

highest position and lip extends.

Continue to maintain this position.

- Then have assistant insert the smaller end

of the Safe-T-StrutTM through the hole in

the middle of the leveler lip and place the

strut’s wider open end over the base

located on the leveler’s front frame. Align

the holes on the base and the Safe-T-

StrutTM so that the leveler may be secured

with the retaining pin and safety clip.

- Release the pushbutton on powered

levelers allowing the Safe-T-StrutTM to rest

on the underside of the lip.

• Lockout/Tagout power supply.

- Turn off the power to the control box.

- Lockout/tagout the main power source, as

shown under Safety Warnings on the

inside front cover of this manual.

- Always barricade the leveler at dock level

and drive level to prevent any

unauthorized use of the leveler.

Remove the Maintenance Support.

• For Safe-T-StrutTM removal, have an

assistant raise the leveler to its highest

position with lip fully extended. Release the

safety clip and remove retaining pin. Lift strut

off base, and remove from lip. Return the

Safe-T-StrutTM to the proper storage position.

• If you are unable to install the Maintenance

Support properly, contact your authorized

RITE-HITE® Service Representative or RITE-

HITE® Customer Service at 1-414-355-2600.

• Post warnings and barricades at dock level

and at drive level to indicate that work is

being done around and under the leveler

platform.

• Lockout/Tagout power to the leveler and post

warnings when work is being performed on

the leveler.

FIGURE 2 - INSTALL SAFE-T-STRUTTM SUPPORT

Pub. No. 1210 - November 2009 7

RITE-HITE®RHH Dock Leveler Owner’s Manual

OWNER RESPONSIBILITY

1. The owner should recognize the inherent danger of

the interface between dock and transport vehicle.

The owner should, therefore, train and instruct

operators in the safe use of dock equipment in

accordance with the information provided below.

The manufacturer shall publish, provide to the initial

purchaser, and make the following information

readily available to owners:

•Installation instructions

•Recommended initial and periodic inspections

procedures

•Maintenance procedures

•Operating instructions

•Descriptions or specifications for replaceable or

repairable parts

•Tables identifying the grade (slope) for all

variations of length or configuration of the dock

equipment

•Information identifying the maximum

uncontrolled drop encountered upon sudden

removal of support while within the working

range of the equipment.

It shall be the responsibility of the owner to verify

that the material listed in this section has been

received and that it is made available for the

instruction and training of personnel entrusted with

the use or maintenance of the dock equipment.

2. When a transport vehicle is parked at a loading

dock, it is important that the vehicle is relatively

perpendicular to the dock face and in close contact

with at least one of the dock bumpers.

3. Nameplates, cautions, instructions, and posted

warnings shall not be obscured from the view of

operating or maintenance personnel for whom such

warnings are intended.

4. Manufacturer’s recommended periodic maintenance

and inspection procedures in effect at date of

shipment shall be followed, and written records of

the performance of these procedures should be kept.

5. As with any piece of machinery, dock equipment

requires routine maintenance, lubrication, and

adjustments. Your local RITE-HITE®representative

offers owners the option of a Planned Maintenance

Program (P.M.P.). As part of this service, your local

RITE-HITE®representative will do all routine

maintenance, lubrication, and adjustments.

6. Dock equipment that is structurally damaged shall

be removed from service, inspected by a

manufacturer’s authorized representative, and

repaired as needed before being placed back in

service.

7. The manufacturer shall make available

replacement nameplates, caution/instruction labels,

and operating/maintenance manuals upon request

of the owner. The owner shall see that all

nameplates, caution/instruction markings or labels

are in place and legible, and that the appropriate

operating/maintenance manuals are provided to

users.

8. Modifications or alterations of dock equipment shall

be made only with written permission of the original

manufacturer. These changes shall also satisfy all

safety recommendations of the original equipment

manufacturer for the particular application of the

dock equipment.

9. When industrial trucks are driven on and off

transport vehicles during the loading and

unloading operation, the brakes on the transport

vehicle shall be applied and wheel chocks or a

positive restraining device shall be engaged.

10. In selecting dock equipment, it is important to

consider not only present requirements but also

future plans or adverse environments.

NORMAL OPERATION

1. Activate the leveler by pushing and holding the

RAISE button until leveler is fully raised and lip is

fully extended. See figure 3.

NOTE: Some levelers may be equipped with a two

button control box. If so, push and hold the RAISE

button to raise the platform. While pressing the

RAISE button, push the LIP EXTEND button to fully

extend the lip when the lip has cleared trailer bed.

2. When lip is fully extended, release RAISE button. The

leveler will automatically lower onto the truck/trailer

bed. See figure 4.

NOTES:

a. Some levelers may be equipped with a two button

control box. If so, release RAISE and LIP EXTEND

buttons.

b. Be sure the lip is in full contact with the truck/trailer

bed before loading or unloading truck/trailer.

3. See Storing Leveler.

NOTES:

a. Levelers without Automatic Return to Dock

(ARTD) If the truck/trailer departs, the leveler will

move to its lowest position and the lip will fall to the

pendant position inside the dock bumpers. See

Storing Leveler.

b. Levelers with Automatic Return to Dock (ARTD) If

the lip is on the truck/trailer and the truck departs, the

leveler will move to its lowest position and the lip will

begin to lower. As the lip drops toward the pendant

position, the ARTD system automatically returns the

leveler to the stored position without operator

assistance.

BELOW DOCK LOADING OPERATION

1. Activate the leveler by pushing and holding the

RAISE button until leveler is fully raised and lip is

fully extended. See figure 3.

NOTE: Some levelers may be equipped with a two

button control box. If so, push and hold the RAISE

button to raise the platform. While pressing the

RAISE button, push the LIP EXTEND button to fully

extend the lip when the lip has cleared trailer bed.

2. When lip is fully extended, release RAISE button. If

equipped with safety legs, pull and hold the Safety

Leg Chain as the leveler lowers automatically onto

the truck/trailer bed. See figure 5.

NOTE: Some levelers may be equipped with a two

button control box. If so, release RAISE and LIP

EXTEND buttons.

3. When loading/unloading is complete, continue with

normal operation or return the leveler to stored

position. See Storing Leveler.

8Pub. No. 1210 - November 2009

RITE-HITE®RHH Dock Leveler Owner’s Manual

OPERATION INSTRUCTIONS POWERED LEVELERS

FIGURE 3 - POWERED DOCK LEVELER

FIGURE 4 - NORMAL OPERATION

FIGURE 5 - BELOW DOCK OPERATION

(SAFETY LEG EQUIPPED SHOWN)

Safety Leg

Chain

DOCK LEVEL (OR LOWER) END LOADING

OPERATION

1. Activate the leveler by pushing and holding the

RAISE button until leveler is fully raised and lip

begins to extend. See figure 6.

NOTE: Some levelers may be equipped with a two

button control box. If so, push and hold the RAISE

button until the lip clears the lip supports. While

pressing the RAISE button, push the LIP EXTEND

button briefly to extend the lip beyond the lip

supports.

2. When lip extends about 2 inches, release RAISE

button. See figure 6. The leveler will lower to the

below dock position with the lip positioned between

the face of the loading dock and the truck/trailer bed.

See figure 7.

NOTES:

a. Some levelers may be equipped with a two button

control box. If so, release RAISE and LIP EXTEND

buttons

b. If equipped, pull and hold the Safety Leg Chain as

the leveler lowers for below dock end loads. See

figure 8. DO NOT pull chain for dock level end loads.

c. End load at dock level and above can be handled

with the leveler in its stored position on units without

a Safe-T-Lip®.

d. If the lip extended too far, quickly push and release

the RAISE button to slightly retract the lip.

e. If the lip was not extended far enough and hits the lip

supports, repeat this step allowing the lip to extend

farther.

3. When loading/unloading is complete, continue with

normal operation or return the leveler to stored

position. See Storing Leveler.

Pub. No. 1210 - November 2009 9

RITE-HITE®RHH Dock Leveler Owner’s Manual

OPERATION INSTRUCTIONS POWERED LEVELERS CONT.

FIGURE 8 - END LOAD OPERATION

(EQUIPPED WITH SAFETY LEGS)

FIGURE 7 - END LOAD OPERATION

FIGURE 6 - END LOAD OPERATION - LIP POSITION

Safety Leg

Chain

STORING LEVELER

1. To store the leveler, push and hold the RAISE button

until leveler is about 6 inches above dock level and

lip is fully pendant.

2. Release RAISE button. Leveler will lower to dock

level with lip resting in the lip supports. See figure 9.

NOTE: On Powered levelers with Automatic Return to

Dock (ARTD). If the lip is on the truck/trailer and the

truck departs, the leveler will move to its lowest

position and the lip will begin to lower. As the lip

drops toward the pendant position, the ARTD system

automatically returns the leveler to the stored position

without operator assistance.

10 Pub. No. 1210 - November 2009

RITE-HITE®RHH Dock Leveler Owner’s Manual

OPERATION INSTRUCTIONS POWERED LEVELERS CONT.

FIGURE 9 - LEVELER STORED

Table of contents

Other RITE-HITE Lifting System manuals

RITE-HITE

RITE-HITE Genisys HL-900 User manual

RITE-HITE

RITE-HITE DUAL-DOK 2200 User manual

RITE-HITE

RITE-HITE RHE-300 User manual

RITE-HITE

RITE-HITE Dok-Lok VBR-500 User manual

RITE-HITE

RITE-HITE LEVEL-RITE HL-800 Series User manual

RITE-HITE

RITE-HITE DOK-LOK VBR-400 User manual

RITE-HITE

RITE-HITE Hydra-Rite RHH-4000 User manual

RITE-HITE

RITE-HITE STR-4200 Dok-Lok User manual

RITE-HITE

RITE-HITE LEVEL-RITE LRL Series User manual

RITE-HITE

RITE-HITE PitMaster II User manual

RITE-HITE

RITE-HITE RHH50 User manual

RITE-HITE

RITE-HITE RHE-300 User manual

RITE-HITE

RITE-HITE Genisys HL-900 User manual

RITE-HITE

RITE-HITE Genisys AL-900 User manual

RITE-HITE

RITE-HITE Mechanical Dock Leveler Hydraulic Conversion Operating instructions

RITE-HITE

RITE-HITE Genisys ML-900 User manual

RITE-HITE

RITE-HITE RHV Series User manual

RITE-HITE

RITE-HITE APB-1000 User manual

RITE-HITE

RITE-HITE RHA-4000 User manual

RITE-HITE

RITE-HITE Wheel-Lok GWL-2300 User manual

RITE-HITE

RITE-HITE LEVEL-RITE HL-800 Series User manual

RITE-HITE

RITE-HITE Wheel-Lok MWL-1300 User manual

RITE-HITE

RITE-HITE RHE3 User manual

RITE-HITE

RITE-HITE LRL User manual

Popular Lifting System manuals by other brands

morse

morse 82H-124 Operator's manual

Braun

Braun NL955 Series Operator's manual

haacon

haacon 1889.10 quick start guide

Protekt

Protekt AT 252 instruction manual

R. Beck Maschinenbau

R. Beck Maschinenbau HS 600 operating manual

Nova Technology International, LLC

Nova Technology International, LLC NAS Series quick start guide

Genie

Genie Z-60/34 Operator's manual

Screen Technics

Screen Technics INTERFIT Vertical Up Lift instructions

Mortuary Lift

Mortuary Lift ULTIMATE 1000 instructions

Custom Equipment

Custom Equipment Hy-Brid 3 Series MAINTENANCE & TROUBLESHOOTING MANUAL

Custom Equipment

Custom Equipment Hy-Brid Lifts 2 Series Maintenance and troubleshooting manual

Hy-Brid Lifts

Hy-Brid Lifts HB-P3.6 MAINTENANCE & TROUBLESHOOTING MANUAL

BERG

BERG BeNomic EasyLeaf Technical manual

Powermate

Powermate LiftGate LG-3 Installation & operation manual

Snorkel

Snorkel TM12 Series Operator's manual

Terberg

Terberg OMNIDEKA Translation of the original instructions

Harmar Mobility

Harmar Mobility AL625 Installation & owner's manual

Rotary

Rotary SPO16 installation instructions
