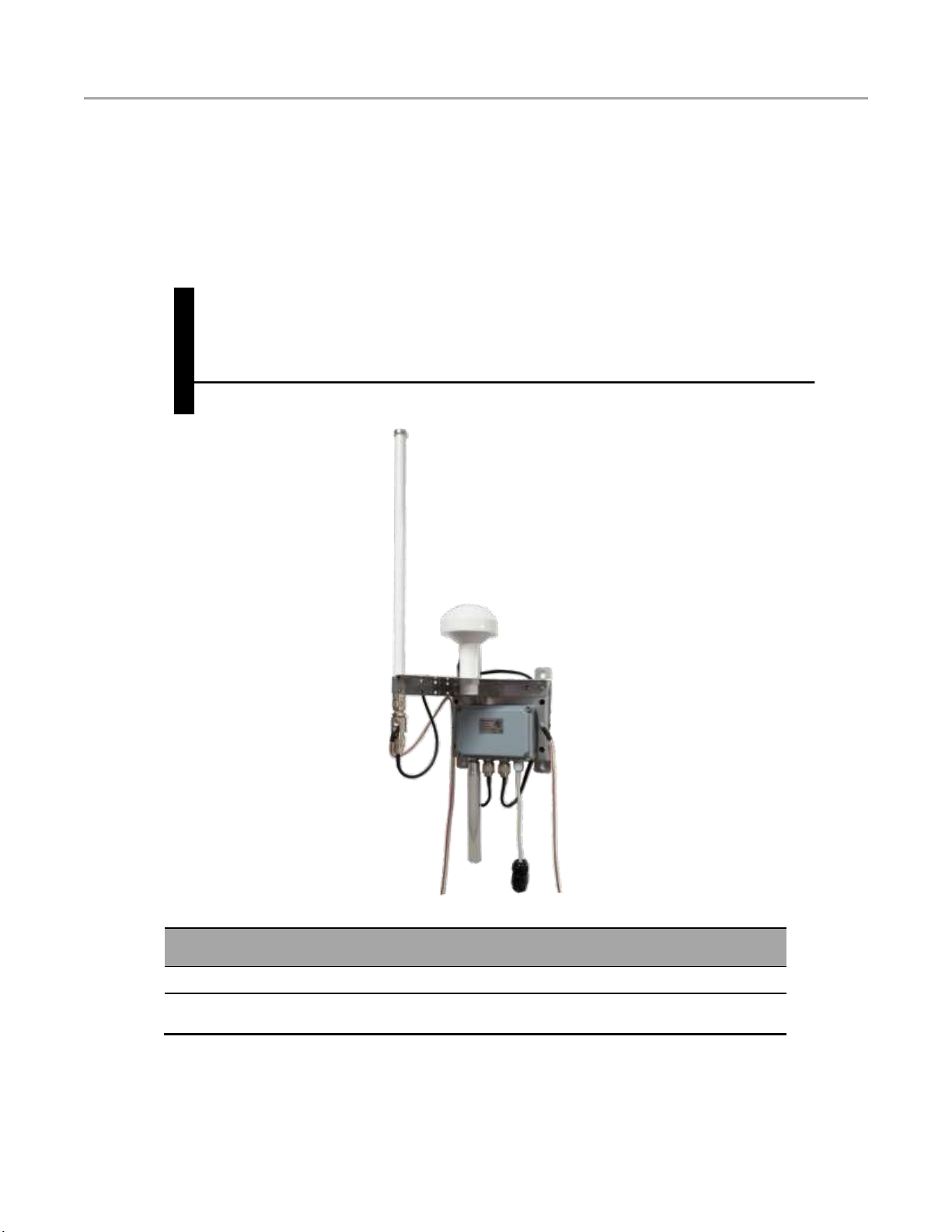

RisingHF RHF2S008P4G User manual

LoRaWAN IOT Gateway RHF2S008P4G Installation Guide

RisingHF

Document information

Info

Content

Keywords

RisingHF, LoRaWAN, Installation, Lighting surge protection

Abstract

This document describes how to install and use RisingHF

RHF2S008 LoRaWAN IoT Gateway.

UM01749

LoRaWAN IOT Gateway RHF2S008P4G Installation Guide

V0.5

LoRaWAN IOT Gateway RHF2S008P4G Installation Guide

RisingHF

Content

Content.................................................................................................................................................. 2

Figure.................................................................................................................................................... 3

Table ..................................................................................................................................................... 3

1 Preface............................................................................................................................................... 1

2 RHF2S008P4G appearance............................................................................................................... 2

3 Installation ..........................................................................................................................................3

3.1 Mechanical size............................................................................................................................ 3

3.2 Install the Gateway.......................................................................................................................4

3.2.1 SIM Card Installation (For Mobile Cellar User Only)............................................................... 4

3.2.2 Device Installation..................................................................................................................5

3.2.3 RF Connector and Lightening Protection Waterproof Enhancement (Only For Outdoor

Installation)................................................................................................................................... 10

3.2.4 PoE input............................................................................................................................. 11

3.3 Lightening Protection Cautions................................................................................................... 14

3.4 Performance enhancement when installation............................................................................. 15

Revision............................................................................................................................................... 16

LoRaWAN IOT Gateway RHF2S008P4G Installation Guide

RisingHF

Figure

Figure 2-1 RHF2S008 appearance........................................................................................................2

Figure 3-1 RHF2S008 appearance........................................................................................................3

Figure 3-2 RHF2S008 Mechanical size..................................................................................................4

Figure 3-3 SIM card insert ..................................................................................................................... 4

Figure 3-4 Fix the GW to the main fixture...............................................................................................6

Figure 3-5 Fix antenna to the fixture ......................................................................................................9

Figure 3-6 4G antenna installed.............................................................................................................9

Figure 3-7 GPS antenna installation .................................................................................................... 10

Figure 3-8 RF Connector and Lightening Protection Water Proof Enhancement.................................. 11

Figure 3-9 Guide for PoE connection................................................................................................... 13

Figure 3-10 RHF2S008P4G fixed in field............................................................................................. 14

Figure 3-11 Suggested GW installation in field .................................................................................... 15

Table

Table 3-1 package list............................................................................................................................3

V0.5 2017-04-08

www.risinghf.com

LoRaWAN IOT Gateway RHF2S008P4G Installation Guide

RisingHF

1 Preface

This document (from v0.4) is the installation guide of RHF2S008P4G, an industrial LoRaWAN gateway.

For the old version RHF2S008A4G, please refer to the v0.3.

RHF2S008P4G LoRaWAN gateway is designed and produced by RisingHF, which is an 8 channel

industrial gateway based on LoRaWAN protocol with PoE function. This document targets to help

customer or installer to install the gateway in field easily but with high reliability. Please contact with us

by email support@risinghf.com for more information.

V0.5 2017-04-08

www.risinghf.com

LoRaWAN IOT Gateway RHF2S008P4G Installation Guide

RisingHF

2 RHF2S008P4G appearance

Figure 2-1 RHF2S008 appearance

LoRa

PoE

GPS

V0.5 2017-04-08

www.risinghf.com

LoRaWAN IOT Gateway RHF2S008P4G Installation Guide

RisingHF

3 Installation

Table 3-1 package list below show the list of materials in the package.

Table 3-1 package list

Material

Qty

RHF2S008P4G

RHF2S008P4G-xxx

PoE injector

PoE30G-AT

LoRaWAN Antenna

RXHF-ANTxxx-GF

Fixed collar for LoRaWAN antenna

Screw for collar

M3x6

4G Antenna

RXHF-ANT4G

GPS Antenna（N-type，70cm）

RXHF-ANTGPS

Wire for Ground

1.5m length

Fixture

Screw to fix GW（Inner hexagonal M5）

Inner hexagonal M6x8

Screw to fix the auxiliary fixture

M5x10

Screw for ground

M5x10

Surge protector

N-JK-G-Y-6

RF cable（connect the antenna to GW）

N（Male）--KSR200（80cm）--N（Female）

Box for package

50x26x12 cm

3.1 Mechanical size

Figure 3-1 RHF2S008 appearance

LoRa

PoE

GPS

V0.5 2017-04-08

www.risinghf.com

LoRaWAN IOT Gateway RHF2S008P4G Installation Guide

RisingHF

Figure 3-2 RHF2S008 Mechanical size

3.2 Install the Gateway

3.2.1 SIM Card Installation (For Mobile Cellar User Only)

If the user need use mobile cellar network, please insert the SIM card and test before go to the

field. Installation procedrues:

i) Open RHF2S008 device with M5 hex wrench;

ii) Insert the SIM card like shown below:

Figure 3-3 SIM card insert

i) Install the LTE-4G antenna, and try the network connection via LTE-4G

ii) If test successfully, close cover of the gateway and tighten the screws with hex wrench.

V0.5 2017-04-08

www.risinghf.com

LoRaWAN IOT Gateway RHF2S008P4G Installation Guide

RisingHF

3.2.2 Device Installation

Fix gateway to the main fixture, as the below picture shows:

（1）

（2）

V0.5 2017-04-08

www.risinghf.com

LoRaWAN IOT Gateway RHF2S008P4G Installation Guide

RisingHF

（3）

Figure 3-4 Fix the GW to the main fixture

Fix the auxiliary fixture to the main fixture.

（1）The auxiliary fixture and main fixture

V0.5 2017-04-08

www.risinghf.com

LoRaWAN IOT Gateway RHF2S008P4G Installation Guide

RisingHF

、

（2）auxiliary fixture to main fixture

Fix LoRaWAN antenna to the antenna fixture;

（1）LoRaWAN antenna fixture position
