RIMOO Kiri User manual
Rimoo (Foshan) Electrical Appliances Co., Ltd.
Kiri Intelligent Air Humidifier
Instruction Manual
1) Use at normal ambient temperature (5°C -40°C)；
2) Place on the leveling position to avoid slant;
3) Do not directly use the humidifier on the wood floor to avoid damp, deformation or damage;
4) Use the humidifier away from the furniture and home appliances for more than 2 meters for
use to avoid damp;
5) Keep the humidifier away from thermal source and avoid direct sunlight;
6) Must not inject hot water above 40°C to the water tank and slot to avoid damage of machine;
7) Pour the water out of the water tank to avoid damage of machine due to freeze at ambient
temperature under 0°C
8) DO NOT put the metal, chemical medicine and detergent into the water tank, otherwise, there
will be poor atomization
1. DO NOT unplug with wet hands to avoid electric shock;
2. DO NOT dismantle, repair or modify without authorization;
3. The power cord shall neither be scratched, damaged, knotted nor pressed with weight,
clamped nor processed. Otherwise, Electric shock, short circuit or fire may incur.
4. DO NOT replace the power supply without authorization. Immediately unplug and contact
5. The damaged power line must be replaced by the manufacture or its servicing department
or similar professional servicing department or specialist to avoid danger. Private
replacement is not allowed.
6. DO NOT separate the water tank during the operation;
7. The machine is for indoor use only;
8. Unplug in the thunderstorm weather or for long-term nonuse.
DO NOT make children or the person without ability of daily living operate the humidifier.
Nozzle
Control box
Inner lid
Oscillator
Muffler
Connector
Water tank
Kiri humidifier atomizes the water to be ultrafine particles with size of 1-5 micron in the principle
that ultrasonic wave generates 1.7 million times of high-frequency oscillation per second, and
diffuses the water mist to the air through pneumatic device, so as to evenly humidify the air.
The humidifier can maintain ideal humidity in the living room, and avoid generation for static
electricity.
The humidifier is top water filling directly into the tank for convenient use. All parts in contact
with water are washable for easy cleaning and maintenance.

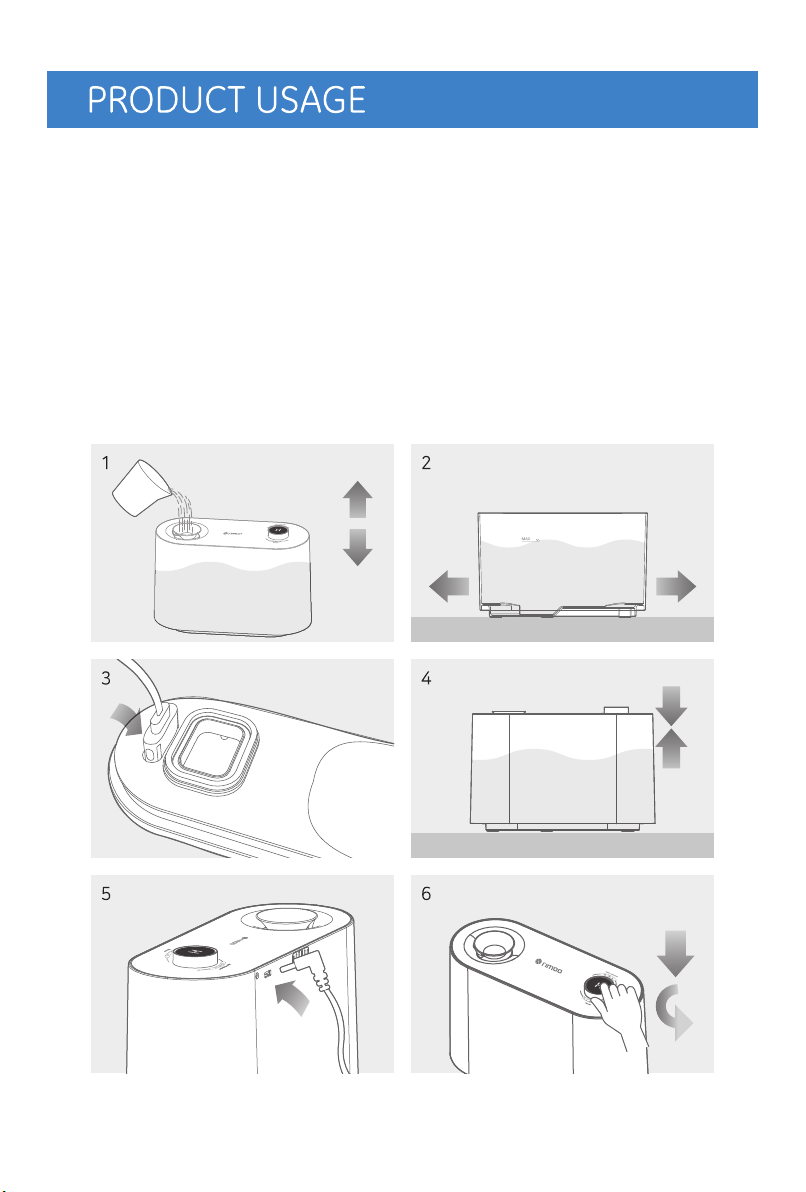

1. Unpack and put the humidifier on the leveling table top;
2. Take off the lid cover and inner lid, pour water into water tank below Max level;
3. Make sure the sealing ring is placed onto the inner lid;
4. Connect the oscillator terminal onto the inner lid socket;
5. Place the inner lid with oscillator into the water tank, there is a flute on the inner lid to match
the emboss of the tank to make sure the right direction, please notice;
6. Place the mist nozzle assembly onto the top, you can also pour water into the water tank
through the mist hole when product working;
7. Power on the product, turn the knob the left to choose the timer and right to select the mist
volume H M L. Product start working;
8. Turn the mist nozzle as you want at 360° direction.
Knob Control And LED Display
1. Power on, and LED light on and run a circle.
2. Pressure the button, product start working, LED show “H”, product work at the max mist level.
3. Turn the knob right, LED change from H to M to L and repeat a circle. Keep the data you choose
and the humidity level is set.
4. Turn the knob left, LED change from “0” to “9” and repeat to choose the timer. After you choose
the timer you want, just keep it and the timer set. “0” means no timer setting and it will keep
working until no water inside.
5. After you set the humidifier level and timer, LED will exchange between two setting by 5 second.
6. Low water indicator: “L” Blinking indicator when water level is low.
1) Take out the lid cover and all other parts can be washable
2) Take out the oscillator and wash with cleaning brush.
3) Move the silicon ring from the inner lid and wash with cleaning brush
4) Wash the water tank and inner lid by cloth or cleaning brush.
All parts in contact with water are washable.
You can fill water into the water tank or through the mist hole.
Light out, no air and no mist?
Cause analysis: Not plug in or something wrong
Handling:
Reconnect the power. If the humidifier still can not be operated normally, please timely contact
Light on, no air and no mist?
Cause analysis: Too high water level in the water tank
Handling:
Pour out some water in the water tank below the max line.
Model: Kiri
Innovative air humidifier for health and easy operation
• Two way top water filling, from the nozzle or directly into tank
• Whisper-Quiet technology
• All parts in contact with water are washable and easy cleaning
• Working mode: Ultrasonic
• Water tank capacity: 4.5L
• Mist volume: H/M/L, Max 280ml
• Max working time: 13 hours (9 hours timer)
• Power input : 24VDC 24W or 24VDC 1A
• Knob control: turn left to choose timer (1-9 hours)
• Turn right to choose mist level
• Low water indicator: “L” blinks when water level low
• Overheat protection
