1 Mechanical Installation
1.1 Visual Check
After unpacking the frequency converter, perform a thorough visual check.
Check the following:
●Has the right device been supplied?
●Is the device damaged?
●Check the case for transport damage such as scratches, cracks or dents.
If you find a deviation from one of the above points, please contact your
Bosch Rexroth sales partner.
1.2 Ambient Conditions
If it is to function perfectly, the frequency converter must be installed in an envi-
ronment matching the data provided below.
Rated ambient temperature -10...40 °C (No derating)
Derating / ambient temperature Derating① (40...50 °C)
Rated altitude ≤ 1,000 m (No derating)
Derating / ambient temperature 1 % / 100 m (1,000...4,000 m)
Relative humidity ≤ 90 %
Degrees of protection IP 20 (Control cabinet mounting)
①: Refer to "9.3: Derating of Electrical Data" in the Instruction Manual.
Tab. 1-1: Ambient conditions
Bosch Rexroth AG
Mechanical Installation
DOK-RCON02-FV*********-IN05-EN-P 1/39
1.3 Installation Conditions
Depending on rating, the frequency converters are available in different sizes. In
order not to affect device cooling, the frequency converter must always be in-
stalled upright. For perfect heat dissipation, the minimum installation spacing
above and below the devices shown in the drawing must be observed.
Fig. 1-1: Installation conditions
●The frequency converter shown above is Frame 1. The minimum
installation spacing stated applies to Frame 1 to Frame 7.
●Frequency Converter Fv has no side ventilation hole, which ena-
bles parallel mounting of Fv with zero distance.
●If one frequency converter is arranged above another, make sure
the upper limit of air temperature into the inlet is not exceeded
(see chapter 1.2 "Ambient Conditions" on page 1). A baffle plate
is recommended between the frequency converters to prevent the
rising hot air being drawn into the upper converter if the upper
limit of air temperature is exceeded.
Bosch Rexroth AG
Mechanical Installation
2/39 DOK-RCON02-FV*********-IN05-EN-P
1.4 Dimensions
Frame Fv
model
Dimensions [mm] Screw
size
Net
weight
[kg]
B b T t H h h1 d D L1
1
0K40
0K75
1K50 125 75 122 1.5 275 300 315 5.5 127 5.5 M5 2.7
2K20 2.8
2
4K00
150 100 157 1.5 330 365 380 6.5 162 6.5 M6
4.8
5K50
7K50 4.9
311K0 175 100 199 2 398 432 448 6.5 204 6.5 M6 8.8
15K0 9.0
418K5
22K0 225 125 227 3.5 440 482 500 9 232 9 M8 16.5
530K0
37K0 250 150 251.5 3.5 525 567 585 9 256.5 9 M8 22.0
645K0 325 200 265 3.5 650 690 712.5 9 270 9 M8 37.0
55K0 39.0
775K0 450 300 302.5 4 700 754 779 11 307 11 M10 56.7
90K0 58.0
Tab. 1-2: Dimensions
Bosch Rexroth AG
Mechanical Installation
DOK-RCON02-FV*********-IN05-EN-P 3/39

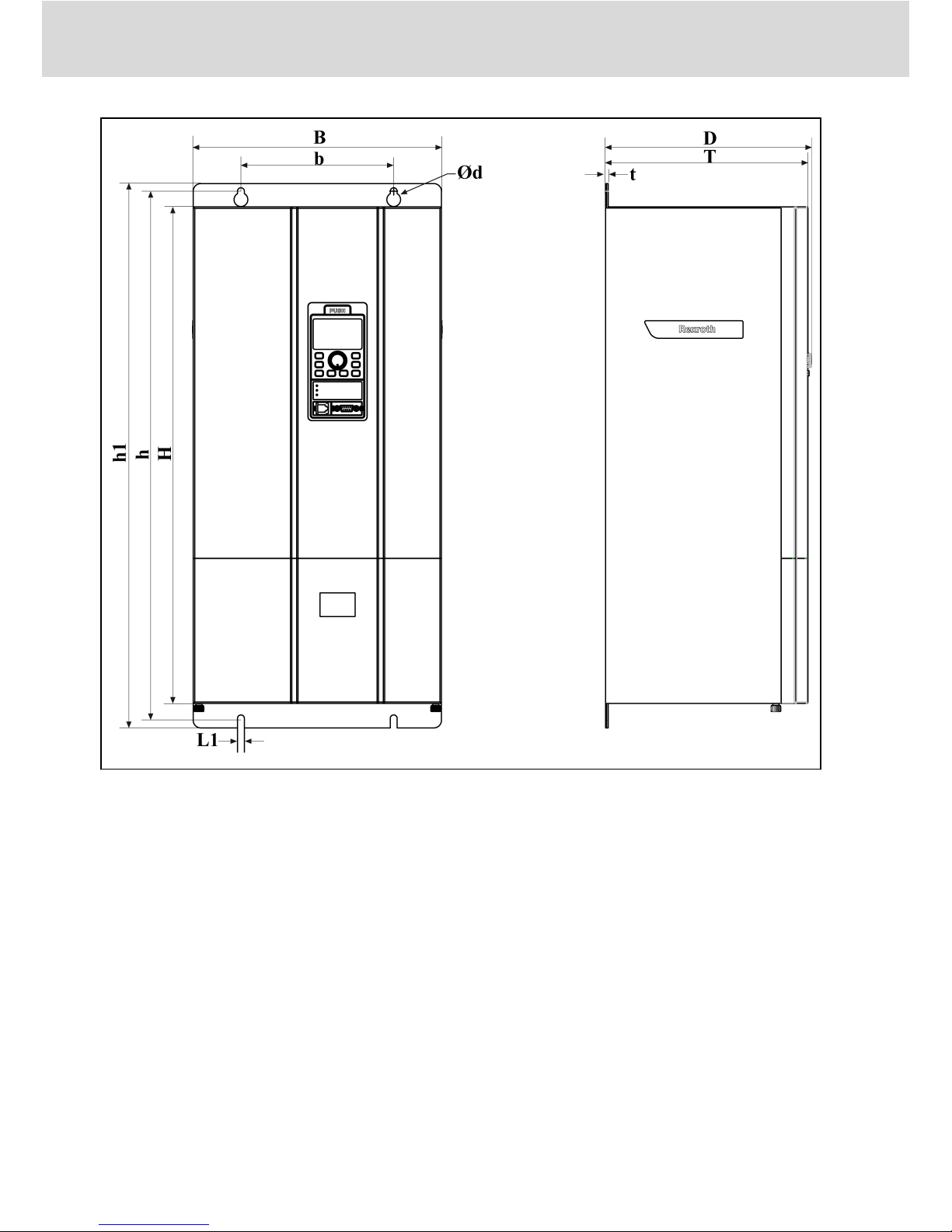

Fig. 1-2: Frame 1, 2, 3
Bosch Rexroth AG
Mechanical Installation
4/39 DOK-RCON02-FV*********-IN05-EN-P
Fig. 1-3: Frame 4, 5
Bosch Rexroth AG
Mechanical Installation
DOK-RCON02-FV*********-IN05-EN-P 5/39
Fig. 1-4: Frame 6, 7
Bosch Rexroth AG
Mechanical Installation
6/39 DOK-RCON02-FV*********-IN05-EN-P
