Reveal RS1-SX User manual
V 1.0
RS1 S X
RS1 - SX Quick Start and User ManualRS1 - SX Quick Start and User Manual 2 3

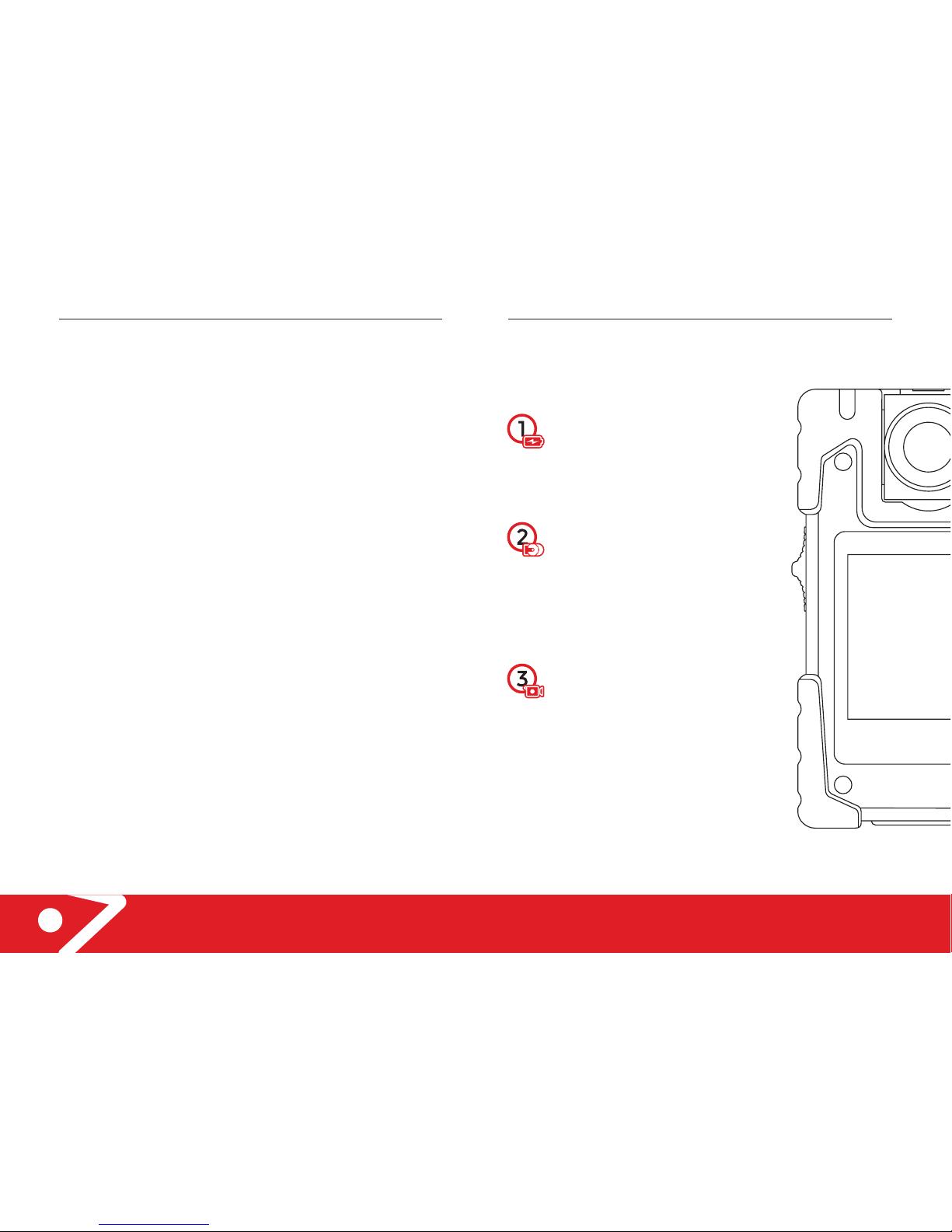

Introduction
Welcome to our most
straightforward body camera.
For your convenience, the
camera is set up and ready to
go in three easy steps.
Charge
Charge the camera for
three hours or until the
blue light turns off.
Mount
Choose how to mount
your camera; you can
use either the Klickfast
attachment, clips or a
lanyard.
Record
Slide the red switch
down to start recording.
To stop recording, slide
the red switch up.
Quick start Quick start
RS1 - SX Quick Start and User ManualRS1 - SX Quick Start and User Manual 4 5

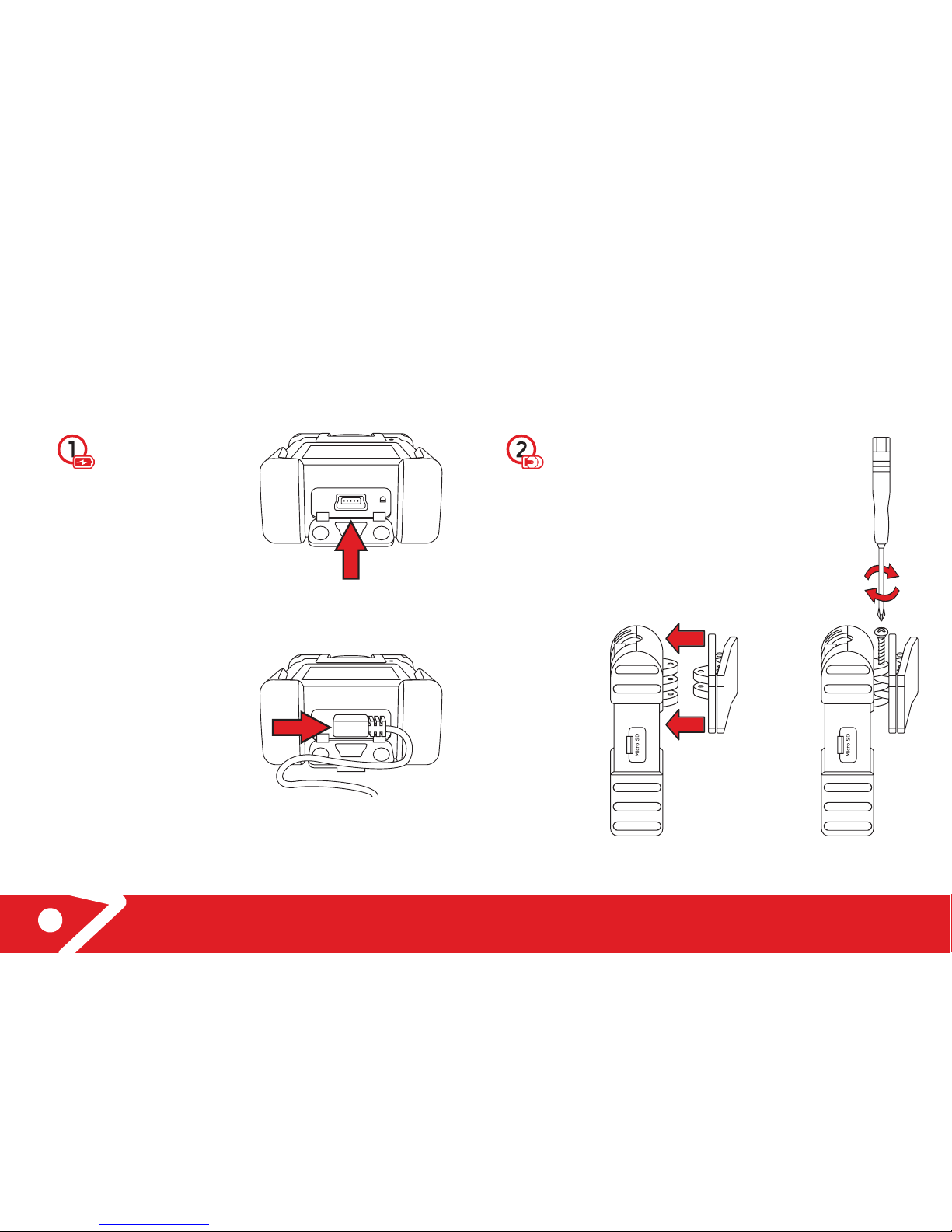

Charge
Open the cover on the
bottom of the camera.
Mount
Choose your mount:
• Klickfast stud
• Shirt clip (adjustable for male
and female shirts)
• Pocket clip (for use with
lanyard)
Quick start Quick start
Slot clip into
place, ensuring
the 2 plates on
the clip are
between the 3
plates on the
back of the
camera, and
align the holes.
Place the screw
through the top hole,
into the clip, and
tighten at the desired
angle with supplied
screwdriver.
Insert the mini USB into
the port and connect to a
computer or plug in to
charge.
NOTE: This is the same
cable that will upload
video to a computer.
RS1 - SX Quick Start and User ManualRS1 - SX Quick Start and User Manual 6 7

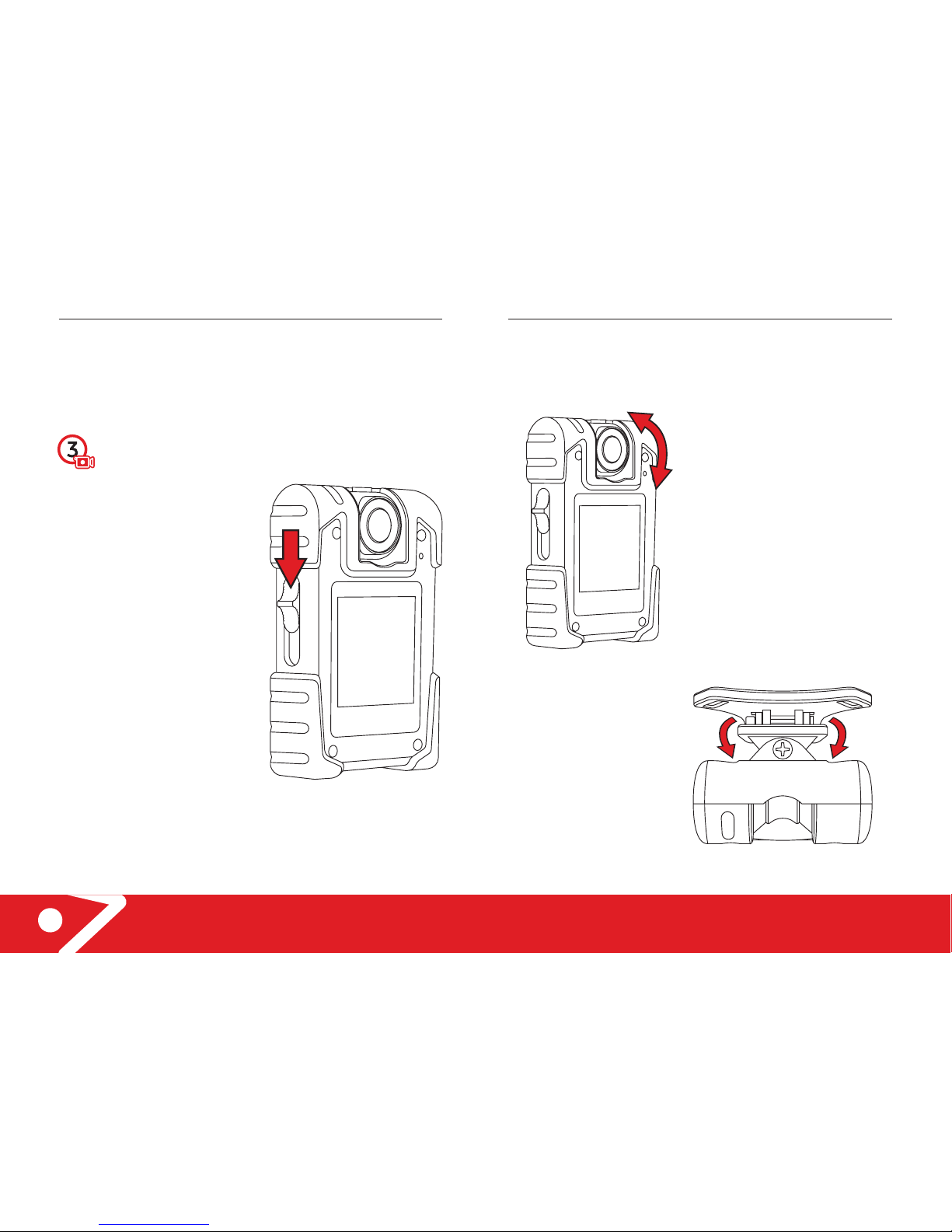

Quick start Operation
Record
Pull down the red switch
to record.
As confirmation:
• The camera will beep
three times.
• The LED and the
recording icon on the
screen will flash red.
Pull the switch back up
to stop recording.
As confirmation:
• The camera will beep
twice.
• The lights will stop
flashing and the
camera will turn off.
Camera articulation
The camera head rotates
110° vertically.
Camera rotation
To set the RS1-SX to sit
correctly against the
body, fasten to the
desired angle by
tightening the screw at
the top of the camera.
RS1 - SX Quick Start and User ManualRS1 - SX Quick Start and User Manual 8 9
OperationOperation

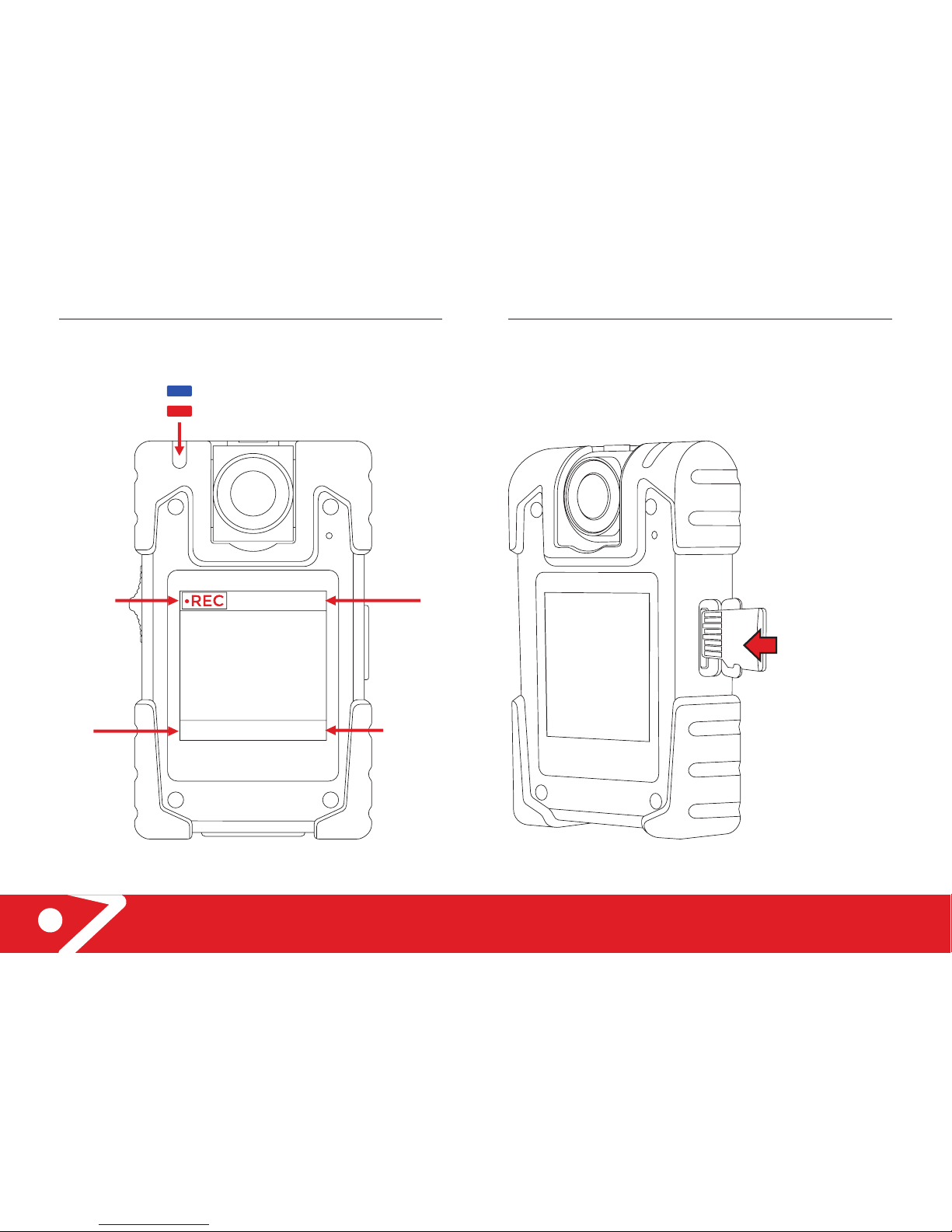

Charging via USB (off when charged)
Recording (flashing)
On when connected to PC (via USB)
Flashing
record
indicator
Micro SD
card space
remaining
Micro SD card
(up to 32Gb)
NOTE: Recordings will
stop automatically
when the card is full.
2015-01-27
14:52:10 508MB
Time
HH:MM:SS
Date
YYYY-MM-DD
Select RS1
RS1 Utility
RS1 Setup
Please turn your RS1
off then on again
while still connected
to this computer
i
RS1B1234
WAITING TO FIND RS1
RS1 - SX Quick Start and User ManualRS1 - SX Quick Start and User Manual 10 11
Editing settings options Editing settings options

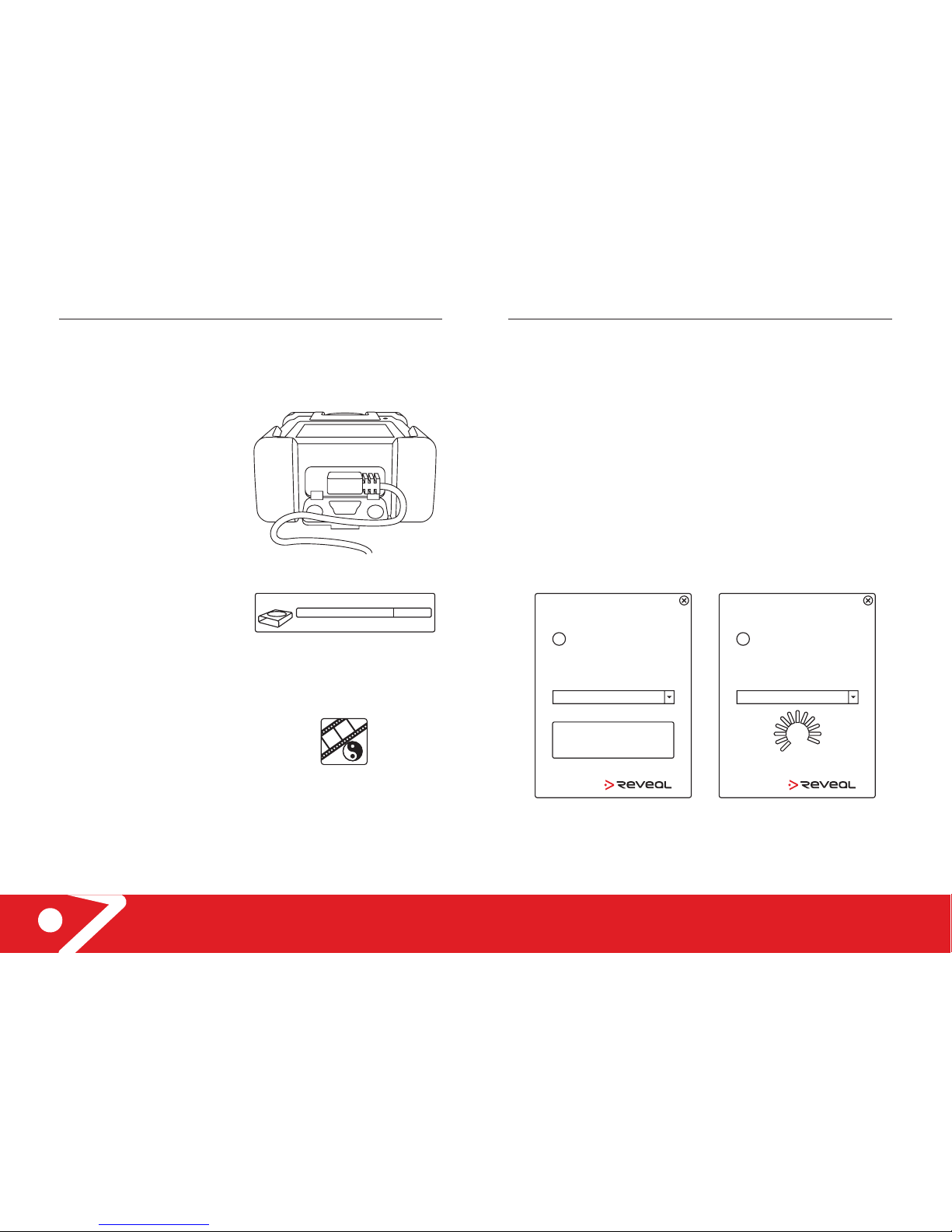

1. Connect RS1 - SX to
your computer’s USB
port and turn on the
camera.
2. Navigate to the
RS1-SX removable
disk drive on your
computer.
3. Double click on the drive and
you will see the following RS1
utility icon. Double click on this
to start the setup procedure.
4. This will launch the first of two screens. Follow the
instructions on these screens.
1. Select the RS1 - SX camera you want to change
settings on.
2. While still connected to the PC, turn off RS1 - SX
then turn it on again.
RS1 - SX (J:)
0.97 GB free of 3.62 GB
RS1 Utility.exe
Select RS1
RS1 Utility
RS1 Setup
Once you have clicked
the button below you
will need to turn off
your RS1 then turn it on
again
i
RS1B1234
Click to edit RS1 settings

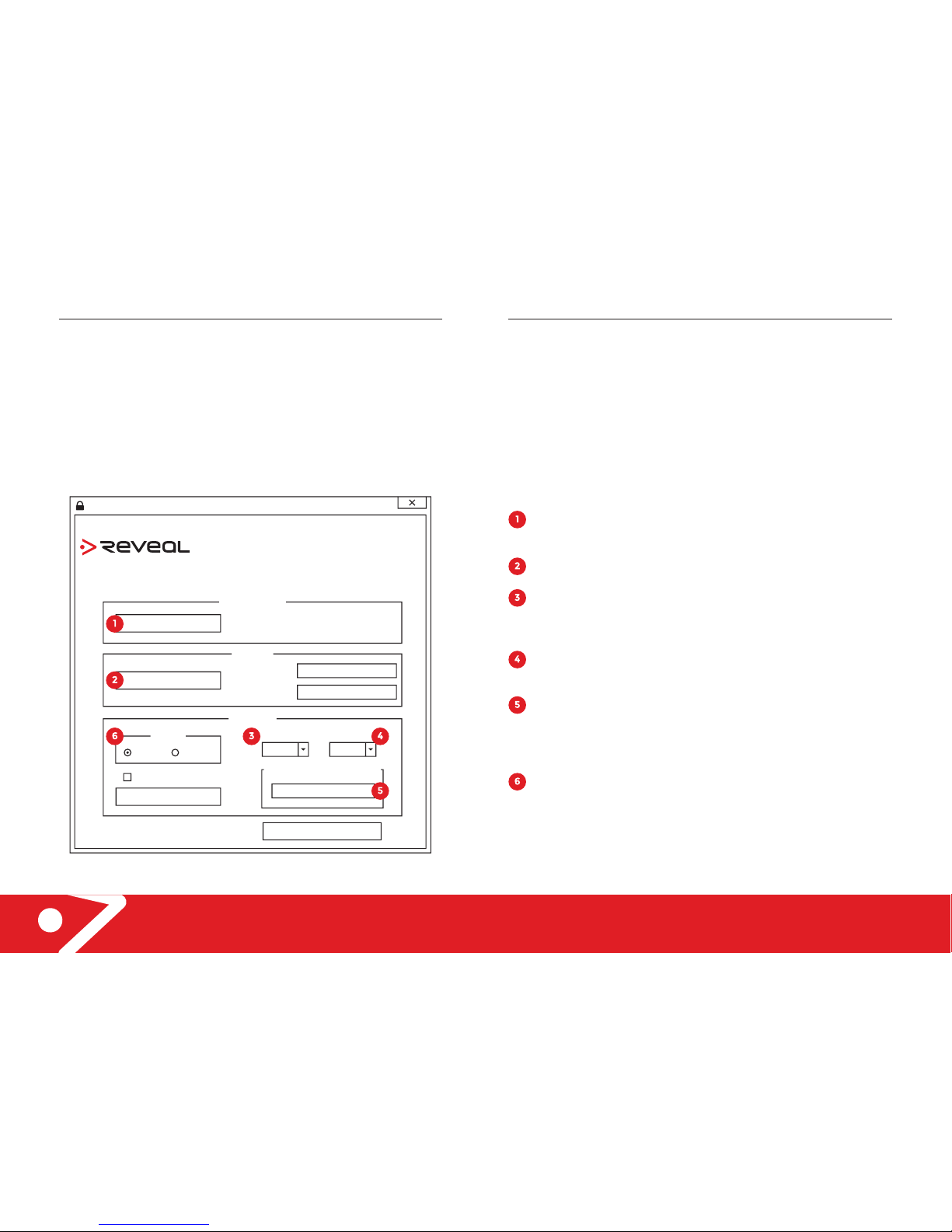

The following settings can be changed by
running the RS1 - SX setup utility:
Date and time: this takes the time from your PC
(ensure your PC’s clock is accurate).
Utility password: the default password is “admin”.
LCD screen off time: to conserve battery power, the
screen can be set to automatically switch off after the
time set in this option.
Split video: this setting will ensure that long recordings
are split into sections according to the length specified.
Machine ID: the unit has been assigned a unique
number during production that you may wish to
change. This sets the unit ID for the camera. The
machine ID must start with RS1B.
Enable/disable playback.
NOTE: You must click “Change Parameters” before
exiting.
RS1 - SX Quick Start and User Manual 13
Editing settings options
RS1 setup
Show Portrait
Change Parameters
Sync Date/Time
Sync Date/Time
Change Password
Syncronise RS1 to your PC’s Date & Time
Password
New Password
ConfirmPassword
Parameters
Playback
EnableDisable
RS1 Utility
Screen Off Split Video
1 min 30min
RS1B1234
Exit
Machine ID ( 9 Alphanumerics )
RS1 - SX Quick Start and User Manual 12
Editing settings options
Once you have rebooted the RS1 - SX, you will see the
following setup utility. Please enter the default password.
The default password is “admin”.
RS1 - SX Quick Start and User ManualRS1 - SX Quick Start and User Manual 14 15

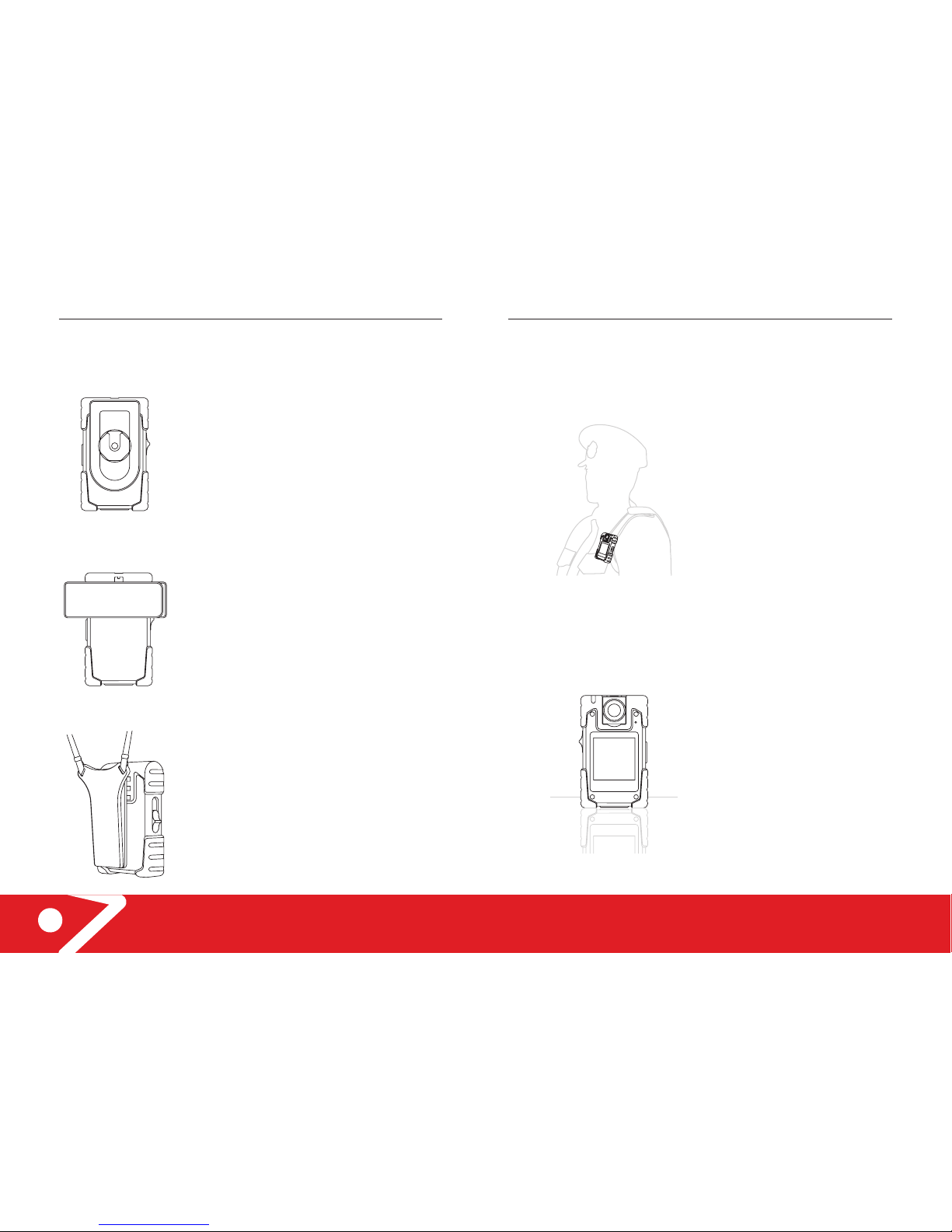

Mounting and usage options Mounting and usage options
Shirt clip
For use on a shirt (ajustable for
male and female shirts).
Pocket clip
For use with a lanyard around
the neck or attached to a pocket.
Harness
For use with loose fitting
clothes or uniforms.
(optional extra)
Table top
For use in interviews and
other static situations.
Klickfast
Attach the Klickfast to use with a
Klickfast dock.
